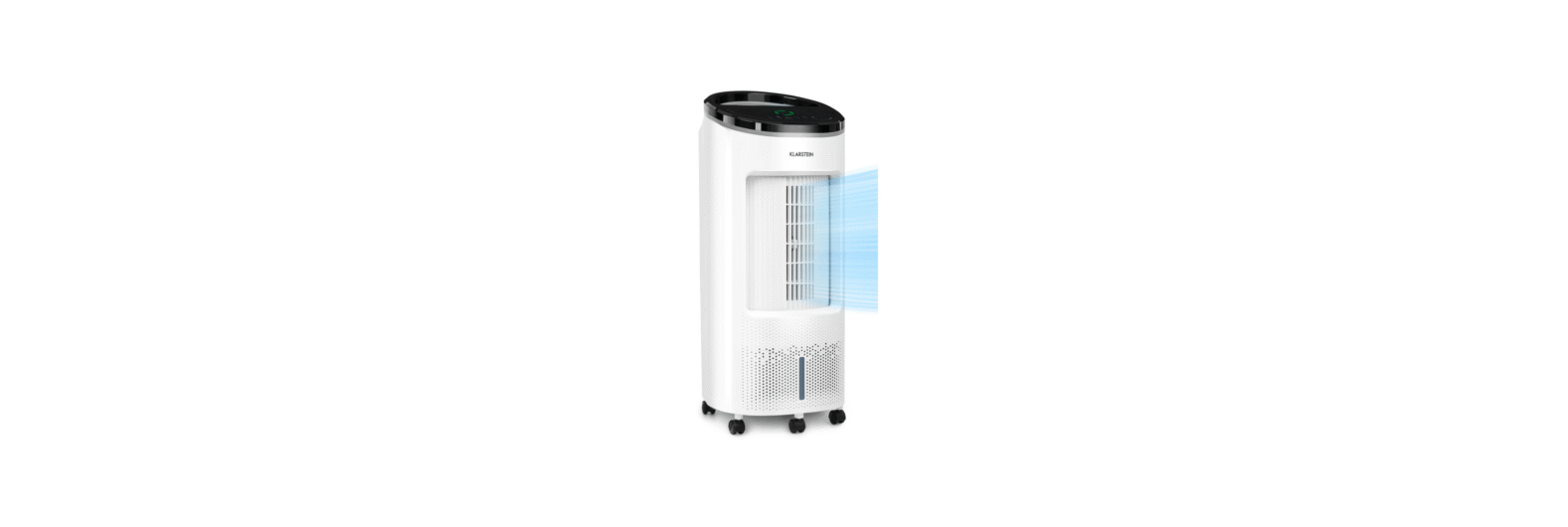

KLARSTEIN 10033433 ICEWIND PLUS Air Cooler
SAFETY INSTRUCTIONS
- Check the voltage on the rating plate before use.
- Only connect the appliance to sockets that correspond to the voltage of the appliance.
- Do not operate the appliance if the cable or plug is damaged.
- Indoor use only.
- Do not cover the machine while in use.
- Place the appliance on a stable, flat, horizontal surface.
- Make sure the appliance is in an upright position during use.
- Ensure the appliance is switched off before connecting to the mains power supply.
- Keep new and used batteries away from children.
- If the battery compartment does not close securely, stop using the product.
Description
- Upper cover
- Control panel
- Remote sensor
- Decorative ring
- Air outlet
- Front bowl
- Rolls
- Remote control
- Back
- Filters
- Filter frame
- Water tank
- Power cord
Control Panel & Key Function
Installation
- Draw out half of the water tank, then add water (see map 2).
- Pay attention to the level of the water tank when adding water. (map 3)
- The level of the ater tank should not exceed over “MAX” scale at any time. When humidifying, the total level of the water tank should not fall below the “MIN” scale.
- Add ice or the frozen cooling packs if you want to maximise the cooling effect of the device. Note that the water level indicator must still not exceed the maximum mark.
Use of the cooling packs
The cooling packs have a special cold-holding function. They can absorb heat and lower the water temperature to a temperature below the ambient temperature. How to use the cooling packs:
- Place the cooling packs in the freezer and wait until the cooling packs are completely frozen.
- Pull out the water tank and place the cooling packs inside.
- Two cooling packs are included in the scope of delivery so that they can be used alternately or together.
Operation
- As soon as the device is switched on, all displays light up briefly.
- A double signal sounds, the air outlet moves back from the current angle to 0 °, and the unit switches to Standby mode.
- If you do not take any action for more than 1 minute, the display will darken to 33 % of the original brightness. Press any button to turn the display back on.
- On/Off: Press the button to start the unit in normal wind mode. The air outlet opens automatically. Press the button again to return to standby mode. The fan stops, and the outlet closes automatically. To turn the unit off completely, unplug the appliance from the wall outlet.
- Wind speed: After the device has been switched on, the device is in normal wind mode. Press the button several times to set one of the following wind speeds: high > medium > low > or quiet. If you select “low“, the fan will first run at medium speed and then change to low speed.
- Timer: Press the button several times to select one of the following settings: 1 hour > 2 hours > 4 hours > 8or hours. If the corresponding LED is off, no timer is active. After you have selected the desired time, the corresponding indicator lights up on the display. As soon as the time has elapsed, the unit switches off and the display goes out.
- Swing: Press the button to swing the unit to the right and left. Press the button again to stop the oscillation.
Cleaning & Care
- Turn the power off and unplug the power cord. Always disconnect the power plug before cleaning to avoid electric shock or mechanical damage.
- Use a commercially available cleaning agent and a soft brush for cleaning. Do not use chemical cleaners.
- Wipe the surface with a damp cloth. Do not use water, as it may penetrate the unit and damage the electronics.
- Do not use corrosive cleaning agents or solvents.
Storage
- If the product will not be used for an extended KLARSTEIN 10033433 ICEWIND PLUS Air Cooler period of time, unplug the power cord and wrap the product to prevent dust from entering the housing.
- After packing, store in a dry, ventilated place.
Technical Data
| Item number | 10033433, 10035785 |
| Power supply | 220-240 V ~ 50-60 Hz |
| Power consumption | 65 W |
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following KLARSTEIN 10038383 FIRE SMART Fireplace Heater instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
FAQs
Q: What type of device is the Icewind Plus? Is it an air conditioner?
Ans: No. The Klarstein Icewind Plus is not a conventional air conditioner; rather, it is an air cooler. It lowers the temperature of the air by using evaporative cooling, commonly known as swamp cooling. It functions best in dry, well-ventilated areas and doesn’t require refrigerant or an exhaust hose.
Q: How do I fill the water tank, and how much does it hold?
Ans: To improve cooling, open the water tank door or rear panel and fill it with ice water or cold tap water. Usually, the Icewind Plus can contain between 5.5 and 6 litres of water. To improve cooling efficiency, you can also use the ice packs that come with it.
Q: Can I use the air cooler without water?
Ans: Indeed. The Icewind Plus operates similarly to a standard fan when it is in fan-only mode.
Q: What is the best environment for using the Icewind Plus effectively?
Ans: This type of evaporative cooler performs well in arid settings with enough airflow.
Q: How often should I replace the honeycomb pad or filters?
Ans: The cooling pad and filters can endure for a season or more with routine cleaning. Only replace them if there are indications of structural damage, mould, or odour.
Q: Is there a child lock or safety feature?
Ans: This stops unintentional settings changes. When young children are near the device, always keep an eye on them.
Q: Is this model suitable for year-round use?
Ans: Yes, it may be used for air circulation even in the cooler months thanks to the fan-only mode. But for winter storage, clean the unit, drain all the water, and put it somewhere dry.
