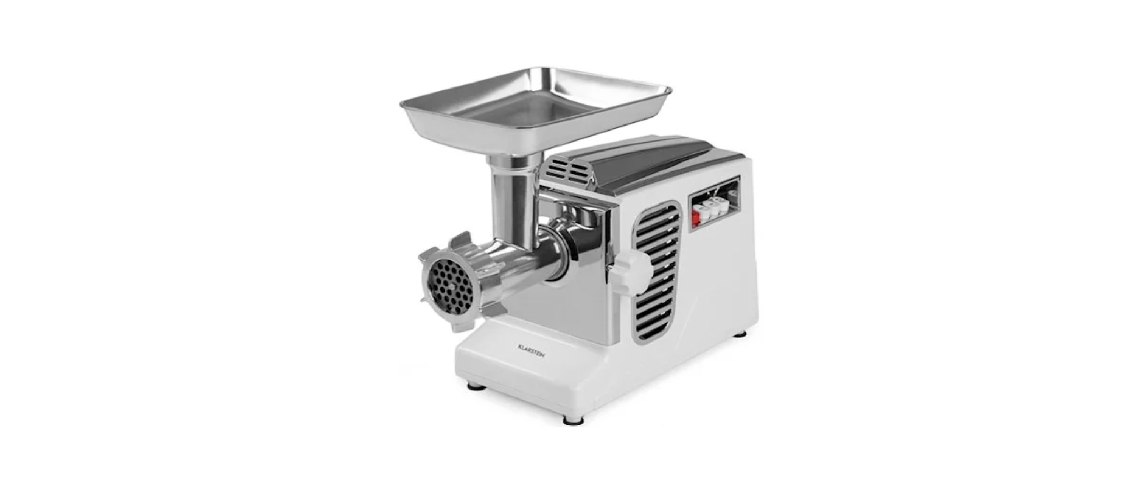

KLARSTEIN 10034215 KRAFTPROTZ Meat Grinder User Manual

KLARSTEIN 10034215 KRAFTPROTZ Meat Grinder

SAFETY INSTRUCTIONS

1. The device is not intended for commercial use, but only for household and similar environments.
2. This includes kitchens in offices, farms, hotels, motels, and Bed & Breakfasts.
3. Disconnect the plug before assembling or disassembling the appliance.
4. Only use the appliance under supervision when children are present.
5. When moving the unit, hold it by the housing with both hands.
6. Never hold it by the hopper plate or any other part of the unit.
7. Do not grind hard food such as bones or nuts in the mincer.
8. Do not crush fibrous foods such as ginger in the mincer.
9. Do not allow the mincer to run for more than 10 minutes at a time.
10. Let it cool for 10 minutes before using it again.
11. Wait 30 seconds after finishing the current process before using the reverse switch.
12. Doing so may damage the unit.
13. To avoid blockages, do not press the meat into the funnel under excessive pressure.
14. Never attempt to replace or repair permanently installed parts of the appliance yourself.

Before First Use

• Before use, check the voltage on the device badge. Connect the device only to sockets that correspond to the voltage of the device.
• Wash all accessories with warm water and a little detergent.
• Before plugging the appliance into a wall outlet, make sure that the appliance is switched off.

Overview

Assembly & Operation

• Hold the head and insert it into the connection. When inserting, make sure that the head is slightly inclined (see Figure 1). When you have inserted the head, turn it clockwise until it is firmly seated (see Figure 2).
• First insert the snail with the long end into the head and turn it slightly until it is seated in the motor housing (see Fig. 3). Place the cutter blade on the snail shaft as shown with the blade facing forward (see Figure 4). If the knife is not mounted correctly, the meat will not be minced.
• Place the desired perforated disc on the cutting blade (see Fig. 5). Hold the perforated disc with one hand while tightening the fixing ring with the other hand (see picture 6). Do not tighten the fixing ring too tightly.
• Mount the hopper plate on the head. Place the unit on a solid worktop. The air outlet on the floor and on the side of the motor housing should be kept free and not blocked.
• Before attaching the Kibbeh attachments, remove the perforated disc and the cutting blade.

• Place the Kibbeh attachments together on the snail shaft.

• Tighten the fastening ring. Do not overtighten it. Put the minced meat mixture for the rolls into the funnel and make minced meat rolls.
• Fill the finished minced meat rolls with the minced meat filling as shown below and fry or deep-fry them.

Mincing meat

• Cut all the food into pieces. We recommend that you use tendonless and boneless meat and cut it to a size of approximately 2 x 2 x 6 cm so that it fits easily into the funnel opening.
• Press the HIGH or LOW button to run the unit at high speed (HIGH) or low speed (LOW).
• Push the food into the funnel with the food pusher.
• After use, press STOP to stop the appliance. Remove meat residues by pressing the REVERSE button. Then pull the plug out of the socket.

Reverse function

• If a blockage occurs, press and hold the REVERSE button for 3-6 seconds. Then release the button. Unplug the appliance and remove the food from the head of the appliance.

Making Kibbeh (minced meat rolls)

Making sausages

• Place the cutting knife, one of the perforated discs (fine, medium, coarse), and the corresponding funnel (fine, medium, coarse) on the screw shaft and screw the fastening ring tight.
• Thread the sausage skin onto the sausage filling tube and knot the end. Make sure that the sausage casing is loosely filled, as the sausage expands during frying or cooking, and the casing can tear open.
• Press the sausage together at the end with your fingers and KLARSTEIN 10034215 KRAFTPROTZ Meat Grinder, turn it once or twice around its own axis.

Disassembly

• Make sure that the engine is completely stopped.
• Disconnect the plug from the socket.
• Disassemble the parts by performing steps 1-6 in reverse order (see below).

Cleaning & Care

• Switch off the device and unplug the plug from the socket.
• Allow the appliance to cool down completely.
• Clean the housing with a damp cloth using a mild detergent. Never clean the housing under running water, and never put it in water.
• Do not clean the unit with caustic or KLARSTEIN 10034215 KRAFTPROTZ Meat Grinder abrasive cleaning agents.
• The attachments are not dishwasher safe. These parts should only be cleaned in warm water with a small amount of detergent.
• When you have finished cleaning, attach the cable to the cable holder on the back and store the unit in a dry, clean place where children have no access.

Technical Data

Disposal

By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Environmental Safety

• During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

Customer Service

Manufacturer & Importer (UK)

• Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
• Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
• Website:  http://www.klarstein.com
• Scan the QR code to get access to the latest user manual for KLARSTEIN 10035380 ELEONORA Range Hood and more product information.

Dear Customer

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.

FAQs

Q: What types of meat can I grind with the Kraftprotz meat grinder?

Ans: For seamless operation, always make sure the meat is boneless, gently cooled, and sliced into little bits (about 2–3 cm).

Q: Can I grind bones with this grinder?

Ans: No. Grinding bones is not the purpose of the Kraftprotz. By doing this, the guarantee will be nullified, and the motor and cutting parts may sustain damage.

Q: What is the motor power of the Kraftprotz meat grinder?

Ans: The Kraftprotz can process up to 2–2.5 kg of meat per minute thanks to its strong 700-watt (rated) engine, which can provide up to 2000 watts of power.

Q: Can I use it for making sausages or kibbeh?

Ans: Indeed. This model comes with kibbeh and sausage stuffer accessories. To achieve the desired outcome, just make sure you utilise the appropriate plate and cone attachment and adhere to the accessory assembly instructions.

Q: Is it safe to put the parts in the dishwasher?

Ans: To avoid rust, especially on steel components, completely dry.

Q: How long can I operate the grinder continuously?

Ans: Run the grinder for no more than five minutes at a time, followed by a minimum of ten minutes for cooling down, for the best results and motor protection. Overheating may result from excessive use.

Q: Can I grind vegetables, nuts, or cheese with this unit?

Ans: The main purpose of the Kraftprotz is to prepare meat.

Q: Where should I store the grinder and accessories?

Ans: Preferably, keep it in its original packaging and store it somewhere cold and dry. Before storing, make sure every component is dry and clean. To stop rust, you can lightly lubricate the blade and grinding plates.
