KLARSTEIN 10035587 ICEBLOKK Freezer
Safety Instructions
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
- Risk of fire / flammable materials.
- Keep ventilation openings in the appliance enclosure or the built-in structure clear of obstruction.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Please abandon the freezer according to local regulators, for it uses flammable blowing gas and refrigerant.
- Do not pull the power cord when pulling the power plug of the freezer.
- Please firmly grasp the plug and pull it out of the socket directly.
- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases.
- Do not unplug the freezer and other electrical appliances, considering that a spark may cause a fire.

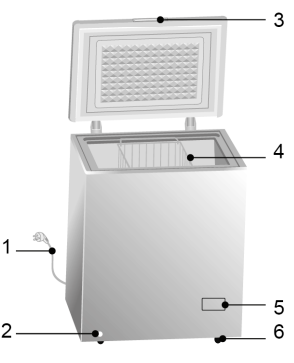

Description
- Power cord
- Drainage hole
- Door handle
- Shelving basket
- Control panel
- Wheel

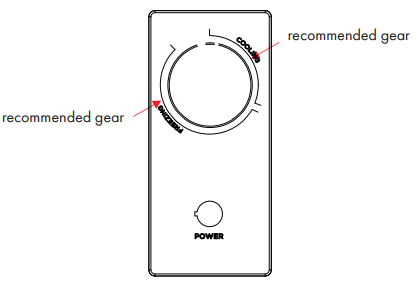

Control Panel
- Please electrify the chest freezer; the „POWER“ lamp will shine(green light).
- Rotate the thermostat knob clockwise, and the temperature inside the chest freezer will be lower and lower.
- COOLING means cooling zone, FREEZING means the freezing zone.
- „Recommended gear“, see the schematic marking position.
Before First Use
- Before use, remove all packing materials, including KLARSTEIN 10035587 ICEBLOKK Freezer bottom cushions, foam pads, and tapes inside the freezer; tear off the protective film on the doors and the freezer body.
- Keep away from heat and avoid direct sunlight. Do not KLARSTEIN 10035587 ICEBLOKK Freezer place the freezer in moist or watery places to prevent rust or a reduction of the insulating effect.
- Do not spray or wash the freezer; do not put the freezer in a moist place, easy to be splashed with water, so as not to affect the electrical insulation properties of the freezer.
- The freezer is placed in a well-ventilated indoor place; the ground shall be flat and sturdy (rotate left or right to adjust the wheel for levelling if unstable).
- The top space of the freezer shall be greater than 70 cm, and the freezer should be placed against a wall with a free distance of more than 20 cm to KLARSTEIN 10035587 ICEBLOKK Freezer facilitate heat dissipation.
Care & Cleaning
- The freezer is made based on the air-cooling principle and thus has an automatic defrosting function.
- Frost formed due to a change in season or temperature.KLARSTEIN 10035587 ICEBLOKK
- The freezer may also be manually removed by disconnection the appliance from the power supply or by wiping with a dry towel.
- Power failure: In case of power failure, even if it is in summer, food inside the appliance can be kept for several hours; during the power failure, the number of times the door is opened shall be reduced, and no more fresh food shall be put into the appliance.
- Long-time nonuse: The appliance shall be KLARSTEIN 10035587 ICEBLOKK Freezer unplugged and then cleaned; then the doors are left open to prevent odor.
- Moving: Before the freezer is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape.
- During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°.
Technical Data
- Item number: 10035587, 10035689
- Power supply: 220-240 V ~ 50 Hz
TROUBLESHOOTING
| Problem | Possible cause and suggested solution |
| Freezer no longer running | Make sure that the appliance is plugged in or that the plug is firmly plugged into the socket. |
| Check whether the mains voltage is too low. | |
| Determine if there is a power failure or a short circuit. | |
| Unpleasant smell | Food with a strong smell should be well-packed. |
| Check for spoiled food. | |
| Wipe out the inside of the freezer. | |
| Long-lasting operation of the compressor | Long use during the summer months and at high temperatures is not uncommon. |
| The appliance should not be overloaded with too much food. | |
| Food should cool down before it is put in the freezer. | |
| The doors are opened or left open too often. | |
| Doors do not close correctly. | The door is obstructed by packaging, etc.. |
| There is too much food in the freezer. | |
| Loud noises | Make sure that the floor is at ground level and that the freezer is stable. |
| Check whether accessories have been placed in the correct places. | |
| Surface condensation | Condensation on the outside surface and door seals is normal if the outside humidity is too high.
Wipe the condensate with a clean, dry cloth. |
| Abnormal noise | Buzz: The compressor may buzz during operation, and the buzzing is particularly loud during starting and stopping. This is normal. |
| Creaking: Coolant flowing in the unit can cause a creaking, which is normal. |
PRODUCT DATA SHEET
Information according to Regulation (EU) No. 2019/2016
| Supplier’s name or trademark: Klarstein | ||||
| Supplier’s address: Wallstraße 16, 10179 Berlin, DE | ||||
| Model identifier: 10035587 | ||||
| Type of refrigerating appliance: | ||||
| Low-noise appliance: | No | Design type: | freestanding | |
| Wine storage appliance: | No | Other refrigerating appliance: | Yes | |
| General product parameters: | ||||
| Parameter | Value | Parameter | Value | |
| Overall dimensions (mm) | Height | 850 | Total volume (dm³ or L) | 99 |
| Width | 565 | |||
| Depth | 523 | |||
| EEI | 125 | Energy efficiency class | F | |
| Airborne acoustical noise emissions (dB(A) re 1 pW) | 41 | Airborne acoustical noise emission class | C | |
| Annual energy consumption (kWh/a) | 211 | Climate class: | extended temperate, temperate,
subtropical, tropical |
|
| Minimum ambient temperature (°C) for which the refrigerating appliance is suitable | 10 | Maximum ambient
temperature (ºC), for which the refrigerating appliance is suitable |
43 | |
| Winter setting | No | |||
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual for KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.
FAQs
Q: What is the capacity of the ICEBLOKK freezer?
Ans: Depending on the model, the Klarstein ICEBLOKK freezer (model 10035587) usually has a net capacity of between 100 and 200 litres. It’s perfect for keeping frozen meals in small commercial spaces, cabins, and houses.
Q: Can I use the freezer in a garage or unheated area?
Ans: Nonetheless, keep it out of direct sunlight and extremely humid environments at all times.
Q: How long should I wait before plugging in the freezer after delivery?
Ans: Before plugging it in, let the freezer stand straight for at least four hours (or twelve hours if it was flat during transit).
Q: Does the freezer come with a fast-freeze function?
Ans: Indeed. Before adding a lot of unfrozen food, let it activate for a few hours.
Q: How often do I need to defrost the freezer?
Ans: The ICEBLOKK is a freezer that defrosts manually. When there is more than 5 mm of ice accumulation, defrost it.
Q: Why is there water pooling at the bottom of the freezer?
Ans: The ice melting during defrosting is probably the cause of this. When defrosting, make sure the drain plug is open (if it has one) and always mop up extra water. If pooling happens while the lid is operating normally, make sure it is closing securely.
