KLARSTEIN 10035590 VITAIR SMART Hot Air Fryer User Manual

KLARSTEIN 10035590 VITAIR SMART Hot Air Fryer

SAFETY INSTRUCTIONS

1. To avoid electric shock, do not immerse the power cord or the device itself in water or other liquids.
2. Keep children and pets away from the device during operation.
3. After use, switch off the appliance and disconnect the mains plug from the socket.
4. Take extreme care when moving a container containing hot food.
5. Always place the unit securely in the center of the table or worktop.
6. Do not touch hot device surfaces. Use the handles to move or lift.
7. The device must not be used by children.
8. Use of accessories not expressly recommended by the manufacturer may result in injury.
9. Do not place or use the unit on heat-sensitive glass surfaces, wooden surfaces, or tablecloths.
10. Be sure to place a heat-resistant plate with thermal protection under the unit on these surfaces.
11. Do not place the device near hot gas or electric ovens or in a heated oven.
12. Never try to manipulate the power plug in any way

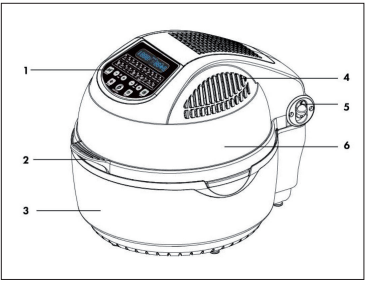

DEVICE OVERVIEW

1. Control panel
2. Lid handle
3. Housing
4. Hot air vent
5. Lid release
6. Transparent lid

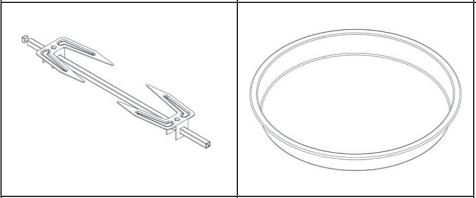

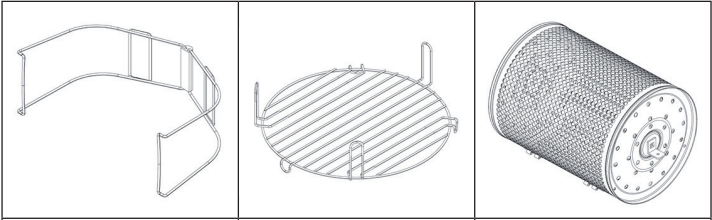

ACCESSORIES

Included with delivery

• Tongs
• High/low grate
• Baking basket
• Poultry fork
• Frying pan

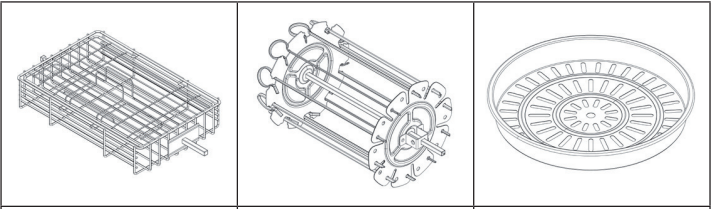

Optionally available accessories (not included with delivery)

• Steak basket
• Skewer insert
• Steamer

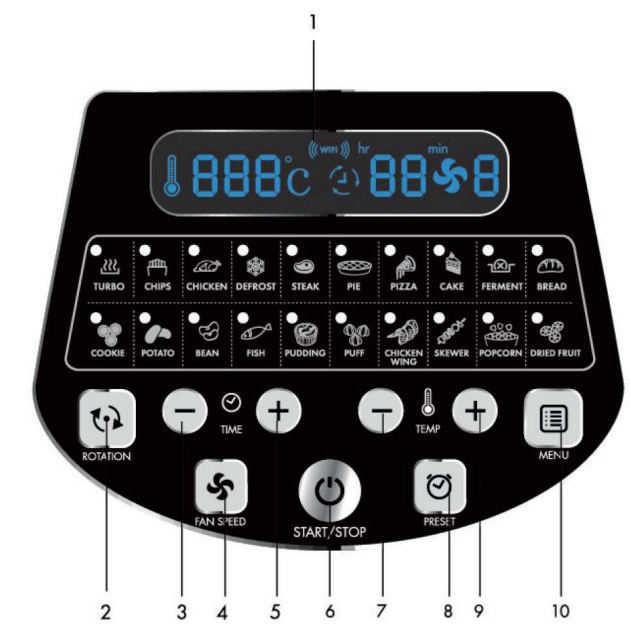

CONTROL PANEL AND BUTTONS

1. LED screen
2. Rotation button
3. Time adjustment button (+)
4. Fan button
5. Time adjustment button (-) 10 Menu key
6. ON / OFF button
7. Temperature (+)
8. Memory button
9. Temperature (-)
10. Menu key

GETTING STARTED

1. Pull the lid upwards using the lid handle.
2. Add the container, the accessories (if necessary), and the food you want to prepare.
   • When using the grate or steamer, pour some water into the container.
   • If rotation is available for the selected mode, make sure the fork is properly seated.
   • Do not amass food close to the heating element; otherwise, charring may occur
3. Unlock the lid release and pull the lid down to close.
4. Plug the appliance into the mains socket, which will put the appliance in standby mode. Press the Start / Stop button once to turn the unit on.
5. Press the MENU button repeatedly to select the desired mode. The corresponding time and temperature will be displayed on the LED screen.
6. Time and temperature can be customized. When the time and temperature are set, the unit may be used without selecting a mode.
7. Press the Start / Stop button to start the device.
8. The heating element may stop when a certain temperature has been reached. When the temperature drops, the heating element will automatically switch on again. This process will repeat until the time you set has elapsed.
9. If you want to add more food during cooking, unlock the lid release and pull the lid upwards using the lid handle. The unit will then stop heating immediately (but rotation will continue). Close the lid after adding the extra food, and the cooking will continue automatically.
10. The appliance will make a noise when the cooking time you have set has elapsed. Turn off the device, disconnect the power plug from the power outlet, and remove the food. To avoid burns, use caution when handling hot accessories. Place the lid and hot container on a pot stand to prevent damage to the table or work surface.

RECOMMENDED SETTINGS FOR DIFFERENT MODES

Make sure that the total weight of the food used does not exceed 5 kg. All modes are factory set to be used with rotation. Press the rotate button once to disable rotation.

USING THE ACCESSORIES

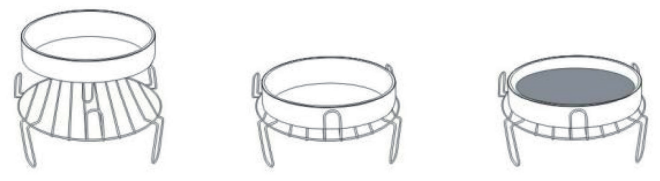

Grate | Frying pan | Steamer (not included with delivery)

1. Place the grate in the container. Place the food directly on the grate, or place the steamer or frying pan on the grate, place the food in it, select a function, and start the device.
2. Select the function you want. Press the Start / Stop button. Note: Use the food tongs to remove the accessories and food. To ensure that it is completely heated, do not place the food directly in the container.

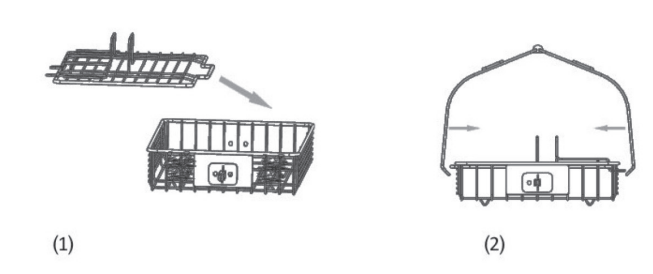

Steak basket (not included with delivery)

1. Remove the lid.
2. Place the food in the steak basket and close the lid.
3. Insert the pole into the stake basket.
4. Select the function you want and press the Start / Stop button.

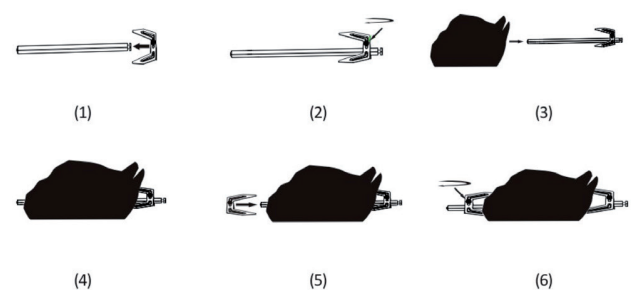

Poultry fork

1. Put a tip on the fork. Fix with a screw.
2. Stick a chicken on the other side. Then place another tip on the fork to secure the chicken.
3. Insert the rod into the hole in the container.
4. Select the “Roast” function and press the Start / Stop button.
   Note: Use the food tongs to remove the accessories and food.

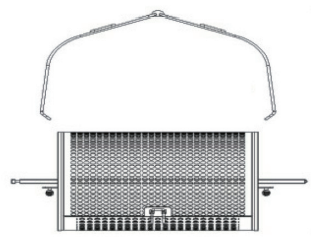

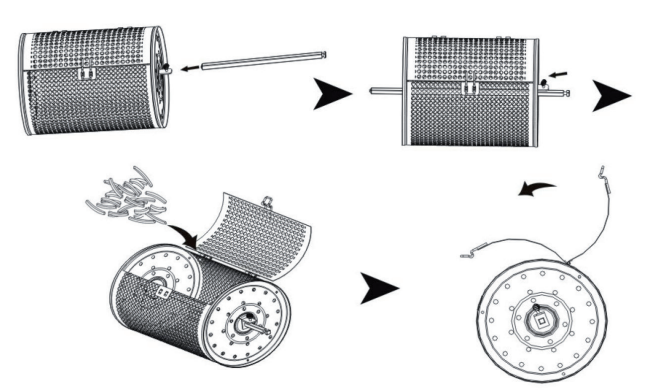

Baking basket

1. Insert the rod into the baking basket. Fix it firmly with a screw.
2. Open the cover of the baking basket.
3. Put the food in the baking basket and close the cover.
4. Insert the rod into the hole in the container.
5. Select the “Deep fry” function and press the Start / Stop button.

Note: Use the food tongs to remove the accessories and food.

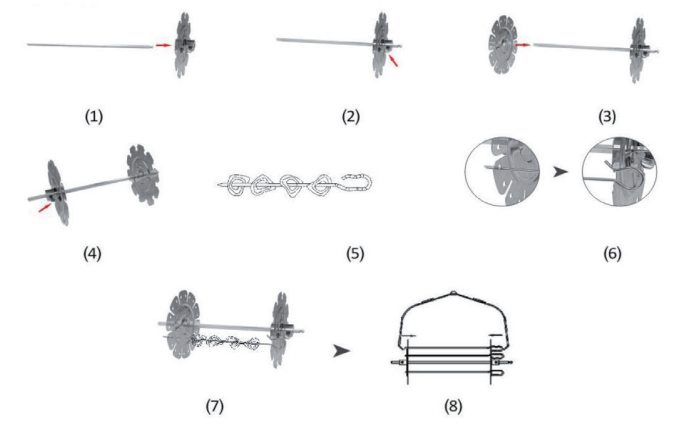

Skewer insert (not included with delivery)

1. Insert the attachments on both sides of the bar and secure each one with a screw.
2. Put food on the skewer and insert the ends of each skewer into the holes in the attachments.
3. Fix the skewer insert to the container.
4. Select the function you want and press the Start / Stop button. Note: Use the food tongs to remove the accessories and food.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information. Follow these steps to connect your smartphone to your Klarstein device:

1. Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WiFi network that your Klarstein device is connected to.
3. Open the Klarstein app.
4. Sign in to your account. If you do not have an account, sign up for the Klarstein app.
5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone. Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

Troubleshooting Connection Problems

• Are the router, Klarstein device, and smartphone in the immediate vicinity during the connection attempt? (Ideally, no more than 5 m apart)
• If you have deactivated the 2.4 GHz band in the settings of your wireless router, activate it in your router settings. Note: For further help, follow the instructions in the app when setting up the connection.

Cleaning And Care

• Unplug the appliance from the wall outlet and allow it to cool for at least 30 minutes.
• Remove the accessories.
• Clean the unit after each use. Do not use pointed or sharp kitchen utensils or abrasive cleaners to clean the accessories and the inside of the appliance, as these will damage the coating.
• Wipe the outside of the appliance with a damp cloth.
• Clean the accessories with hot water, a little dishwashing detergent, and a nonabrasive sponge.
• Remove stubborn grease residues with a degreasing liquid.
• Clean the inside of the unit with a non-abrasive sponge.
• Clean the heating element with a cleaning brush to remove KLARSTEIN 10035590 VITAIR SMART Hot Air Fryer food residue.
• If you will not be using the unit for a long time, clean it before storing it.

Disposal Consideration

• By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
• For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Declaration Of Conformity

• Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
• Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom
• Hereby, Chal-Tec GmbH declares that the radio equipment type VitAir Smart complies with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035590
• For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type VitAir Smart complies with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035590

Technical Data

• Item number 10035590, 10035591, 10035592
• Power supply 220-240 V ~ 50/60 Hz
• Power 1200-1400 W
• Capacity (cooking space) 10 L
• Adjustable temperature 30-250 °C
• WiFi standard 802.11 b/g/n
• WiFi frequency 2,4 GHz
• WiFi radio-frequency power (max.) 20 dBm
