KLARSTEIN 10038383 STUDIO LIGHT Fireplace Heater User Guide

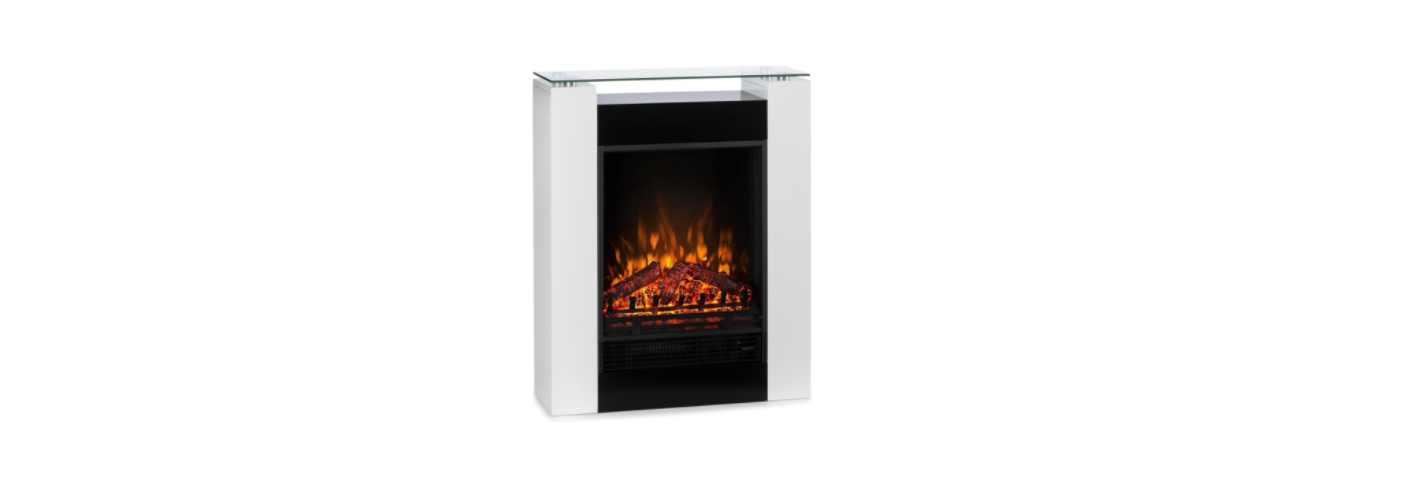

KLARSTEIN 10038383 STUDIO LIGHT Fireplace Heater

Safety Instructions

• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• Improper repairs may place the user at serious risk.
• Do not run the mains cable under carpets, rugs, etc.
• Do not allow the mains cable to hang over sharp edges or come in contact with hot surfaces.
• In order to avoid overheating, do not cover the heater.
• Never immerse the product in water or any other liquid for any reason.
• Do not use this heater in the immediate surroundings of a bath, a shower, or a
  swimming pool.
• Do not use the appliance outdoors.
• Do not use if you have wet hands.
• Never use the appliance on or near hot surfaces.
• Do not operate with a damaged cord.

 Device Overwiew And Buttons

1. Switch
2. Housing
3. Logs

Assembly

Wall Mounting

Installation

1. Use the bracket as a table template and mark five drilling positions on the wall. Make sure these holes are all level.
2. Set the bracket aside and drill the holes 35 mm deep using a 2 mm pilot bit and an 8 mm drill bit.
3. Clean the holes of dust and dirt, and insert a dowel into each hole. Make sure the edge of each hole is flush with the surface.
4. Hold the bracket in place and secure it with screws.
5. Carefully press the wall chimney against the wall. Mark the two mounting holes of the lower bracket on the wall, then remove the wall chimney.
6. Drill the holes in the wall and insert the wall plugs.
7. Reattach the wall chimney to the wall and secure the lower mounting bracket to the wall with the screws provided to permanently fix the wall chimney in place.
8. Remove the front panel, unpack the logs from the ba,g, and place them along the light unit in the desired position.
9. Replace the front panel.

Helpful hint before installation

The unit can be operated either with the switches on the fireplace under the canopy or with the supplied remote control.

Control Panel

REMOTE CONTROL

Diplay Screen

Commisinioning And Opration

On/Off

• Press the Power button to switch the unit on/off.
• In standby mode, press and hold the Power button for 3 seconds to reset the wireless network.
• Press and hold the Power button for 5 seconds in standby mode to toggle between Celsius and Fahrenheit.

Flame Controller

• Press the Flame button repeatedly to adjust the flame brightness. There are 5 levels. 5 is the highest level and 1 is the lowest level.
• Press and hold the Flame button for 5 seconds to enter the Flame color setting. Afterward, you can choose between the colours C1 • C7 by pressing several times.
  • C1 Warm White + Red + Blue
  • C2 Warm white + red
  • C3 Red + Blue
  • C4 Warm white + blue
  • C5 Blue
  • C6 Red
  • C7 Warm white

Heat controller

• Press the Heat button repeatedly to select between the different heat levels. The level you select is indicated on the screen by a bar. When the small bar lights up, a low heat level is set. When both bars are lit, a high heat level is set.
• Press and hold the Heat button for 5 seconds to set the desired heating temperature. You can set a temperature between 18 and 35 °C.

Timer

• Press the Timer button several times in standby mode to set a power-on timer. A timer between 0 and 9 hours can be set. Each time the Timer button is pressed, the time is adjusted at 1-hour intervals.
• To adjust the LED backlight, press the Timer button until you hear a beeping sound. F1“ is then displayed on the glass window. A total of 8 background colours can be selected. Press the Timer button briefly to change the colour. As soon as „F9“ is reached, the menu is exited and the colours start again when pressed again.

Open window detection

If the room temperature falls below 5 °C within 3 minutes while the unit is operating and does not rise within 7 minutes, the unit automatically assumes that a window is open.

Cleaning nad Care

Turn off the unit and unplug it from the power outlet. Wait until the unit has completely cooled down before cleaning it.

• Use a vacuum cleaner to clean the ventilation slots and grilles.
• Remove dust on the outside surfaces with a damp (not wet) cloth.
• Do not use strong cleaning agents or abrasives.
• Do not spray the device with liquids or immerse it in water or other liquids.
• Never open the heater housing.

Storage

Keep the unit in a dust-free place during the low season. Pack it in the original carton. Wind the heater cable neatly to avoid damaging it.

Technical Data

• Item number: 10038383, 10038384, 10038385, 10038386, 10038387, 10038388
• Power supply: 220-240 V ~ 50/60 Hz
• Power consumption: 2000 W
• WiFi standard: 802.11 b/g/n
• WiFi frequency: 2,4 GHz
• WiFi radio-frequency power (max.): 20 dBm

Device Control

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information. Follow these steps to connect your smartphone to your Klarstein device:

1. Download the Klarstein app first by scanning the QR code with your smartphone
   (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WiFi network that your
   Klarstein device is to be connected to.
3. Open the Klarstein app.
4. Sign in to your account. If you do not have an account, sign up for the Klarstein app.
5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note

The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

• iOS
• Android

Troubleshooting Connection Problems

1. The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the ‘Reset WiFi settings‘ instructions of your smart device (instructions are usually available during KLARSTEIN 10038383 STUDIO LIGHT Fireplace Heater the device connection process).
2. The WiFi access point does not operate on 2.4 GHz. Make sure that your access point operates on the 2.4 GHz band and you have a separate SSID on the 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider.
   Firewall settings of your WiFi network; the firewall settings of your WiFi network may not allow the Klarstein app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g., airports, dormitories, companies, etc.

Following the above-mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: appsupport@go-bbg.com

Product Data Sheet

Disposal Considerations

• By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority KLARSTEIN 10038383 STUDIO LIGHT Fireplace Heater or your household waste disposal service.
• This product contains batteries. Find out about local regulations for disposing of batteries. By disposing of them by the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

Customer Service

• Visit: http://use.berlin/10038386
• Visit: http://use.berlin/10038386
• Email: appsupport@go-bbg.com
