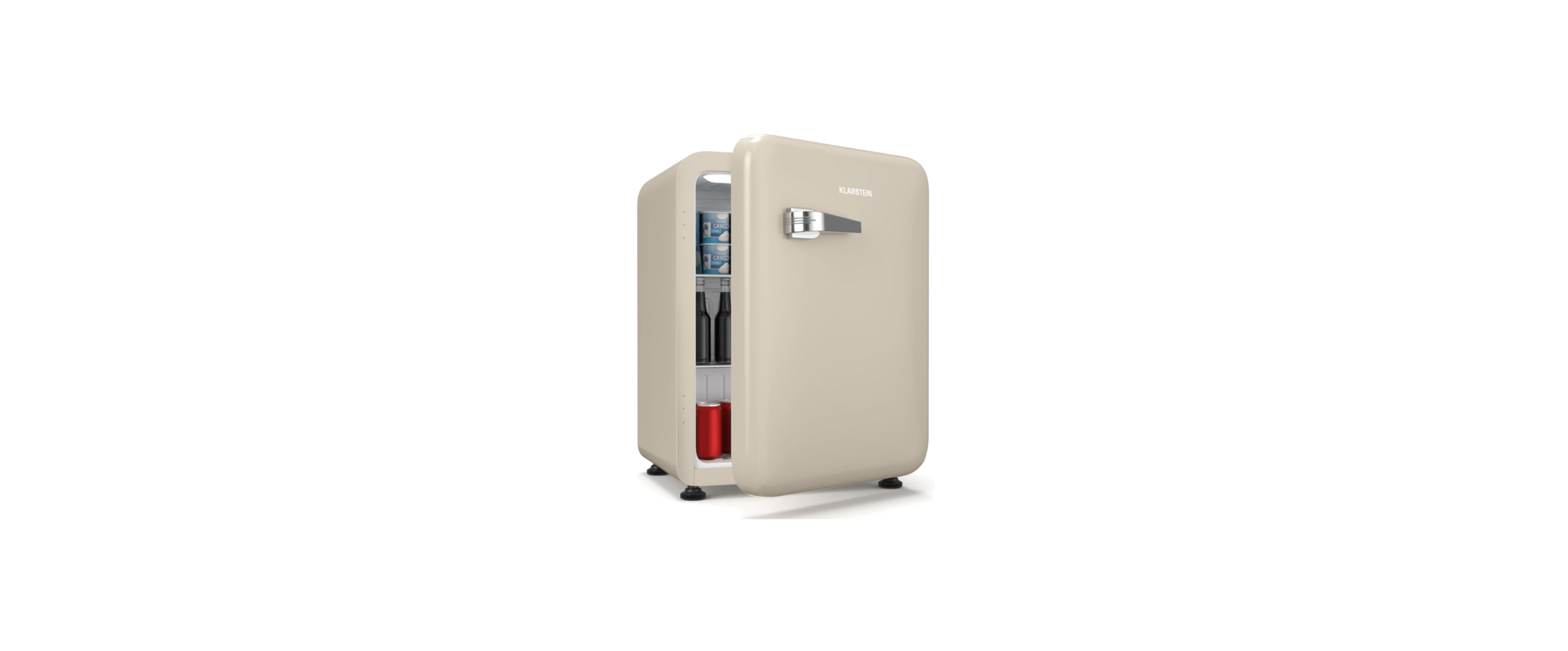

KLARSTEIN 10039692 AUDREY Fridge
Safety Instructions
- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.
- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.
- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back, as this is the main outlet for heat. This will allow for adequate ventilation.
- Do not place hot food or drink into the refrigerator before it cools down to room temperature.
- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.
- Keep the appliance away from any heat source or direct sunlight.
- Do not place any other appliance on top of the refrigerator, and do not wet it.
- Do not store something like ether, methanol, gasoline, which are easy to evaporate, burn, or explode.
Special Notes
- A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.
- Regularly clean surfaces that may come into contact with food. Clean the water drain regularly.
- Store raw meat and fish in suitable containers in the refrigerator so that meat and fish do not come into contact with or drip on other foods.
Installation
It is important that you leave your device upright for at least 4 hours before switching it on to allow the cooling system to adjust.
- When you move the unit, do not tilt it more than 45 degrees. Do not apply force to parts such as the condenser, door, or handle. They can distort and interfere with the operation of the cooler. Make sure ALL packaging is removed before installation.
- Make sure there is enough space around the product to allow air to circulate freely.
- Do not place the product near heat sources, in direct sunlight, or in humid rooms.
- Make sure that the supply voltage of the power outlet corresponds to the voltage indicated on the type plate.
- Insert the plug firmly into the socket.
• The socket outlet must be earthed. Do not plug the plug into unearthed sockets and do not use an extension cable.
• The product is equipped with adjustable feet. Once the product is in place, adjust it so that the refrigerator is level and does not slip.
Start And Operation
- It is important that upon receipt, you stand your appliance upright for at least 4 hours before switching on to allow the system to settle.
- When using the cooler for the first time, set the thermostat to setting 3 or 4. When the refrigeration system starts, you will hear the quiet hum of the compressor. You may also hear the circulation of liquids and gases. This is normal on first startup. Generally, it will take 2-3 hours for the appliance to reach temperature. Once the temperature has been reached then put the beverages inside.
- See below for the location of the thermostat and light switch on this model.
Cleaning And Care
Outside
Wipe dry with a kitchen towel. Do not use chemical or KLARSTEIN 10039692 AUDREY Fridge abrasive cleaners on any part of your refrigerator, as these could permanently damage or discolour the surfaces.
Internal Cleaning
Wipe up any internal spills immediately with a soft cloth moistened with a mild detergent solution. Dry thoroughly.
Shelves and Guards
Any shelves can be removed and cleaned separately.
Door Seals
Ensure that the door seals are kept free from debris at all times. If they don‘t seal properly, this can waste energy and cause the refrigeration unit to overrun.
Reversing The Door
The door of the cooler can be reversed quite easily. See the illustration below. It is best if you have a friend help you due to the weight and to assist with alignment. Always unplug the cooler before reversing the door.
- Support the door from the bottom.
- Remove the 6 screws that affix the hinges and spacers to the cabinet frame
- Place the door on a flat, padded surface to prevent scratching
- Remove the 6 screws that affix the hinges to the door
- Remove the blanking plugs from the opposite side and use those to plug the holes exposed by the removal of the hinge from the cabinet frame
- Screw the hinges to the opposite side of the door
- Pick up the door and carefully align it with the cabinet holes
- Screw the remaining 6 screws into both hinges and the 2 spacers into the cabinet to secure the door.
Technical Data
- Item number 10039692, 10039693, 10039694, 10040739
- Power supply 220-240 V ~ 50/60 Hz
Dear Customer
Congratulations on purchasing this device. Please KLARSTEIN 10039692 AUDREY Fridge read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
Product Data Sheet
Information according to Regulation (EU) No. 2019/2016
| Supplier’s name or trademark: Klarstein | ||||
| Supplier’s address: Wallstraße 16, 10179 Berlin, DE | ||||
| Model identifier: 10039692, 10039693, 10039694, 10040739 | ||||
| Type of refrigerating appliance: | ||||
| Low-noise appliance: | No | Design type: | freestanding | |
| Wine storage appliance: | No | Other refrigerating appliance: | Yes | |
| General product parameters: | ||||
| Parameter | Value | Parameter | Value | |
| Overall dimensions (mm) | Height | 680 | Total volume (dm³ or L) | 70 |
| Width | 440 | |||
| Depth | 498 | |||
| EEI | 125 | Energy efficiency class | F | |
| Airborne acoustical noise emissions (dB(A) re 1 pW) | 39 | Airborne acoustical noise emission class | C | |
| Annual energy consumption (kWh/a) | 104 | Climate class: | Extended temperate zone, temperate zone, subtropical zone | |
| Minimum ambient temperature (°C) for which the refrigerating appliance is suitable | 10 | Maximum ambient
temperature (ºC), for which the refrigerating appliance is suitable |
38 | |
| Winter setting | No | |||
Troubleshooting
| Problem | Possible cause and suggested solution |
| Condensation on the outside of the door. | Humidity in the room is high. This is also to be expected if the room is very warm. |
| Condensation on the inside of the cabinet. | This is also caused by high humidity. You can minimise this by keeping the door open only as long as you need to. |
| Too cold / not cold enough inside the cabinet. | Adjust the thermostat up or down accordingly. Make sure nothing is stopping the door from sealing properly. |
| No power to the cooler. | Check the power cord, power supply, or the on/off switch. |
Disposal Considerations
By disposing according toit by the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Cutomer Service
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom
FAQs
What type of fridge is the KLARSTEIN AUDREY?
The AUDREY is a freestanding, retro-style refrigerator that is perfect for kitchens, offices, dorms, or studio spaces. Its modest yet effective layout makes it perfect for storing ordinary food.
Does the fridge have a separate freezer compartment?
Indeed. A compact built-in freezer that can be used for ice trays, frozen foods, and temporary freezer storage is a feature of many AUDREY models.
How long should I wait before using the fridge after delivery?
Before plugging in the refrigerator, let it stand upright for at least four to six hours. In addition to preventing compressor damage, this guarantees that the refrigerant settles correctly.
What is the ideal temperature setting?
A manual thermostat dial is used in the refrigerator. Most homes can utilise mid-range settings, but you can change them to be warmer or cooler based on the amount of food and the temperature of the room.
How long does the fridge take to cool after switching it on?
It usually takes six to eight hours for it to cool to its ideal level. Wait until the refrigerator has stabilised before putting warm food inside for optimal results.
Can I adjust the interior shelves?
Indeed. You may customise room for taller goods, such as bottles or storage containers, by adjusting or removing the shelves.
Why is there moisture on the interior walls?
Light condensation is normal, especially after opening the door frequently or placing warm food inside. Ensure the door seals properly and the temperature isn’t set too low.
Does the fridge make noise during operation?
A gentle humming or clicking sound is normal and indicates the compressor cycling. Loud or irregular noises may suggest the fridge is not level or something inside is vibrating.
