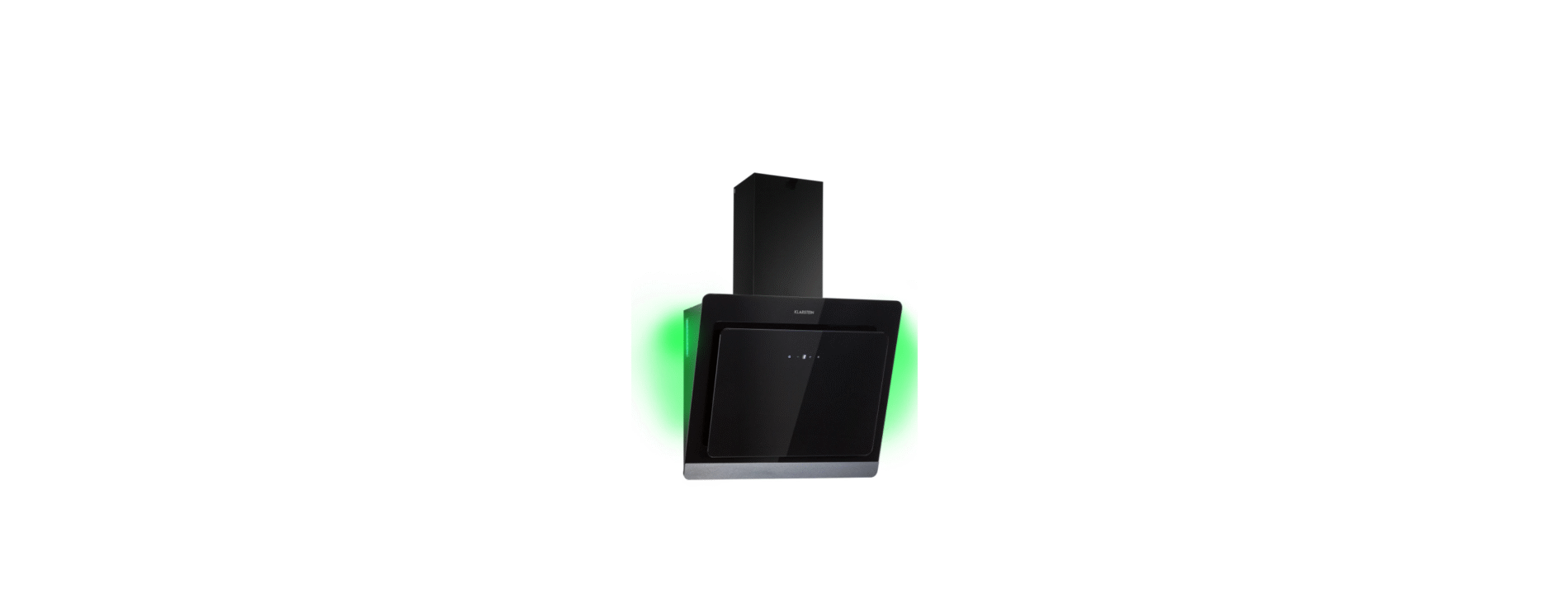

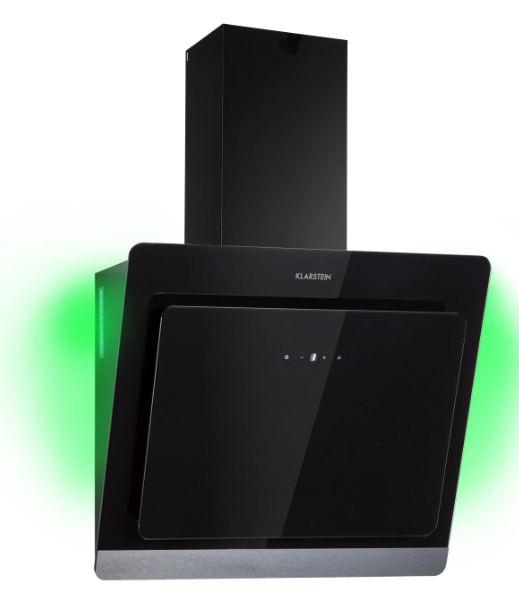

KLARSTEIN 10039927 AURORA ECO Range Hood
Safety Instructions
- Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
- Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are the same as the voltage and the frequency in your home.
- The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
- Children under the age of 8 must not use the cooker hood.
- Before cleaning, switch the power off at the main supply.
- Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
- Prohibit putting the cooker hood near the fire.
- If the appliance does not function normally, contact the manufacturer or a specialist company.
- Do not flambé under the range hood.
- Accessible parts may become hot when used with cooking appliances.
Installation
Assembly of the V-flap
- Install the first half (2) in the housing (6).
- The pin (3) should be facing upwards.
- Insert the axle (4) into the holes (5) on the housing.
- Repeat all steps for the second half of the flap.
Preparation
- Before installation, turn the unit off and unplug it from the outlet.
- The cooker hood should be placed at a distance of 65~75 cm above the cooking plane for the best effect.
- When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 Bar).
- If you do not have an outlet to the outside, an exhaust pipe is not required, and the installation is similar to the one shown in section “Installation (Vent outside)”.
- Lay the exhaust pipe as short and straight as possible.
- Do not use a smaller exhaust duct, and do not confine it.
- If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
- All installation work may only be carried out by a qualified electrician or a qualified person.
- Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
- The angle of the exhaust pipe bend should not be less than 120°. Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
- After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side.
- Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.
Mounting on the wall
- Drill 8 holes in the wall at the fixing point using an 8 mm diameter drill bit.
- Insert dowels in the holes you have drilled for the cooker hood body. Fix 2 ST4*40 mm support screws in the middle and leave them protruding 2 mm from the wall.
- Place the cooker hood on the screws.
- Insert 2 ST4*30 mm screws into the safety holes from the inside and tighten the screws completely to ensure that the cooker hood is securely fixed.
- Fasten the exhaust hose to the air outlet with a cable tie. Pull the exhaust hose upwards until it protrudes through the hole in the wall.
- Fasten the bracket for the inner chimney to the wall with ST4*40 screws.
- Then, fix the bracket for the outer chimney to the outer chimney with 2 ST4*8 mm screws. Make sure that the inner chimney can be moved freely.
- Fasten the outer chimney to the cooker hood with 2 ST4*8 mm screws. Fasten the bracket for the outer chimney to the wall with ST4*40 mm screws.
- Adjust the height of the inner chimney correctly and fix the inner chimney to the wall with 2 ST4*8 mm screws.
OPERATION
Commissioning
- After you have connected the cooker hood to the mains, all of the buttons light up briefly.
- The cooker hood then switches to standby mode.
Control panel and key functions
INSTALLING A CARBON FILTER (OPTIONAL)An activated
- carbon filter can be used to trap odours.
- In order to install the activated carbon filter, the grease filter should be detached first.
- Press the lock and pull it downward.
- Plug the activated carbon filter into the unit and turn it counterclockwise.
- Repeat the same on the other side. Make sure the filter is securely locked.
- Otherwise, it would loosen and cause dangers.
- When the activated carbon filter is attached, the suction power will be lower.
Maintainance & Cleaning
Turn off the cooker hood before cleaning and maintenance, and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains. Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.
Stainless Steel Surfaces
The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.
Control Panel
The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.
Monthly Cleaning for Grease Filter
Cleaning the filter every month can prevent any risk of fire. The filter collects grease, smoke, and dust, so the filter directly affects the efficiency of the cooker hood. KLARSTEIN 10035380 ELEONORA Range Hood. If not cleaned, the grease residue (potentially flammable) will saturate the filter. Clean it with household cleaning detergent.
Replacing the Lamp
Changing the round LED lights
- Remove the grease filter.
- Using a straight screwdriver, lift out the LED light. Then pull out the lamp base connection wire slightly and remove the terminal of the lamp base connection wire.
- Use the reverse procedure to reinstall the fixture.
Changing the coloured LED light strip
- Open the glass cover.
- Use a screwdriver to remove the control box cover and lamp holder.
- Remove the terminal of the lamp connection wire and insert a new lamp.
| Max. power | Voltage | Dimensions: 64 mm | ILCOS D code |
| 2x 1.5 W | DC 12 V | DSR-1.5/65-S-64 |
TECHNICAL DATA
| Item number | 10040230, 10040231, 10040232,
10040233 |
| Power supply | 220-240 V ~ 50/60 Hz |
| WiFi standard | 802.11 b/g/n |
| WiFi frequency | 2,4 GHz |
| WiFi radio-frequency power (max.) | < 20 dBm |
TROUBLESHOOTING
| Fault | Possible Cause | Solution |
| Light on, but the motor does not work. | The leaf blocked. | Get rid of the blocking. |
| The internal width of the motor is off, or a bad smell from the motor. | Replace motor. | |
| Light does not work, motor does not work. | Light damaged. | Replace lights. |
| Power cord loses. | Connect the wires as per the electrical diagram. | |
| Insufficient suction. | The distance between the body and the gas top is too long. | Readjust the distance. |
| Too much ventilation from open doors or windows. | Choose a new place and resemble the machine. |
Data Sheet
Information according to Regulation (EU) No. 65/2014
- Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015
| Item number | 10035380, 10035381 | ||
| Description | Symbol | Value | Unit |
| Annual Energy Consumption | AEChood | 10 | kWh/Year |
| Energy Efficiency class | A++ | ||
| Fluid Dynamic Efficiency | FDEhood | 30,6 | |
| Fluid Dynamic Efficiency class | A | ||
| Lighting Efficiency | LEhood | 28,4 | Lux/W |
| Lighting Efficiency class | A | ||
| Grease Filtering Efficiency | GFEhood | 70,2 | % |
| Grease Filtering Efficiency class | D | ||
| Air flow at minimum and maximum speed in normal use, intensive, or boost excluded | 177 / 426,6 | m³/h | |
| air flow at the intensive or boost setting | – | m³/h | |
| airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use | 43/60 | dB | |
| airborne acoustical A-weighted sound power emissions at the intensive or boost setting | – | dB | |
| power consumption in off mode | Po | 0,25 | W |
| power consumption in standby mode | Ps | – | W |
| Contact details | Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany | ||
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.
FAQs
Q: What type of range hood is the Aurora Eco (Model: 10039927)?
Ans: It offers several fan settings, a stylish LED light for the best cooking visibility, and silent operation combined with energy conservation.
Q: Can the Aurora Eco operate in both extraction and recirculation modes?
Ans: Indeed. The Aurora Eco may operate in two modes: recirculation (with optional carbon filters fitted) and extraction (venting air outdoors).
Q: What does the energy rating “ECO” mean in this model?
Ans: In this sense, “ECO” stands for energy-efficient design. With its long-lasting LED lights and low-power consumption motor, the Aurora Eco helps save electricity without sacrificing functionality.
Q: Is the LED light replaceable?
Ans: Indeed. Although the LED light can be replaced, Klarstein advises hiring a trained specialist to do it to prevent electrical risks.
Q: Is professional installation required?
Ans: Klarstein strongly advises expert installation, even though do-it-yourselfers may be able to do it if they are setting it up in extraction mode (with exterior ducting).
Q: Does the range hood have an automatic shut-off feature?
Ans: No, the Aurora Eco does not come with a timer that shuts off on its own.
Q: How do I reset the range hood after a power outage?
Ans: After power is restored, the hood usually returns to its previous settings. Unplug it for 30 seconds and then reconnect if it doesn’t react. Usually, this soft reset fixes small program problems.
Q: Where can I buy replacement filters or accessories?
Ans: The Klarstein website and authorised merchants offer replacement filters, parts, and accessories for direct purchase. For compatibility, use your model number (10039927).
