KLARSTEIN 10039940 VIGOR AIR Hot Air Fryer
Safety Instructions
- Before using it for the first time, check that the voltage of your socket corresponds to the voltage specified.
- To avoid electric shock, do not immerse the power cord or the device itself in water or other liquids.
- Keep children and pets away from the device while it is in operation.
- Switch off the device after use and pull the power plug out of the socket.
- Use extreme caution when moving a container that contains hot food.
- Do not let the power cord hang over the edge of tables or work surfaces, and make sure that the power cord does not come into contact with the hot surfaces of the device.
- Always place the device securely in the centre of the table or work surface.
- Never touch hot device surfaces. Use the handles to move or lift.
- Before cleaning and when not using the device, switch it off and pull the power plug out of the socket. Let the device cool down first before removing or adding device parts.
- Do not place the device near hot gas or electric ovens or a heated oven.
- If the plug does not fit properly, be sure to consult a qualified electrician to reduce the risk of electric shock. Never attempt to tamper with the power plug in any way.
- Do not clean the device with metallic scouring pads. Small metal parts could break off and short out electrical components in the device, which could result in an electric shock and damage the device.
- To minimise the risk of electric shock, prepare food only in the coated, nonstick container provided.

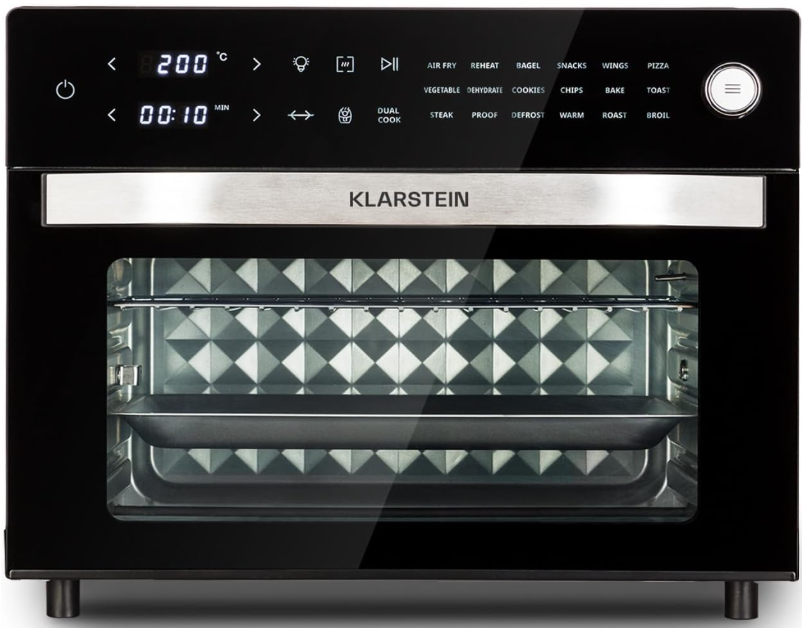

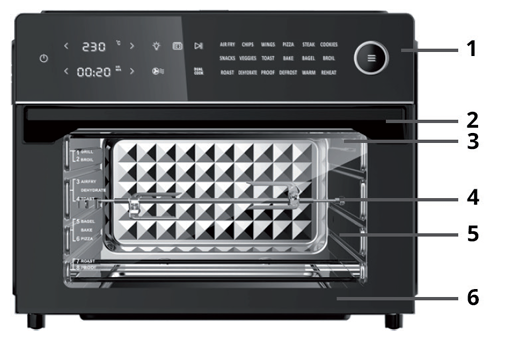

Overview
| 1 | LED control panel | 4 | Rotary spit |
| 2 | Door handle | 5 | Viewing window |
| 3 | Lamp | 6 | Crumb tray |
Device properties
- The appliance works with 360 °C hot air technology.
Door sensor
- If the door is opened during cooking, the cooking process will pause, and the light will come on. The display appears on the control panel:
- As soon as the door is closed, the light will go out, and the cooking process will continue. Make sure that the door of the appliance remains closed during cooking.

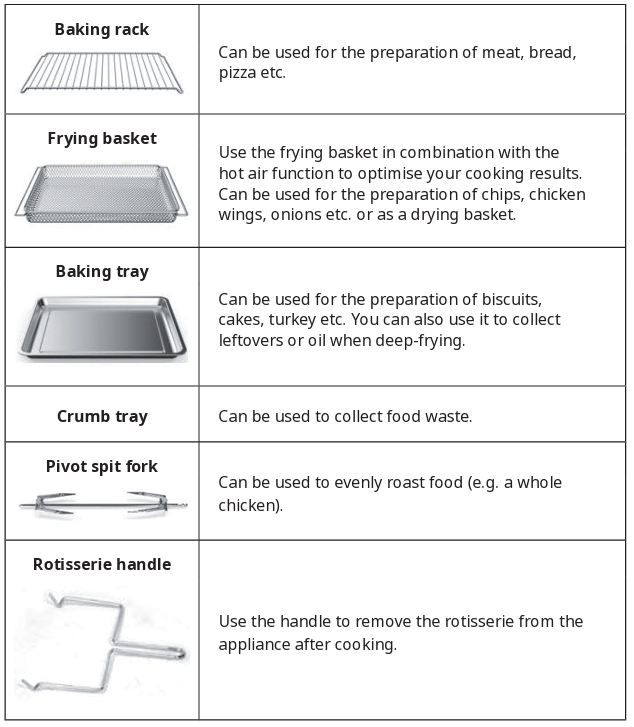

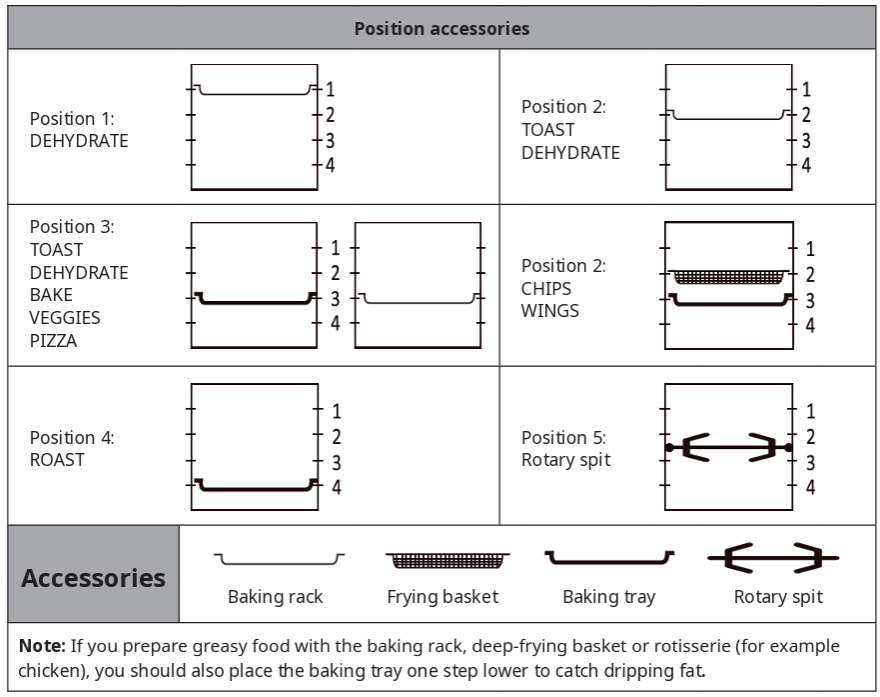

Accessories
GETTING STARTED
- Remove all packing material around the unit and inside the unit.

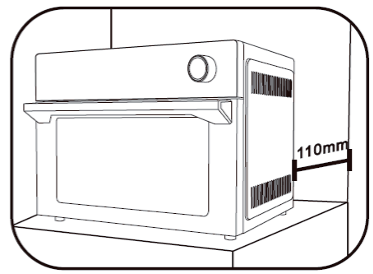

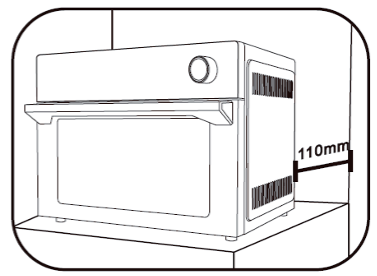

- Place the appliance on a stable, flat, heat-resistant KLARSTEIN 10039940 VIGOR AIR Hot Air Fryer surface, at a safe distance from objects that could be damaged by heat. Keep a minimum distance of 110 mm between the mains connection and the wall, furniture, etc.

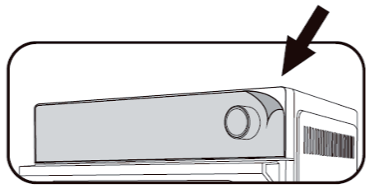

- Remove the protective film from the control panel. (This film is used to protect the control panel; you can remove it or leave it on the unit.)

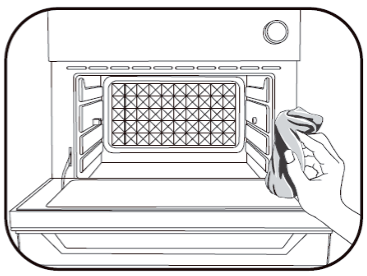

- Clean all accessories and clean the interior of the appliance. Dry the accessories completely before putting them back into the unit.
- Before plugging in the mains plug, make sure that the voltage indicated on the rating plate of the appliance matches the voltage of the socket.
- When using the appliance for the first time, run it at the highest setting (230 °C) for at least 18 minutes to sterilise it and eliminate manufacturing odours. The unit may emit odours or smoke from the protective film.

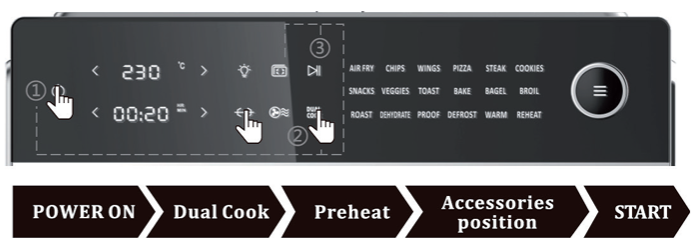

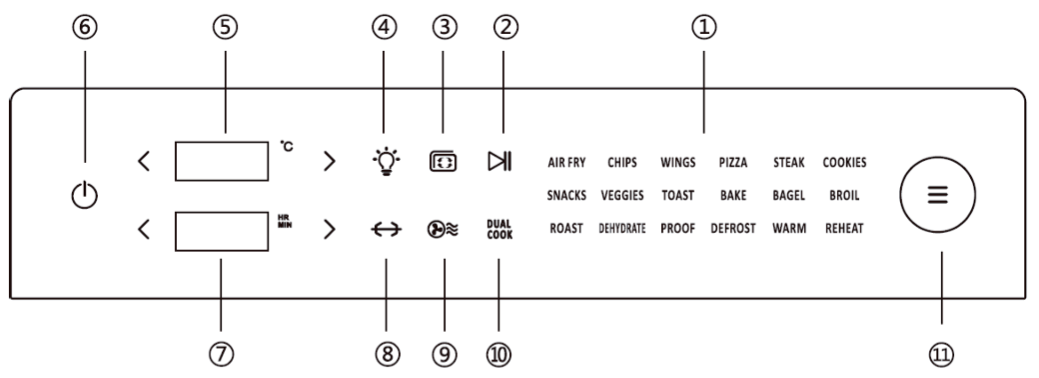

LED Control Panel

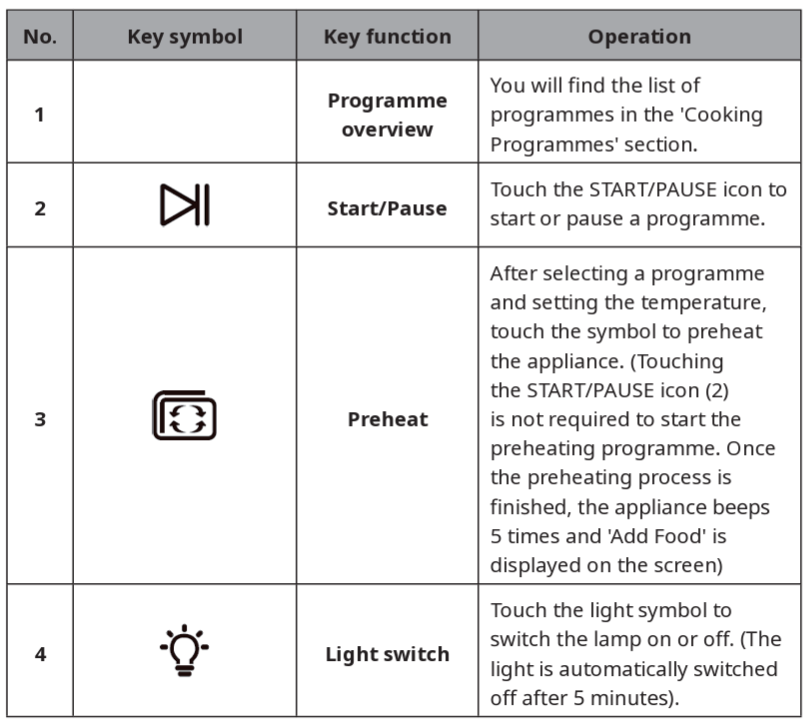

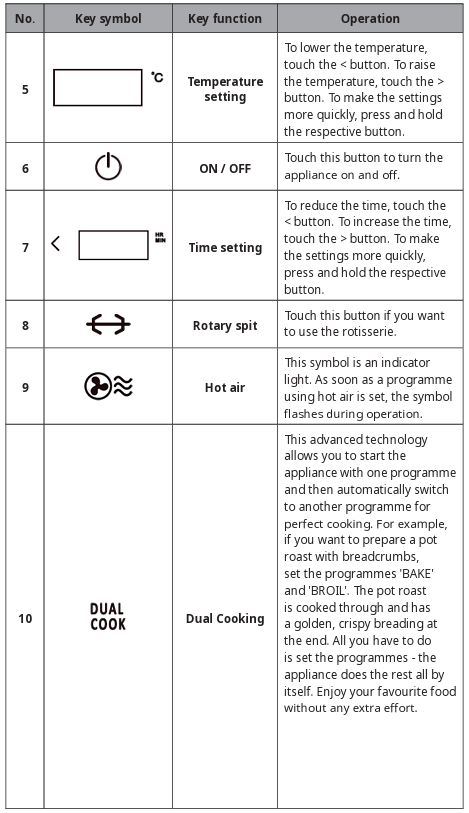

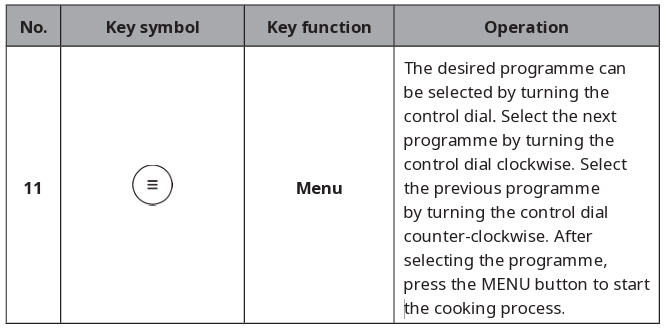

Functions
Cooking Programmes
| Programme | Preset Temperature | Preset time | Temperature setting range | Time setting range | ||
| AIR FRY (Hot air frying) | 200 °C | 10 min | 90-230 °C | up to 2 hours | ||
| CHIPS (frozen chips) | 230 °C | 18 min | 90-230 °C | up to 2 hours | ||
| WINGS (chicken wings) | 230 °C | 18 min | 90-230 °C | up to 2 hours | ||
| PIZZA | 230 °C | 11 min | 90-230 °C | up to 2 hours | ||
| STEAK | 230 °C | 7 min | 90-230 °C | up to 2 hours | ||
| COOKIES (biscuits) | 180 °C | 15 min | 90-230 °C | up to 2 hours | ||
| SNACKS | 200 °C | 18 min | 90-230 °C | up to 2 hours | ||
| VEGGIES (vegetables) | 230 °C | 15 min | 90-230 °C | up to 2 hours | ||
| TOAST | – | – | Level 1-7 | 1-7 min | ||
| BAKE (baking) | 175 °C | 25 min | 90-230 °C | up to 2 hours | ||
| BAGEL | 230 °C | 13 min | 90-230 °C | up to 2 hours | ||
| BROIL (grilling) | 230 °C | 13 min | 90-230 °C | up to 2 hours | ||
| ROAST (roasting) | 200 °C | 30 min | 90-230 °C | up to 2 hours | ||
| DEHYDRATE (drying) | 60 °C | 5 hours | 30-80 °C | 1-12 hours | ||
| PROOF | 34 °C | 45 min | 30-40 °C | up to 8 hours | ||
| DEFROST (thawing) | 50 °C | 20 min | 30-80 °C | up to 2 hours | ||
| REHEAT (warming up) | 95 °C | 5 min | 90-230 °C | up to 2 hours | ||
| WARM (keeping warm) | 50 °C | 4 hours | 30-120 °C | up to 8 hours | ||

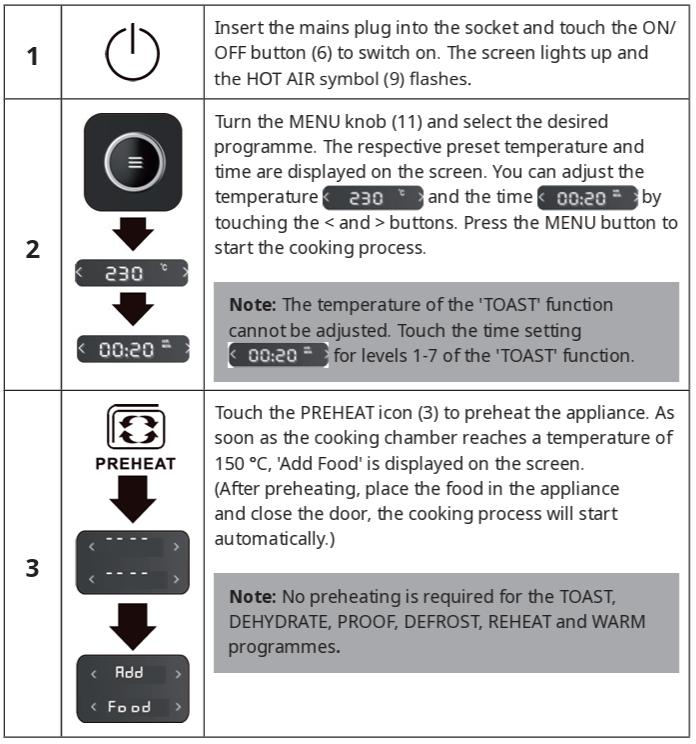

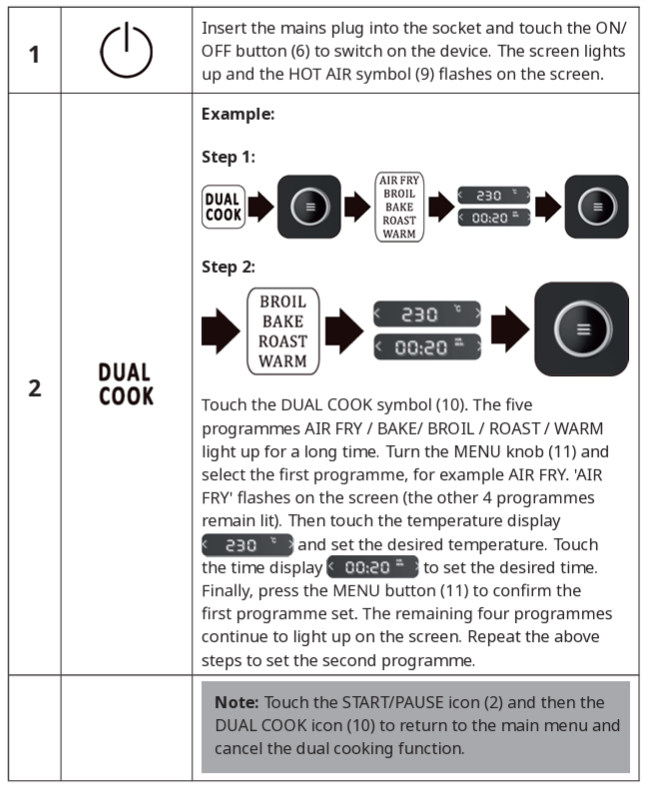

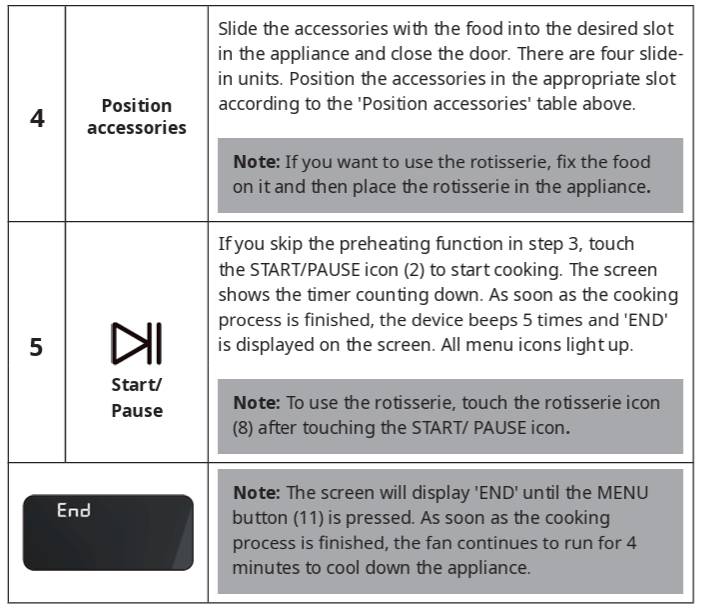

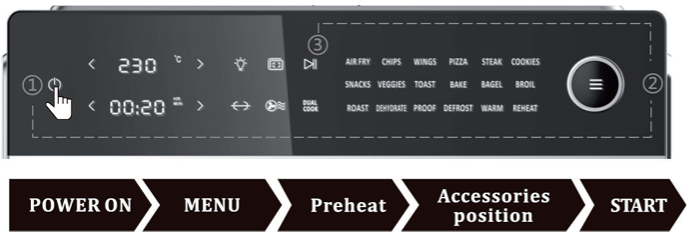

Operation

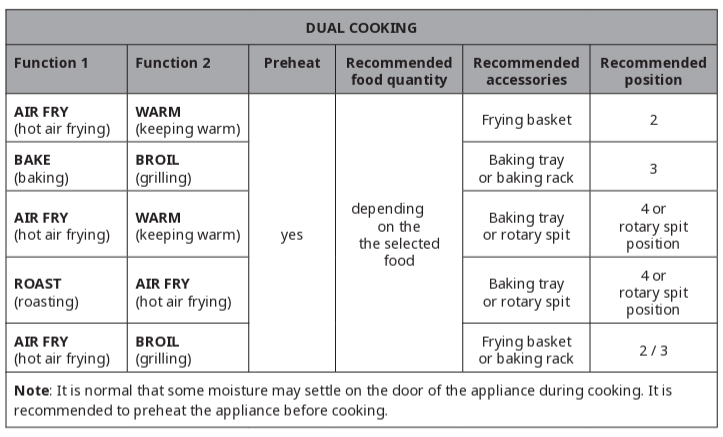

Dual Cooking
Cooking Tables
Replacing Bulb
- Bulb required: 25 W halogen lamp.
- Turn the lamp cover counter-clockwise to take it out.
- Remove the defective bulb by pulling it out directly.
- Insert the new light bulb.
- Turn the lamp cover clockwise to tighten it.
Disassembling

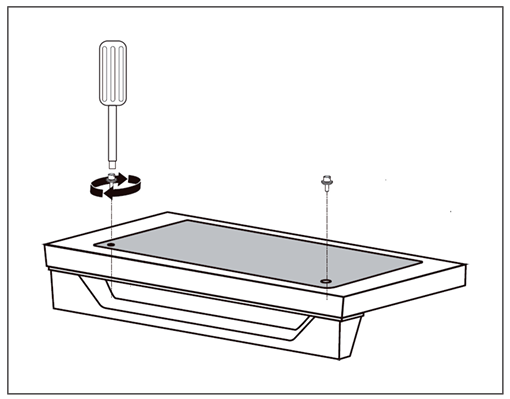

- Loosen the screws by turning them counter-clockwise with a screwdriver.

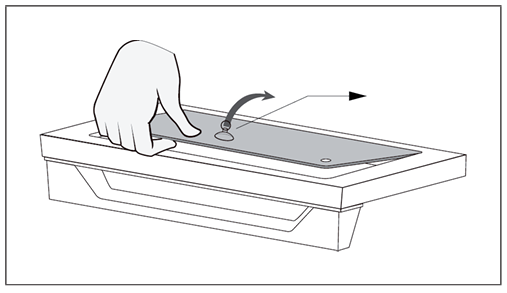

- The glass can be sucked in with a silicone suction cup and then removed with the hands.
- Replace the glass after cleaning and drying, and KLARSTEIN 10039940 VIGOR AIR Hot Air Fryer, tighten the screws clockwise.
Cleaning Care & Storage
- Clean the glass door with a glass cleaner or mild detergent and a soft, damp sponge or soft plastic scouring pad. Do not use abrasive cleaners or metal scouring pa, ds as these may scratch the housing.
- Wipe the LED screen with a soft, damp cloth. Apply the cleaning agent to the cloth and never directly to the LED screen. Cleaning the screen with a dry cloth or abrasive cleaner may damage the screen.
- Wipe the walls of the cooking chamber with a soft, damp sponge to remove food residues.
- To avoid staining, you can use a non-abrasive liquid detergent or a mild cleaning spray.
- To avoid staining, you can use a non-abrasive liquid detergent or a mild cleaning spray. Before cleaning, apply the detergent to the sponge and not directly in the crumb tray. Then allow the crumb tray to dry completely.
- To loosen burnt-on grease, soak the crumb tray in a warm soap solution and then clean it with a soft sponge or soft plastic scouring pad. Then rinse the crumb tray and dry it completely.
- After cleaning, push the crumb tray back into the device. Only plug the mains plug back into the mains socket after inserting the crumb tray, and only switch on the appliance when the crumb tray is inside.
Storage
- Make sure that the unit and all accessories are completely clean and dry.
- Make sure the door is closed.
- Store the unit in an upright position on its feet. Do not store the appliance while it is wet or still warm. Do not store the unit in a humid or warm environment.
Technical Data
| Item number | 10039940, 10039941 |
| Power supply | 220-240 V ~ 50/60 Hz |
| Power | 1800 W |
| Capacity | 30 L |
| Adjustable temperature | 30-230 °C |
Troubleshooting
| Problem | Potential cause | Solution |
| The device does not work | The device is not connected to the mains. | Make sure that the plug of the device is inserted in the socket. |
| The unit has not been switched on. | Touch the ON/OFF button to switch on the unit. | |
| The device door has not been closed properly. | Make sure the door is properly closed. | |
| Steam escapes from the front of the appliance door. | Foods with a high moisture content are being cooked. | This is normal. The door has ventilation openings so that steam produced, for example, when defrosting frozen bread, can escape. |
| White smoke is coming out of the unit. | The unit is being used for the first time. | This is normal the first time you use the device. It is recommended to run the appliance for 18-20 minutes at the highest temperature setting. |
| Fatty foods are being cooked. | This is normal when cooking fatty foods. This does not affect the cooking process. | |
| The baking tray, crumb tray, or heating elements still contain grease or oil residues from previous use. | Make sure that all components are thoroughly cleaned after each use. | |
| Black smoke is coming out of the unit. | The food is burning. | Switch off the appliance immediately and remove the food. |
Disposal
By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
Environmental Safety
- During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
- Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
- Switch off the cooker hood when you no longer need it.
- Switch off the lighting when you no longer need it.
- Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
- Always put the lid on when cooking to reduce cooking steam and condensation.
Customer Service
Manufacturer & Importer (UK)
- Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
- Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
- Website: http://www.klarstein.com
- Scan the QR code to get access to the latest user manual KLARSTEIN 10035380 ELEONORA Range Hood and more product information.
Dear Customer
Congratulations on purchasing this device. Please read the following KLARSTEIN 10038383 FIRE SMART Fireplace Heater instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
FAQs
Q: Do I need to preheat the Vigor Air Fryer before cooking?
Ans: While not always necessary, preheating is recommended for best results, especially when cooking items that need a crispy finish (like fries or wings). Use the preheat option before adding food if your recipe calls for it.
Q: Can I use the fryer right out of the box?
Ans: Not quite. You should first remove all packaging, wash the accessories, and run the fryer empty for 15–20 minutes at high heat to eliminate any manufacturing residues or odors.
Q: What type of outlet does this fryer require?
Ans: The Vigor Air requires a standard grounded 230V AC power outlet. Avoid using extension cords or power strips with multiple high-powered appliances.
Q: How many preset cooking programs are there?
Ans: The Vigor Air features 18 smart cooking presets, including options for fries, chicken, fish, steak, pizza, baking, dehydrating, and reheating. Each program is optimized for temperature and time.
Q: Can I manually adjust temperature and time?
Ans: Yes. You can override presets and set custom time (up to 60 minutes) and temperature (from 30 °C to 230 °C) to match your recipe requirements.
Q: Is it possible to cook multiple items at once?
Ans: Yes, thanks to its spacious 30-litre capacity and multi-level cooking trays. However, leave enough space between items for air to circulate to ensure even cooking.
Q: What does the “dual cooking” mode do?
Ans: Dual cooking allows you to program two different cooking stages in one go. For example, start by baking and then finish with a crisping function without interrupting the cycle.
Q: Are the accessories dishwasher safe?
Ans: It’s best to wash accessories by hand with mild detergent and warm water. Dishwashing may reduce the lifespan of non-stick coatings over time.
