KLARSTEIN 10032854 Snoopy ECO Scooby Fridge User Manual

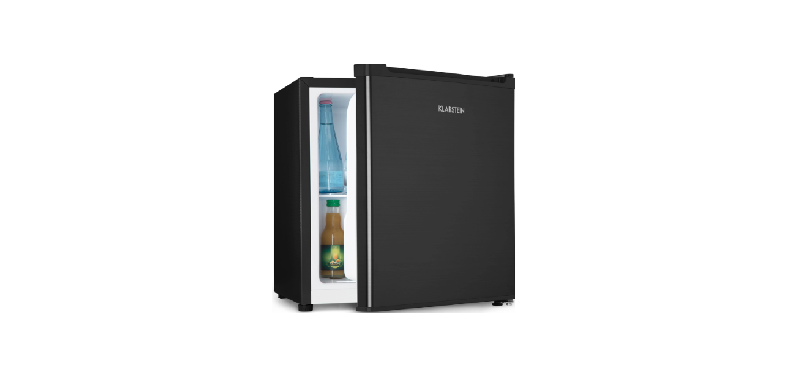

KLARSTEIN 10032854 Snoopy ECO Scooby Fridge

Safety Instructions

1. Children aged 3 to 8 years may fill refrigerators with food and remove food.
2. Ensure that children do not play with the appliance.
3. Keep all packaging away from children. There is a danger of suffocation.
4. When you dispose of the appliance, unplug it from the wall outlet, cut the power cord, and remove the door.
5. Keep ventilation openings in the unit housing or the built-in cabinet free of obstacles.
6. Do not use mechanical devices or other means to speed up the defrosting process.
7. Do not damage the refrigerant circuit.
8. When setting up the machine, take care not to pinch or damage the power cord.
9. Make sure that you can reach the power plug of the machine at any time.
10. Do not pull on the power cord.
11. If the power outlet is loose, do not plug in the power plug.
12. There is a risk of electric shock or fire.
13. This machine is heavy. Be careful when moving it.
14. Do not place the unit in direct sunlight.

Overview

Door Rotation

• Make sure that the machine is unplugged and empty.
• The unit must be tilted backwards to remove the door.
• You should place the unit on something solid so that it does not slip when tilted.
• Any parts that are removed must be kept for reinstalling the door.
• Do not lay the unit flat, as this may damage the cooling system.
• It is better if 2 people hold the unit during installation.

• Remove the cover.
• Loosen the screws and remove the suspension.
• Loosen the screw cover on the left side.
• Move the core cover to the right side. Lift the door and place it on a soft surface to avoid scratching it.
• Unscrew the lower suspension and remove the pin.
• Turn the suspension 180° and reattach the pin.
• Mount the lower suspension and put both feet back in place.
• Remove the door seal, turn it, and reattach it. Put the door back on.
• Make sure the door is aligned horizontally and vertically so that the seals are closed on all sides.
• Insert the top hanger and screw it in place with a screwdriver if necessary.
• Finally, fix the covers.

To attach the external door handle

DimensionsLevelling the refrigerator

To level the refrigerator, adjust the two adjustable feet on the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not close properly.

OPERATION

• The appliance should be installed well away from sources of heat, such as radiators, boilers, direct sunlight, etc.
• Ensure that air can circulate freely around the back of the cabinet. To ensure the best performance,
• if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm.
• Ideally, however, the appliance should not be positioned below overhanging wall units.
• Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Before first Use

• Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dry thoroughly.

Recommended temperature settings Daily use

Set temperature

Positioning of shelves and door compartments

• The refrigerator is equipped with several shelves that can be positioned as required.
• To enable the storage of food packaging of different sizes, the door compartments can be mounted at different heights.
• To do this, pull the balcony towards the arrows until it detaches and then position it as required.

Defrosting frozen food

•  Place the frozen food in a tray to catch any condensation that occurs during thawing.

Refrigerating fresh food

• Do not put warm or steaming foods in the refrigerator.
• Make sure air can circulate freely between foods in the refrigerator.
• Store fresh fruits and vegetables in the vegetable drawer.
• Pack butter and cheese in airtight containers, aluminum foil, or plastic wrap.
• Store milk bottles or milk cartons in the door compartment only when closed.
• Do not store bananas, onions, potatoes, and garlic in the refrigerator.

Cleaning & Maintainance

• Ethereal oils and organic solvents can attack plastic parts, e.g., lemon juice or the juice from orange peel, butyric acid, and cleansers that contain acetic acid.
• Do not allow such substances to come into contact with the appliance parts.
• Do not use any abrasive cleaners.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning, wipe with fresh water and rub dry.
• Accumulation of dust at the condenser increases energy consumption.
• For this reason, should carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.
• After everything is dry, place the appliance back into service.

Defrosting

• Pull the plug out of the socket.
• Remove all stored food, wrap it in several layers of newspaper, and store it in a cool, dry place.
• Keep the door open, and place a basin underneath the appliance to collect the defrost water.
• Replace the plug in the power socket to run the appliance again.

Technical Data

• Item numbers 10032854, 10032855, 10032856. KLARSTEIN 10032854 Snoopy ECO Scooby Fridge 10034548, 10034549
• Power supply 220 – 240 V ~ 50 Hz

Troubleshooting

Data Sheet

Information according to Regulation (EU) No. 2019/2016

Disposal

By disposing of it according to the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Environmental Safety

• During cooking, make sure that there is sufficient air KLARSTEIN 10035380 ELEONORA Range Hood supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

Customer Service

Manufacturer & Importer (UK)

• Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
• Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 42 272 Kensington High Street, London, W8 6N, D United Kingdom
• Website:  http://www.klarstein.com
• Scan the QR code to get access to the latest user manual for KLARSTEIN 10035380 ELEONORA Range Hood and more product information.

Dear Customer

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damage. We assume no liability for damage caused by disregard of the instructions and improper use.

FAQs

Q: What are the dimensions and capacity of the fridge?

Ans: The compact form of the Klarstein Snoopy ECO/Scooby fridge makes it perfect for tiny rooms. It is appropriate for workplaces, dorms, or guest rooms due to its approximately 40 litre capacity and exterior dimensions of 40 × 44 × 51 cm (W × D × H).

Q: Can I store frozen food in this fridge?

Ans: No, the Klarstein Snoopy ECO/Scooby refrigerator does not have a freezer section; it is a cooling-only refrigerator.

Q: How do I set the temperature?

Ans: A manual thermostat dial, usually seen inside the refrigerator, controls the temperature. To reduce the temperature, turn the dial in a clockwise direction. “1” is the warmest setting, and “5” is the coldest. After a day, start at “3” and make any necessary adjustments.

Q: Does the fridge make noise while operating?

Ans: Yes, but not too much. Perfect for offices or bedrooms where noise reduction is crucial.

Q: How energy-efficient is this model?

Ans: With an estimated annual energy consumption of 84–100 kWh, it is classified as Energy Efficiency Class E or F, depending on the version. Always refer to the energy label that came with your particular device.

Q: Can I reverse the door opening direction?

Ans: Yes, you may reverse the door of the Klarstein Snoopy ECO/Scooby refrigerator. Using a screwdriver, reposition the hinges and handle in accordance with the manual’s directions for reversing doors.

Q: How do I defrost the fridge?

Ans: This refrigerator defrosts manually. Unplug the device, take out the contents, and keep the door open when ice accumulates. When removing ice, avoid using sharp objects. After the water has melted, remove it with a gentle towel.
