Kogan KA71HARSTYA SalonPro 7-in-1 Hair Styler User Manual

Kogan KA71HARSTYA SalonPro 7-in-1 Hair Styler

Safety Instructions

To avoid the risk of electric shock, do not use this device in a bathtub, shower, or water-filled reservoir.

1. Read all the instructions carefully before first use and retain this user guide for future reference.
2. This appliance is live until the power is disconnected at the electrical outlet.
3. Do not use this appliance near bathtubs, showers, basins, or other vessels containing water.
4. Do not use this appliance near water. High temperature hazard.
5. Allow the attachments to cool down before touching them directly.
6. Do not place the appliance on sensitive surfaces immediately after use.
7. The airborne noise emitted by this appliance is ≤90dB (A).
8. Supervised children must not play with the appliance.
9. If the power cord is damaged, cease use immediately and contact help.kogan.com for support.
10. Do not use or store the appliance where it can come into contact with water.
11. Do not reach into the water until the power has been disconnected.
12. Never leave this appliance unattended when plugged in.
13. Do not pull or wrap the power cord around the appliance.
14.  Close supervision is necessary when this appliance is used by, on, or near children.
15. Do not use this appliance outdoors or where aerosol products are being used.
16. Attachments may get hot in use. Take care when handling them.
17. Do not place the appliance down during operation when it is hot.
18. Check that the voltage rating of this appliance matches that of your supply.
19. Cleaning and maintenance must not be performed by children without supervision.
20. Do not allow the appliance to get wet, i.e, dripping or splashing, as this may be dangerous.
21. The slots and openings on the appliance are for ventilation.
22. Never let children push anything into the holes or slots on the appliance.

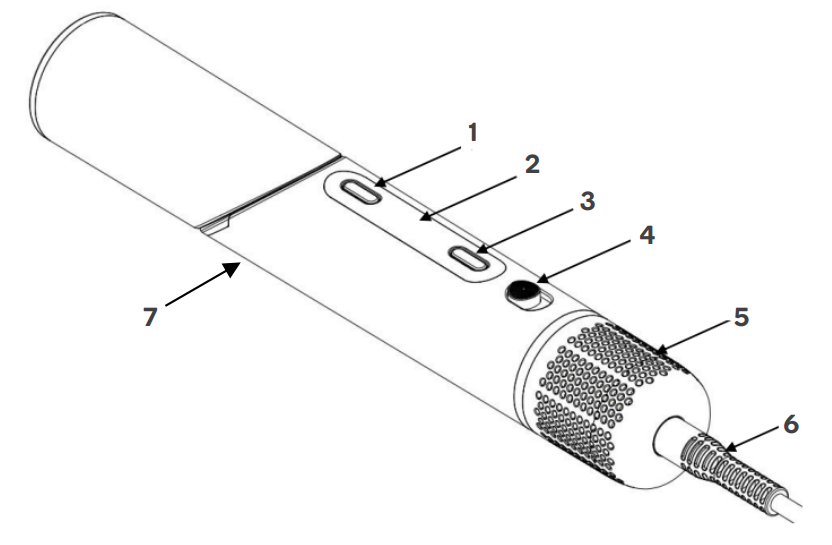

Components

Description

1. Temperature Button
2. LED Display
3. Speed Button
4. Power Switch
5. Air Intake
6. Bushing
7. Rotation Button

Operation

Before Use

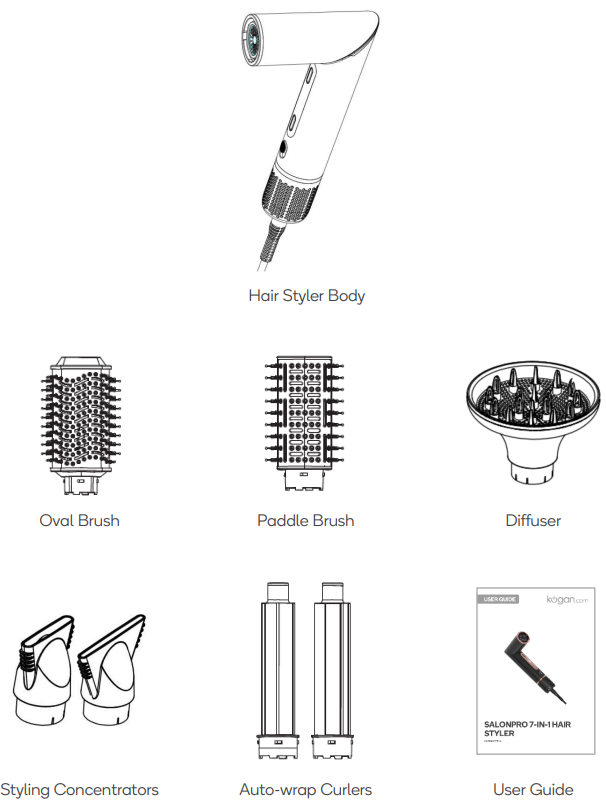

• Remove the hair styler body and attachments carefully from the box.
• You may wish to store the packaging for future use.
• Read these instructions before use

Powering the Hair Styler On

1. Clip an attachment onto the front of the hairdryer (if required).
2. Unwind the power cord, insert the plug into an electrical outlet, and turn the switch on.
3. Set the ‘Power’ switch to the on (-) position.

Powering the Hair Styler Off

When you have finished, set the ‘Power’ switch to the off (0) position and unplug the hair styler from the electrical outlet.

Lock/Unlock the Hair Styler

• Set the ‘Power’ switch to the lock position to lock the hair styler.
• All settings and buttons will be locked except the ‘Power’ switch.
• Set the ‘Power’ switch to the on or off positions to unlock the hair styler.

Rotate the Hair Styler Head

Press and hold the ‘Rotation’ button and turn the head into the open or closed position, then release the ‘Rotation’ button.

Adjust the Temperature

• Press the ‘Temperature’ button to cycle through temperatures or enter Cool mode.

Adjust the Speed

• Press the ‘Speed’ button to cycle through 3 speeds: low, medium, and high.

Hair Drying Basics

• Preparation: Shampoo and condition your hair, then rinse thoroughly.
• Towel blot to remove excess moisture. Divide your hair into sections.
• Drying Technique: Using a dryer and a styling brush, direct hot air through one section of hair at a time.
• Move the dryer steadily across each section, ensuring the airflow is directed at the hair, not the scalp.
• Vent Maintenance: Keep the dryer’s air intake vents unobstructed and free from hair while in use.
• Avoid Over-Drying: Do not concentrate heat on any one section for an extended period.
• Keep the dryer moving as you style to prevent over-drying.
• Quick Styling: For quick styling, dampen your hair with a mist of water before using the dryer.
• Using the Concentrator Attachment: This dryer includes a concentrator attachment.
• Use it to focus the drying power on small areas (such as a curl or a wave) or to relax curly hair.

Cleaning & Care

• Unplug the hair dryer from the electrical outlet before performing cleaning or maintenance.
• Do not use liquid or aerosol cleaners.
• Clean your appliance with a soft, damp (not wet) cloth.

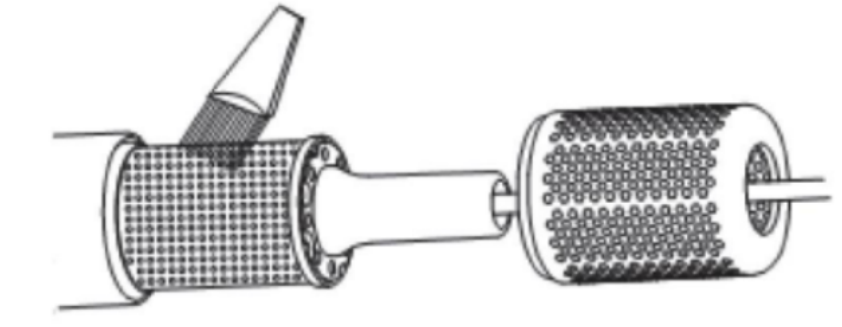

Cleaning the Filter

• Remove the filter by pulling it downwards.
• Use a dry, lint-free cloth or soft brush to remove any dust, hair, or debris from the filter cover and filter.
• Do not press or rub the filter with fingernails or sharp objects.
• After cleaning, install the filter cover back to its original position.
• Clean the filter at least once a month.
• Do not operate the hair styler with the filter cover removed.

Troubleshooting

• If the hair styler is not powering on.
• Ensure it is plugged into the electrical outlet and switched on.
• Ensure the ‘Power’ switch is in the on position.

Specifications

• Rated voltage (V) AC 220-240V
• Rated frequency (Hz) 50-60Hz
• Rated power input (W) 1400W

Disposal

This marking indicates that this appliance should not be disposed of with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

Customer Support

• Website: https://www.kogan.com/
• Ph: 1300 056 426
