Logitech FLIGHT YOKE SYSTEM Simulation Controller
Introduction
Congratulations on buying the Logitech G Flight Yoke System. The Flight Yoke features realistic controls configurable for all the major flight simulation software to make your flying experiences more realistic.
Features
- 8-way point of view hat switch
- 6 x 2-way rocker switches
- 2 x Single-function buttons
- 3-position mode switch
- Downloadable software to program and customize controls and to save personalized profiles.
Installation Instructions
First, fix the Flight Yoke to your table or desk by inserting the prongs of the mounting clamp into the holes on the yoke base and then tightening the screw mechanism until the yoke is firmly attached (be careful not to overtighten the screw as you may damage the clamp). Next, screw the mounting plate to the Throttle Quadrant using the four screws provided.
You can screw the plate to one of two sides of the quadrant, depending on how you want to mount the quadrant – either in front and below your table or on top of it. Please note that whichever way you choose to mount the quadrant, ensure that as you look at the unit, the rocker switches are at the bottom. Now tighten the throttle unit clamp’s screw mechanism until it is firmly attached to your table. You can also position the Throttle Quadrant on the left or right side of the Flight Yoke.
Now, connect the Throttle Quadrant to the Flight Yoke with the PS/2 connector provided. Use the integrated USB Hub on the side of the Flight Yoke to easily connect other parts of the Logitech G Flight range of products, such as additional Flight Throttle Quadrants, Flight Rudder Pedals, or other peripherals.
For Windows
- Visit logitech.com/support/yoke to download the latest drivers and software for your operating system.
- With the device disconnected, follow the onscreen instructions to complete the installation.
- At the Driver Setup screen, only when prompted, insert the USB cable into one of your computer’s USB ports, then click Next.
- At the Driver Setup screen, click Next to test your controller.
- Follow the on-screen prompts to test the controls and verify device operation. After the test, click OK.
IMPORTANT INFORMATION
Driver updates
From time to time, there may be updates to the driver and programming software for this product. You can check for the latest software updates by visiting the Logitech website (support.logitech.com).
Enabling your controller in the game
Most games support game controllers, but typically default to the mouse and keyboard until you go into the option menu within the game. The first time you start a game after installing your controller, go to the options menu within the main menu of the game and make sure your controller is set up correctly. If you are having trouble working out how to do this, or if you’re unsure whether the game itself supports game controllers, then please refer to the user manual of that game for more help.
Technical Support
Online Support: support.logitech.com
Programming
The Pro Yoke System’s buttons, controls, and axes correspond to commonly used functions in Microsoft FS9 and FSX according to the tables below. As with any software, if you wish to change the function of a button or control, you will need to change the settings of the game software.
Configuring
The Flight Yoke System’s buttons, controls, and axes correspond to commonly used functions in Microsoft FS9 and FSX. As with any software, if you wish to change the function of a button or control, you will need to change the settings of the game software. Once you have done this, simply find the command that you want to assign to your controller from the list of commands, click it, and then click the Change Assignment button.
A window will appear asking you to move the part of your controller that you want to assign to that command – press/move the button/axis that you want to assign to that command, and then click OK. Tip: You may find that when you assign the levers on the quadrant to a command, they don’t appear to work when you test them in the game. If this happens then you must look in the Sensitivities screen (Flight Simulator 2004) or the Calibration tab of the Controls screen (Flight Simulator X) of the game, select the axis command in the list there and ensure that the Sensitivity isn’t set too low (set the horizontal sensitivity slider control to around 70%).
Introducing Logitech Programming Software
Software can be downloaded to configure your Flight controller for enhanced functionality. It delivers a powerful set of features, allowing you to program your device with the ultimate configuration for total interaction. For a complete guide on how to program your Logitech G Flight controller, visit support.logitech.com or look at the help tab on your app menu.
Software features
- Quick and easy setup in any game
- Personalize the controller settings for your favorite games
- Configure your controller with an on-screen 3D model and interface
- Multiple setup options for each controller – ideal if a controller is used by several people and you need more than one profile per device
- Program special moves with sophisticated timing features
- Download the latest drivers Logitech FLIGHT YOKE SYSTEM Simulation Controller and software from http://www.logitech.com/ support/yoke
Function Overview

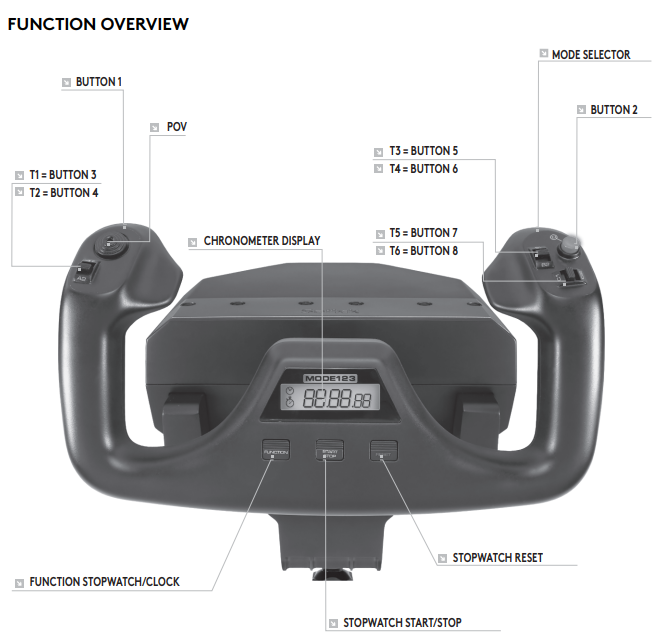

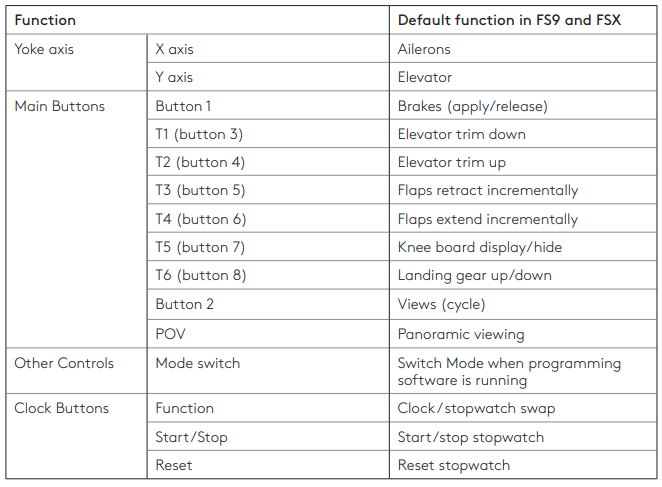

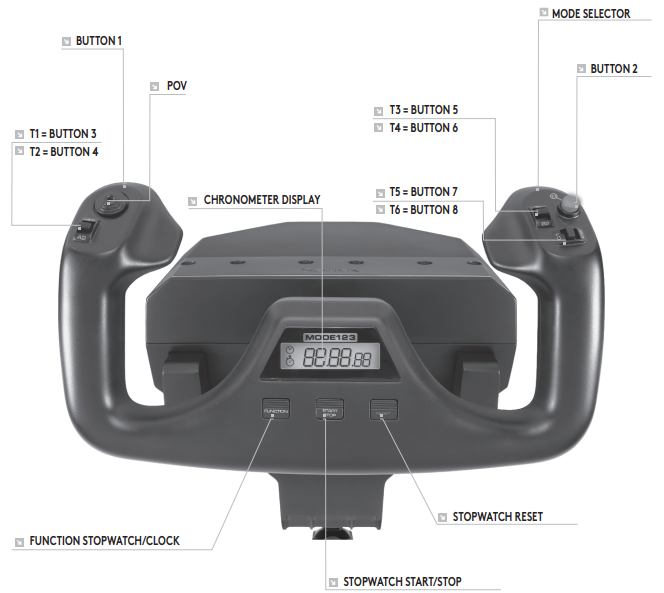

Flight Yoke Controls and Corresponding Functions in Microsoft Flight Simulator

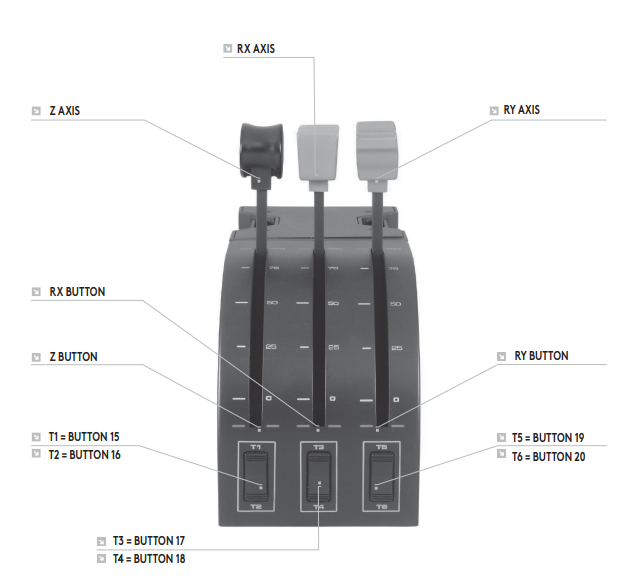

Quadrant Controls and Corresponding Functions in Microsoft Flight Simulator
How to Assign Flight Yoke Controls to Flight Simulator Functions.
If you wish to reassign any of the axes on your control (the yoke itself or the levers on the throttle quadrant), you must select Joystick Axes (Flight Simulator 2004) or Control Axes (Flight Simulator X) at the top of the window. If you wish to reassign any of the buttons on your controller, you must first select the Buttons/Keys tab at the top of the window.
FAQs
Q: How do I connect the flight yoke system to my computer?
Connect the yoke’s USB cable to a USB port on your computer. The device should be recognised by Windows automatically, and the required drivers should be installed.
Q: Is the yoke system compatible with Mac or Linux?
Windows is the primary operating system for the Logitech Flight Yoke System. Limited compatibility with Mac and Linux may necessitate the use of third-party software.
Q: What software do I need to use the yoke system?
The majority of popular flight simulators, including as Microsoft Flight Simulator, X-Plane, and Prepar3D, are compatible with the yoke. Use the Logitech G HUB software to set up controls for more sophisticated functions.
Q: Can I use the yoke system with multiple monitors?
Indeed. Utilise the camera and display settings on your flight simulator to fully utilise multi-monitor configurations while using the yoke to pilot the aircraft.
Q: Can I customize the yoke’s button functions?
Indeed. Any button or switch can be assigned to the desired function using the Logitech G HUB software or the control settings on your simulator.
Q: Does the yoke support force feedback?
No, force feedback is not a feature of the Logitech Flight Yoke System. It offers friction-based, fluid control that is appropriate for simulating realistic flight.
Q: Can I use the yoke system with joystick-only aircraft?
Yes, but in order to fully operate some small aircraft, your simulator may need to alter the button mapping.
Q: Is the yoke system suitable for beginners?
Of course. As you get more skill with flight simulators, you can gradually modify the yoke, which has easy-to-use controls.
