Safety Instructions

1. Keep the work area clean and well-lit.
2. Dark and cluttered work areas increase the risk of accidents and injuries.
3. Power tools produce sparks that can ignite dust and fumes.
4. Keep children and onlookers at a safe distance when using power tools.
5. You can easily lose control of the tool if you are distracted.
6. The plug on the power tool must match the power outlet.
7. Never modify the plug in any way. Never use an adapter with earthed power tools.
8. Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators.
9. There is an increased risk of electric shock if your body is earthed.
10. Do not expose power tools to rain or moisture.
11. There is a greater risk of electric shock if water gets into a power tool.
12. Keep the power cord away from heat, oil, sharp edges and moving parts.
13. Damaged or tangled power cords increase the risk of electric shock
14. Only use an extension cord approved for outdoor use.
15. Cords intended for outdoor use reduce the risk of electric shock.
16. Remove Allen keys/spanners, etc., before starting the power tool.
17. Allen keys, or the like, left in a rotating part of a power tool can cause personal injury.y
18. Do not overreach. Always maintain a firm footing and good balance.
19. This will ensure you have better control over the tool in unexpected situations.ns
20. Wear suitable clothing. Do not wear loose-fitting clothing or jewellery.
21. Keep your hair, clothing and gloves away from moving parts.
22. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.

Fuel

• Petrol is highly flammable and in some situations explosive.
• Never store fuel where there can be naked flames, e.g. smoking or sparks.
• Do not overfill the fuel tank. Check after filling that the filler cap is properly fitted.
• Avoid spilling fuel. Spilt fuel and fumes from the spilt fuel can easily ignite.
• Wipe up any spilt fuel before starting the engine.
• Handle and fill up with fuel outdoors or in a well-ventilated area, with the engine switched off and at a safe distance from sparks and naked flames.

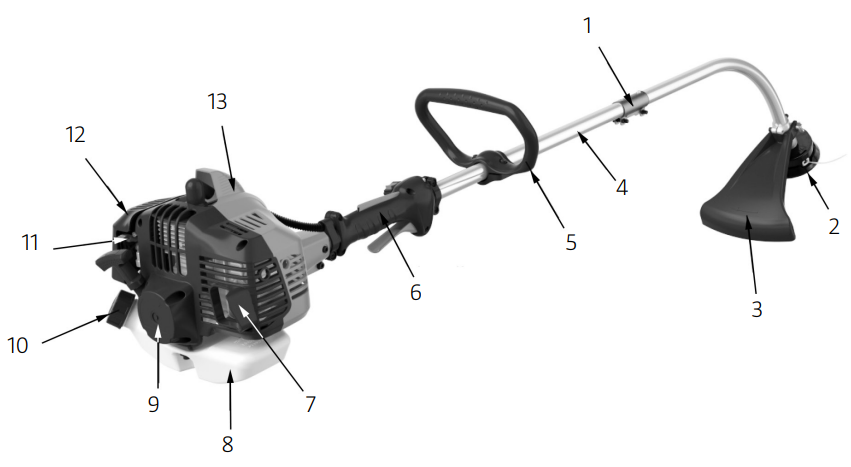

Description

1. Shaft coupling
2. Trimmer head
3. Guard
4. Shaft
5. Front handle
6. Back handle
7. Back cover
8. Fuel tank
9. Starter
10. Fuel cap
11. Choke lever
12. Air filter cover
13. Front cover FIG. 1

Assembly

Fitting the shaft

1. Press in the bottom part of the shaft (b) as far as it will go, so that the lock pin (a) goes in the hole (c) in the shaft. If necessary, turn the bottom part of the shaft (b) back and forth to make it easier. Check that the lock pin (a) has gone completely into the hole.
2. Firmly tighten the locking screw (d).

Handle

Put the rubber cap (3) on the shaft between the two arrows. Fit the top part of the handle (2) and the bottom part (4) on the shaft with the screws (1) and nuts (5), and firmly tighten. FIG. 3

Guard

Align the hole in the casing to the hole in the fastener, put the screw through the hole in the guard and fastener and lock in place with the wing nut. FIG. 4

Trimmer head

Put the hex key in the hole to lock the fastener, put the trimmer head on the axle and turn the trimmer head clockwise to firmly screw it on. FIG. 5

How to Use

FUEL

• Risk of personal injury.
• Petrol is highly flammable and can, in some circumstances, be explosive.
• Switch off the engine and allow it to cool before refilling with fuel.
• Follow all the safety instructions for handling fuel.
• Always refuel before use.

Filling

1. Shake the container with the fuel mixture.
2. Place the clearing saw on a level, stable surface with the fuel cap facing upwards.
3. Clean the filler cap and the area around the opening to avoid contamination entering the tank.
4. Carefully open the filler cap so any overpressure is relieved. Use a funnel and do not overfill. FIG. 6
5. Carefully fill up with fuel. Avoid spilling.
6. Replace the filler cap and tighten firmly.
7. Wipe off spilt fuel and allow any fuel residue to evaporate before starting the engine.

Starting the Trimmer

1. Put the power switch in the ON position, press the throttle control B, throttle control A and the safety catch, so that the throttle control A locks in the half-pressed position.
2. Move the choke lever to the OFF position. FIG. 7
3. Press the primer bulb at least 10 times before starting the trimmer for the first time. FIG. 8
4. To start the engine, pull the starter cord slowly until it catches (10–15 cm) and then pull it out fully a few times to turn the engine over and distribute the oil.
5. Move the choke lever to the N position.
6. Pull the starter cord until the engine starts. FIG. 9
7. Press in throttle control A and B. When the engine is idling, use throttle control A to control the speed.
8. When using the trimmer head,thee feed mechanism must be tapped against the ground first to feed out the line. FIG. 10
9. Stop the rotation of the trimmer head by releasing throttle control A and B.
10. Turn off the engine by pressing the power switch.
11. The choke lever can be in the OFF position when starting if the engine is hot.

Technical Data

• Engine type: Air-cooled, two-stroke
• Displacement: 25,4 cm³
• Output: 900 W
• Idling speed: 3000 ± 300/min
• Max speed: 9000 rpm
• Spark plug: L8RTC
• Volume fuel tank: 500 ml
• Fuel, mixing ratio: 40:1
• Axle diameter: Ø 24 mm
• Working width: 380 mm
• Trimmer line: Ø 2 mm
• Weight: 4.9 kg
• Sound pressure level, LpA: 94.5 dB(A)
• Sound power level, LwA: 105.8 dB(A), K=3 dB
• Sound power level, LwA: 108 dB(A)
• Max vibration level: F: 5.43 m/s², K=1.5 m/s² R: 4.79 m/s², K=1.5 m/s²
  • F: Front handle
  • R: Back handle

Maintainance

Switch off the engine, release the spark plug lead from the spark plug and allow the engine to cool before cleaning and/or maintenance.

• Proper maintenance and regular cleaning are essential for the machine to work satisfactorily.
• Do not rinse the clearing saw with water. The Meec Tools 014214 900 W 38 cm Grass Trimmer. Penetration of water can damage the engine and electrical parts.
• Clean the clearing saw with a dry cloth, brush or the equivalent.

Draining Fuel Tank

1. Place a suitable container under the fuel tank.
2. Remove the fuel cap.
3. Allow the fuel to drain out into the container.
4. Replace the fuel cap and firmly tighten

Engine & Muffler

To reduce the risk of fire, clean the engine’s cooling fins regularly with compressed air and remove chips, leaves and other debris from the area around the muffler.

Starter

Keep the clearing saw’s ventilation openings clean to avoid overheating. If the starter cord is worn and damaged, contact your dealer to purchase a new one.

Screw Joint

Check that all screw joints are properly tightened at regular intervals and that the handle sits firmly.

Spark Plug

• Regularly check the spark plug and remove any deposits with a wire brush.
• Check and adjust the electrode gap. It must be 0.5 mm. FIG. 11
• Refit the spark plug and tighten with the supplied spanner.
• Replace the spark plug with a new one of the same Meec Tools 014214 900 W 38 cm Grass Trimmer type if the electrodes are burnt and at intervals of 100 operating hours.

Air Filter

Clean the air filter after an interval of 12 working hours to ensure proper and safe functionality. The engine can be damaged if it is run without a properly functioning filter.

1. Undo the screw, remove the filter cover, and the filter unit. FIG. 12 FIG. 13
2. Wash the filter unit with water and a mild detergent. Do not use petrol or solvents.
3. Allow the filter to dry in the air.
4. Replace the filter unit and filter cover, and tighten Meec Tools 014214 900 W 38 cm Grass Trimmer the screw.

Do not start the engine without an air filter.

Sharpening the Blade

1. Remove the line blade (A) from the guard (B) by undoing the screws (C). FIG. 14
2. Put the line blade in a vice and sharpen it with a flat file. Make sure to maintain the angle of the edge.
3. Refit the line blade on the guard.

Replacing

Storage

• Clean the clearing saw well after use and check that it is in good condition and that no parts are missing or damaged.
• Replace or repair any damaged parts. Store the clearing saw in a dry place with the blade guard fitted.
• Clean the line spool at the end of the season, and if necessary, replace it.

Maintainance

Troubleshooting

Limited Warranty

Normal Wear: Many power tools need periodic parts replacement and service to achieve the best performance. This warranty does not cover repair when normal use has exhausted the life of a part, including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover.

Customer Support

• Website: https://www.jula.se/varumarken/meec-tools/
• Tel: +39-0645652462
