Meec Tools 011387 230 V Paving Scraper Instructions Guide

Meec Tools 011387 230 V Paving Scraper

Safety Instructions

Read the operating instructions carefully before use! Please retain for future reference.

• Keep the extension cable at a safe distance from the brush head.
• Wear protective goggles or face protection.
• Wear safety footwear. Wear long trousers.
• Do not expose the paving stone cleaner to rain.
• Do not immerse the paving stone cleaner in water or any other liquid.
• Check the paving stone cleaner before use. Do not use the paving stone cleaner if it is damaged.
• Ask an authorised service centre to repair the paving stone cleaner if it is damaged.
• Do not use the paving stone cleaner if the guard is damaged or worn.
• Do not use the paving stone cleaner if the power cable is damaged or worn.
• Check the extension cable is not damaged or worn before use.
• Immediately disconnect the plug from the socket if there is any damage.
• Do not touch the cable before the plug has been disconnected from the socket.
• Do not use the paving stone cleaner around children or animals.
• Only use the paving stone cleaner in daylight or in well-lit areas.
• Check that the brush is fitted according to the instructions.
• Use the accompanying tools when fitting the brush to avoid damaging the paving stone cleaner.
• Use protective gloves when fitting the brush.
• Run the paving stone cleaner at a low speed in a safe area after fitting the brush. Immediately switch off the paving stone cleaner if it vibrates considerably or if there is any sign of damage to the brush.
• Do not use worn or damaged brushes.

Electrical Safety

• Never use the paving stone cleaner without a fitted protective hood.
• Do not use the paving stone cleaner during rain or snow.
• Do not use the paving stone cleaner on wet weeds.
• Check that the mains voltage corresponds to the rated voltage on the rating plate.
• The paving stone cleaner should be connected to a power circuit protected by an RCD of max. 30 mA.
• Only use extension cables of the following types: H05VV-F, H05RN-F and H05RR-F.

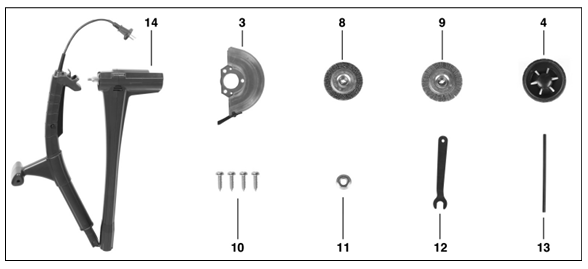

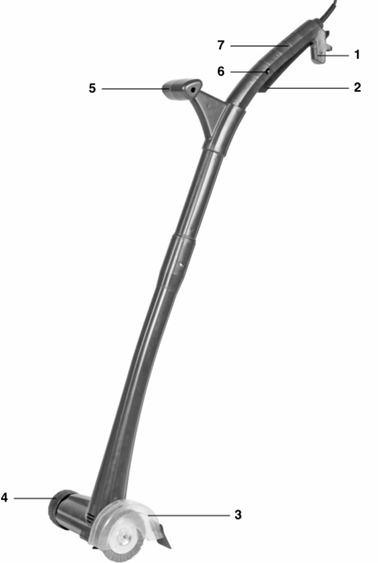

Description

1. Strain-relief
2. On-Off switch
3. Protective hood
4. Wheel
5. Auxiliary handle
6. Starting lock
7. Rear handle
8. Steel brush
9. Nylon brush
10. Screws 3.5 x 13 mm
11. Nut M8
12. Open-end wrench
13. Metal pin
14. Engine casing

Assembly

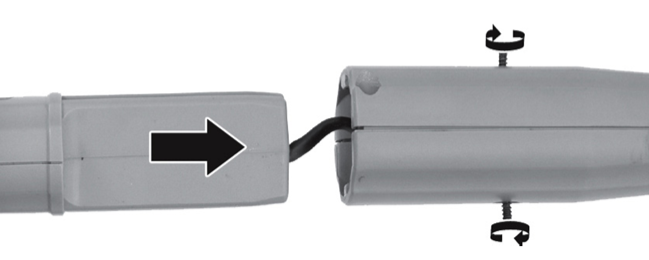

1. Fitting the two parts of the paving stone cleaner.
2. Insert the upper part of the paving stone cleaner into the lower part.
3. Attach the two parts using two of the accompanying screws.

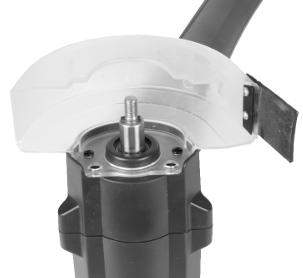

Fitting the protective hood

Secure the protective hood (3) onto the engine Meec Tools 011387 230 V Paving Scraper casing using two of the accompanying screws.

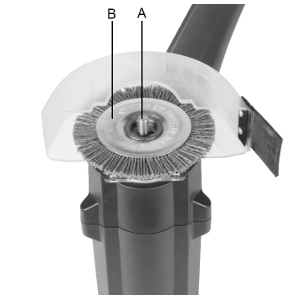

Fitting the brush

Use the accompanying tools when fitting the brush in order to avoid damaging the paving stone cleaner. Use protective gloves when fitting the brush.

Operation

Intended use

The paving stone cleaner is intended to be used for removing weeds from outdoor areas and between paving stones. The paving stone cleaner is intended for household use, not professional use.

Starting and stopping

1. First, press the starting lock followed by the power switch to start the paving stone cleaner.
2. Release the power switch to switch off the paving stone cleaner.

Use

1. Connect the paving stone cleaner to a suitable extension cable.
2. Wind the extension cable around the strain-relief.
3. Hold the paving stone cleaner with both hands.
4. Press the starting lock and power switch.
5. Run the paving stone cleaner at a steady speed over the surface.
6. Brush longer joints first and shorter ones afterwards.
7. Do not use the paving stone cleaner on the same area over a long period as the brushes could then brush too deeply and remove the sand between the joints.
8. Brush regularly to avoid ending up with stubborn weeds.

Choosing the brush

• Check that the brush does not damage the paving stones.
• Do not use the paving stone cleaner on sensitive surfaces.
• Keep the paving stone cleaner away from hard objects and plants.
• Brush regularly to avoid ending up with stubborn weeds.

Maintainance

• Clean the paving stone cleaner after each use.
• Regularly brush any dirt off the paving stone cleaner using a soft brush.
• Do not use any polish or corrosive cleaning agents or solvents to clean the paving stone cleaner.
• Store the paving stone cleaner in an area out of reach of children when not in use.

Technical Data

• Rated voltage 230 VAC / 50 Hz
• Power 140 W
• Unloaded rpm 1,200 rpm
• Axle diameter 8 mm
• Weight 2 kg
• Sound pressure level, LpA 68 dB(A)
• Measured Sound power level, LwA 88 dB(A), K=3
• dB Guaranteed Sound power level, LwA 91 dB
• (A), K=3 dB Vibration level 1.6 m/s², K=1.5 m/s²

Limited Warranty

Normal Wear: Many power tools need periodic parts replacement and service to achieve the best performance. This warranty does not cover repair when normal use has exhausted the life of a part, including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover.
