Meec Tools 013150 2 kW 58 cm Leaf Blower User Manual

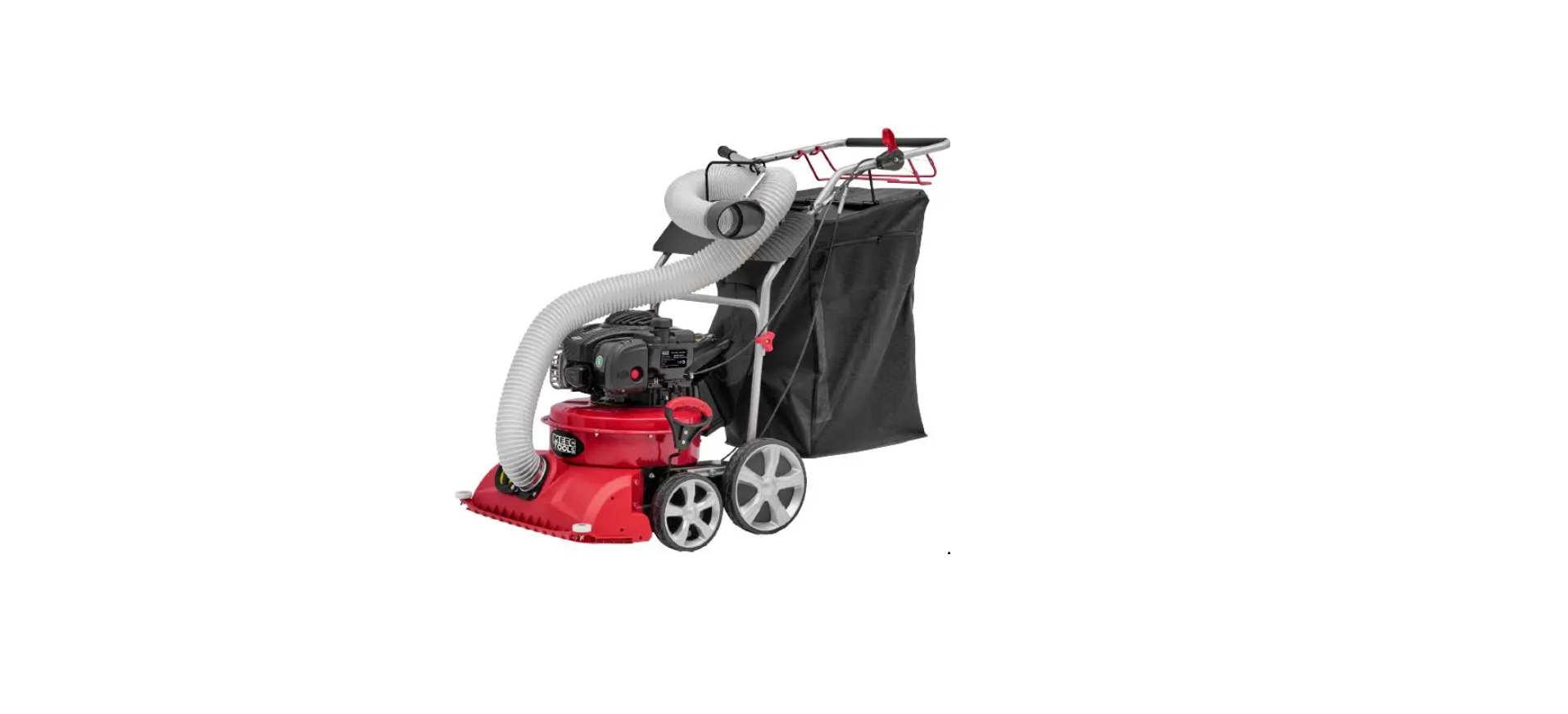

Meec Tools 013150 2 kW 58 cm Leaf Blower

Safety Instructions

1. Keep children under supervision to make sure they do not play with the machine.
2. There may be local regulations for the minimum age of persons allowed to use the machine.
3. Do not use the machine when other persons, especially children or pets, are in the vicinity.
4. Do not use the machine near open windows, doors, etc.
5. Pay attention to what you are doing, and use your common sense when working with the machine.
6. Never use the machine if you are tired or under the influence of drugs, alcohol or medication.
7. A moment of inattention can result in serious personal injury.
8. Wear safety glasses and suitable personal safety equipment.
9. Wear long trousers. Wear a hair net if you have long hair.
10. Do not wear loose-fitting clothes, jewellery, or watches, etc. that can fasten in moving parts.
11. The machine makes a lot of noise. Risk of hearing impairment if ear protection is not used.
12. Pay attention to the surroundings and avoid causing any interference
13. Follow the applicable local regulations regarding permissible working hours.
14. The machine should be used with the lowest possible engine speed necessary to do the work.
15. There is a severe risk of injury if you carry the machine with your finger on the throttle.
16. If the area to be cleared is dusty, dampen the surface a little or use a sprinkler.
17. Use the full length of the blowpipe so that the air flow acts close to the ground.
18. Use a rake or broom to scrape up debris before blowing.
19. Do not use the machine for long periods of time. Take regular breaks.
20. Keep the handles on the machine clean, dry and free from oil, petrol and dirt.

Description

1. Holder for a bag
2. Bag
3. Hose holder
4. Shock-absorber roller
5. Lid for intake opening
6. Blower/vacuum hose
7. Drive lever for wheel drive FIG. 2

Assembly

The product needs some assembly before use. Read all the instructions and safety instructions carefully before assembling, and familiarise yourself with the product and how to use it. Fit all the parts according to the instructions.

Drive Lever for Wheel Drive

1. Put the end hook in the mounting hole. FIG. 3
2. Put both ends of the drive lever in the mounting holes in the right and left side pieces. The wire should be placed at the bottom edge of the side piece. FIG. 4 FIG. 5

Top Part of the Handle

1. Fit the top part of the handle on the bottom part at the dashed line in the diagram. FIG. 6
2. Put screws in the two mounting holes and firmly tighten the lock knobs. FIG. 7

Fitting the Bag Holder

Put the left and right ends of the holder in the four holes in the top part of the handle. FIG. 8 FIG. 9

Hose Holder

Put the left and right ends of the hose holder in the two holes in the top part of the handle.

Bag

1. Hook the two hanger plates on the ends of the hose holder.
2. Press the catch and open the back cover.
3. Put the bag connector in the connection.

Fitting the Shock-Absorber Rollers

Fit the shock-absorber rollers as shown in the diagrams. Assembly parts:

• 4.1 – Wing nut
• 4.2 – Shock-absorber roller
• 4.3 – Washer
• 4.4 – Screw FIG. 12

1. For the right-hand side. FIG. 13
2. For the left-hand side. FIG. 14

Usage

STARTING

1. Always check before use that the required accessory is correctly and securely fitted.
2. Check the oil level with the dipstick (marked with an oil symbol) before use.
3. Top up the oil, if necessary.
4. Open the fuel filler cap (marked with a fuel symbol) and check the fuel level.
5. Top up with fuel, if necessary.
6. Check that the switch arm is in the closed position.
7. Move the throttle lever to the start position.
8. Press the primer bulb 3–5 times.
9. Pull the starter cord to start the motor.

Adjusting the Height of the Intake Opening

There are five positions. Pull out the height adjuster lever from the slot in the adjuster arm and move it to the slot for the required height.

Shock-Absorber Rollers

If the product collides with a solid object at normal moving speed (3.4 km/h) and at an angle of no more than 45°, the shock-absorber roller rolls against the solid object to change the direction of the product. This protects the product from damage as a result of a collision. Do not exceed the normal speed when using wheel drive and avoid collision at an angle of more than 45°. Otherwise, the shock-absorber rollers will not work and the intake lid can be damaged.

Wheel Drive

When the engine starts, first press the drive lever for the rotating brush and then press the drive lever for wheel drive against the handle.

Hose

Suction function

1. Fit the hose in accordance with the instructions.
2. Fit the lid over the intake opening.
3. Start the product and point the hose at the rubbish to be vacuumed.

Telescopic tube

1. Use the telescopic hose to adjust the length of the handle.
2. Press the catch with your thumb to pull the handle in or out.

Blower Function

1. Close the back cover.
2. Connect the hose to the back hose connection.
3. Start the product and point the hose at the rubbish.

Using the Bag

1. Air can flow back in through the intake opening when the bag is full, or if the ventilation openings in the bag are blocked by dust.
2. Fit the bag in accordance with the instructions.
3. If this happens, open the zip over the outlet opening to ventilate the bag or check if it is full.
4. When the bag is full, switch off the product, remove the bag, and empty it.

Maintainance & Cleaning

Clean and store the product by following these instructions for the best Meec Tools 013150 2 kW 58 cm Leaf Blower functionality and life span. Follow the instructions below to prevent corrosion and make it easier to start the engine the next time.

• Check that the fuel cock is closed before cleaning the casing on the product.
• Release the spark plug lead from the spark plug. Put the product on its side, with the air filter up.
• This reduces the risk of leaking fuel and flooding the carburettor, which can make it difficult to start.
• Clean the engine by hand. Make sure that no water gets into the air filter.
• Do not spray the engine with water; this will increase the risk of water getting into the air filter.
• If air gets into the air filter, it can reach the carburettor and the engine, and cause damage.
• Do not expose the engine to water when it is hot; this can damage the engine.
• Allow a hot engine to cool for at least 30 minutes before cleaning.
• Wipe all accessible parts of the product after cleaning.
• Switch off the engine and allow it to cool.

Clean the bag

Remove the bag from the product and wash it with a hose or high-pressure jet. Allow the bag to dry completely before putting it away.

Changing the Oil

• Always check before use that the oil level is between the top and bottom markings on the dipstick.
• Change the oil after 25 working hours and thereafter at regular intervals in accordance with the instructions. Tilt the product before filling with oil so that the old oil runs out through the oil filler.
• Do not tilt the product the other way. This will Meec Tools 013150 2 kW 58 cm Leaf Blower cause oil to get iintothe carburettor, which will damage it. Change the oil when the engine is warm, but not hot. Do not fill oil over the max marking on the dipstick.
• Overfilling will cause the engine to smoke and lose power, and can result in the accumulation of soot in the cylinder and spark plug. The engine can also overheat.
• Too little oil can cause the engine and gearbox to vibrate and wear down the piston ring, and can cause the engine to seize.

Air Filter

Check the air filter before and after use. It can be difficult to start the engine if the filter is blocked, and it will emit smoke and lose power. Clean the air filter more often in dusty conditions. If there is a paper filter element, remove it and remove the dust on it. If there is a foam rubber filter element, clean it with petrol, allow it to dry and apply a little lubricating oil on it. The oil helps the filter element trap dust. Do not wash the part of the filter inside the foam rubber with water. The inner part is made of paper, and water can block the pores, which reduces the capacity of the engine. Blow clean this part of the filter with compressed air.

Cooling Fins

The cooling fins reduce noise and cool the engine. Dust and impurities can accumulate on the cooling fins and reduce the cooling effect. This can lead to overheating and damage the engine. Carefully clean the cooling fins after use.

Refuelling

If the fuel runs out, allow the engine to cool for at least 10 minutes before refuelling; otherwise, there is a risk of the hot engine igniting the fuel. Fill up with the amount of fuel specified in the technical data. Overfillingwill blockk the ventilation hole in the fuel cap, which will prevent the flow of fuel to the engine.

Storage

Preparations for storage

Keep petrol away from naked flames and other sources of heat.

1. Empty the fuel tank with an emptying pump.
2. Run the engine until the fuel tank is empty and the engine stops.
3. Remove the spark plug. Pour 20 ml of clean engine oil into the cylinder through the spark plug hole.
4. Slowly pull the starter cord to distribute the oil.
5. Clean and lubricate the product in accordance with the instructions.
6. Apply rust inhibitor to the impeller and exposed metal parts.
7. Store the product in a clean, dry and frost-free place out of the reach of unauthorised persons.
8. Allow the engine to cool completely before putting it away.

Technical Data

• Engine type: Four stroke
• Displacement: 140 cm³
• Output: 2 kW
• Speed, no load: 2800 rpm
• Fuel tank capacity: 0.8 l
• Oil tank capacity: 0.47 l
• Engine oil: 10W-30
• Moving speed: 3.4 km/h
• Catcher volume: 150 l
• Suction width: 580 mm
• Suction height: 15–60 mm
• Air speed vacuum mode: 26 m/s
• Air speed blower mode: 43 m/s
• Max inclination when working on slopes: 20°
• Hose length: 2500 mm
• Hose diameter: Ø 90 mm
• Air speed in hose, vacuum mode: 40 m/s
• Air speed in hose, blower mode: 46 m/s
• Weight: 43 kg
• Sound pressure level, LpA: 86.0 dB(A), K=3 dB
• Sound power level, LwA: 102 dB(A), K=3 dB
• Sound power level, LwA: 105 dB(A)
• Vibration level: 4.2 m/s², K=1.5 m/s²
