MEEC TOOLS 024240 Cordless Multi Sander Instruction Manual

MEEC TOOLS 024240 Cordless Multi Sander

Safety Instructions

1. Keep the work area clean and well-lit.
2. Dark and cluttered work areas increase the risk of accidents and injuries.
3. Power tools produce sparks that can ignite dust and fumes.
4. Keep children and onlookers at a safe distance when using power tools.
5. You can easily lose control of the tool if you are distracted.
6. The plug on the power tool must match the power outlet.
7. Never modify the plug in any way. Never use an adapter with earthed power tools.
8. Avoid body contact with earthed surfaces such as pipes, radiators, cookers and refrigerators.
9. There is an increased risk of electric shock if your body is earthed.
10. Do not expose power tools to rain or moisture.
11. There is a greater risk of electric shock if water gets into a power tool.
12. Keep the power cord away from heat, oil, sharp edges and moving parts.
13. Damaged or tangled power cords increase the risk of electric shock
14. Only use an extension cord approved for outdoor use.
15. Cords intended for outdoor use reduce the risk of electric shock.
16. Remove Allen keys/spanners, etc., before starting the power tool.
17. Allen keys, or the like, left in a rotating part of a power tool can cause personal injury.y
18. Do not overreach. Always maintain a firm footing and good balance.
19. This will ensure you have better control over the tool in unexpected situations.ns
20. Wear suitable clothing. Do not wear loose-fitting clothing or jewellery.
21. Keep your hair, clothing and gloves away from moving parts.
22. Loose-fitting clothing, jewellery and long hair can get caught in moving parts.

Dust Extraction

Dust from some materials, such as lead-based paint, certain types of wood, minerals, and metals, can be harmful to health and, in some cases, toxic. Touching or inhaling sanding dust can cause an allergic reaction and/or respiratory problems.

Dust from oak and birch, for example, is considered to be carcinogenic, especially in combination with some wood treatment agents. Materials that contain asbestos should only be handled by qualified personnel.

• Always use dust extraction.
• Make sure the work area is well ventilated.
• Wear a dust filter mask.
• Always follow the instructions for the actual material.

Technical Data

• Rated voltage 230 V ~ 50 Hz
• Power 200 W
• Nominal speed 13000 rpm
• Sandpaper size 140x140x90 mm
• Cord length 2,8 m
• Weight 1.1 kg
• Sound pressure level, LpA 77.4 dB(A), K= 3 dB
• Sound power level, LwA 88.4 dB(A), K=3 dB
• Vibration level 1.879 m/s2 , K=1.5 m/s

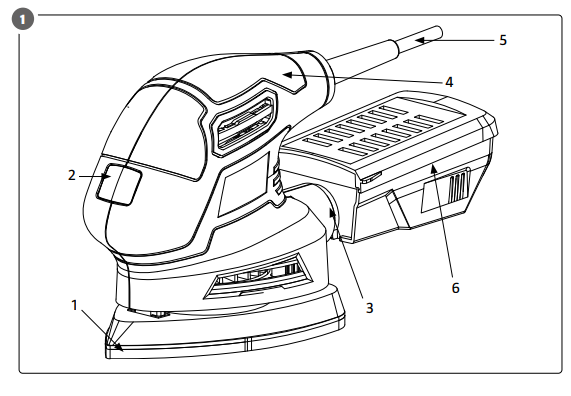

Description

1. Sanding pad
2. Power switch
3. Connection for dust extraction MEEC TOOLS 024240 Cordless Multi Sander device
4. Rubber-coated grip
5. Power cord
6. Dust collector

Choice of Sandpaper

Sandpapers can be made with different abrasive materials and coarseness. Use sandpaper suitable for the actual material.

Assembly

The table above, ‘Choice of sandpaper, shows MEEC TOOLS 024240 Cordless Multi Sander suitable sandpapers for different applications.

1. Choose sandpaper of the required coarseness.
2. Align the holes in the sandpaper with the dust extraction holes in the sanding pad.
3. Press the velcro-backed sandpaper onto the velcro attachment of the sanding pad.
4. The sandpaper should be securely attached to the sanding pad without coming loose.

Use

• Remove all packaging material.
• Remove any transport protection.
• Check that all the parts are included.
• If possible, save the packaging until the warranty has expired.
• Recycle the packaging in accordance with local regulations

Maintainance & Cleaning

Switch off the multi-sander and pull out the plug before checking, cleaning, maintenance or adjustments, and before changing accessories.

• Keep the multi-sander and its ventilation openings clean for best functionality and life span.
• Clean the product and accessories every time they have been used.

Storage

• Store the multi-sander in a dry, cool place out of the reach of children.
• Protect the multi-sander from direct sunlight. If possible, store the multisander in the dark.
• Do not store in a plastic bag; this can result in the accumulation of moisture.

Limited Warranty

Normal Wear: Many power tools need periodic parts replacement and service to achieve the best performance. This warranty does not cover repair when normal use has exhausted the life of a part, including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover.

Customer Support

• Website: https://www.jula.se/varumarken/meec-tools/
• Tel: +39-0645652462
