Meec Tools 024341 Concrete Mixer Instruction Manual

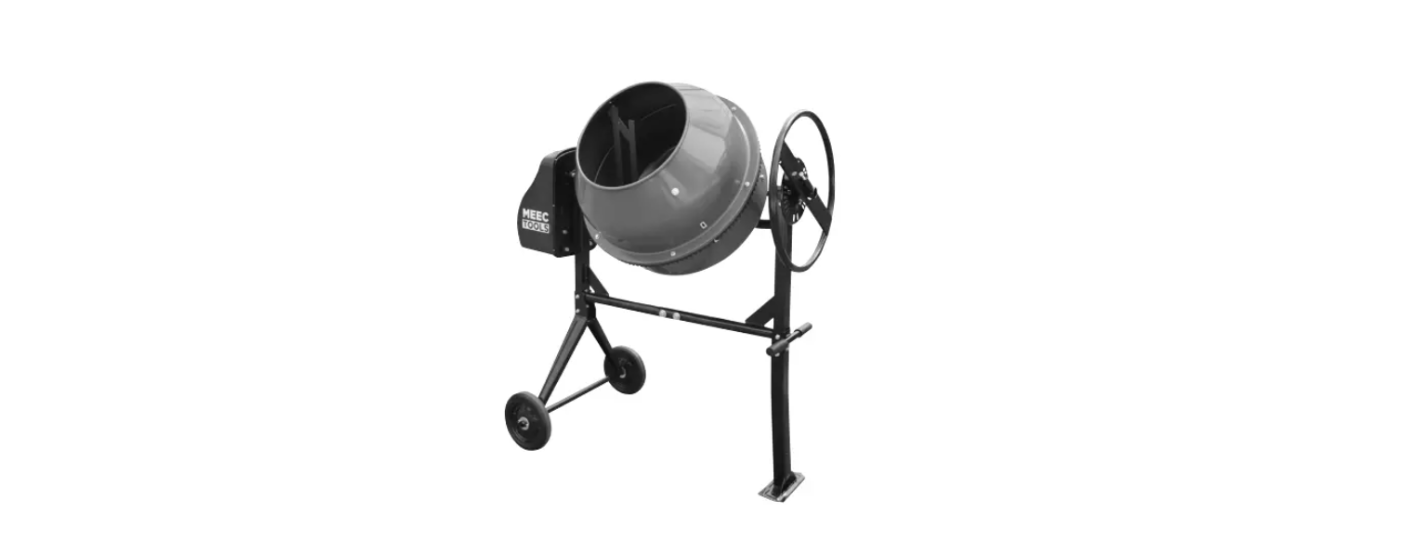

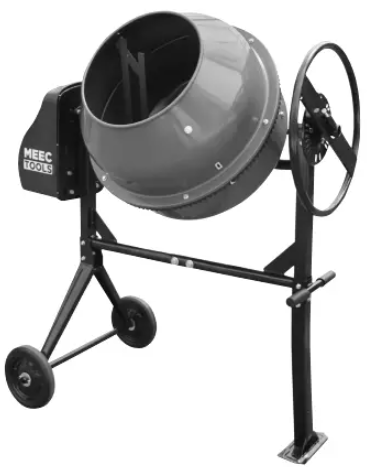

Meec Tools 024341 Concrete Mixer

Safety Instructions

1. Dark and cluttered work areas increase the risk of accidents and injuries.
2. Power tools produce sparks that can ignite dust and fumes.
3. Keep children and onlookers at a safe distance when using power tools.
4. The plug on the power tool must match the power outlet.
5. Never modify the plug in any way. Never use an adapter with earthed power tools.
6. There is an increased risk of electric shock if your body is earthed.
7. Do not expose power tools to rain or moisture.
8. There is a greater risk of electric shock if water gets into a power tool.
9. Keep the power cord away from heat, oil, sharp edges and moving parts.
10. Damaged or tangled power cords increase the risk of electric shock
11. Only use an extension cord approved for outdoor use.
12. Cords intended for outdoor use reduce the risk of electric shock.
13. Remove Allen keys/spanners, etc., before starting the power tool.
14. Allen keys, or the like, left in a rotating part of a power tool can cause personal injury.y
15. Do not overreach. Always maintain a firm footing and good balance.
16. This will ensure you have better control over the tool in unexpected situations.ns
17. Wear suitable clothing. Do not wear loose-fitting clothing or jewellery.
18. Keep your hair, clothing and gloves away from moving parts.

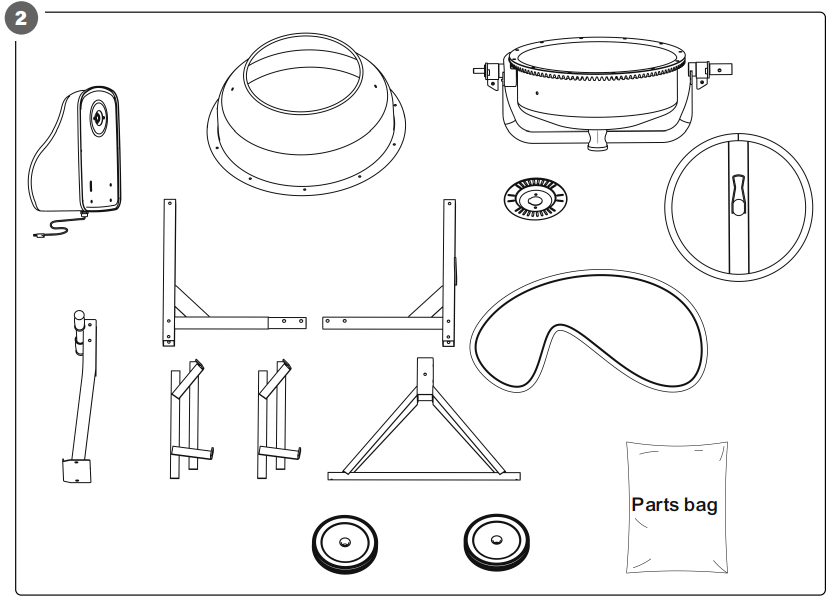

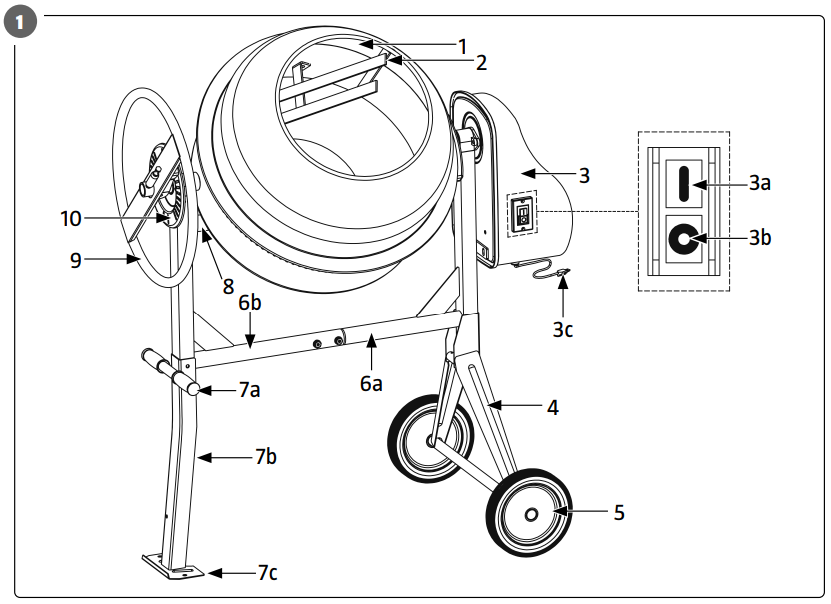

Description

1. Drum
   • a. Top part of drum
   • b. Bottom part of the drum
   • c. Rubber seal
   • . Assembly parts
2. Mixer blade (x2)
3. Motor unit
   • a. Power switch I
   • b. Power switch O
   • c. Power cord with plug
   • d. Assembly parts
4. Wheel holder
   • a. Axle
   • b. Assembly parts
5. Whee
   • a.  Wheel (x2)
   • b.  Washer* (x4)
   • c. Cotter pin* (x2)
6. Stand
   • a. Right stand section
   • b. Left stand section
   • c. Assembly parts
7. Leg
   • a. Transport handle (x2)
   • b. Assembly parts
   • c. Mounting hole (x2)
8. Drum axle
   • a. Assembly parts
   • b. Attachment (x2)
9.  Control wheel
   • a. Stop screw
   • b. Spring
   • c. Adjustment screw
   • . Wing* (x2)
10. Plate to adjust angle
    • a. Assembly parts
    • b. Slot

Parts marked with * are not shown in this overview. See the respective section in the instructions.

Assembly

Unpacking

1. Unpack all the parts and place them on a level and stable surface.
2. Remove all packaging material and any transport locking devices.
3. Check that all parts are included and undamaged.
4. Check that personal safety equipment and all the necessary tools and accessories for assembly and use are available. FIG. 2

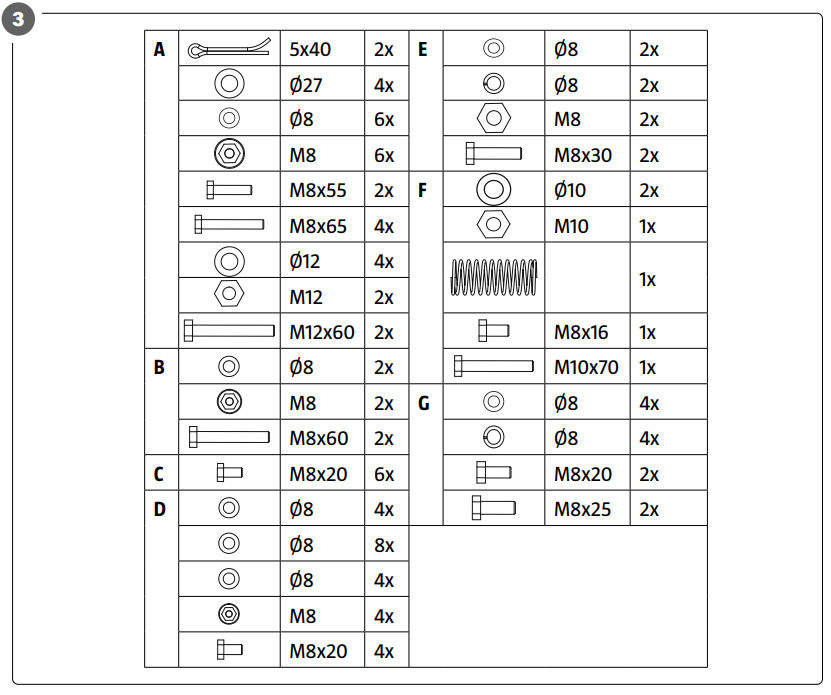

Parts in a bag

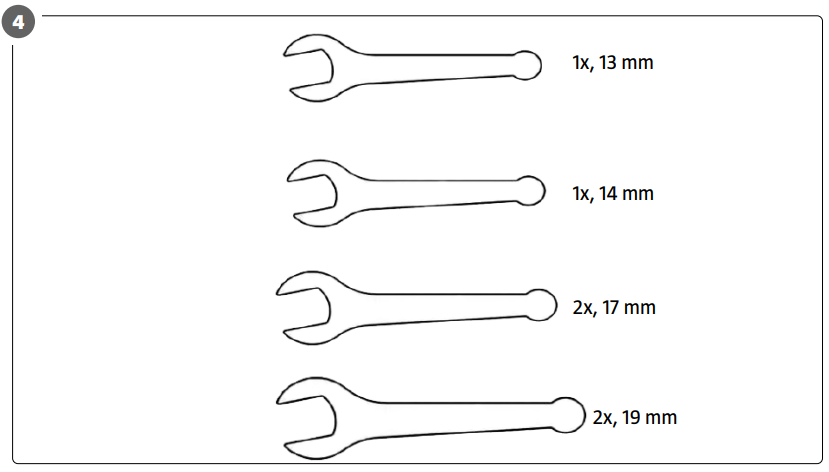

Tools

• Spanner 13 mm, 1x
• Spanner 14 mm, 1x
• Spanner 17 mm, 2x
• Spanner 19 mm, 2x

Tools sold separately.

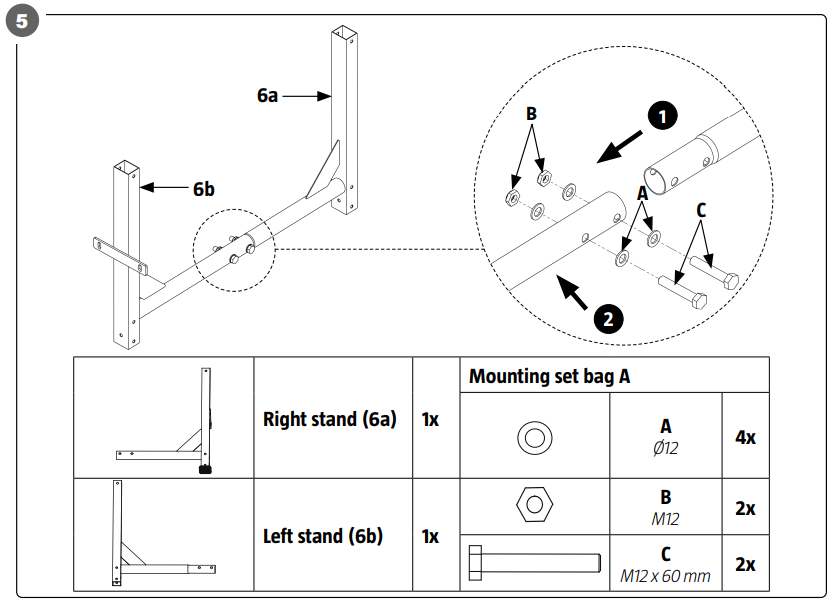

For Stand

1. Put the left part of the stand (6a) in the right part (6b).
2. Align the 4 holes in the stand parts (6) to each other and lock together with the screws M12 x 60 mm (C), washers Ø12 (A), and nuts M12 (B). (Assembly parts A, B, C are in bag A.) FIG. 5

Fitting

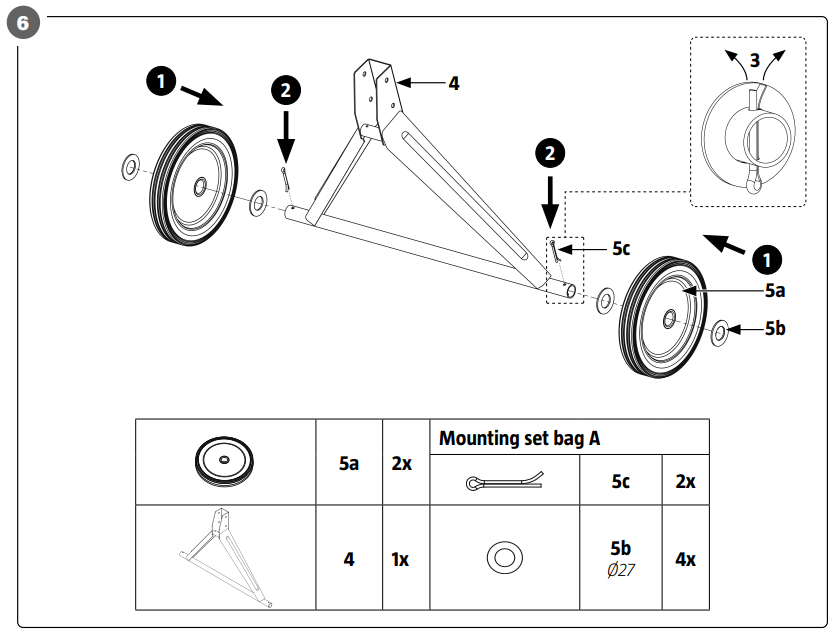

Wheels

1. Put a wheel (5a) and 2 washers Ø27(5b) on the axle on the wheel holder wheel (4) in the right order and secure with a cotter pin (5c).
2. Fit the other wheel in the same way.
3. Bend the cotters (5c) to secure the wheels (5a). (Assembly parts 5c, 5b are in bag A.) FIG. 6

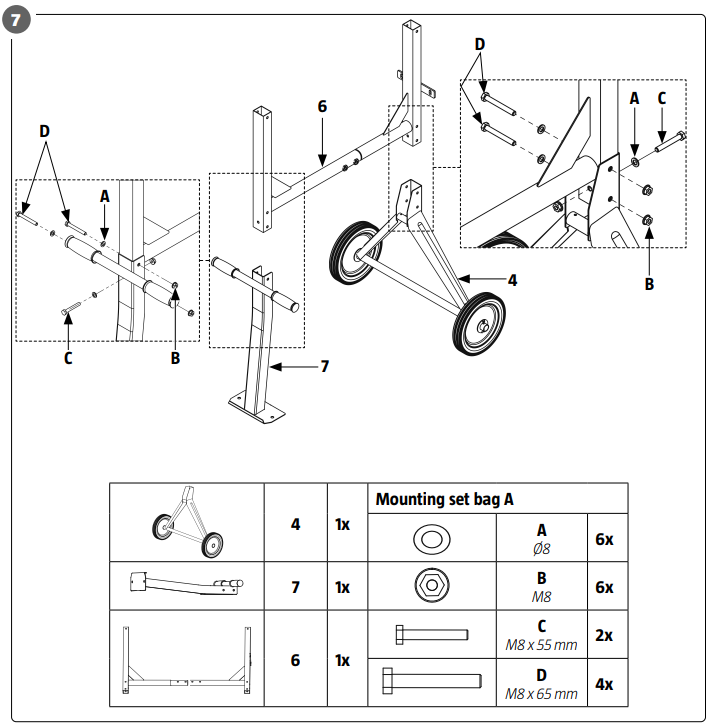

Leg & Wheel Holder

1. Put the stand (6) upright in the leg (7) and wheel holder (4).
2. Screw together with the screws M8x55mm (C) and M8 x 65 mm (D), washers Ø8 (A) and nuts M8 (B). (Assembly parts A, B, C, D are in bag A.) FIG. 7

Drum

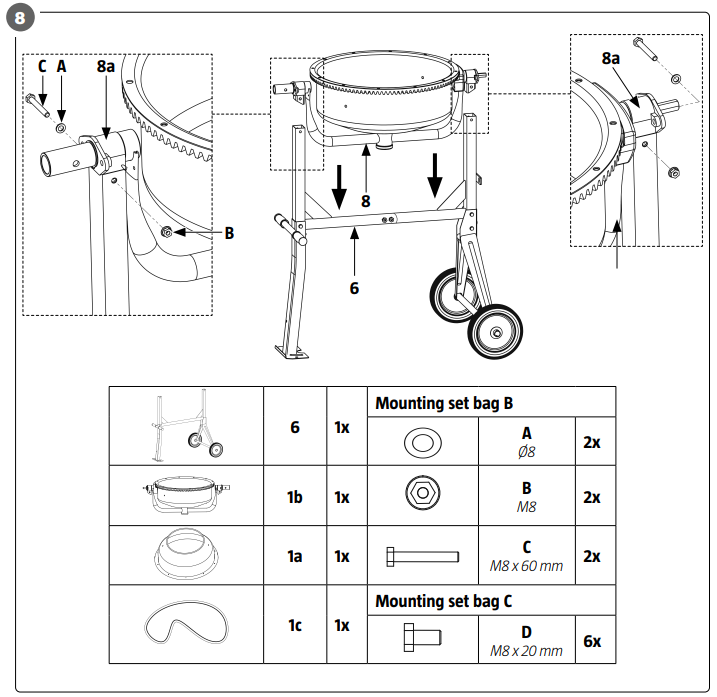

1. Put the holders (8a) in the stand upright and put the drum axle (8) on the stand (6).
2. Screw together with the screws M8x60mm(C), washers Ø8(A), and nuts M8(B). (Assembly parts A, B, C are in bag B.) FIG. 8

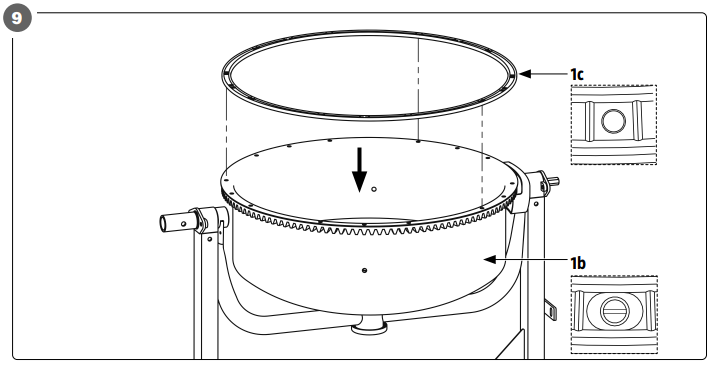

3. Align the holes and scre,ws and put the rubber seal (1c) on the bottom part of the drum (1b). FIG. 9
4. Check that the rubber seal is flush with the bottom part of the drum and not twisted or bent.

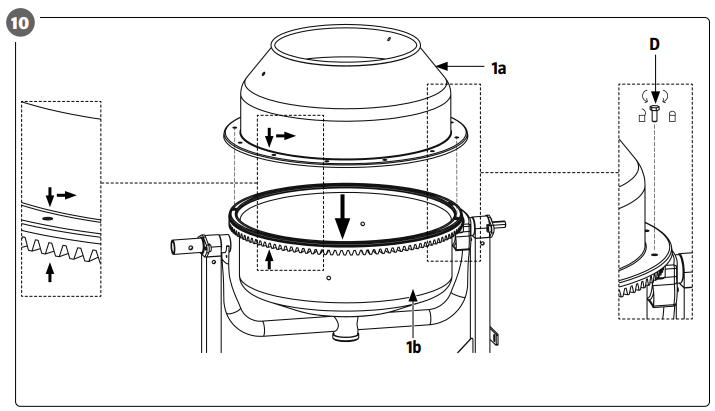

5. Align the markings to each other and put the top part of the drum (1a) on the bottom part (1b).
6. Screw together with the screws M8x20 mm(D). (Assembly parts D are in bag C.) FIG. 10

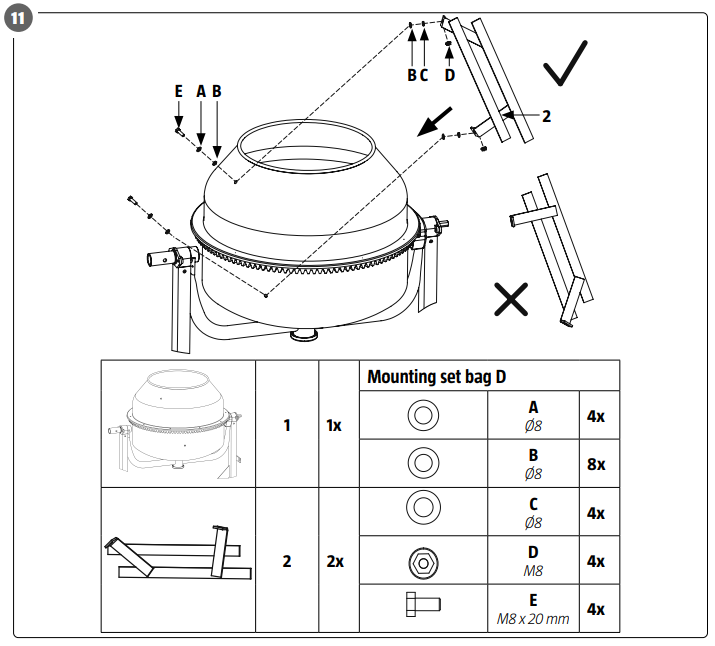

Mixer Blades

1. Align the holes to each other and fit the mixer blade (2) on the drum (1).
2. Screw together with the screws M8 x 20 mm (E), washers Ø8 (A), thin washers Ø8 (B), rubber seals Ø8 (C), and nuts M8 (D). (Assembly parts A, B, C, D, E are in bag D.) FIG. 11
3. Fit the other mixer blade in the same way.

The bend on the blades should be turned in the direction of rotation of the drum.

Adjusting the Angle

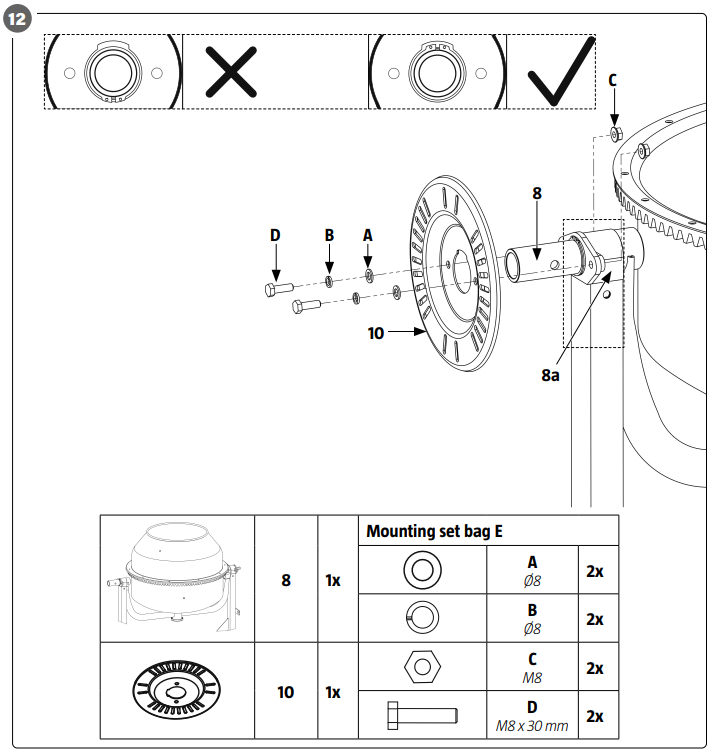

1. Put the plate to adjust the angle (10) on the drum axle (8). Check that the plate is properly in place on the holder (8a).
2. Screw together with the screws M8 x 30 mm (D), washers Ø8 (A), spring washers Ø8 (B), and nuts M8 (C). (Assembly parts A, B, C, D are in bag E.) FIG. 12

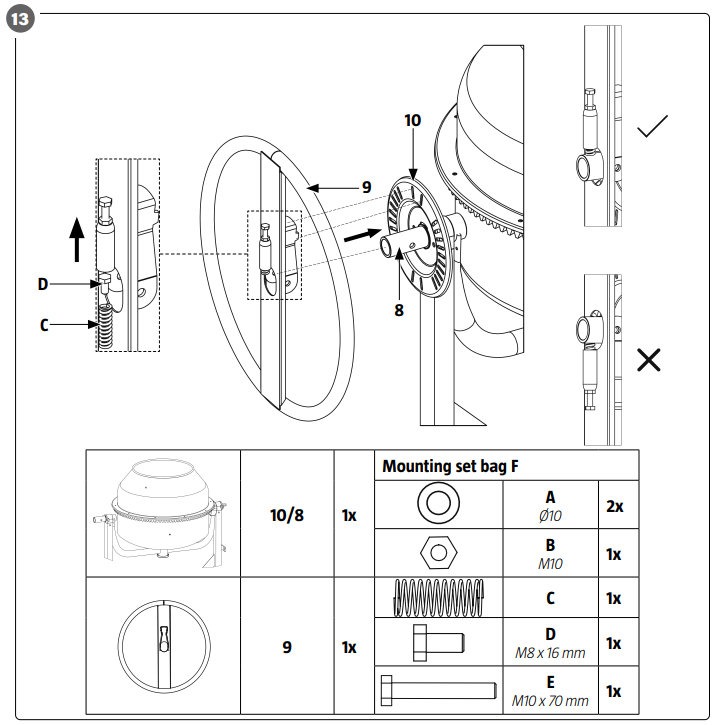

Control Wheel

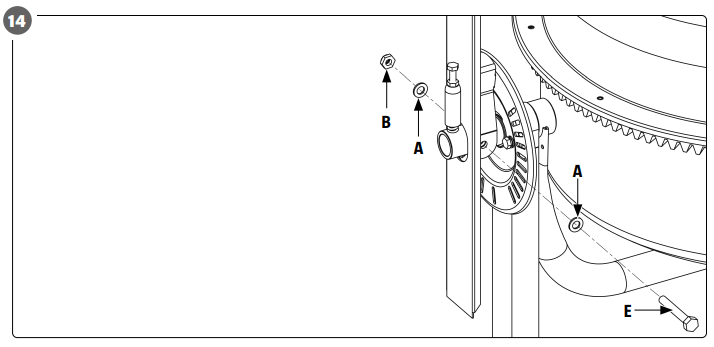

1. Align the control wheel (9) and put it on the drum axle (8). Check that the wings (9d) go in the slots (10b) in the plate to adjust the angle (10). FIG. 13
2. Screw together with screw M10 x 70mm (E), washers Ø10 (A), and nut M10 (B). Fit the spring (C) and the bolt M8x16mm (D). (Assembly parts A, B, C, D, E are in bag F.) FIG. 14

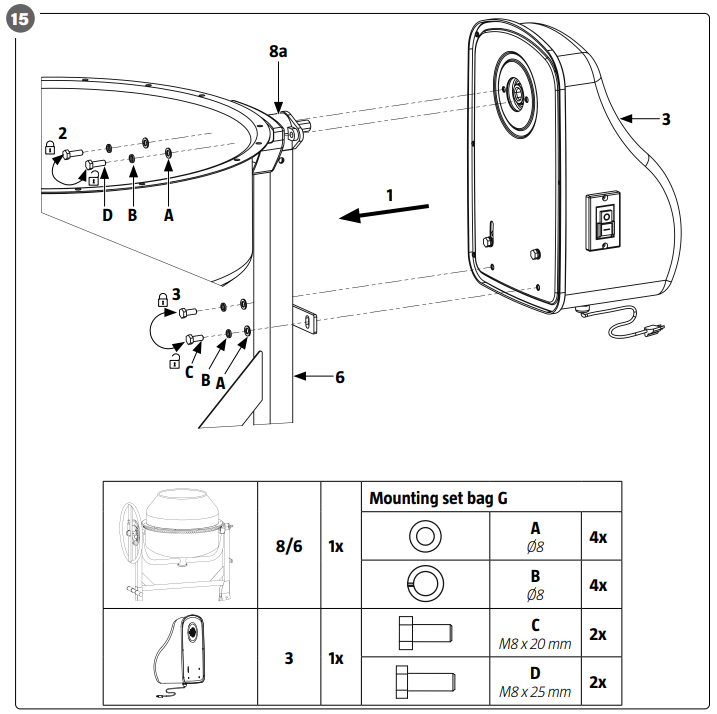

Motor Unit

1. Align the motor unit and fit it on the drum axle (8)/stand (6).
2. Screw together with the screws M8x20 mm(C), M8x25 mm(D), spring washers Ø8 (B), and washers Ø8 (A). (Assembly parts A, B, C, D are in bag G.) FIG. 15

Positioning

The concrete mixer should be placed on a smooth and level surface. To ensure stability, the product should be anchored to a concrete floor with screws, plugs, and washers (sold separately).

1. Choose a place where the product can be placed permanently. Check that there is a suitable power point nearby.

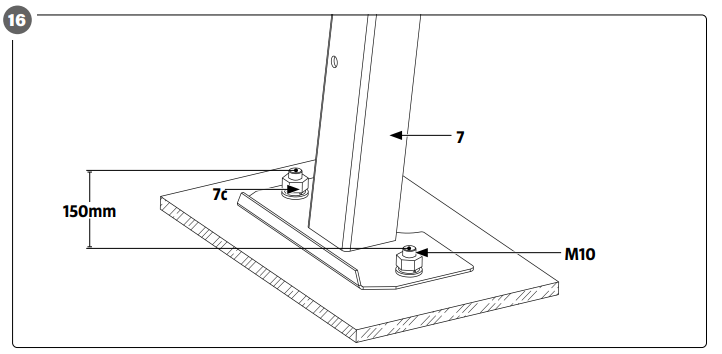

2. Mark out two holes to position the product (7c). FIG. 16
3. Drill the two holes.
4. Remove any dust and insert plugs. Check that the edges of the holes are smooth.
5. Fix the product in place with washers and screws (sold separately), recommended size M10.

Using the Device

Before Using

Always check that the product is in good condition before use. Check that all screw unions are tight, that moving parts are correctly adjusted and can move freely, that no parts are incorrectly fitted or broken, that no wires or belts are damaged, and that there are no other factors that could affect functionality.

Mains Connection

1. Keep the work area clean and well-lit. Keep children, onlookers, and pets away from the work area.
2. You can easily lose control of the product if you are distracted – risk of personal injury.
3. Route the power cord so that there is no risk of tripping over or damaging it.
4. The cord must be long enough to ensure freedom of movement when working.
5. Because the product uses water, the power cord should be hung in a curve below the power point to ensure that water cannot run along the cord to the power point.

ADJUSTING

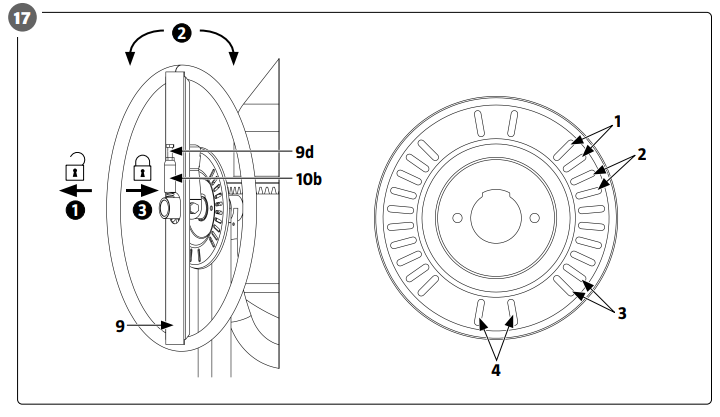

1. Adjust the angle of the drum by pulling out the control wheel (9). First, release the lock pin by pulling the control wheel away from the drum and then turning the wheel until the drum is at the required angle. Move the wheel back so that the lock pin  Meec Tools 024341 Concrete Mixer engages again.
2. Mortar
3. Concrete
4. Emptying
5. Storage FIG. 17

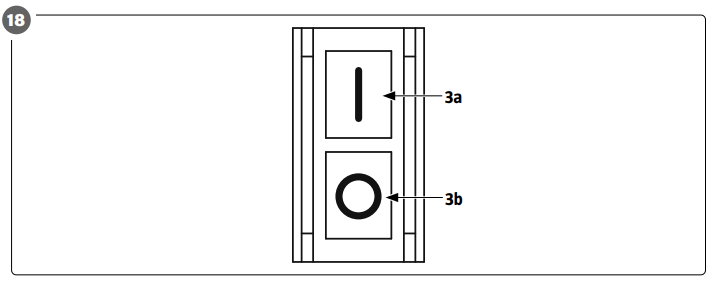

Switching On/Off

1. Start the product by pressing the power switch button I (3a).
2. Switch off the product by pressing the power switch button O (3b). FIG. 18
3. Wait until all moving parts have come to a complete standstill.

How to Use

• Check the power cord, plug, and all accessories for damage before using the product.
• Do not use the product if it is damaged or worn.
• Always check before use that all the accessories are correctly fitted.
• Keep other people, especially children, and pets at a safe distance from the work area.
• Use suitable safety equipment and take regular pauses.
• Keep a firm grip on the control wheel when turning it.
• Adjust the drum to a suitable angle. Start the product.
• Always start the product before filling material in the drum. The drum should rotate during the filling.
• Do not throw material into the drum, as this can cause it to fasten on the back of the drum.
• Pour the material into the drum in a steady flow.
• Make sure there is enough space to work around the product.
• Do not use the product in extreme temperatures (> 40°C℃).

Mixing

1. Put the required amount of gravel in the drum.
2. Put the required amount of cement in the drum.
3. Put the required amount of water in the drum.
4. Put the required amount of water in the drum.
5. Repeat these steps until the right consistency is obtained.
6. Allow the material to mix.
7. Do not overload the drum.

Contact Jula or other qualified personnel for advice concerning the composition of the material.

After Use

1. Switch off the product, pull out the plug, and allow it to cool.
2. Check, clean, and store the product as described in the maintenanceinstructionss

Checking

1. Tension the belt after 25 working hours. Follow the instructions below to check the tension of the belt.
2. Remove the guard over the belt.
3. Check the belt for cracks and other damage. If the belt is damaged, replace it as described below.
4. Undo the screws on the motor attachment and move up the attachment as far as possibl..
5. Lift the belt off the large pulley, and then from the pulley on the motor.
6. Put the new belt on the small pulley first, and then on the large one.
7. Move down the motor attachment until the belt Meec Tools 024341 Concrete Mixer is correctly tensioned, as below. Tighten the screws on the motor attachment.

Adjusting

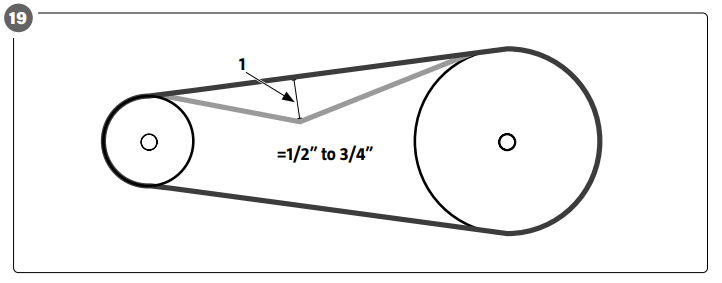

1. Press a finger on the middle of the belt. It should Meec Tools 024341 Concrete Mixer be possible to press in the belt about 1.3 to 1.9 cm. If the belt can be pressed in more than this, tension it by undoing the screws on the motor attachment and moving the attachment away from the pulley.
2. Tighten the screws on the motor attachment and check the tension again.
3. If the belt is so long that it cannot be properly tensioned, it must be replaced.
4. If the belt is too tightly stretched, undo the screws and move the attachment towards the pulley.
5. Tighten the screws on the motor attachment and check the tension again.
6. Replace the guard over the belt before starting the product.

Maintainance

Switch off the product, pull out the plug, and allow the product to cool before cleaning and/or maintenance.

• Keep the product clean. Clean the product after use and before putting it away.
• Proper maintenance and regular cleaning are essential for the product to work satisfactorily.
• Always check the product, the power cord, and the plug for damage before use.
• Do not use the product if it is damaged.
• The product is permanently lubricated and does not need further lubrication.
• Make sure there is enough space to work around the product for maintenance.

Cleaning

Carefully clean the product after use.

1. Clean the product with a dry cloth. Use a brush for parts difficult to get at.
2. Clean the ventilation openings on the product after use.
3. The product can be cleaned with compressed air (max 3 bar).
4. Residual material in the drum will harden and cause more material to fasten next time the product is used, which, in time, will prevent the product from working.
5. Scrape off hardened cement from the drum. Do not put stones or bricks in the drum, and do not knock it with a hard object to loosen hardened cement – this can damage the product.
6. To clean the product, rinse it for about two minutes with a mixture of water and coarse gravel.
7. Pour out the mixture and rinse the inside and outside of the drum.
8. The drum can be rinsed as it has a protection Meec Tools 024341 Concrete Mixer rating of IP44.

Storage

1. Switch off the product and pull out the plug.
2. Clean the product in accordance with the instructions.
3. Store the product and all the accessories in a dark, dry, frost-free, well-ventilated place.
4. Store the product out of the reach of children. A suitable storage temperature is 10 to 30°C.
5. Store the product protected from dust.

Transport

1. Switch off the product and pull out the plug.
2. Use transport protection where appropriate.
3. Always carry the product with the handle (7a).
4. Protect the product from vibrations and knocks during transport.
5. Secure the product so that it cannot tip over.
6. Size of product: 1.25 x 0.68 x 1.35 m.

REPAIRS

The product does not contain any parts that can be repaired by the user. Take the product to an authorised service centre or other qualified person to be checked and repaired.

Technical Data

• Rated voltage: 230 V ~50 Hz
• Rated current: 2.8 A
• Input power: 650 W
• Speed: 34 rpm
• Max. elevation: 1000 m
• Max. temperature: 40°C
• Volume: 160 L
• Drum opening: 40 cm
• Drum diameter: Ø 62 cm
• Size: W125 x H135 x D53 cm
• Weight: 48 kg
• Noise values
• Sound pressure level LpA: 82 dB(A)
• Uncertainty KpA: 3 dB
• Measured sound power level LwA: 92 dB(A)
• Uncertainty KwA: 3 dB
• Guaranteed sound power level LwA: 95 dB(A)

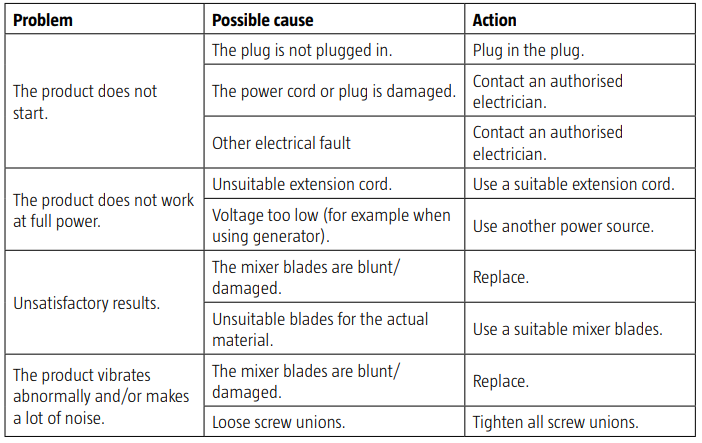

Troubleshooting

Limited Warranty

Normal Wear: Many power tools need periodic parts replacement and service to achieve the best performance. This warranty does not cover repair when normal use has exhausted the life of a part, including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover.

Customer Support

• Website: https://www.jula.se/varumarken/meec-tools/
• Tel: +39-0645652462

FAQs

Q: What is the Meec Tools 024341 Concrete Mixer used for?

Concrete, cement, plaster, and other comparable building materials can be effectively mixed with the Meec Tools 024341. It ensures a consistent and uniform mix and is appropriate for small- to medium-sized construction or do-it-yourself projects.

Q: What is the mixing capacity of this concrete mixer?

The drum is perfect for minor construction jobs or home improvement projects because its capacity is usually about 140 litres (see the handbook for precise volume). To prevent motor strain, never go over the maximum suggested load.

Q: Is this concrete mixer electric or manual?

Usually running on 220–240 V, the Meec Tools 024341 is an electric concrete mixer. Before using the power cord, make sure it is dry and undamaged.

Q: What warranty or support is available?

Meec Tools typically offers a limited manufacturer’s warranty that covers workmanship and material flaws. For information on the precise warranty period and approved servicing facilities, consult your handbook or purchase paperwork.

Q: Can I mix other materials besides concrete and mortar?

It is possible to combine plaster, cement-based adhesives, or comparable substances. Extremely thick or fibrous materials should not be mixed since they could harm the motor or drum.

Q: Can I leave partially mixed concrete in the drum?

No, you shouldn’t keep partially mixed concrete in the drum for a long time. Concrete can permanently harm the drum and rotation mechanism since it hardens quickly. After use, clean right away.

Q: Can this mixer be used outdoors in rainy conditions?

In order to avoid electric shock or motor damage, the electric mixer should not be used in wet conditions. Use a dry, covered workspace at all times.
