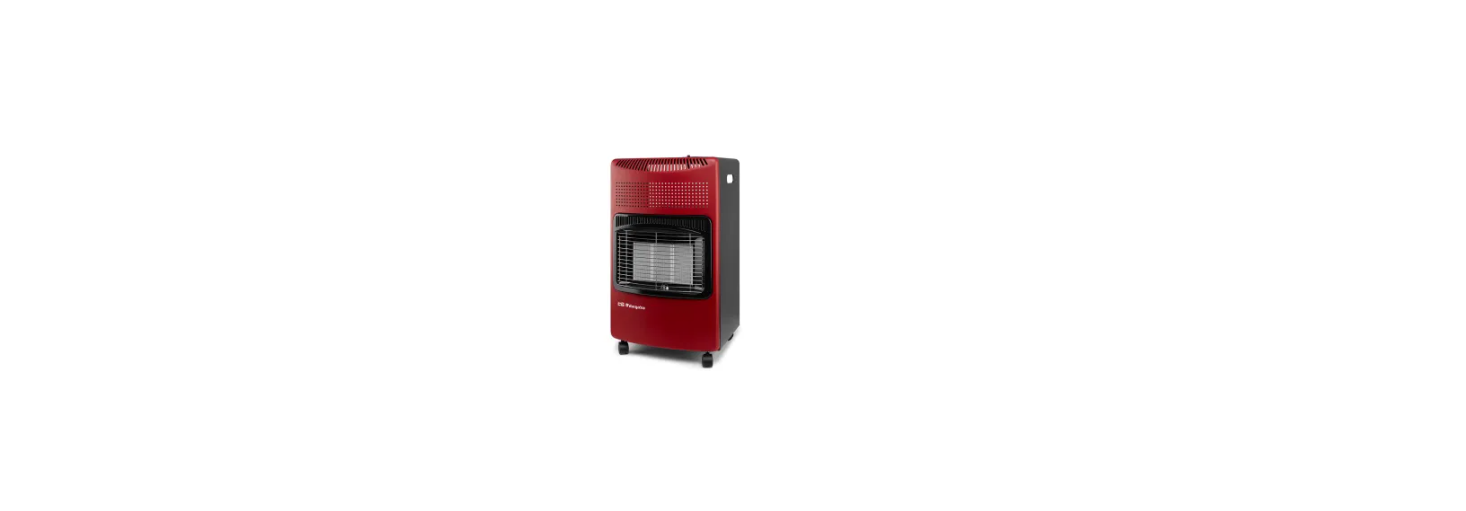

Orbegozo HCE 74 Catalytic Gas Heater

Safety Instructions

Read the instructions in this manual carefully. It has important information for both operational use
and for your safety.

1. Use only in a well-ventilated area.
2. Never use gases different from those that are indicated (G30 Butane)
3. Make sure that the heater is placed on a flat surface.
4. Keep a reasonable distance from the heater.
5. In case of malfunction, contact a specialised technical support centre.
6. Never insert objects inside the protection grid.
7. Do not place it in corners, less than 40 cm from the wall.
8. The front of the heater must always be oriented towards the centre of the room.
9. Do not place the stove with the front facing curtains, sofa, or any other highly flammable material.
10. Do not move the heater with the gas open and with the heater still hot.
11. Do not use the heater in rooms with closed doors.
12. Never put a container of water on the stove.
13. Do not store flammable liquids or materials near the heater
14. In case of a gas leak, cut the gas supply with the gas valve on the gas title.
15. Do not expose the gas bottle to the full summer heat, nor too near any other heat source.
16. Never be exposed to atmospheric agents.
17. Pay special attention when there are children near the appliance.
18. Never leave them unattended or let them play near the appliance.
19. Be careful to avoid twisting the gas hoses.
20. Always close the gas tap when the heater is not in use.

Installation

It is important to follow the legal regulations in force in the state to the device is located and the operation of this device; we recommend you consult a qualified technician. But if you decide to do without such consultation, then you relate to the most important. At the site of work, the device must provide a sufficient input air of at least 105 cm2 section in both the top and bottom; have a minimum volume of 84 m3, and existing furniture, 2 m3 maximum. We recommend not using the stove in a room with erywithuently of aerosols.

Connection of the apparatus

The apparatus can be connected to the gas bottle by the user without recourse to a fitter/technician. In order to do so, you should have at hand the required accessories.
Required accessories

• 1 gas bottle of butane or propane, bottled only by Official Distributors.
•  1 standardised specifications pressure regulator.
• 1 flexible gas tube Orbegozo Catalytic Gas Heater with at least 0.5m
• 2 screwed collar-clips for the flexible tube. In order to identify these elements, consult the specifications plaque and contact your gas distributor.
• Check the characteristics plate and contact your gas provider.

Assembly

Once the heater has been taken out of its packaging

• Remove the back panel from inside the apparatus.
• Connect the flexible tube to the gas inlet coupling of the heater and the regulator, ensuring a
  gas-tight fit with the collar clips well screwed down. Avoid twisting the hose.
• Place the gas bottle on the base and fit the regulator to the bottle.
• On opening the regulator, check that there are no gas leaks by applying soapy water with a paintbrush at the union of the flexible tube with the heater and with the regulator.
•  Fit the back panel using the attached fixing lugs.

Gas Leaks

Before performing the test, extinguish all the flames and turn off all the electrical appliances. Do not
smoke while checking for gas leaks.

• Prepare a solution of water and soap using equal amounts of each.
• Using a brush, apply the solution to the joints between the cylinder, the regulator, and the
  heater.
• Open the valve carefully.
• If there are gas leaks, bubbles will be formed at the points corresponding to the leaks.
• Close the gas valve. If there is a leak, tighten all the joints and repeat the test. Should the leak
  continue, contact the supplier immediately.

Ignition

1. Open the gas valve.
2. Press the power controller and turn it to Position 1 (Ignition/Low).
3. Press the power controller for 10 seconds.
4. Press the piezoelectric sparkler several times while still holding down the power controller.
   Once the flame is on, keep it pressed for a few seconds and then release it.
5. Then, if you want to increase Orbegozo Catalytic Gas Heater the power, press it slightly and turn it anticlockwise to the
   desired level. Never use the heater at intermediate positions.
6. The ODS system will automatically turn off the appliance if the content of oxygen content goes down.
   Before restarting the appliance, close the gas valve, ventilate the room, and then repeat the
   process.

Maintainance

• If any anomaly is observed or spare parts are required, contact our Technical Service.
• The periodical maintenance Orbegozo Catalytic Gas Heater must be carried out exclusively by an authorised technician.
• We would recommend that you have a service carried out every two years by an authorized
  technician.
•  Watch the pilot light, which should be stable.
•  Check to see if it is necessary to change the flexible gas tube. If it proves necessary, obtain a new
  Tube and connect it as explained in the Apparatus start-up.
• It is recommended that the cleaning of the apparatus be carried out with the gas tap closed, the
  The heater is completely cold and with non-abrasive products.
• We recommend, when the heater is not in use, maintaining it in a dust-free atmosphere,
  protected with a cloth or plastic cover in a dry place.

Disposal

• The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEE) requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream.
• Old appliances must be collected separately to optimise the recovery and recycling of the materials.
  They contain and reduce the impact on human health and the environment.

Declaration of Conformity

• This device complies with Orbegozo Electric Grill the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMDirective 2014/30/EU.

Guarantee

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Check the legal conditions on our website.

Customer Service

• Website: https://orbegozo.com/
• Visit: https://orbegozo.com/contacto/.
• Ph: 965072847
