Palmer iller 1-Kanal Line Isolation Box Instruction Guide

Palmer iller 1-Kanal Line Isolation Box

Introduction

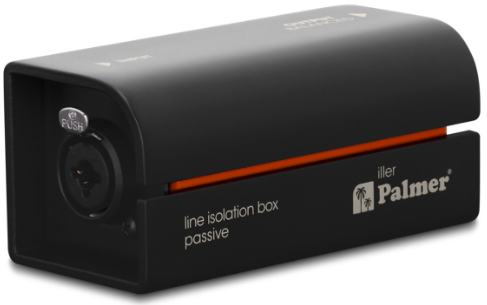

The wupper Line Isolation Box is equipped with 6.3 mm jack sockets on the input and output sides, which can be operated both balanced and unbalanced. There is galvanic isolation between input and output by means of a high-quality transformer, and hum loops are reliably eliminated. The Line Isolation Box is perfect for balancing audio signals, and audio signals can also be transmitted over long cable runs without hum.

Safety Instructions

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Use the device in the prescribed manner only.
5. Do not open the device and do not perform any modifications.

Packaging

1. Packaging can be fed into the reusable material cycle using the usual disposal methods.
2.  Please separate the packaging in accordance with disposal laws and recycling regulations in your country.

Device

1. This device is subject to the European Waste Electrical and Electronic Equipment Directive in the currently valid version.
2. WEEE Waste Electrical and Electronic Equipment Directive. Old appliances do not belong in household waste.
3. The old device must be disposed of via an approved disposal company or a municipal disposal facility.
4. Please observe the applicable regulations in your country!
5. Observe all disposal laws applicable in your country.
6. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

Batteries

1. Batteries should not be disposed of in household waste. Batteries and rechargeable batteries must be disposed of via an approved disposal company or a municipal disposal facility.
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or through the relevant regional authorities.

The product is not suitable for

• Persons (including children) with limited physical, sensory, or mental abilities or a lack of experience and knowledge.
• Children (children must be instructed not to play with the device)

Connections

1. INPUT
   Line input with 6a.3 mm jack socket suitable for both unbalanced and balanced cabling. Use a shielded audio cable to connect, for example, a keyboard to the Line Isolation Box.
2. OUTPUT
   Line output with a 6.3 mm jack socket suitable for both unbalanced and balanced cabling. Use a shielded audio cable to connect the Line Isolation Box to an input of a mixer or audio interface.

Wiring Example

Technical Data

Manufacturer’s Declarations

Herstellergarantie und Haftungsbeschränkung Manufacturer’s warranty & limitation of liability Adam Hall GmbH Adam-Hall-Str. 1 61627 Neu-Anspach, Germany.

CE Conformity

Adam Hall GmbH hereby confirms that this product, Palmer Pan16 19“ DI-bo,x meets the following guidelines (where applicable): Low-Voltage Directive (2014/35/EU), EMC Directive (2014/30/E/U), RoHS (2011/65/EU), RED (2014/53/EU)

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

UKCA- Conformity

Hereby, Adam Hall Ltd. declares that Palmer Naab 2-Kanal Media DI-Bo,x this product, Palmer Pan16 19“ DI-bo,x meets the following guidelines (where applicable): Electrical Equipment (Safety) Regulations 2016, Electromagnetic Compatibility Regulations 2016 (SI 2016/1091). The Restriction of the Use of Certain Palmer Pan16 19“ DI-box Hazardous Substances in Electrical and Electronic Equipment Regulation 2012 (SI 2012/),32,) Radio Equipment Regulations 2017 (SI 2016/2015), Adam Hall Ltd. | The Seedbed Bus. Centre | SS3 9QY Essex | UK

Customer Support

• Email: Info@adamhall.com
• Website: www.adamhall.com/compliance
• Ph: +49 (0)6081 / 9419-0

FAQs

Q: What is the primary purpose of the Palmer ILLER 1-Kanal Line Isolation Box?

The purpose of the ILLER 1-Kanal is to balance and isolate line-level audio signals between devices. It preserves audio integrity while preventing ground loops, lowering hum, and safeguarding your equipment.

Q: Can I use the ILLER with both instruments and audio interfaces?

Indeed. Although it can handle signals from keyboards, mixers, and other audio equipment, its primary use is for line-level transmissions. For best results, instruments with passive pickups might need an extra DI box.

Q: What type of signals does the ILLER 1-Kanal support?

Both balanced and unbalanced line-level signals are supported. Over extended cable lines, the gadget ensures noise-free transmission by efficiently converting unbalanced signals to balanced.

Q: Does the ILLER require external power?

No, an external power source is not necessary for the passive operation of the Palmer ILLER 1-Kanal. To accomplish signal isolation, it makes use of premium transformers.

Q: Can I use multiple ILLER boxes in one setup?

It is possible to employ numerous units in parallel or series configurations. To guarantee isolation for every signal path, each unit functions separately.

Q: Is the Palmer ILLER suitable for live performances?

Of course. It is perfect for both live and studio settings because of its sturdy construction, silent operation, and capacity to remove ground loops.
