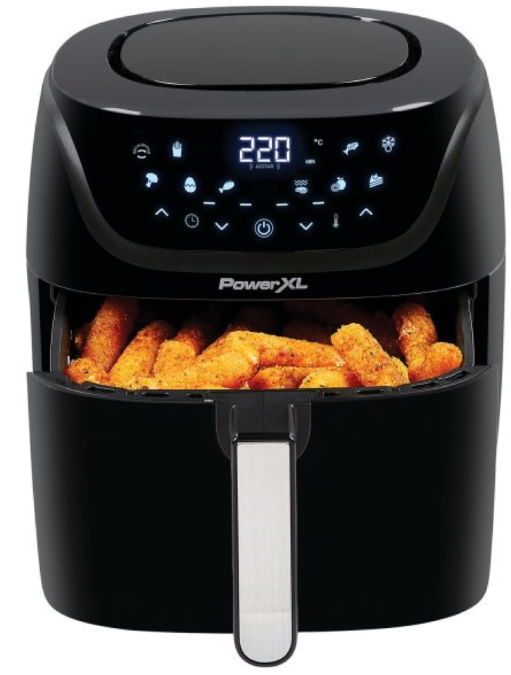

PowerXL AF-E6001-L Vortex Pro Air Fryer Instruction Manual

PowerXL AF-E6001-L Vortex Pro Air Fryer

IMPORTANT SAFEGUARDS

1. READ ALL INSTRUCTIONS.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities or a lack of experience and knowledge unless they are given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children.
4. DO NOT place on or near a hot gas or electric burner or in a heated oven.
5. DO NOT place your appliance on a cooktop, even if the cooktop is cool, because you could accidentally turn the cooktop on, causing a fire, damaging the appliance, your cooktop, and your home.
6. DO NOT place or use this appliance near water.
7. When cooking, DO NOT place the appliance against a wall or within 5 inches of other appliances. DO NOT place anything on top of the appliance.
8. A fire may occur if this appliance is covered by or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
9. DO NOT use outdoors.
10. DO NOT place the appliance in any container or small confined space while the appliance is heated or in operation.
11. ALWAYS operate the appliance on a horizontal surface that is level, stable, and noncombustible with adequate space for airflow.

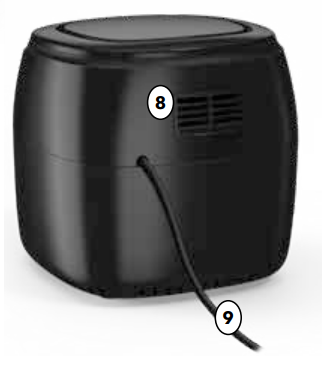

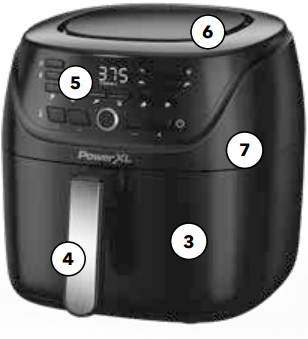

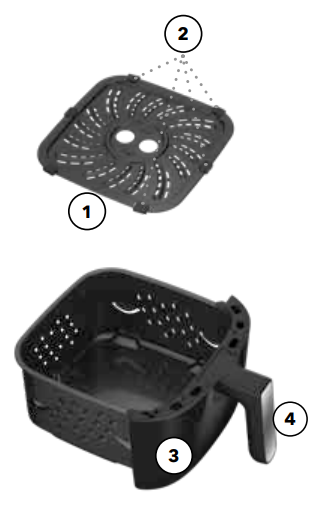

Parts & Accessories

1. FRY TRAY
2. SILICONE BUMPERS*
3. BASKET
4. HANDLE
5. CONTROL PANEL
6. AIR INLET VENT
7. MAIN UNIT HOUSING
8. HOT AIR OUTLET VENT
9. POWER CABLE

NOTE: Unpack all listed contents from the packaging. Contents vary by model. Please remove any clear or blue protective film on the components before use. *Removing the bumpers is not recommended.

IMPORTANT: Please make sure that your PowerXL® Vortex Pro Air Fryer has been shipped with the components that you ordered (some accessories may be sold separately). Check everything carefully before use. If any part is missing or damaged, do not use this product. Contact Customer Service.

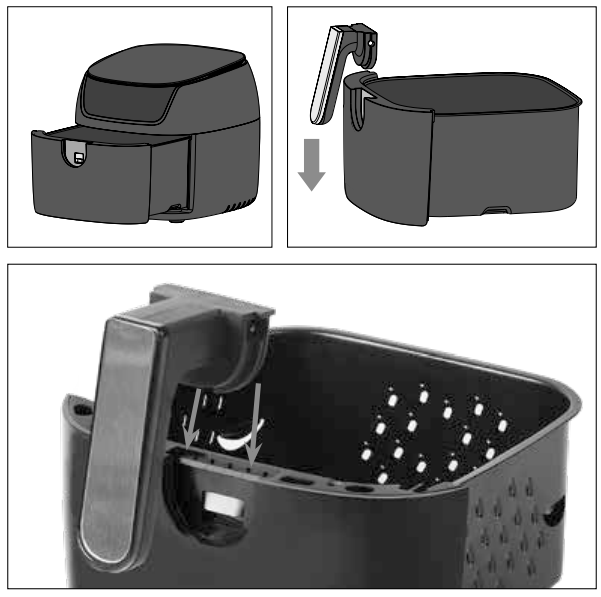

Attaching the Fry Basket Handle

Your Fry Basket Handle might come disassembled in your appliance’s packaging. To attach the Fry Basket Handle:

1. Remove the paper label. Pull the Fry Basket out of the appliance.
2. Slide the attachment point on the handle downward until it clicks into place.
3. The Fry Basket Handle should lock into place and should not detach once it is locked into place.

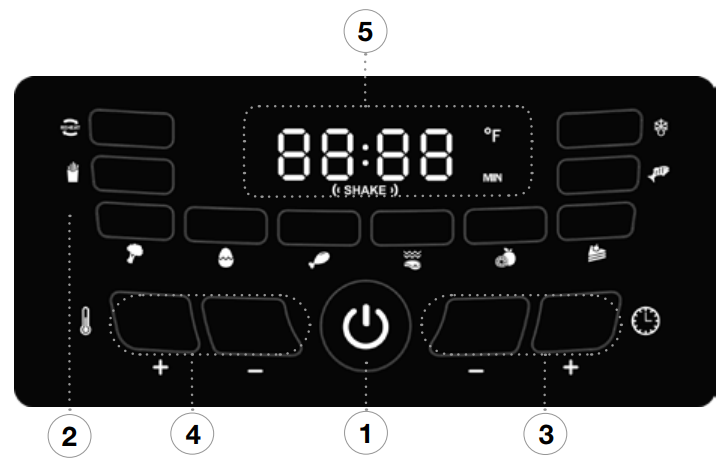

Using the Control Panel

1. TO START: Plug the Power Cord into the electrical outlet. The Digital LED Display will illuminate, and a series of dashes (running lights) will display.
2. Power Button: Once the Basket and Fry Tray are properly placed in the Main Unit Housing, the Control Panel will be illuminated. Pressing the Power Button once will set the appliance to a default cooking temperature of 375° F and time of 15 minutes. Pressing the Power Button a second time will start the cooking process. Pressing the Power Button during the cooking cycle will turn the appliance off.
3. Cooking Presets: Press the cooking preset buttons to choose from up to ten cooking presets (presets vary by model). See the Preset Chart for the cooking times and temperatures associated with each preset. The running lights on the Control Panel will illuminate when the cooking cycle begins and will stay illuminated for up to 20 seconds after the cooking cycle is complete.

Timer Control Buttons:

1. The + and − symbols enable you to increase or decrease cooking time 1 minute at a time (30 minutes at a time for Dehydrate). Keeping the Button held down will rapidly change the time. Time control range: 1– 60 minutes (Dehydration time control range: 2–24 hours).
2. Temperature Control Buttons: The + and − symbols enable you to increase or decrease cooking temperature 5° F at a time. Keeping a button held down will rapidly change the temperature. Temperature control range: 180° F–430° F (Dehydrate temperature control range: 90° F–170° F).
3. Time and Temperature Display: This display will keep track of the temperature and remaining cook time.
4. Shake Indicator: The Shake Indicator will illuminate when the cooking cycle has reached its halfway point. This halfway timer allows you to shake or flip your food in the appliance, which helps ensure even cooking (see the “Shaking” section)

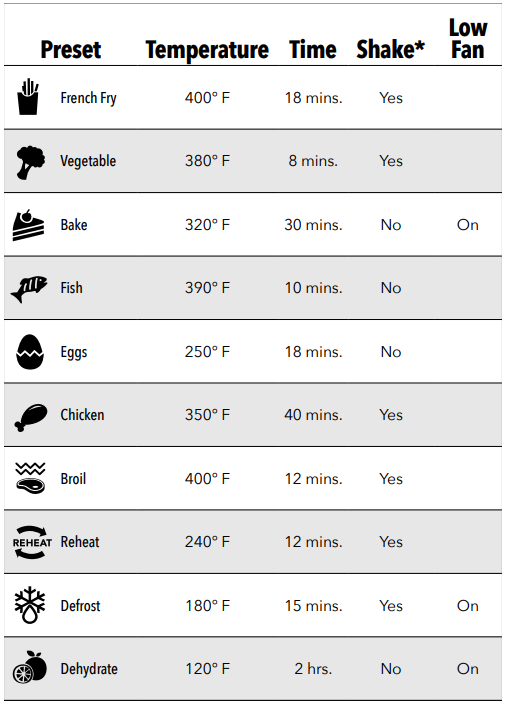

Preset Chart

Once you are familiar with the appliance, you may want to experiment with your recipes. Simply choose the time and temperature that suits your taste.

Shake Function Programming: Halfway through the cooking cycle, the appliance will beep five times, indicating that food can be shaken or flipped over (see the “Shaking” section).

Instructions for Use

Before First Use

1. Read all material, warning stickers, and labels.
2. Remove all packing materials, stickers, and labels from the appliance.
3. Please go to www.prodprotect.com/powerxl to register your warranty.
4. Before initial use, wipe the inside and outside of the appliance with a warm, moist cloth and mild detergent. Handwash all cooking accessories.
5. Place the appliance on a heat-resistant surface or use heat protection. Do not place the appliance on a surface that is not heat-resistant. Ensure that the appliance is used in an area with adequate air circulation. Do not place on the stove top.
6. Before cooking food, preheat the appliance for a few minutes to allow the appliance to burn off the manufacturer’s protective coating of oil. Wipe the appliance with warm, soapy water and a dishcloth after this burn-in cycle.

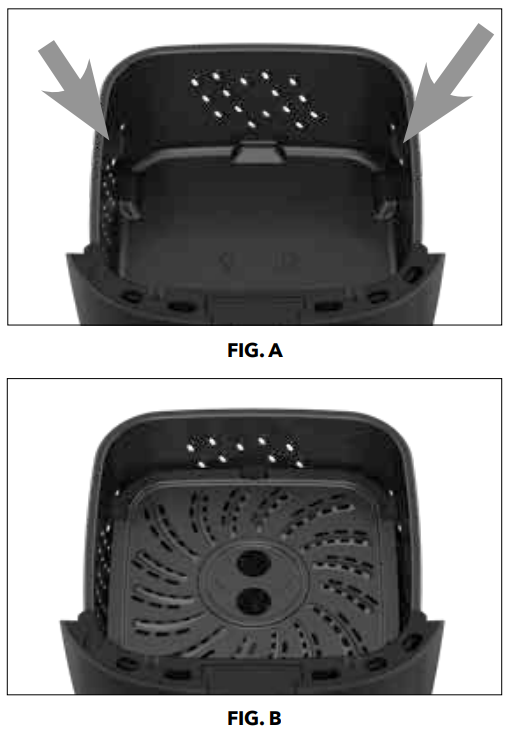

Inserting the Fry Tray

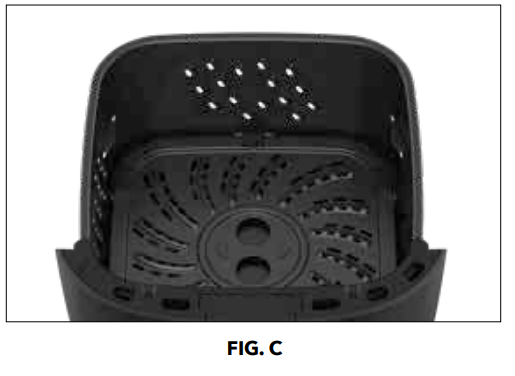

1. Place the Fry Tray in the Basket. The Fry Tray’s adjustable tray height lets you place food closer to the heating element for broiling. You can also use it to make the total size of the basket smaller when cooking smaller quantities of food.
2. To raise the Fry Tray closer to the heating element, position the edges of the Fry Tray (see Fig. A) on the Fry Tray Holders (see Fig. B). To use the Fry Tray on the bottom of the Basket, rotate the Fry Tray so that the Fry Tray‘s edges slide past the Fry Tray Holder, and push the Fry Tray to the bottom of the Basket (see Fig. C).
3. Slide the Basket into the appliance. If the Basket is placed properly, it will click into place.

NOTE: This appliance cooks using hot air. Do not fill the Basket with oil or frying fat.

Using the Appliance

1. Plug the appliance into a dedicated electrical outlet.
2. Pull the Basket out of the appliance and place the ingredients inside. Do not touch the Basket directly because the Basket becomes very hot during operation. Only hold the Basket by its handle. Insert the Basket into the appliance.
   NOTE: Always use the Fry Tray with the Basket.
3. Press the Power Button. Set the appropriate time and temperature for the ingredients you are cooking.
4. When the timer beeps five times, either the set cooking time has elapsed or the appliance is reminding you to shake your food (see “Shaking” in “Instructions for Use”). Pull the Basket out of the appliance and place it on a heat-resistant surface.
5. When removing food from the basket, avoid contact with hot excess oil or the hot drip tray. To avoid being burned, use silicon-tipped tongs or tip out the basket contents carefully. The Fry Tray is not secured and can fall out. Hot oil can be inside the basket.
6. If the food is not fully cooked, simply slide the Basket back into the appliance and add a few minutes to the cooking time.
7. The appliance is instantly ready for preparing another batch.

Shaking

To ensure even cooking, some foods require shaking or flipping during the cooking process. Some of this appliance‘s presets include a halfway timer, which is a timer that will beep, and the Shake icon on the Control Panel will blink when the cooking cycle has reached its halfway point. At the halfway point in the cycle, carefully use oven mitts to remove the hot Basket from the appliance. Gently shake.

NOTE: If you do not remove the Basket and shake the food, the Shake light on the Control Panel will remain illuminated.

Tips

• Foods that are smaller in size usually require a slightly shorter cooking time than larger foods.
• Shaking smaller-sized foods halfway through the cooking process ensures that all the pieces are fried evenly.
• Adding a bit of vegetable oil to breaded items is suggested for a crispier result. When adding oil, do so just before cooking and add only a small amount onto the breaded items.
• Snacks normally cooked in an oven can also be cooked in the appliance.
• Use premade dough to prepare filled snacks quickly and easily. Premade dough also requires a shorter cooking time than homemade dough.
• You can use the appliance to reheat food. Simply set the temperature and time to however warm you want your food.

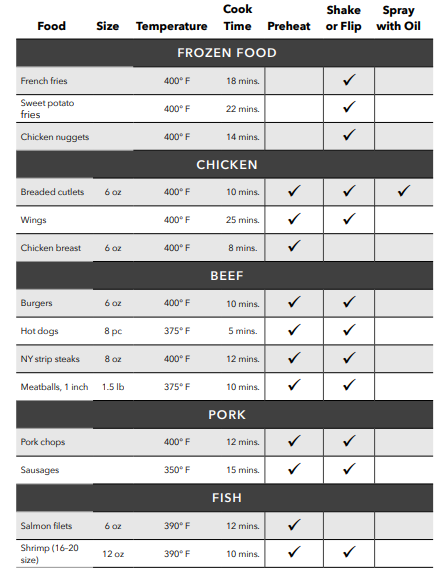

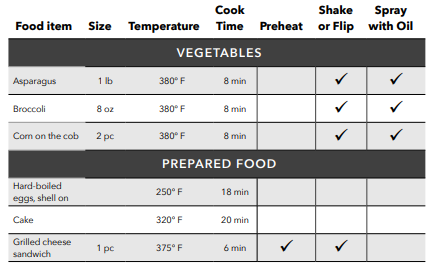

General Cooking Guidelines

NOTE: Keep in mind that these settings are guidelines. Since ingredients differ in origin, size, shape, and brand, we cannot guarantee the best settings for your ingredients.

Internal Temperature Meat Chart

Use this chart and a food thermometer to ensure that PowerXL AF-E6001-L Vortex Pro Air Fryer meat, poultry, seafood, and other cooked foods reach a safe minimum internal temperature. *For maximum food safety, the U.S. Department of Agriculture PowerXL AF-E6001-L Vortex Pro Air Fryer recommends 165° F for all poultry; 160° F for ground beef, lamb, and pork; and 145° F, with a 3-minute resting period, for all other types of beef, lamb, and pork. Also, review the USDA Food Safety Standards.

Troubleshooting

Symptom                      Possible Cause                                  Solution

Cleaning & Storage

Cleaning

Clean the appliance after each use. The Basket and Fry Tray are coated with a special nonstick surface. Never use abrasive cleaning materials or utensils on these surfaces.

1. Remove the Power Cable from the electrical outlet and be certain the appliance is thoroughly cooled before cleaning.
2. Wipe the outside of the appliance with a warm, moist cloth and mild detergent.
3. Clean the Basket and Fry Tray with hot water, a mild detergent, and a nonabrasive sponge. The Fry Tray and Fry Basket are dishwasher safe, but hand-washing is recommended. For difficult-to-remove food, soak it in hot, soapy water for 10 minutes.
4. To remove the bumpers, locate the PowerXL AF-E6001-L Vortex Pro Air Fryer capped end of the bumper and push the capped end off the Fry Tray. There will be some resistance, but keep pushing until the bumper slides off the Fry Tray. To reattach the bumper, slide each bumper PowerXL AF-E6001-L Vortex Pro Air Fryer onto the slot on the Fry Tray.
5. Clean the inside of the appliance with hot water, a mild detergent, and a nonabrasive sponge.
6. If necessary, remove unwanted food residue from the heating element with a soft cleaning brush.
7. Rinse the appliance with a clean, damp cloth. Use a clean, dry cloth to dry the appliance interior. Do not leave standing water in the appliance.
8. If any other service needs to be performed, contact Customer Service.

Storage

Place the cooled, dry appliance in a clean, dry place. Do not stack objects on top of the appliance.

Appliance Specifications

One-Year Limited Warranty

(Applies only in the United States and Canada)

For service, repair, or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail the product back to the manufacturer and DO NOT bring it to a service center. You may also want to consult the website listed on the cover of this manual.

What does it cover?

Any defect in material or workmanship provided; however, Empower Brands, LLC’s liability will not exceed the purchase price of the product.

For how long?

One year from the date of original purchase with proof of purchase.

What will we do to help you?

Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

Save your receipt as proof of the date of sale. Visit the online service website at www.prodprotect.com/powerxl, or call toll-free 1-800-577-1557, for general warranty service.
If you need parts or accessories, please call 1-800-738-0245.

How does state law relate to this warranty?

This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

What does your warranty not cover?

• Damage from commercial use.
• Damage from misuse, abuse, or neglect.
• Products used or serviced outside the country of purchase.
• Shipping and handling costs associated with the replacement of the product.
• Consequential or incidental damages (please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you).

Are there additional warranty exclusions?

This includes, without limitation, any warranty claims implicating parties from, or otherwise located in, Cuba, Iran, North Korea, Syria, and the disputed Crimea region.

Distributed by: Empower Brands, LLC, C Middleton, WI 53562 ™ Trademark of Empower Brands, LLC © 2023 Empower Brands, LLC, all rights reserved. 6/23 29917

Made in China

FAQs

Q: What is the cooking capacity of the PowerXL AF-E6001-L Vortex Pro Air Fryer?

Ans: With its 6-quart capacity, the PowerXL AF-E6001-L is ideal for meal prep or families. A 4-pound chicken, several servings of veggies, or a whole bag of frozen fries are among the biggest meals it can manage.

Q: What is the “Vortex Pro” technology and how does it improve cooking?

Ans: Similar to deep frying but using little to no oil, “Vortex Pro” technology uses high-speed hot air circulation to provide consistent cooking and a crispy finish. It ensures even outcomes on all sides of your food by providing 360° air crisp circulation.

Q: Do I need to preheat the air fryer before cooking?

Ans: Depending on the temperature you want, preheat the device for two to five minutes.

Q: Can I cook multiple foods at the same time?

Ans: Indeed. If there aren’t too many foods in the basket, you can cook more than one.

Q: Is the basket dishwasher safe?

Ans: Indeed. Both the crisper tray and the non-stick basket are dishwasher safe.

Q: Can I open the drawer during cooking to check on food?

Ans: Of course. The cooking cycle returns to the prior setting after you slip it back in.

Q: What should I do if there’s a plastic smell during the first use?

Ans: To get rid of this odour, run the device empty at 400°F for ten minutes before cooking food.

Q: Can I bake in the Vortex Pro Air Fryer?

Ans: Indeed. For muffins, brownies, cookies, or mini cakes, use the Bake preset or your own preferences. Use ovenproof pans that fit inside the basket at all times.
