PowerXL SS0441-0BPC Dual Coffee Maker

Safety Instructions

• To protect against the risk of electrical shock, do not immerse the cord, plugs, or appliance in water or other liquids.
• Unplug from the outlet when not in use, before putting on or taking off parts, and before cleaning.
• A flashing start light or an illuminated pulse light indicates ready to operate.
• Avoid inadvertent contact with the touch screen.
• Avoid contacting moving parts.
• Do not use outdoors.
• Do not let the cord hang over the edge of the table or counter or touch hot surfaces.
• Do not place on or near a hot gas or electric burner or in a heated oven.
• Keep hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the blender.
• Blades are sharp. Handle carefully

POLARIZED PLUG (120V models only)

• This appliance has a polarized plug (one blade is wider than the other).
• To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way.
• If the plug does not fit fully into the outlet, reverse the plug.
• If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way

Electrical Cord

1. A short power-supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a longer cord.
2. Extension cords may be used if care is exercised in their use. If a long detachable extension cord is used.
3. The marked electrical rating of the power cord or extension cord should be at least as
   great as the electrical rating of the appliance.
4. If the appliance is of the grounded type, the extension cord should be a grounded-type
   3-wire cord.
5. The cord should be arranged so that it will not drape over the countertop or tabletop,
   where it can be pulled on by children or tripped over.

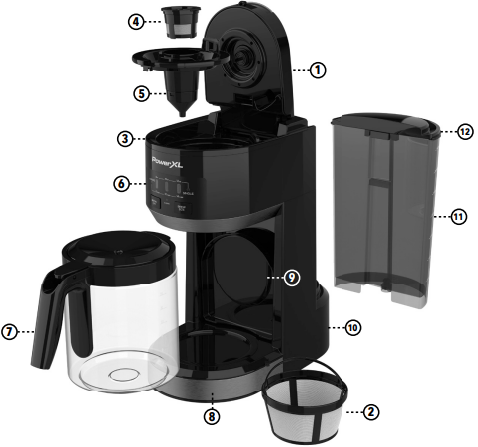

Parts & Accessories

1. Lid
2. Permanent Filter
3. Removable Filter Holder
4. Reusable Single-Serve Ground Coffee Filter
5. Single-Serve Pod Adapter
6. LED Control Panel
7. Perfect Pour™ 14-Cup Glass Carafe
8. Nonstick Keep Hot Carafe PowerXL SS0441-0BPC Dual Coffee Maker Plate
9. Hinged Cup Rest
10. Hidden Cord Storage
11. 70-oz Removable Water Reservoir
12. Water Reservoir Lid

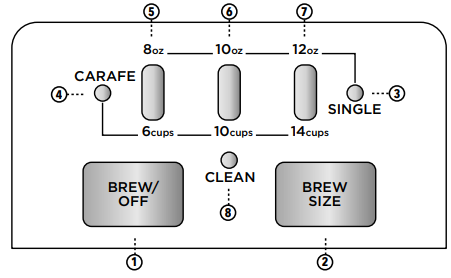

Using the Control Panel

1. Brew/Off Button
2. Brew Size Selector Button
3. Single Serve LED Indicator
4. Carafe Brew/Keep Warm/LED Indicator
5. 8 oz/6 Cups LED Indicator
6. 10 oz/10 Cups LED Indicator
7. 12 oz/14 Cups LED Indicator
8. Clean LED Indicator

Features & Benefits

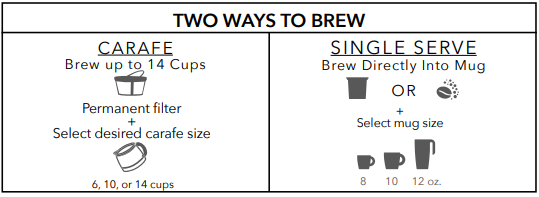

• Brew single-serve coffee pods, ground coffee, or a full 14-cup carafe with one machine.
• Press any button, insert or remove a coffee pod, open the lid, or raise or lower the cup rest to wake the appliance. After being inactive for 2 minutes, the appliance goes into standby mode.
• It’s easy to fill and easy to clean. The removable reservoir holds 70 oz of water and is used to brew both single-serve and full carafe.
• The coffee maker will automatically alert you when cleaning is needed, and the auto-clean cycle descales the machine with the touch of a button.
• Specially designed to eliminate dripping, the Perfect Pour™ spout keeps your counters clean.
• The reusable filter reduces waste with no need for paper filters.
• Stop the flow of coffee into your carafe for a no-mess fill-up at PowerXL SS0441-0BPC Dual Coffee Maker any time. Replace the carafe within 20 seconds to prevent the Filter Holder overflow.
• For your peace of mind, the appliance will automatically PowerXL SS0441-0BPC Dual Coffee Maker shut off 2 hours after the brew cycle is complete.
• Choose your favorite brew size: 8, 10, or 12 PowerXL SS0441-0BPC Dual Coffee Maker ounces.
• Insert this adapter to brew your favorite single-serve-pod coffee with ease.
• To brew your favorite ground coffee, scoop coffee grounds directly into this washable filter.
• For your peace of mind, the coffee maker will automatically shut off after the brew cycle is complete.

Instructions for Use

1. Press the Brew/Off Button at any time to start or stop a brew cycle.
2. When brewing a single serving of coffee, ensure that the water reservoir is filled at least to the minimum level.
3. Never return an empty carafe to the warming plate if the warming plate is still warm.
4. Never rinse your carafe with cold water because a sudden change in temperature from hot to cold could result in a cracked carafe.

Before Brewing

1. Carefully unpack your appliance, removing all packaging materials, labels, stickers, and the plastic band around the power plug.
2. Thoroughly clean your appliance according to the basic cleaning instructions found in the Care and Cleaning section of this manual.
3. Before brewing your first pot of coffee, run a 10-cup brew cycle with cold water only without ground coffee or a paper filter (see the “Brewing a Carafe” section).
4. When all the water has been brewed into the carafe, discard the water in the carafe and run a 10-oz single-serve brew cycle with cold water only (see the “Brewing Single-Serve Pods” section).
5. When all the water has brewed into the carafe, switch the coffee maker off and allow the coffee maker to cool for 15 minutes. Discard the water from the carafe and rinse.

Carafe

• Make sure the appliance is plugged in.
• Fill the Water Reservoir with the desired amount of water.
• The “MAX” line represents a full carafe of coffee.
• Do not fill the Water Reservoir past this “MAX” line.
• Use the included permanent filter or insert a preformed paper filter into the filter holder.
• Add 1 tablespoon of ground coffee per cup or to taste.
• Ensure the Filter Holder is secured in place, and then close the filter basket’s lid.
• Place the Carafe on the Carafe Plate with the Carafe’s lid closed.
• Coffee may run over if the Carafe’s lid is not correctly in place.
• Select your desired size and then press the Brew/Off Button once to begin the brew cycle.
• The cup size indicator light will stop flashing, and the Carafe Indicator Light will illuminate bright blue.
• While brewing, the Sneak-A-Cup™ feature stops coffee flow out of the appliance, allowing you to pour a cup of coffee before the brew cycle finishes.
• Always return the carafe to the Carafe Plate within 20 seconds to prevent coffee overflow.
• The Carafe Plate will remain on for 2 hours, and the Carafe Indicator light will be red during these 2 hours. After this time, the appliance will automatically shut off.
• When coffee grounds are cool, carefully remove and dispose of the used grounds and paper filter.

Pods

• Make sure your appliance is plugged in.
• Ensure the Water Reservoir is filled with a minimum of 20 ounces of water.
• Do not fill the Water Reservoir past the “MAX“ fill line.

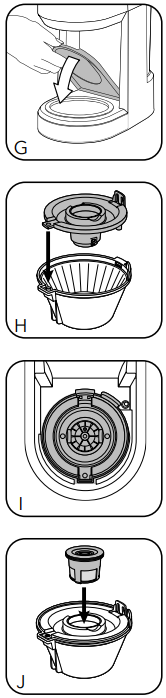

• Ensure the Pod Holder is installed properly in the Removable Filter Holder.
• The tab on the Pod Holder should align with the groove on the Filter Holder (D).
• Place the Filter Holder into the appliance, taking care to align the tabs properly (E).

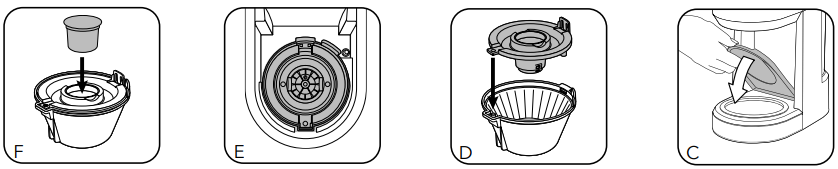

• Insert a coffee pod of your choice into the pod adapter (F).
• Push the lid down firmly until it locks into place.
• This will puncture the coffee pod and keep the filter basket’s lid from opening during brewing.
• Place your mug on the cup rest.
• Select your desired size, then press the Brew/Off Button once to begin the brew cycle.
• The cup size indicator light will stop flashing, and the Single Indicator Light will illuminate bright blue.
• Once the brewing cycle is complete, the appliance will automatically shut off.
• When cooled, carefully remove and dispose of the used pod.

Coffee

• Make sure your appliance is plugged in.
• Ensure the Water Reservoir is filled with a minimum of 20 ounces of water. Do not fill the Water Reservoir past the “MAX” fill line.
• Open the hinged lid.
• Ensure the Pod Holder is installed properly in the Removable Filter Holder. The tab on the Pod Holder should align with the groove on the Filter Holder (H).
• Place the Filter Holder into the appliance, taking care to align the tabs properly (I). Press down until you hear a click.
• Fill the reusable single-serve filter with your desired amount of coffee grounds (1 tablespoon per brewed cup or to taste).
• Close the Reusable Filter’s lid and place the Reusable Single-Serve Ground Coffee Filter into the Pod Adapter. (J).
• Push the lid down until it locks in place. This will ensure the Filter Basket’s lid does not lift open during brewing.
• Place your mug on the cup rest.
• To start the brewing cycle, press your choice of brew size.
• Once the brewing cycle is complete, the appliance will automatically shut off.
• When cooled, carefully dispose of the used grounds and wash the reusable filter for future use.

Care & Cleaning

1. Ensure your appliance is unplugged and cool.
2. Open the hinged lid.
3. If remaining, throw away the used paper filter and coffee grounds. Remove the Filter Holder.
4. If remaining, discard the used pod or coffee grounds. Remove any adapters from inside the filter basket.
5. Wipe the outside of the appliance, power cord, and Carafe Plate, and the inside of the Filter Basket’s lid with a soft, damp cloth.

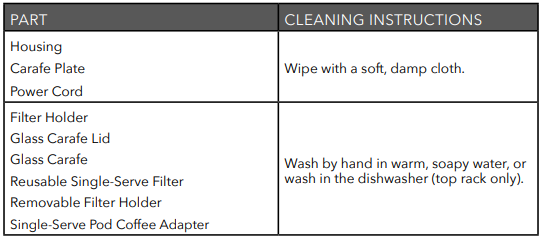

6. Wash each removable piece of your appliance according to the chart on the next page. Rinse and dry all removable components before replacing them in the appliance.

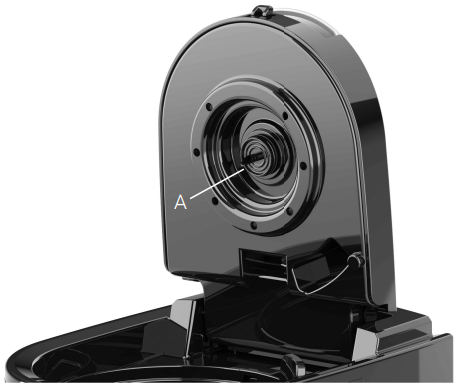

7. Check the brewing needle (A) for buildup before each use. If the brewing needle is clogged, use a needle, paper clip, or similar tool to remove excessive buildup from the hole in the brewing needle.

Descaling

The clean LED is a warning and will not affect the appliance, but failure to regularly descale your appliance will impact performance and could lead to irreversible damage. In areas with hard water, it may be necessary to descale more frequently or run multiple descaling cycles.

To use the auto-clean function

1. Prepare the descaling solution by combining 6 cups of white vinegar and 6 cups of cold water.
2. Fill the water reservoir with the cleaning solution. Place the carafe on the warming plate.
3. Press and hold the Brew/Off Button for 4 seconds.
4. The appliance will stop and start during the cleaning process.
5. The cleaning process takes approximately 45 minutes.
6. When the water reservoir is empty, the cycle will stop, and the cleaning LED indicator will darken.
7. When the cleaning process is complete, discard the water in the Carafe.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

For service, repair, or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail the product back to the manufacturer and DO NOT bring it to a service center. You may also want to consult the website listed on the cover of this manual.

What does it cover?

Any defect in material or workmanship provided; however, Empower Brands, LLC’s liability will not exceed the purchase price of the product.

For how long?

Two years from the date of original purchase with proof of purchase.

What will we do to help you?

Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How does state law relate to this warranty?

This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

What does your warranty not cover?

• Damage from commercial use.
• Damage from misuse, abuse, or neglect.
• Products used or serviced outside the country of purchase.
• Shipping and handling costs associated with the replacement of the product.
• Consequential or incidental damages (please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you).

Are there additional warranty exclusions?

This includes, without limitation, any warranty claims implicating parties from, or otherwise located in, Cuba, Iran, North Korea, Syria, and the disputed Crimea region.

Customer Service

• Website: www.prodprotect.com /powerxl
• Tel: 1-800-577-1557
• Ph:1-800-738-0245

FAQs

Q: What does the “dual” feature of this coffee maker mean?
Ans: You can brew two different pots at once with the PowerXL SS0441-0BPC; one side can make a 12-cup pot, and the other side can brew a single cup or a smaller batch.

Q: Can I brew different types of coffee on each side at the same time?
Ans: Yes, you can brew different coffee blends or strengths at the same time without the flavours blending because each side works independently.

Q: What types of coffee filters are compatible with the machine?
Ans: Both reusable mesh filters (separately sold) and conventional basket-style paper filters work with the coffee machine.

Q: How do I program the auto-brew timer?
Ans: You can program the brewing time up to 24 hours in advance using the control panel. The instruction booklet provides step-by-step instructions for programming.

Q: Does the coffee maker have a built-in grinder?
Ans: Before brewing, grind the coffee beans separately or use pre-ground coffee.

Q: Can I use the coffee maker to brew tea or other hot beverages?
Ans: To prevent flavour contamination, make sure to clean completely afterward.

Q: What safety features are included?
Ans: The machine has a non-slip base for stability while in use and an automated shut-off mechanism that turns off after two hours to avoid overheating.
