PRIMO PR105DV Mini Freezer Door 33L Instruction Guide

PRIMO PR105DV Mini Freezer Door 33L

Safety Instructions

• Children must not play with the appliance.
• Maintenance and cleaning of the appliance must not be done by children, unless they are older than 8 years of age and are supervised.
• Keep the appliance and cord out of the reach of children under the age of 8.
• If the electrical cord is damaged, it must be replaced by the manufacturer, its after-sales service, or a similarly qualified person to avoid any accident.
• An empty refrigerator can be very dangerous for children. Remove the refrigerator door when not in use. Or take other measures that will make the appliance harmless.
• Be careful not to damage the refrigeration system.
• After installation, let the appliance stand for 3 hours before turning it on. This will allow the refrigerant to settle.
• Pay attention to the “fire hazard – flammable material” symbol located on the back of the appliance.
  Follow the instructions below to prevent contamination of food:
• Opening the door for long periods can significantly increase the temperature in the appliance compartments.
• Clean surfaces that may come in contact with food regularly. Keep the condensation channel and drain hole at the back of the unit clean.
• Store raw meat and fish in appropriate containers in the refrigerator so that it does not come in contact with or drip on other food.
• If the appliance is left empty for a long time, you should turn it off, defrost and clean it. Let it dry and leave the door open to prevent mold from growing inside the appliance.
• This freestanding appliance should not be built-in.

Installation

Install the appliance in a dry and well-ventilated area. The appliance is intended for use in an area where the ambient temperature falls within the following class, depending on the climate class found on the rating label on the back of the appliance.

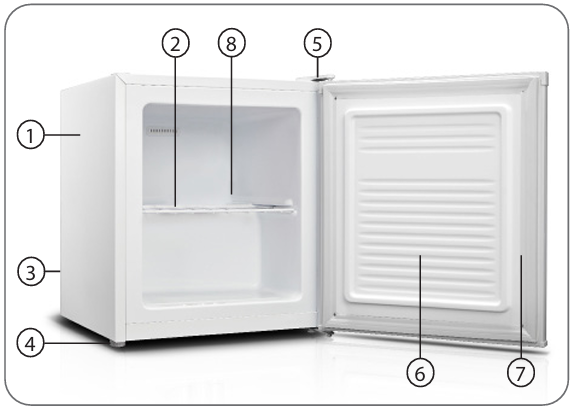

PARTS

1. Freezer
2. Removable rack
3. Thermostat knob (on the back)
4. Adjustable feet
5. Cover plate for door hinge
6. Door
7. Intermediate layer
8. Temperature sensor

Installation

For proper operation, the unit must be installed:

• in a dry environment
• away from direct sunlight
• away from extreme temperatures (and therefore not next to a hob or other heat sources)
• on a strong, stable floor

Ventilation

• A clearance of 50 mm must be maintained above the freezer. If no free space is possible above the appliance, 25 mm of free space should be kept on the sides of the appliance.

Levelling

• The freezer must be completely straight and level so that it does not wobble.
• Set the appliance straight and check that the 2 adjustable feet are firmly on the ground when the appliance is straight and level.
• If necessary, adjust the feet by screwing them in or out of the unit. Caution: This unit is heavy; please be careful.

Packing Frozen Foods

To prevent food from losing its flavour or drying out, place food in an airtight container.

1. Place food in packaging.
2. Remove air.
3. Seal the wrapping.
4. Label packaging with contents and dates of freezing
   Suitable packaging: Plastic film, tubular film made of polyethylene, aluminium foil, freezer containers.

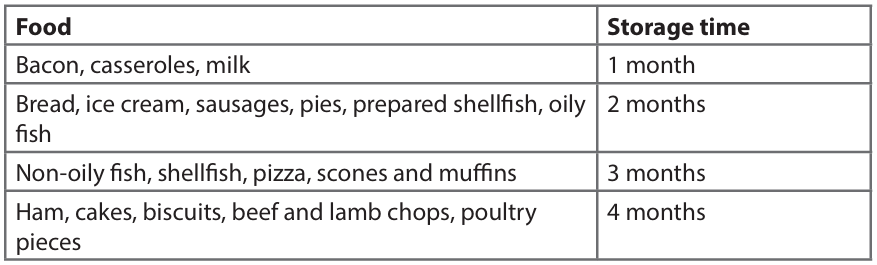

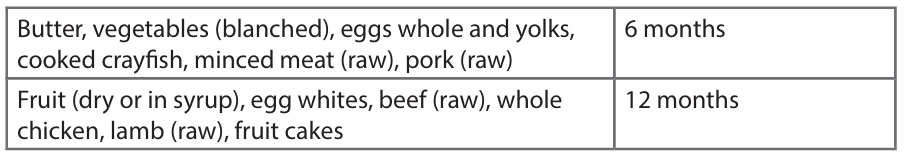

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER

• These times vary depending on the type of food. The food that you freeze can be preserved for 1 to 12 months (minimum at -18°C).

Direction Of Door

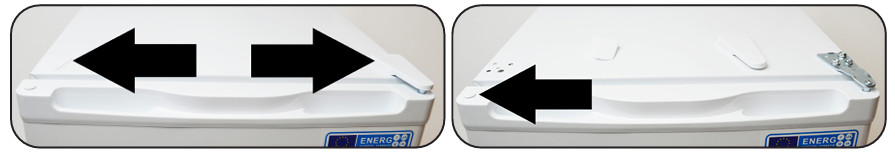

1. Remove the protective cap from the hinge and the cover plate on the other side. In the door, remove the cover cap at the top.

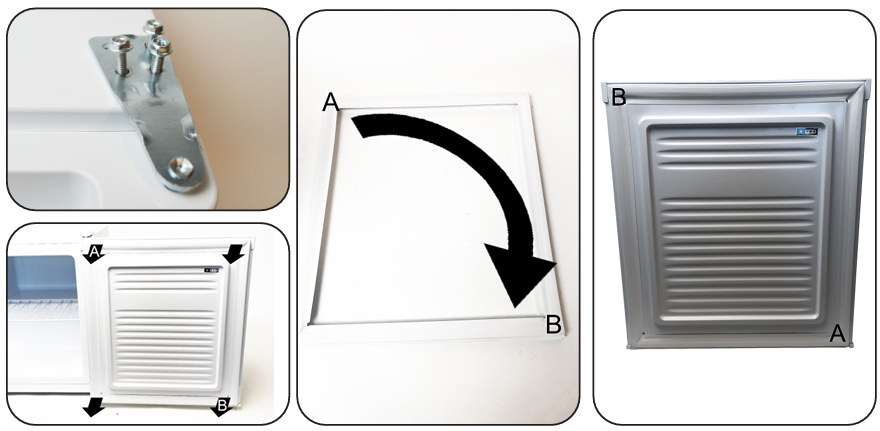

2. Remove the 3 screws located in the upper hinge. Remove the upper hinge. Then you can lift the door out of the lower hinge. Put them in a place where you can store them scratch-free.
3. When you change the direction of rotation of the door, we recommend that you rotate the rubber seal as shown in the picture. This will allow the door to seal perfectly when you replace it.

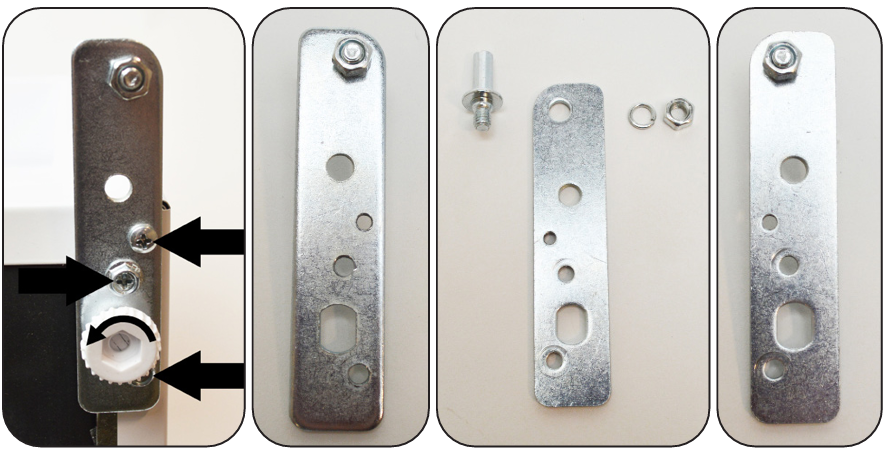

4. Tilt the unit, unscrew the feet, and remove the PRIMO PR105DV Mini Freezer Door 33L 3 screws located in the lower hinge. Then remove the hinge. Loosen the nut and washer, mirror the metal plate horizontally, and reassemble as shown in the photo.

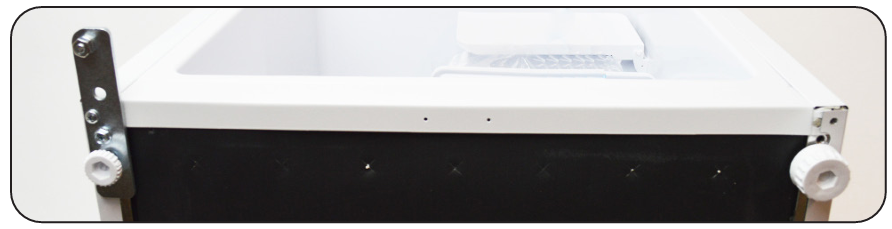

5. Attach the metal plate to the other side of the refrigerator with 3 screws. Screw the feet into the openings provided for this purpose.

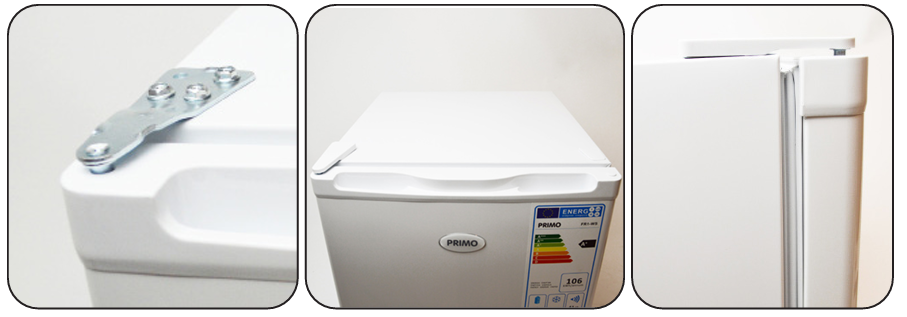

6. Next, place the unit back on its feet. After this, you can place the door on the lower hinge. Attach the door to the upper hinge. To do this, screw 3 screws into the holes provided.
7. Cover the upper hinge and the screw holes with the hinge cover. Make sure that the rubber seal seals nicely. If this is not the case, repeat step 2.

USE

• Remove all packaging materials and any promotional stickers before use.
• Clean the inside of the unit with lukewarm water and some bicarbonate of soda (5ml for 0.5l of water).
• Do not use soap or detergent, as the smell may linger. Dry the appliance thoroughly

Temperature Control

• The thermostat is located on the back of the PRIMO PR105DV Mini Freezer Door 33L appliance and can be set to MIN (cold), NORMAL (colder), and MAX (coldest).
• The room temperature
• How often is the door opened
• How much is in the freezer
• The position of the appliance

Start-up

1. Wait 3 hours after installation to start up the freezer.
2. Plug in the power cord.
3. Turn the thermostat to the desired temperature setting.
4. Wait about 4 hours until the desired temperature is reached before putting food in the freezer.

Maintainance & Cleaning

Inside

• Clean the inside and accessories with warm water and bicarbonate of soda. Rinse and dry thoroughly.
• Do not use detergents, caustic powders, perfumed cleaning products, floor polish, or cleaning products containing bleach or alcohol.

Exterior

• Wash the exterior with warm, soapy water.
• Do not use caustic or abrasive products.
• Be careful of the sharp edges on the bottom of the unit.
• Once or twice a year, remove dust from the PRIMO PR105DV Mini Freezer Door 33L compressor with a brush or vacuum cleaner, as the accumulation of dust can affect the performance and energy consumption of the unit.

Defrosting

1. Empty the freezer.
2. Unplug it from the electrical outlet.
3. Open the door.
4. Place a suitable container to collect the thawing water.
5. After defrosting, clean the inside and dry thoroughly.
6. Plug in the power cord

Long-term non-use

• When the appliance is not in use for a long period of time, unplug the outlet, empty the freezer, defrost, and leave the door ajar to avoid odors.

Warranty

Dear client, All of our products are always submitted to strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request that you contact our customer service. Our staff will gladly assist you.

This appliance has a two-year warranty period. During this period, the manufacturer is responsible for any failures that are the direct result of construction failure. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear and tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough, or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

Environmental Instructions

For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product

Customer Support

• Tel: 800-728-5508
• Website: www.primo-elektro.be
• Timings: Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00, Friday: 8.30 – 12.00 and 13.00 – 16.30

FAQs

Q: What is the recommended location for placing the PRIMO PR105DV mini freezer?

Ans: The freezer should be placed in a well-ventilated indoor space on a level, sturdy surface. Steer clear of hot spots like radiators, intense sunshine, and damp environments. To ensure adequate airflow, leave a minimum of 10 cm (4 inches) of space surrounding the unit.

Q: What type of power supply does the PR105DV require?

Ans: Depending on your location, the freezer runs on a typical household voltage of 110V to 120V or 220V to 240V. Make sure the electrical outlet is grounded correctly and always check the appliance label for the voltage rating.

Q: How do I turn on the mini freezer for the first time?

Ans: Connect the device to a grounded power source. Before putting frozen items in the freezer, let it cool for four to six hours.

Q: What is the ideal temperature setting for storing frozen foods?

Ans: For typical freezing, turn the thermostat dial between 3 and 5. Raise the temperature to freeze or store extremely perishable things more quickly. Adapt to usage and the surrounding temperature.

Q: Can the freezer door be reversed to open from the other side?

Ans: The PR105DV does indeed have a reversible door hinge. Carefully follow the instructions to remove and reposition the door handle and hinges to the side of your choice.

Q: Who should I contact for repairs or technical support?

Ans: Use the contact information in your instruction manual or on Primo’s official website to get in touch with customer service or authorised service centres.
