Ronix 2411 2050 W Twin Padle Mixer Instruction Manual

Ronix 2411 2050 W Twin Padle Mixer

Safety Instructions

Before using the Ronix 2411 2050 W Twin Padle Mixer, always follow these safety guidelines:

1. Save all warnings and instructions for future reference.
2. Do not operate power tools in explosive atmospheres.
3. Such as in the presence of flammable liquids, gases, or dust.
4. Power tools create sparks, which may ignite the dust or fumes.
5. Keep children and bystanders a way while operating a power tool.
6. Power tool plugs must match the outlet. Never modify the plug in any way.
7. Do not use any adapter plugs with earthed (grounded) power tools.
8. Unmodified plugs and matching outlets will reduce the risk of electric shock.
9. DO not expose power tools to rain or wet conditions.
10. Water entering a power tool will increase the risk of electric shock.
11. Do not abuse the cord. Never use the cord for carrying.
12. Pulling or unplugging the power tool. Keep the cord away from heat.
13. Oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.
14. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
15. Use of a cord suitable for outdoor use reduces the risk of electric shock.
16. Stay alert, watch what you are doing, and use common sense when operating a power tool.
17. A moment of inattention wife operating power tools may result in serious personal injury.
18. Remove any adjusting key or wrench before turning the power tool on.

Use & Care

• Do not force the power tool. Use the correct power tool for your application.
• The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off.
• Power tools are dangerous in the hands of untrained users.
• If damaged, have the power tool repaired before use.

Service

• Have your power tool serviced by a qualified repair person using only identical replacement parts.
• This will ensure that the safety of the power tool is maintained.
• Electrine Paint Mixer Safety Warning User Instructions.

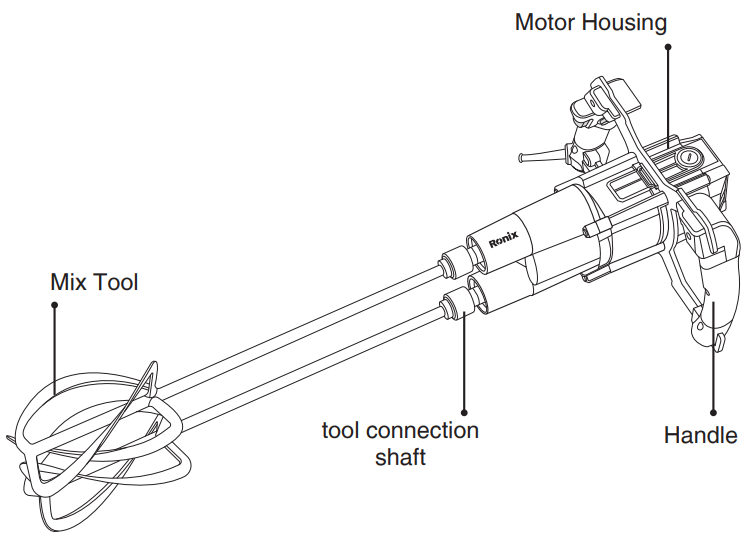

Part List

Production Description

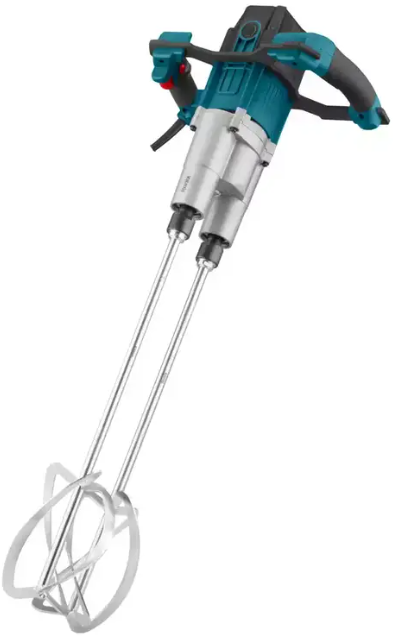

The Ronix 2411 2050 W Twin Padle Mixer is an electrical power mixer, fitted with double rotating mixing tools, designed to handle heavy-duty materials efficiently (single mixing tools are also available). It is used for mixing building materials and chemical materials, for mixing even heavy materials quickly and thoroughly, especially for difficult mixing materials, such as high-density mortar, dried building materials, and two or more kinds of mixed materials. Different mixing tools are available for the Ronix 2411 2050 W Twin Padle Mixer, and its variable I-II speeds meet the demand of different material mixing.

1. DO check the safety situation when the machine is operating!
2. DO operate the machine in a suitable working space!
3. DO keep other persons away from the working space!
4. DO avoid the machine affected by damp when the machine is operated in the amp working space!
5. DO keep the working space sufficiently lighting!
6. DO check the power source/voltage is the same as shown on the machine llabel
7. DO check if the machine has earth protection or not!
8. The machine CANNOT be overloaded!
9. DO only use no scratch, no defective cable with plug!
10. DO NOT mix the material whose flammable point is above 21°C;
11. DO NOT start the machine when the dried materials are in the drum or stick to the drum!
12. DO use only original spare parts for the machine maintenance!

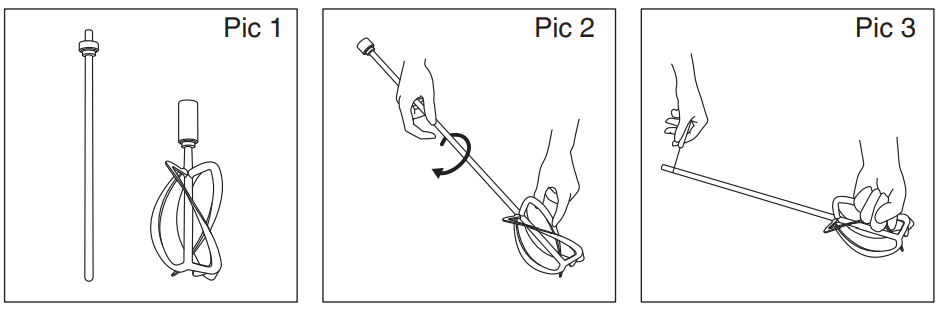

Operation

1. Take out the two parts of the mixing tools from the carton.
2. Fitting the two parts.
3. Use the wrench until it is tightened.
4. Put the mixing tools on the outlet shaft.
5. Turn the screw of the mixing tools in the direction of the old position, and the mixing tools are tightened.

Start Machine

Push down the switch rest-lock knob first and then push down the start switch; Mechanical speed regulator operation instruction: (picture 6)

• When the machine is under the STOP condition, please turn the Knob switch to change the speed.;
• When you cannot finish changing speed by turning the Knob switch, please turn the shaft paddles slightly and change speed.

Stop the Machine

Maintainance

• Correct maintenance for the machine can prolong the working life; The handle switch must always be kept in proper function and good maintenance.
• The mixing tools should be cleaned when the operation is finished or not used for a long time; Normally, the flowing water or quartz sand can clean the mixing tools well.
• DO not for any mechanical stress in the machine, such as pounding, because it will be unavoidably damaged; The mixing shaft must always be antipollution; he hole of the hexagonal socket must always be protected with a protective cover.
• The vent of the motor housing cannot be covered when the machine is in operation; there cannot be any flammable materials in the machine; The vent must be often cleaned.

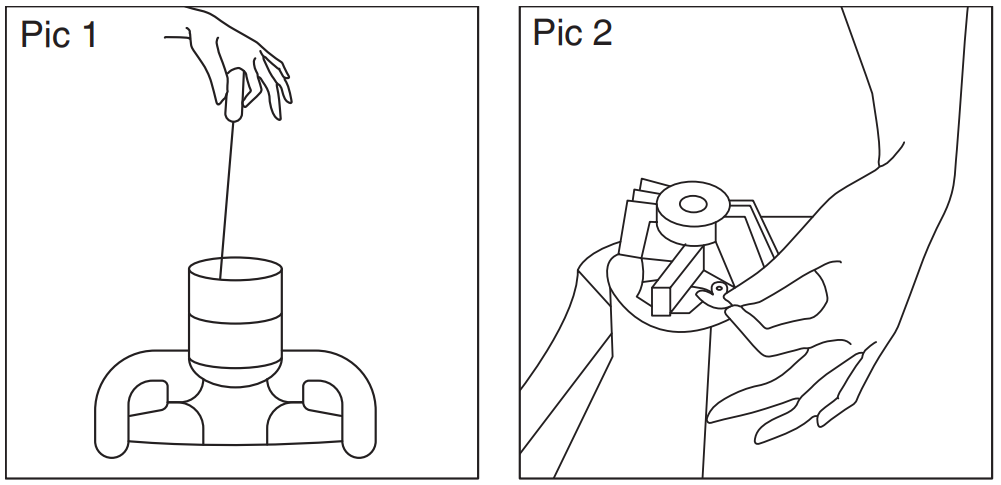

• Only original parts can be used in this machine. The carbon brush must be checked and maintained when the machine is operating up to 60hours. Please change the brush in time if you find the brush worn out.
• The operation details are shown in the pictures. Cut off the power first, and take apart the motor housing. Pull out the plate and replace the carbon brush.

Specifications

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.

Customer Support

• Address: Lyoner Str. 36 60528 Frankfurt am Main
• Tel:+49 69 310 900 66
• Website: www.ronixtools.com

FAQs

Q: Can I adjust the mixing speed?

Variable speed control is a feature of the Ronix 2411 2050 W Twin Padle Mixer. To prevent splashing, start at a moderate speed and raise it gradually for complete mixing.

Q: Can I use the mixer for paint or thin liquids?

Yes, but to avoid splashing, it functions best at lower speeds and with smaller volumes. The main purpose of double paddles is to handle heavier materials.

Q: Is the mixer suitable for professional construction work?

Yes, it is appropriate for heavy-duty or professional use in DIY projects, remodelling, and building due to its dual paddle design and 2050W motor.

Q: Can I replace the paddles with other brands?

Yes, provided that they work with the 14mm paddle shaft. Using improper or subpar paddles might harm the motor or decrease efficiency.

Q: Can I use the mixer for small batches?

Yes, although medium to large quantities are its ideal operating range. The paddles might not be able to effectively reach all of the material in very small quantities; for small jobs, think about utilising a smaller hand mixer.

Q: Is the mixer safe to use in wet conditions?

No, because the mixer is an electrical device, it may cause damage or electric shock if used in damp conditions. Make sure the workspace is always dry.
