Ronix 5701 Powerful 120W 400 RPM Scroll Saw User Manual

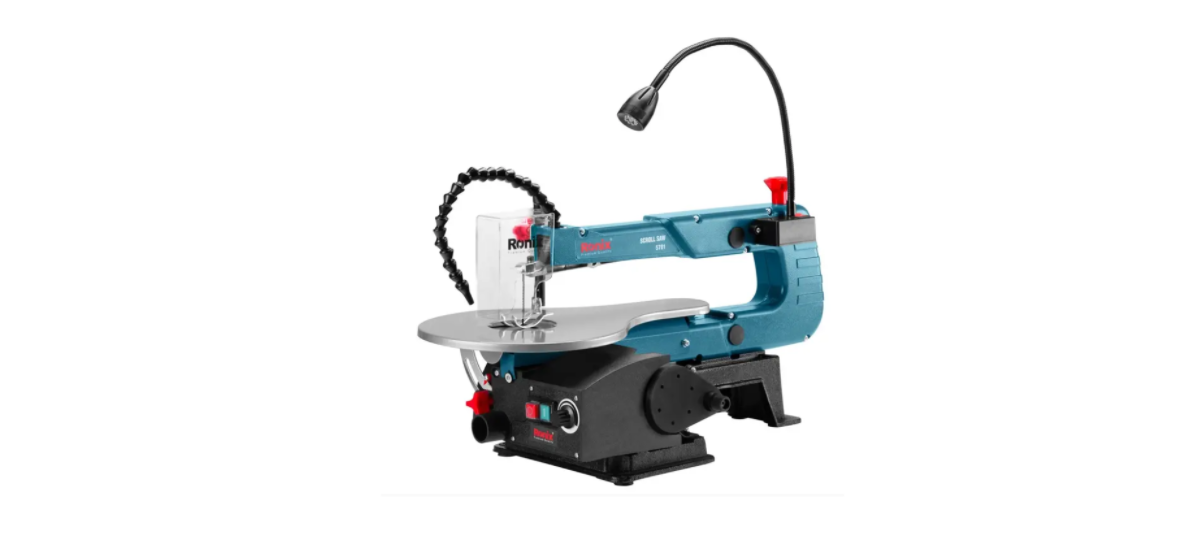

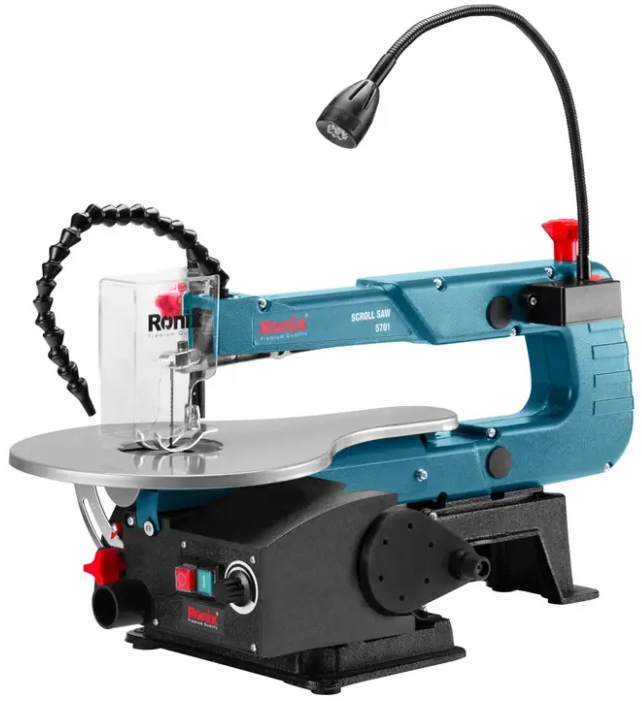

Ronix 5701 Powerful 120W 400 RPM Scroll Saw

The Ronix 5701 Powerful 120W 400 RPM Scroll Saw is engineered for precision cutting of wood, acrylic, plastic, and thin metal sheets, making it ideal for hobbyists and professional craftsmen.

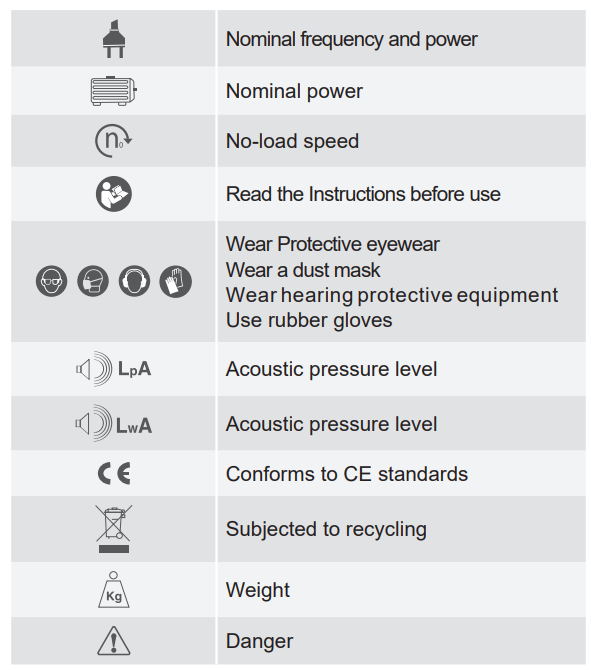

Safety Instructions

• Before using the Ronix 5701 Powerful 120W 400 RPM Scroll Saw, read all safety warnings and instructions. Failure to follow them may result in electric shock, fire, or serious injury.
• Save all warnings and instructions for future reference when operating the Ronix 5701 Powerful 120W 400 RPM Scroll Saw.
• Power tools create sparks, which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool.
• Distractions can cause you to lose control.
• Power tool plugs must match the outlet.
• Never modify the plug in any way. Don’t use any adaptor plugs with earthed (grounded) power tools.
• Unmodified plugs and matching outlets will reduce the risk of electric shock.
• There is an increased risk of electric shock if your body is earthed or grounded.
• Don’t expose power tools to rain or wet conditions.
• Water entering a power tool will increase the risk of electric shock.
• Don’t abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
• Keep the cord away from heat, oil, sharp edges, or moving parts.
• Damaged or entangled cords increased the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use.
• Using a cord suitable for outdoor use will reduce the risk of electric shock.
• The use of an RCD reduces the risk of electric shock.

Use & Care

• Don’t force the Ronix 5701 Powerful 120W 400 RPM Scroll Saw. Use the correct power tool for your application to achieve precise and safe results. For other Ronix tools suitable for heavy-duty mixing or workshop tasks, you can also check the Ronix 2411 2050 W Twin Paddle Mixer Instruction Manual to ensure proper handling and safety.
• The correct power tool will do the job better and safer at the rate for which it was designed.
• Maintain your Ronix 5701 Powerful 120W 400 RPM Scroll Saw regularly. Check for misalignment, binding of moving parts, or breakage to ensure smooth operation.
• Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools.
• Such preventive safety measures reduce the risk of accidentally starting the power tool.
• Store idle power tools out of the reach of children and don’t allow persons unfamiliar with the power tool or these instructions to operate the power tool.
• Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool’s operation.
• If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories, and tool bits, etc. In accordance with instructions, taking into account the working conditions and the work to be performed.
• Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

• Have your Ronix 5701 Powerful 120W 400 RPM Scroll Saw serviced by a qualified repair person using only identical replacement parts. This ensures the safety and proper functioning of your scroll saw.
• Follow instructions for lubricating and changing accessories on your Ronix 5701 Powerful 120W 400 RPM Scroll Saw. Keep handles dry, clean, and free from oil and grease.

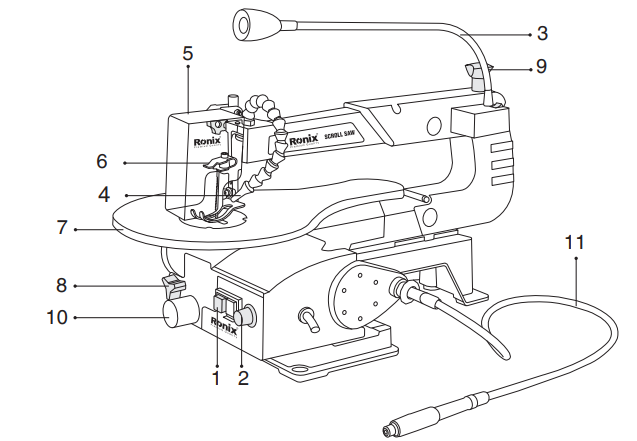

Part List

1. Switch
2. Speed Variator
3. LED Light
4. Blower System
5. Safety Cover
6. Blade Attachment System
7. Table
8. Tilting Table
9. Blade Tension
10. Dust Outlet Pipe
11. Soft Shaft

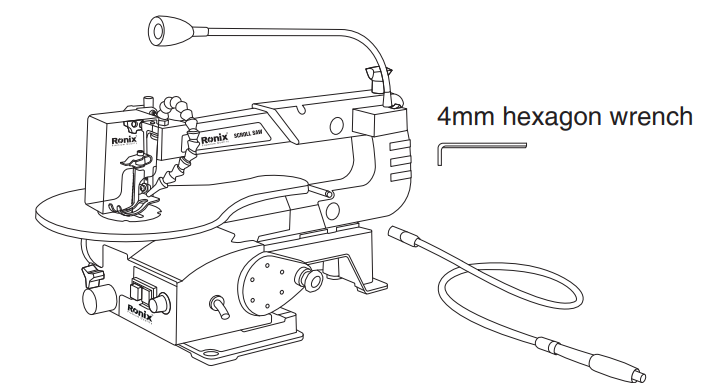

CONTENTS OF BOX

ASSEMBLING THE BLADE

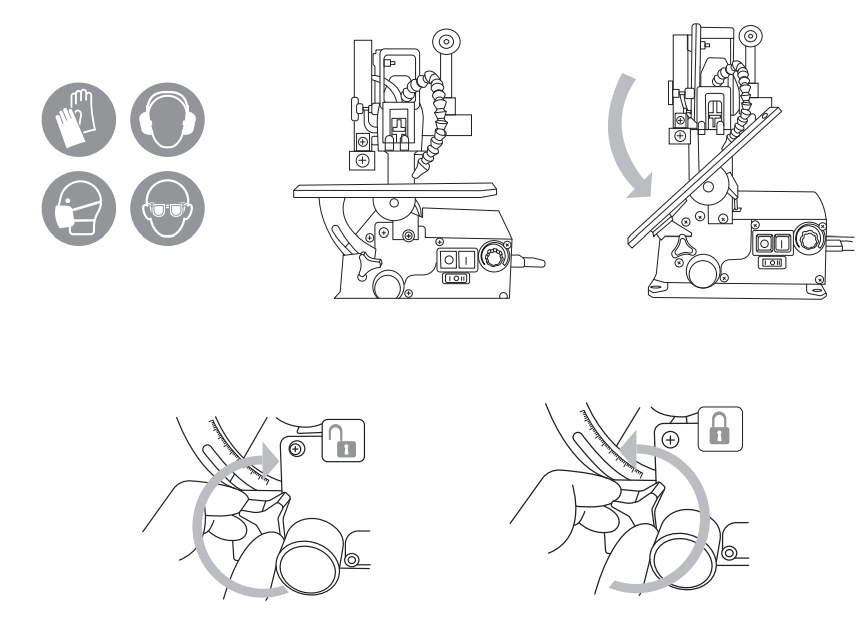

FUNCTIONS OF THE MACHINE

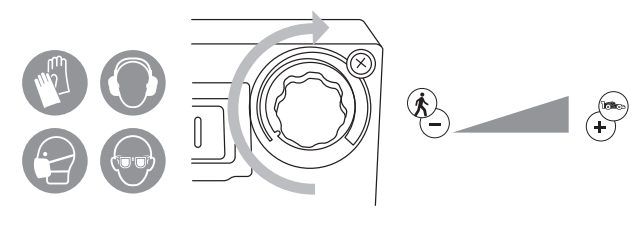

SPEED ADJUSTMENT

ORIENTATION OF THE BLADE

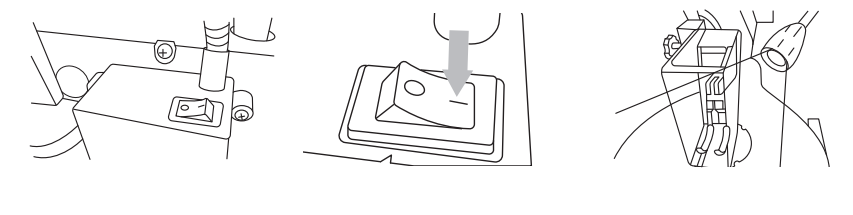

USE OF LIGHTING

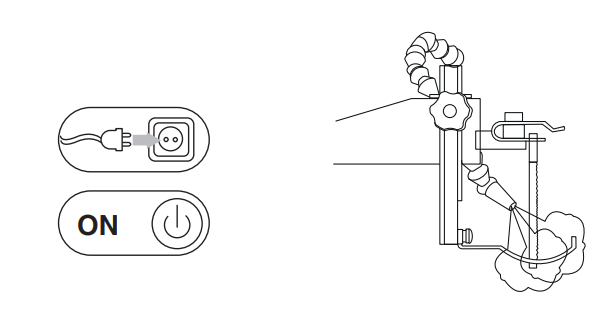

USE OF BLOWING SYSTEM

SAFETY COVER ADJUSTMENT

CONNECTING TO VACUUM CLEANER

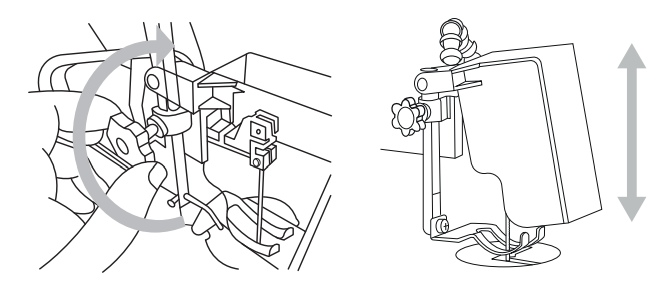

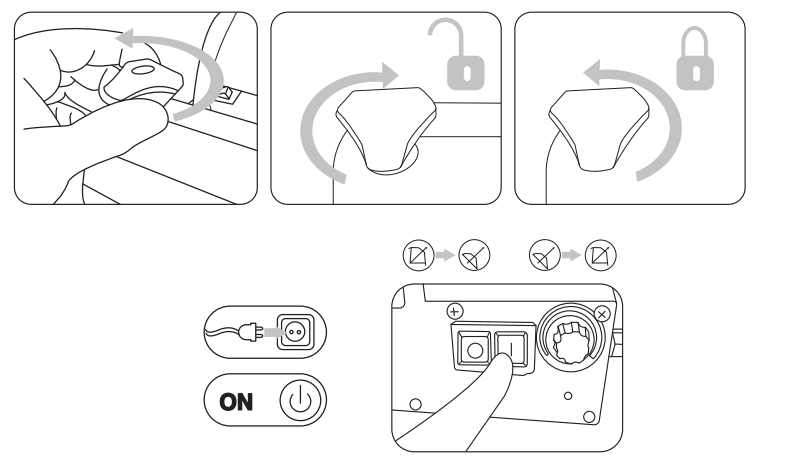

SETTING OF THE BLADE TENSION

CONSUMABLES REPLACING

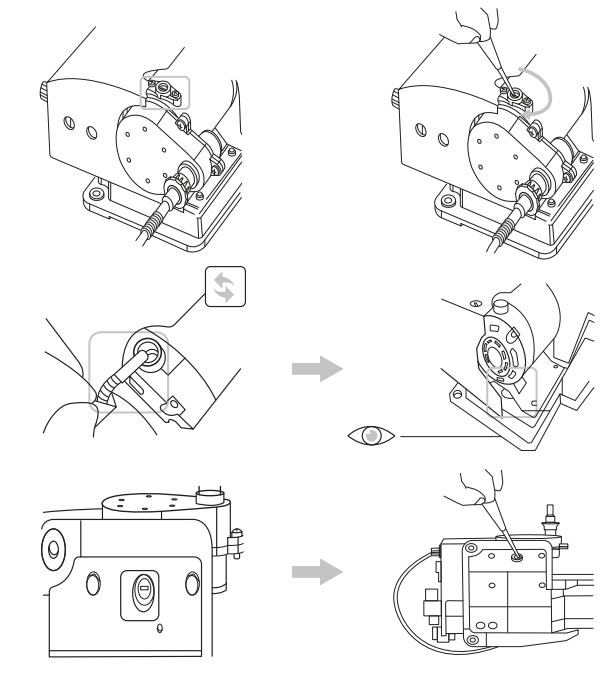

CHANGING OF CARBON BRUSH

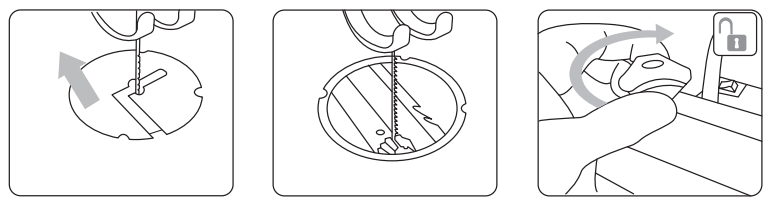

BLADE CHANGE

The blade should have the toothing facing down

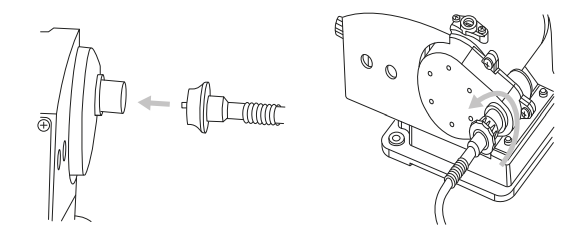

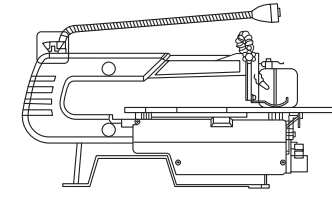

ASSEMBLING SOFT SHAFT

CLEANING AND MAINTENANCE

1. The use of safety goggles and the safety guard prevents the risk of injury if the blade breaks.
2. Before storing the tool, release the tension of the blade.

Technical Specifications

• Model 5701
• Power 120W
• Voltage 220-240V
• Frequency 50-60Hz
• Motor Type: Magnetic Steel Motor
• Speed Range 400RPM-1600RPM
• Base Plate Size 400×245×95mm
• Tilt Range 0° To 45°
• Blade Length 125mm
• Blade Material 60Si2Mn
• Cutting Depth 0°: 50mm
• 45°: 23mm
• Cutting Size 406mm
• Total Length 415mm (work table)
• Table Material Steel
• Weight (N.W) 11Kg
• Includes sawblade 1pcc assembled with machine, soft shaft 1set, wrench 1pc

Environmental Instructions

• Dispose of cardboard packaging and polyethylene (PE) bags in the appropriate containers for separate collection of municipal waste according to their description.
• If there are batteries in the device, remove them and separately return them to the collection and storage facility. Return the used device to a suitable collection and storage facility, as the hazardous substances in it may pose a threat to health and the environment.
• Waste electrical equipment is waste that contains substances harmful to humans, animals, and the environment.
• These substances can lead to contamination of the soil, water, or air, and through this they can get into the human body and lead to numerous health ailments, such a vision, hearing, and speech disorders; they can also lead to kidney, liver, and heart damage, and cause skin diseases.
• Harmful substances can also have adverse effects on the respiratory and reproductive systems and lead to cancerous changes. Consumption of plants growing on the contaminated soils, and products made from them, may risk the above-mentioned health effects.
• Do not dispose of the device in the municipal waste container!!! Service: If you wish to purchase spare parts or report any complaints, please contact directly with the seller who issued the receipt directly.
