Russell Hobbs RHC470 2-in-1 Steamer Supreme Instructions

Russell Hobbs RHC470 2-in-1 Steamer Supreme

Safety Instructions

When using this appliance, basic safety precautions should always be followed, including the following: Read all instructions before and follow them whilst using this appliance.

1. Do not use outdoors or in damp or moist areas.
2. Do not touch hot surfaces; always use the appliance handles.
3. Care should be taken when using the appliance due to the emission of steam.
4. This appliance must be attended to whilst plugged in.
5. Ensure the iron is unplugged during filling and emptying.
6. Always turn off and unplug from the wall power outlet when not in use.
7. To avoid possible burns, ensure the appliance is off and has cooled before cleaning.
8. To disconnect, turn off the wall power outlet, then grasp and pull the plug from the wall outlet.
9. Never pull by the cord. There are no user-serviceable parts.
10. Do not use on an inclined or unstable surface.
11. Ensure the power cord does not present a tripping hazard.
12. Do not place on or near any heat sources.
13. Follow the instructions when cleaning this appliance.
14. Do not use this appliance for anything other than its intended purpose.
15. Misuse of the appliance may cause injury. This appliance is not a toy.
16. Children should be supervised to ensure they do not play with the appliance.
17. Your switchboard may already incorporate an RCD.
18. If unsure, call an electrician for verification and fitting if necessary.

Before First Use

• Fill the water tank with clean water, and then empty the water to ensure the tank is clean of any manufacturing residues. Refill the tank.
• The steamer may give off an odour and a small amount of vapour when switched on for the first time. This is normal and will stop as the element cures.
• Remove labels, stickers and packaging from the appliance.
• Iron an old piece of dampened cotton fabric or linen to clean the soleplate.

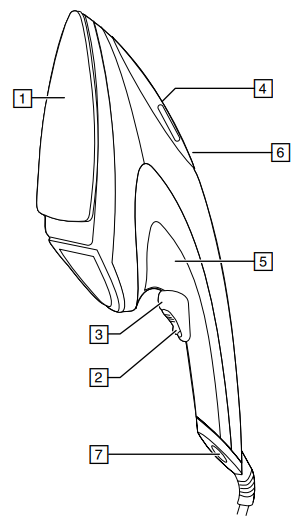

Parts

1. Ceramic heating plate
2. Steam trigger lock
3. Steam trigger
4. Water inlet
5. Water tank
6. Power light
7. Power button
8. Fabric attachment
9. Delicate fabric attachment
10. Upholstery attachment
11. Heat-resistant bag
12. Lint attachment (not shown)

Using the Appliance

• For best performance, we recommend using distilled, purified or filtered water in your steamer.
• Tap water contains minerals that can build up inside your steamer over time and reduce its efficiency or even cause damage. Never use perfumes, oils or other additives.
• Always check the garment’s care label before steaming, and always test fabrics for colourfastness in an inconspicuous area. Steamers are not recommended for use on leather, suede, vinyl, plastic, or other materials that are sensitive to steam.
• During use, the steamer and accessories will become HOT.
• Never try to fit or remove attachments while still hot.
• After preheating, prime the water pump by holding the steam trigger until steam forms.
• It is normal to feel or hear the water pump inside the device.
• It may become louder when the water level in the tank is low.
• Check and refill the tank when required.
• Small amounts of dripping might occur during use.
• If excessive, your steamer needs time to get back up to full temperature.
• Just allow the steamer a minute to reheat.
• Wearing clothes immediately after ironing or steaming can create wrinkles.
• Always allow the clothing to cool for about 5 minutes before wearing.

Attachments

Your steamer has four attachments. Each attachment is marked with an icon.

Fabric attachment

• Opens up the fibres in fabrics so the steam can better penetrate the material; good for thicker materials like coats, and can also help to remove pilling.

Delicate fabric attachment

• Reduces the possibility of damage to fabrics such as silk and lace.
• Tip: For items with printing/embellishment, turn the garment inside out to avoid damage to sensitive areas

Upholstery attachment

• Deodorise, refresh and clean larger materials such as bedding, mattresses, curtains, soft toys, sofas and much more.
• Always test for colourfastness and heat sensitivity on an inconspicuous area.

Lint attachment

• For any garment that allows medium to high heat and allows for the use of steam.
• Tip: Attachment helps remove lint, hair and animal fur

Fitti8ng/Removing

1. . Make sure that the steamer and attachment are cool.
2. Hook the top of the attachment over the top edge of the steamer.
3. Click the bottom edge into place.
4. Remove attachments by lifting them away from your steamer, starting at the heel. When removing the attachment, watch out for condensation that may have built up during use.

Filling

You may use the steamer with tap water; however, if you live in a hard water area, you should use
distilled water (not chemically descaled or softened water). If you buy distilled water, check that it is marked as suitable for use in steamers.

1. Place the steamer.
2. You can also place your steamer on the heat-resistant storage bag.
3. Open the water inlet cover.
4. Pour slowly, to let the air in, Russell Hobbs RHC470 2-in-1 Steamer Supreme, the reservoir escape, otherwise you’ll cause an air lock and the water will overflow.
5. Don’t fill past the max marking, or water will escape in use.
6. To refill at any time during use, turn the steamer off by pressing the power button until the blue indicator light goes out, unplug from the outlet, and follow the above procedure.
7. After refilling, allow to reheat for 45 seconds and then prime the pump by holding the steam trigger until steam forms.

USING

1. If the label says “do not steam” or shows this icon, do not steam the garment
2. Alternatively, place the garment on a bed or a towel.
3. You can use the heat-resistant bag between the bed/towel and the garment if required.
4. Fit any attachment you wish to use.
5. Plug the steamer in, then press the power button.
6. The blue power button light will slowly flash, indicating that the steamer is heating.
7. After about 45 seconds, the power light will stay on, indicating your steamer is ready to use.
8. Prime the water pump by holding the steam trigger until steam forms.
9. To generate steam, press the steam trigger.
10. As long as the trigger is held, steam will be emitted from the steamer.
11. When the trigger is released, the steam will stop.
12. To generate a constant flow of steam without holding the trigger, press the steam trigger and then slide the steam trigger lock downwards. You can then release pressure on the steam trigger.
13. To turn the steam off, press the trigger, slide the steam trigger lock upwards, then release the trigger.

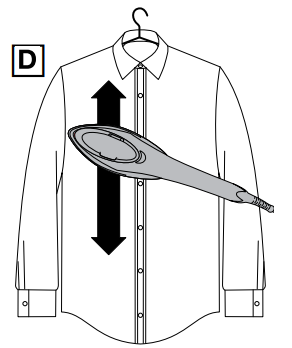

14. With your free hand, keep the fabric taut. Steam the garment with slow, downward strokes, keeping the head of the steamer in Russell Hobbs RHC470 2-in-1 Steamer Supreme contact with the fabric (Fig. D).
15. When you have finished, press and hold the power button until the blue light goes out (about 3 seconds) and unplug.

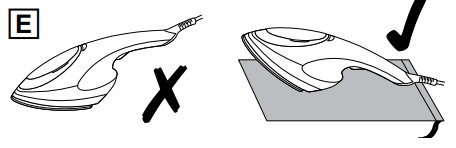

16. After ironing or between garments, set your steamer down with the handle resting on a flat, stable surface. You can use the heat-resistant bag to rest your steamer on (Fig. E).

Ceramic Heated Plate

• Your steamer features a ceramic heated plate that helps smooth out wrinkles and creases in the areas of garments that are more difficult to reach with steam alone.
• The temperature of the plate is safe for all ironable fabrics.
• To press garments (collars, cuffs, etc.), place them on a flat, heat-resistant surface.
• Keep the plate in contact with the garment. Use steam as required.
• You can use the heat-resistant bag to iron on.

Auto Shut Off

If you haven’t used the steam trigger for approximately 8 minutes, your steamer will enter auto shut-off mode. In auto shut-off mode, the blue light will flash. To restart your steamer, press and hold the steam trigger for a few seconds until Russell Hobbs RHC470 2-in-1 Steamer Supreme your steamer begins to steam again and the blue light stops flashing.

Care & Maintainance

When storing or after use, do not wrap the mains cord around the appliance, as this can damage the cord.

1. Make sure the steamer is off, unplugged and completely cool.
2. Wipe all surfaces with a clean, damp cloth.
3. This will help remove any residue left in the steam holes.
4. To avoid mineral buildup, empty the tank after each use.

Cleaning

• Fabric attachment: Wipe with a damp cloth to clean.
• Delicate fabric attachment: Wash with cold water and small amounts of a gentle cleanser if needed.
• Upholstery attachment: The fabric can be removed and hand-washed with cold water and a gentle cleanser.
• Lint Attachment: Wipe with a damp cloth to clean

Troubleshooting

Disposal/Recycling

Legislation in some localities mandates that e-waste (anything with a plug, battery or cord) is disposed of through controlled recycling facilities and must not be disposed of in general household waste. For more information about the recycling of electrical and battery-operated appliances, please contact your local council or your local household waste disposal service.

Warranty Information

(Applies only in the United States and Canada) For service, repair, or any questions regarding your appliance, please call our Customer Service. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail the product back to the manufacturer, nor bring it to a service centre.

What does it cover?

Any defect in material or workmanship provided; however, the liability of Spectrum Brands, Inc. will not exceed the purchase price of the product.

How long is the warranty valid?

• In the United States: Two years from the date of original purchase with proof of such purchase.
• In Canada: Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse, or neglect
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you specific legal rights.
• You may also have other rights that vary from state to state or province to province.

Customer Service

• Website: www.prodprotect.com/russellhobbs
• Tel: 1-800-947-3744
