Sony CFI-ZCT1G PlayStation Wireless Controller User Manual

Sony CFI-ZCT1G PlayStation Wireless ControllerSafety Instructions

This product has been designed with the greatest safety concern. However, any electrical device, if used improperly, has the potential for causing fire, electrical shock, or personal injury. To help ensure accident-free operation, follow these guidelines:

• Observe all warnings, precautions, and instructions.
• Do not handle damaged or leaking lithium-ion batteries.
• Keep the product out of the reach of small children.
• If a battery is leaking, do not touch the material from the leaking battery with your bare hands.
• If a battery is leaking, stop using the product immediately and contact Customer Support.
• If a battery is leaking, immediately move the leaking battery away from fire.
• The material from the leaking battery or gas may ignite, causing fire or explosion.
• If you experience any of the following health problems, discontinue use of the product immediately.
• If symptoms persist, consult with your doctor.
• Dizziness, nausea, fatigue, or symptoms similar to motion sickness
• Discomfort or pain in a part of the body, such as the eyes, ears, hands, or arms.
• Avoid playing when you are tired or need sleep.
• Avoid prolonged use of this product. Take a break at about 30-minute intervals.
• Permanent hearing loss may occur if the headsets or headphones are used at high volume.
• Set the volume to a safe level. The louder the volume, the sooner your hearing could be affected.

Protect Your Hearing

• Limit the amount of time you use a headset or headphones at high volume.
• Avoid raising the volume to block out noisy surroundings.
• Lower the volume if you can’t hear people speaking near you.
• Avoid looking into the light bar of the controller when it is flashing.
• Stop using the controller immediately if you experience any discomfort or pain in any body parts.

Use & Handling

• Never disassemble or modify the product.
• Do not allow liquid, small particles, or other foreign objects to get into the product.
• Do not place the product on surfaces that are unstable, tilted, or subject to vibration.
• Do not use the product near water. Do not touch the product with wet hands.
• Do not touch the product during an electrical storm. Do not stand on or put objects on the product.
• Do not throw or drop the product or subject it to strong physical shock.
• Do not place the product on the floor or in a place where it may cause someone to trip or stumble.
• Do not touch the ports or insert any foreign objects into the product.
• If you see dust or foreign objects on the connectors, wipe them with a dry cloth before connecting.
• When using the motion sensor function, be cautious of the following points.
• If the controller hits a person or object, this may cause an accident, injury, or damage.
• Before using the motion sensor function, make sure you have enough space to move around.
• The product and its parts are made from metal and plastic materials.
• When disposing of the product, follow local regulations for the proper disposal of such materials.

Part List

Front

• A ) Directional buttons
• B ) (create) button
• C ) Light bar
• D ) Touch pad/touch pad button
• E ) Player indicator
• F ) (options) button
• G ) Action buttons button/ button/ button/ button
• H ) Right stick/R3 button
• I ) Speaker
• J ) (PS) button
• K ) Headset jack
• L ) Microphone
• M ) (MUTE) button
• N ) Left stick/L3 butto
• A ) R1 button
• B ) R2 button
• C ) USB port
• D ) L1 button
• E ) L2 button

Pair the Controller

The first time you use the controller, you’ll need to pair it with your PS5 console.

1. Turn on your console.
2. Connect the controller to your console using the USB cable included with your console.
3. Press the (PS) button. The controller powers on. After the light bar blinks, the player indicator lights up.

Charge the controller

Use the USB cable included with your console to connect the controller to your PS5 console when your console is turned on or in rest mode. While in rest mode, the light bar on the controller slowly blinks orange. When charging is complete, the light bar turns off.

When Disposing of the Wireless Controller

The lithium-ion battery of the wireless controller is recyclable. When disposing of the wireless controller, remove the battery and follow local regulations regarding disposing of batteries.

1. Disconnect the USB cable from the wireless controller.

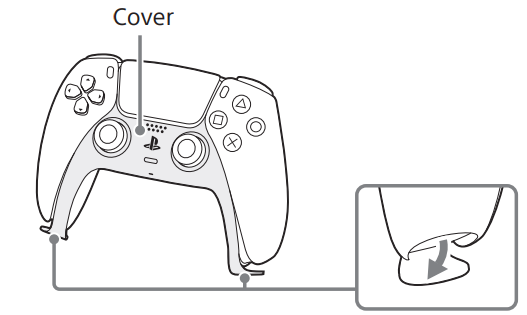

2. Remove the cover on the front of the controller.

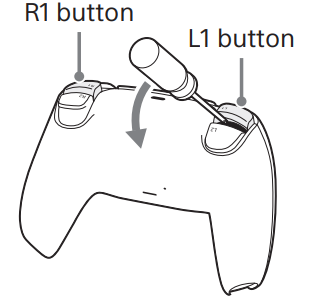

3. Using a tool such as a screwdriver, remove the L1 and R1 buttons.

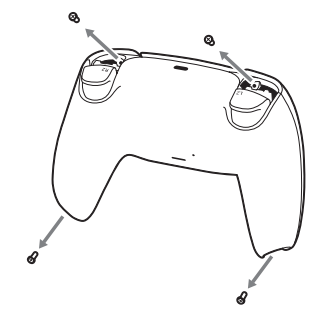

4. Using a crosshead screwdriver, remove the screws (4 places).

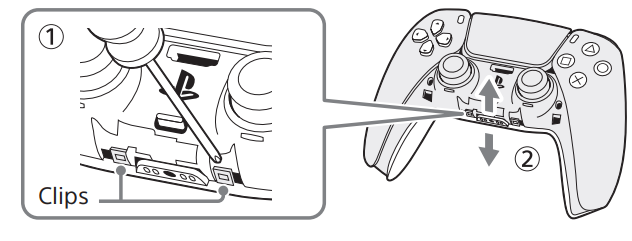

5. Using a tool such as a screwdriver, remove the cover clips, and then remove the cover.

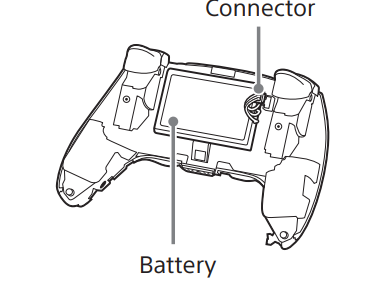

6. After disconnecting the connector, remove the battery.

Cleaning

Follow the instructions below to help prevent the product exterior from deteriorating or becoming discoloured.

• Wipe with a soft, dry cloth. Do not apply insecticides or other volatile substances.
• Do not place any rubber or vinyl materials on the product exterior for an extended period of time.
• Do not use solvents or other chemicals. Do not wipe with a chemically-treated cleaning cloth.

Storage conditions

• Do not expose the product to high temperatures or sunlight during operation or transportation.
• Do not leave the product in a car with the windows closed, particularly in hot weather.
• Do not expose the product to dust, smoke, or steam.

Battery life and duration

The battery has a limited lifespan. Battery duration will gradually decrease with repeated usage and age. Battery life also varies depending on the storage method, conditions of use, and environmental factors. Charge in an environment where the temperature range is between 10 °C and 30 °C. Charging may not be as effective when performed in other environments.

When not in Use

When the wireless controller is not used for an extended period of time, it is recommended that you fully charge it at least once a year to help maintain battery functionality.

Specifications

Design and specifications are subject to change without notice. Depending on the software version in use, the PS5 console may operate differently from what is described in this manual.

• Input power rating: 5 V 1,500 mA
• Battery type: Built-in lithium-ion battery
• Battery voltage: 3.65 V
• Battery capacity: 1,560 mAh
• Operating temperature: 5 °C to 35 °C
• Mass Approx:. 280 g

Disposal

For the Customers in Europe

The recycling of materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact your local Civic  Office, your household waste disposal service, or the shop where you purchased the product.

Notice for the customers in the countries applying EU Directives > Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan. For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935

For the Customers ithe n the Republic of India

Reduction in the Use of Hazardous Substances in Electrical & Electronic Equipment. This product and its components, consumables, parts, or spares comply with the hazardous substances restriction of India’s E-Waste (Management) Rules.

Customer Service

• Website: https://www.sony.com/
• Ph: 800-326-9551

FAQs

Q: What is the Sony CFI-ZCT1G PlayStation Wireless Controller?

The CFI-ZCT1G is a wireless PlayStation controller that offers smooth connectivity between PlayStation consoles and compatible devices, ergonomic comfort, and responsive gameplay.

Q: Which PlayStation consoles is the CFI-ZCT1G compatible with?

Although this controller is primarily intended for PlayStation 5 systems, depending on software upgrades and system support, it may also be able to do some tasks on PS4, PlayStation Remote Play, and compatible PCs and mobile devices.

Q: Does the controller feature haptic feedback?

Indeed. The controller’s sophisticated haptic feedback technology produces realistic vibrating patterns that more accurately mimic in-game activities.

Q: Are adaptive triggers included?

Indeed. Because the L2 and R2 triggers provide adaptable resistance, developers may create feedback and tension that resembles real-world motions like braking in a car or pulling a bowstring.

Q: How long does the battery last?

The controller typically offers many hours of playback on a full charge, though battery life varies depending on usage. Runtime may be decreased by using a headset, adaptive triggers, or heavy haptics.

Q: Can I use the controller on a PC?

Indeed. The controller is compatible with many PC games via USB-C or Bluetooth. Certain game or platform support may be necessary for features like haptics or adaptive triggers.

Q: Does the CFI-ZCT1G include a built-in microphone?

Indeed. Quick audio chat without the need for a headset is made possible by the controller’s integrated microphone and mute button.

Q: Is there a 3.5 mm headset jack?

Indeed. Players can attach gaming headsets for private audio and chat thanks to the built-in 3.5 mm audio connector.
