Sony SRS-XB100 Speaker Wireless Bluetooth User Guide

Sony SRS-XB100 Speaker Wireless Bluetooth

Safety Instructions

On placement

1. To eliminate the risk of malfunctions, avoid the following locations when placing or leaving this unit.
2. Inside a vehicle with the windows closed (especially in summertime)
3. A place exposed to hot air, such as from a hair dryer
4. Place this unit on a flat, level surface.
5. Depending on the conditions where this unit is placed.
6. It may fall over or fall off the surface. Do not leave any valuables near the unit.
7. This unit is not anti-magnetic.
8. Keep objects susceptible to magnetism away from the unit.
9. When you carry around the unit, keep this in mind as well.
10. Carefully note the precautions below to ensure proper use of the unit.

Proper Use

• This unit does not have a design that is resistant to water pressure.
• Using the unit in a location where high water pressure is applied, such as in the shower, may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other appliance on the unit directly.
• Also, never use the unit in a place subject to high temperatures, such as in a sauna or near a heat source.

How to care for the unit

You can use the unit more comfortably and for a longer period of time by following the maintenance procedure below.

• If the surface of the unit gets dirty in the following cases, wash the unit with fresh water (tap water, etc.) promptly to remove the dirt.
• Leaving dirt on its surface may cause the surface to discolor or deteriorate, or the unit to malfunction. Ex.
• When salt, sand, et,c. They are stuck on the unit after using it on a beach, poolside, etc.
• When the unit is stained with foreign substances (sunscreen, suntan oil, etc.)

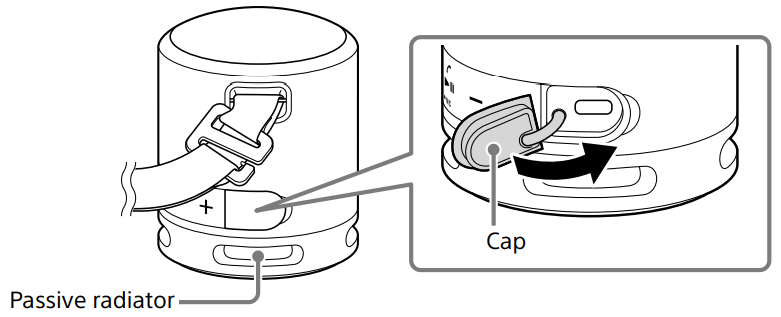

• The sound quality may change when water enters the speaker or passive radiator section of the unit.
• It is not my malfunction. Wipe off the moisture on its surface, and put the unit on a dry soft cloth to drain the collected water inside the unit. Then, dry the unit in an airy place until no moisture remains.

Specifications

• Bluetooth: Frequency band 2.4 GHz ban2.4000 0 GHz -2.48355 GHz Operating frequency / Maximum output power
• Power: DC 5 V 0.5 A (using a commercially-available USB AC adaptor capable of feeding in 0.5 A (500 mA)) or, using a built-in lithium-ion battery
• Lithium-ion battery life Approx. 16 hours*1 – Volume level: 36 Approx. 5 hours*1 – Volume level: 50 (MAX.)
• Time required for charging the built-in rechargeable battery: Approx. 4.5 hours*2 *3 Operating temperatures: 5 °C – 35 °C
• Battery charging temperatures: 5 °C – 35 °C
• Dimensions (including projecting parts and controls): Approx. 76 mm × 95 mm (dia × h)
• Mass (including battery): Approx. 274 g
• Included items s Wireless Speaker (1), USB Type-C® cable (USB-A to USB-C)*4 (1), Strap (1) (attached to the unit), Documents (1 set)

System requirements for charging a battery using a USB

Using a commercially available USB AC adaptor capable of delivering an output current of DC 5 V 0.5 A (500 mA). Design and specifications are subject to change without notice.

Disposal

For the Customers in Europe

The recycling of materials will help to conserve natural resources. For more detailed information about the recycling of this product, please contact your local Civic  Office, your household waste disposal service, or the shop where you purchased the product.

Notice for the customers in the countries applying EU Directives > Manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku, Tokyo, 108-0075 Japan. For EU product compliance: Sony Belgium, bijkantoor van Sony Europe Limited, Da Vincilaan 7-D1, 1935

For the Customers ithe n the Republic of India

Reduction in the Use of Hazardous Substances in Electrical & Electronic Equipment. This product and its components, consumables, parts, or spares comply with the hazardous substances restriction of India’s E-Waste (Management) Rules. The maximum allowable concentrations of the restricted substances are 0.1% by weight in homogenous materials for Lead, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ethers (PBDE), and 0.01% by weight in homogenous materials for Cadmium, except for the exemptions specified in Schedule II of the aforesaid Rules.
