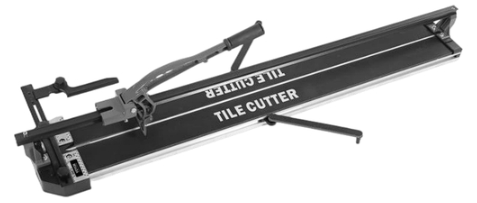

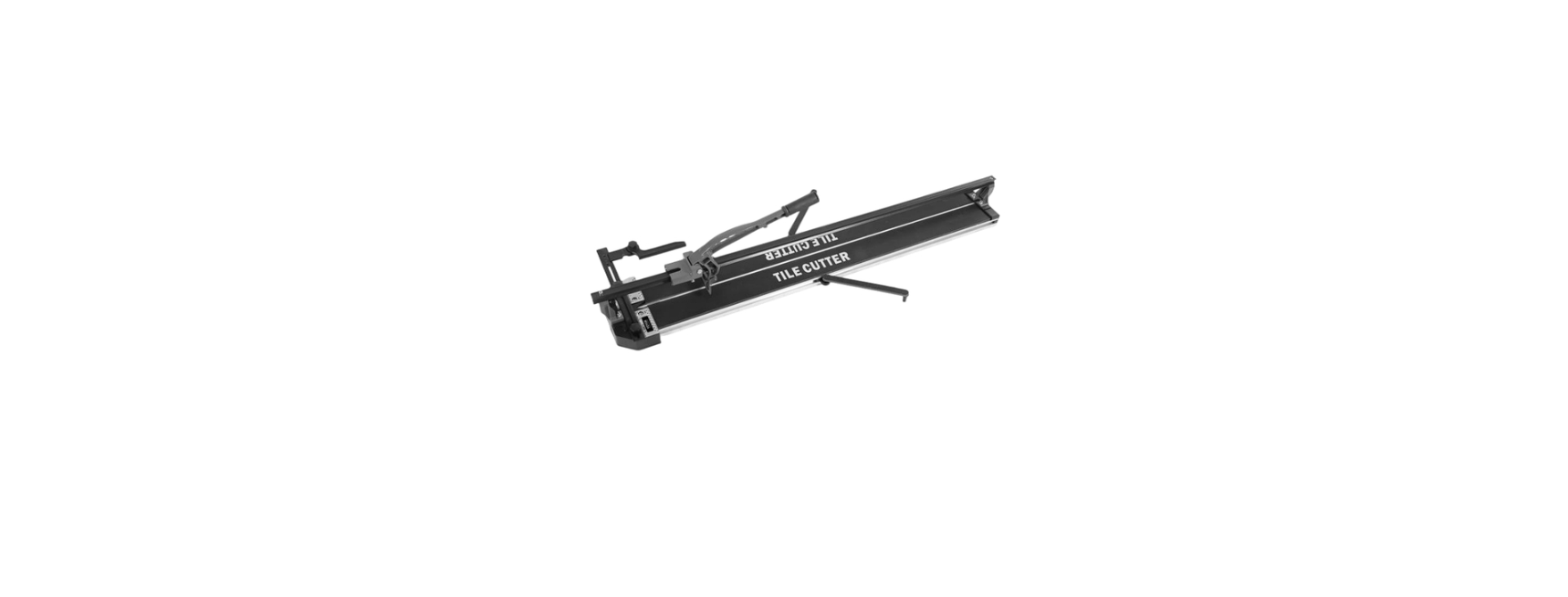

Vevor 8102E 8L Porcelain Ceramic Tile Cutter
Safety Instructions
Read and understand all instructions before using this tile cutter. The operator must follow basic precautions to reduce the risk of personal injury and/or damage to the equipment. Please familiarise yourself with the hazard notices found in this manual. A notice is an alert that there is a possibility of property damage, injury, or death if certain instructions are not followed.
- Operate in a safe work environment. Keep your work area clean, well-lit, and free of distractions.
- Keep anyone not wearing the appropriate safety equipment away from the work area.
- Store new tools properly in a safe and dry location to prevent rust or damage.
- Lock the tile cutter away and keep it out of the reach of children.
- Always place the tile cutting machine on a level and firm surface.
- Always wear impact safety goggles that provide front and side protection for the eyes.
- Do not operate any tile cutter when tired or under the influence of drugs, alcohol, or medications.
- Avoid wearing clothes or jewellery that can become entangled with a tool’s moving parts.
- The tile cutting machine is fitted with a replaceable circular blade.
- Keep the tile cutter and blade away from children.
- Use the correct tile cutter for the job. This tile cutter was designed for a specific function.
- Do not modify or alter this tile cutter or use it for an unintended purpose.
- After use, the machine must be stored in a safe and dry place.
Description
- Machine *1PCS
- Ruler *1PCS
- Spare Cutting Wheel Φ15xΦ6×1.5mm
Operation
Straight Cutting
- Place the cutting wheel on the rear edge of the tile.
Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time.
After scoring and without moving the tile position, the breaker is slightly in the front edge of the tile and the front stop. Apply increasing pressure on the handle until the tile snaps along the score line.
After scoring, it is better to pull back the handle to let the breaker slightly backtrack 5-10m; it’s the best position to break the tile.
Diagonal Cutting
Put the tile on the machine against the adjusted Vevor 8103E-2/17 Inch Tile Cutting Machine angle ruler. Place the cutting wheel on the rear edge of the tile.
Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time.
After scoring and without moving the tile position, so that the breaker is slightly in the front edge of the tile and the front stop. Raise the handle a little and release the breaker so that the breaker is flat on the tile. Apply increasing pressure on the handle until the tile snaps along the score line.
Use a Screwdriver to replace the blade.
Specifications
- Maximum Cutting Length: 430mm
- Maximum Cutting Thickness: 12mm
- Cutting Wheel Size: Φ15*Φ6*1.5mm
Customer Service
- Website: https://www.vevor.com/
- Manufacturer: Cixi Jirui Electric Appliance Co., Ltd
- Add: 118# Nanxin Road, Zonghan Street, Cixi City, Zhejiang Province
- E-mail: CustomerService@vevor.com
FAQs
Q: What is the Vevor 8102E Tile Cutter designed for?
It is perfect for professional installation and home remodelling projects since it produces straight, clean cuts without requiring water or energy.
Q: What size tiles can this cutter handle?
This type is appropriate for large-format floor and wall tiles since it can cut tiles up to 47 inches (1200 mm) in length and around 16 mm (⅝ inch) thick.
Q: Does the 8102E require power or water to operate?
It’s a manual tile cutter, that’s what. Neither water cooling nor electricity is needed. The tile surface is scored by the tungsten carbide cutting wheel and then cleanly broken along the scored line by a pressure lever.
Q: What does the “8L” refer to in the model name?
A long handle with a higher cutting power that is appropriate for thick or dense porcelain tiles is denoted by the “8L,” which usually relates to the handle leverage and structural design size.
Q: Can I make diagonal or angled cuts?
Indeed! With the Vevor 8102E’s adjustable angle guide (0°–60°), you can precisely cut corners or diagonals.
Q: What should I do if the guide rail becomes misaligned?
To correct the rail, use the adjustment screws or the Allen wrench that comes with it. Verify that the wheel travels the full length of the cutter in a line with the ruler markings.
Q: Is calibration necessary?
Indeed. Heavy use over time may result in slight alignment changes. Run the cutting wheel along a straightedge once a week to check the calibration, or before big work. Achieve exact alignment by adjusting the guide rail.
