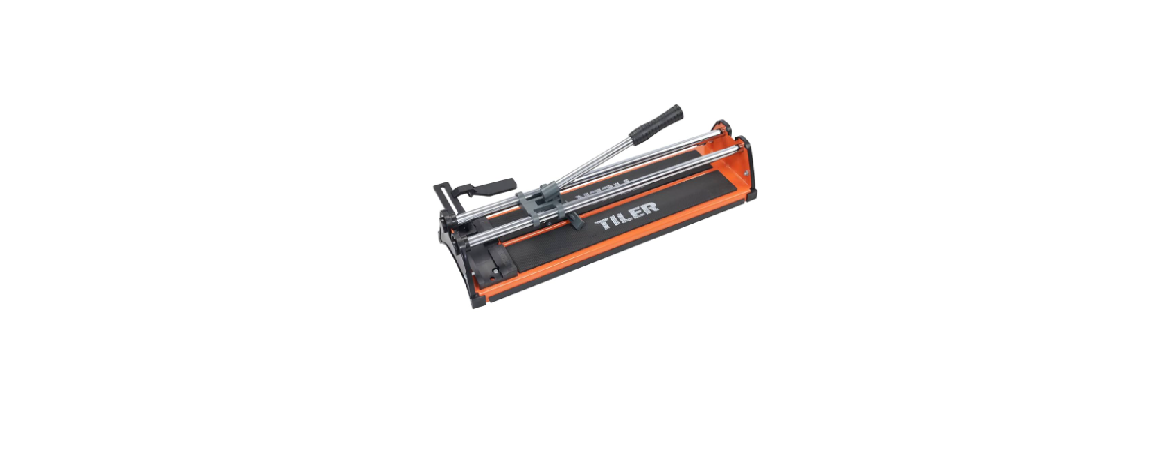

Vevor 8103E-2/17 Porcelain Ceramic Tile Cutter
Safety Instructions
Read and understand all instructions before using this tile cutter. The operator must follow basic precautions to reduce the risk of personal injury and/or damage to the equipment. Please familiarise yourself with the hazard notices found in this manual. A notice is an alert that there is a possibility of property damage, injury, or death if certain instructions are not followed.
- Operate in a safe work environment. Keep your work area clean, well-lit, and free of distractions.
- Keep anyone not wearing the appropriate safety equipment away from the work area.
- Store new tools properly in a safe and dry location to prevent rust or damage.
- Lock the tile cutter away and keep it out of the reach of children.
- Always place the tile cutting machine on a level and firm surface.
- Always wear impact safety goggles that provide front and side protection for the eyes.
- Do not operate any tile cutter when tired or under the influence of drugs, alcohol, or medications.
- Avoid wearing clothes or jewellery that can become entangled with a tool’s moving parts.
- The tile cutting machine is fitted with a replaceable circular blade.
- Keep the tile cutter and blade away from children.
- Use the correct tile cutter for the job. This tile cutter was designed for a specific function.
- Do not modify or alter this tile cutter or use it for an unintended purpose.
- After use, the machine must be stored in a safe and dry place.

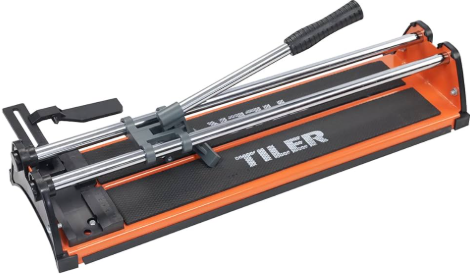

Description
- Machine *1PCS
- Ruler *1PCS
- Spare Cutting Wheel Φ15xΦ6×1.5mm
Operation
Straight Cutting
- Place the cutting wheel on the rear edge of the tile.
Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time.
After scoring and without moving the tile position, the breaker is slightly in the front edge of the tile and the front stop. Apply increasing pressure on the handle until the tile snaps along the score line.
After scoring, it is better to pull back the handle to let the breaker slightly backtrack 5-10m; it’s the best position to break the tile.
Diagonal Cutting
Put the tile on the machine against the adjusted Vevor 8103E-2/17 Inch Tile Cutting Machine angle ruler. Place the cutting wheel on the rear edge of the tile.
Slide the wheel forward by pushing the handle down with medium pressure. Scoring the tile surface glaze as the handle is pushed forward. It is important to make one continuous motion, scoring the surface only once per time.
After scoring and without moving the tile position, so that the breaker is slightly in the front edge of the tile and the front stop. Raise the handle a little and release the breaker so that the breaker is flat on the tile. Apply increasing pressure on the handle until the tile snaps along the score line.
Use a Screwdriver to replace the blade.
Specifications
- Maximum Cutting Length: 430mm
- Maximum Cutting Thickness: 12mm
- Cutting Wheel Size: Φ15*Φ6*1.5mm
Customer Service
- Website: https://www.vevor.com/
- Manufacturer: Cixi Jirui Electric Appliance Co., Ltd
- Add: 118# Nanxin Road, Zonghan Street, Cixi City, Zhejiang Province
- E-mail: CustomerService@vevor.com
FAQs
Q: What is the Vevor 8103E-2/17 Tile Cutter designed for?
A manual precision tile cutter designed for porcelain, ceramic, and glazed tiles is the Vevor 8103E-2/17. Professional tilers, contractors, and home renovators who require precise, chip-free cuts without the use of electricity or water will find it ideal.
Q: What is the cutting capacity of this model?
This makes it possible to handle large-format floor tiles and tiny mosaic tiles with ease.
Q: Does it need electricity or water?
No, the Vevor 8103E-2/17 is a tile cutter that operates manually; it doesn’t need electricity, cables, or water cooling.
Q: Can it cut tiles at an angle?
Indeed. This makes it ideal for tile fitting around fixtures or for decorative arrangements.
Q: What kind of cutting wheel does it use?
It has a cutting wheel made of ultra-hard, corrosion-resistant tungsten carbide.
Q: Can I use it for cutting thin decorative or mosaic tiles?
Yes, but always install thin or small tiles on a flat backing board. This guarantees uniform pressure during breaking and stops cracking.
Q: What should I do if the handle feels stiff or the cutter slides roughly?
After giving the guide rails a thorough cleaning, lightly lubricate them. Look for bent rails or dirt accumulation close to the bearings if the stiffness persists.
Q: Can I adjust the cutting depth or wheel pressure?
Your hand movements regulate the pressure, so there’s no need for manual depth control. When scoring, make sure the wheel touches the entire surface without applying too much pressure.
