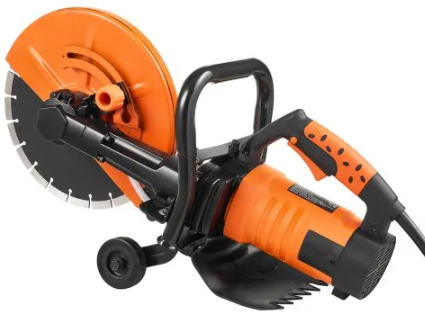

Vevor DC305 1800 W Electric Concrete Saw
Safety Instructions
- Keep the work area clean and well-lit. Cluttered or dark areas invite accidents.
- Power tools create sparks, which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool.
- Distractions can cause you to lose control.
- Power tool plugs must match the outlet. Never modify the plug in any way.
- Do not use any adapter plugs with earthed (grounded) power tools.
- Unmodified plugs and matching outlets will reduce the risk of electric shock.
- Do not expose power tools to rain or wet conditions.
- Water entering a power tool will increase the risk of an electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
- Keep the cord away from heat, oil, sharp edges, or moving parts.
- Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use.
- Use of a cord suitable for outdoor use reduces the risk of electric shock.
- Stay alert, watch what you are doing, and use common sense when operating a power tool.
- Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication.
- Remove any adjusting key or wrench before turning the power tool on.
- A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times.
- This enables better control of the power tool in unexpected situations.
- Have your power tool serviced by a qualified repair person using only identical replacement parts.
- This will ensure the safety of the power tool. Special requirements for the cutting-off tool

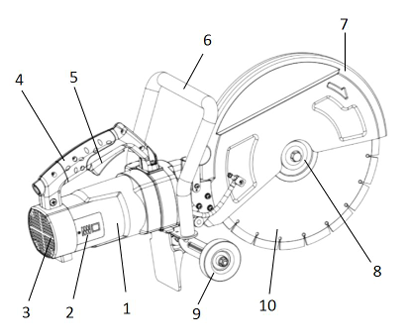

Description
- Motorcasing
- Carbonbrushcover
- Backcover
- Handle
- Switch
- auxiliaryhandle
- cover
- flange
- wheel
- sawblade
Specifications
| Model | Power Supply(V/Hz) | Input(W) | Maximum Cutting Depth（inch） | Saw Blade Size(mm) | No-load speed RPM | G.W. (kg) |
| DC305 | 120/60 | 1800 | 4.5 | φ305 | 4200 | 15.1 |
MARKINGS
The manufacturer is required to apply the following markings
- Products shall be marked with the markings specified by the particular product standard.
- Products certified for Canada shall have all Caution and Warning markings in both English and French.
Additional bilingual markings not covered by the product standard(s) may be required by the Authorities Having Jurisdiction. It is the responsibility of the manufacturer to provide and apply these additional markings.
- The submittor’s name and/or master contract number “300374”, adjacent to the CSA
Monogram with the C US Indicator
- model or type reference;
- Rated voltage(s) or rated voltage range(s), in volts;
- Symbol for the nature of supply, unless the rated frequency is marked;
- Rated input, in watts or rated current, in amperes;
- Any mandatory mark showing compliance with legislation by reference to this standard.
- M002 of ISO 7010
- date of manufacture.
- rated speed in revolutions per minute;
- rated capacity in mm;
- Tools provided with a threaded spindle shall be marked with the spindle thread size.
Installing/Removing
- Ensure that the Vevor DC305 1800 W Electric Concrete Saw machine’s arbours and the blade flanges are clean and free from dust and debris.
- Ensure that the direction of rotation marked on the blade matches the direction of rotation marked on the machine guard.
Using the Device
A workshop dust extraction machine can be attached to a disc cutter.
- Remove the rubber cap from the dust extraction port and store it safely for future use.
- Push the connection hose from the dust extraction machine into the dust extraction port of the disc cutter.
- Follow all instructions supplied with the dust extraction machine when using such with the Disc cutter.
- Ensure that the hose, Vevor DC305 1800 W Electric Concrete Saw, and power cable of any attached dust extraction machine do not pose or cause a trip or any other form of hazard to the operator.
- When the dust extraction machine is no longer required, remove it from the discutter and replace the cap on the dust extraction port.
This machine is equipped with a safety start trigger switch.
To start the tool
- Push in the safety lock button (Fig.5a) on the side of the handle with your thumb.
- Depress the main trigger switch (Fig.5b) to start the motor.
Cutting
- Ensure that the power supply matches the requirements specified on the machine’s rating plate.
- Loosen the wheel guard locking knob and rotate the guard to the required position.
- Securely tighten the wheel guard locking knob to lock the guard in place.

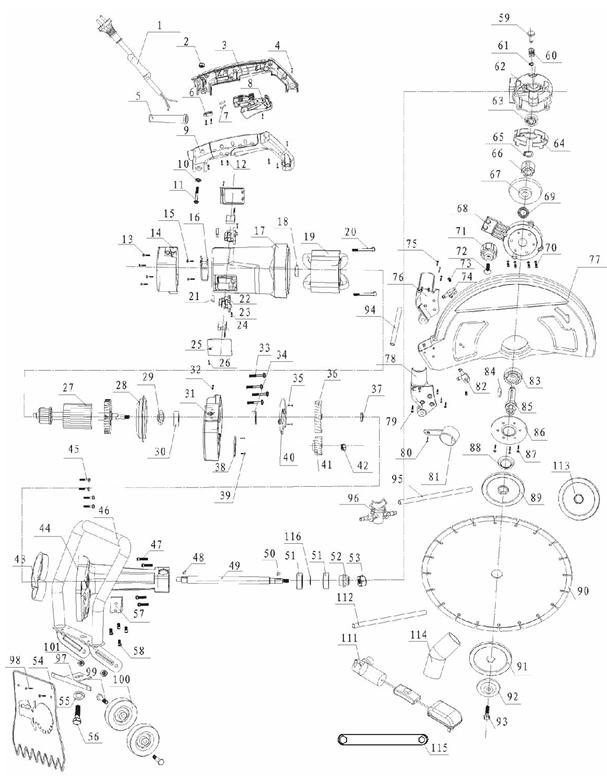

| 20 | Screw ST5x80 | 2 | 56 | Screw M12x15 | 1 |
| 21 | Spring | 2 | 57 | Fixed plate | 1 |
| 22 | Brush Holder | 2 | 58 | Screw M6x16 | 4 |
| 23 | Screw ST4x10 | 2 | 59 | Lockpin | 1 |
| 24 | Brush | 2 | 60 | Lockpin-spring | 1 |
| 25 | Brush cover | 2 | 61 | Circlip for shaft 6 | 1 |
| 26 | Screw ST3x8 | 2 | 62 | Gear box | 1 |
| 27 | Rotor | 1 | 63 | Bearing 6200Z | 1 |
| 28 | baffle | 1 | 64 | oil baffle | 1 |
| 29 | Bearing washer | 1 | 65 | Circlip for shaft 15 | 1 |
| 30 | Bearing 6202 RS | 1 | 66 | Axle sleeve | 1 |
| 31 | Gear box | 1 | 67 | Bevel gear | 1 |
| 32 | Screw M4x10 | 1 | 68 | Gear cover | 1 |
| 33 | Screw ST5x40 | 4 | 69 | O-ringφ60×1.5 | 1 |
| 34 | Bearing 6200 RS | 1 | 70 | Screw M6x16 | 4 |
| 35 | Screw M4x10 | 2 | 71 | Locking handwheel | 1 |
Customer Service
- Email: @vevor.com
- Website: https://www.vevor.com/
- Manufacturer: Cixi Jirui Electric Appliance Co., Ltd
- Add: 118# Nanxin Road, Zonghan Street, Cixi City, Zhejiang Province
- E-mail: CustomerService@vevor.com
FAQs
Q: What is the recommended cutting depth?
Depending on the size of the blade, the DC305 can normally cut up to 120 mm (4.7 inches).
Avoid going deeper than the maximum cutting depth and always check the blade specs.
Q: Can I use the DC305 for angled cuts or bevels?
Yes, depending on the blade guard and movable base (if supplied), the saw may permit bevel or angled cuts.
Q: Can the saw be used outdoors in the rain?
The DC305 isn’t waterproof, sorry. Avoid working in damp environments without appropriate water and moisture protection.
Q: What type of power supply does the DC305 require?
Usually, the saw runs on 220–240V AC, 50/60Hz (check the voltage unique to your model).
Q: Can the DC305 saw cut through asphalt?
Indeed. When equipped with an asphalt-rated blade, the DC305 can efficiently cut asphalt. Multiple shallow passes are safer and more effective than making continuous deep cuts, which can overheat the blade. Instead, use steady, moderate pressure.
Q: Can I use the saw for decorative stone or tiles?
Indeed. For stone or tile, use a blade made especially for it to prevent chipping or breaking. To avoid vibration, always cut carefully and support the material.
Q: Can I use this saw for demolition purposes?
Consider employing a demolition saw or jackhammer to break massive walls or slabs.
Q: Is it safe to cut near rebar?
Sparks and increased blade wear can result from cutting through rebar. Always wear gloves and eye protection.
