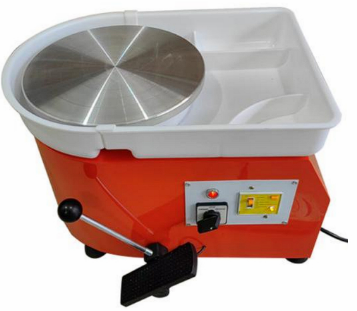

Vevor LSSJSX-515 Pottery Wheel Machine
Safety instructions
Read all safety warnings, instructions, illustrations, and specifications provided with this electrical equipment. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury. Save all warnings and instructions.
- This equipment is only applicable to ceramic drawings and cannot be used for other purposes.
- Do not use the equipment brutally.
- The equipment shall be placed on cool, ventilated, dry, dust-proof, and level ground.
- Users must wire and install according to the electricity safety standards.
- Do not change the rotation direction when the motor is running.
- Please use a towel or sponge to clean the machine body, and do not use a lot of water to wash it to avoid water immersion in the motor, switch, bearing, and other parts, causing failure.
- Before use, make sure that the switch and pedal are in the stop position before inserting the power.
- When replacing parts, the switch must be cut off, and the power supply must be unplugged.
- Children should use the Vevor LSSJSX-515 Pottery Wheel Machine this equipment with adults.
- Children shall not make cleaning and user maintenance without supervision.
- Periodically check whether the power cable is damaged and the connector is loose.
- Press the button(8A) on the leakage protector once a month to check whether the leakage protection works normally.

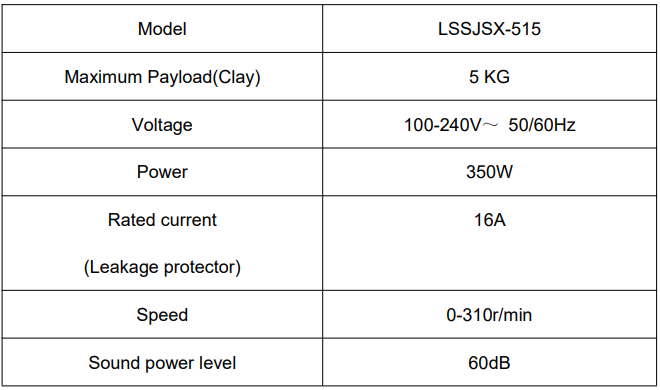

Models & Parameters

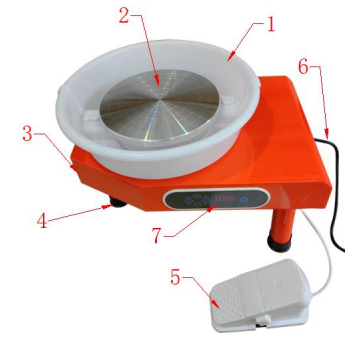

Structure Diagram
- Removable water basin
- Aluminum turntable
- Equipment body
- Foot Pad
- Speed regulating pedal
- Power line

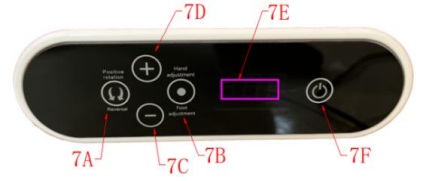

- Touch panel
- Forward/reverse switch
- Manual/pedal switch
- Slow down
- Acceleration
- Display
- Touch switch

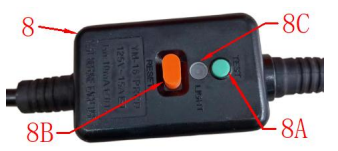

- Leakage protector
- Test button
- Reset button
- Indicator light(Power on when the light is on)
Accessories & Use
- Apron(x1): Prevent clothes from getting dirty.

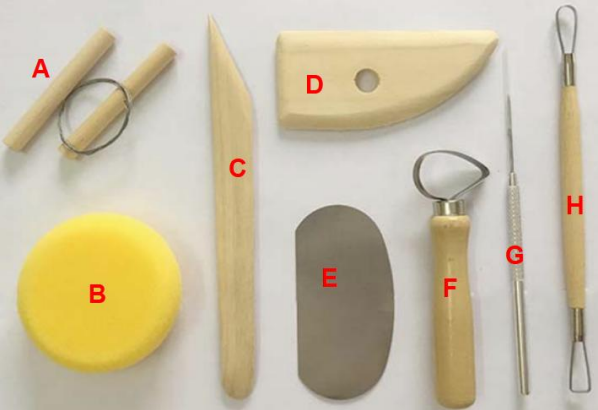

- 8-Piece Tool Set(x1)
- (Clay cutting line)
Assist in precisely cutting clay (cutting surface is very smooth)/repairing and leveling the mouth of the work/taking away the finished product. - (Small yellow sponge)
Add water or absorb water/trim the surface or mouth edge to make it smooth. - (Wooden knife)
Trim the bottom for later removal/trimming. - (Wooden scraper)
Trim the opening/shape and remove the excess clay on the surface to make it smooth. - (Stainless steel scraper)
Remove the excess clay on the surface to make it smooth. - (Circular, large flat wire knife)
Trim the surface of the vessel/ control the thickness/trim out the bottom ring foot. - (Steel needle)
Scrape off excess clay from the mouth edge/remove air bubbles/punch holes. - (Ribbon flat wire knife)
Finely trim the surface of the utensil or circle the foot.
- (Clay cutting line)

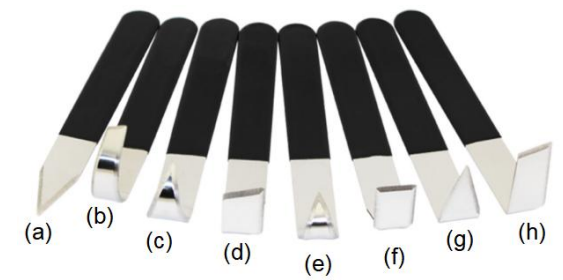

Stainless Steel Knife 8-piece Set
Repair clay molds as shown below.

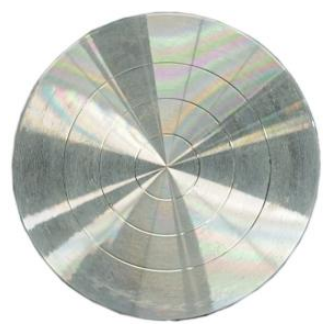

Aluminium turntable（Φ250mm)
The size of the turntable depends directly on the maximum diameter we can achieve. Loosen the bolt with a wrench and replace it.
Operation
- Take out a proper amount of clay, throw the mud ball in the center of the wheel, and press it (wet your hands).

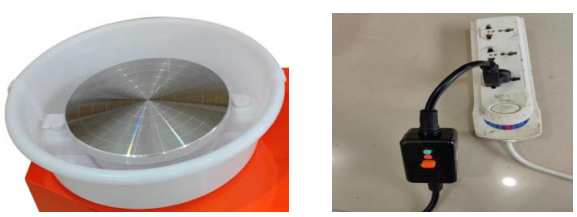

- Plug in the power (If the water basin is not installed, install the water basin first)

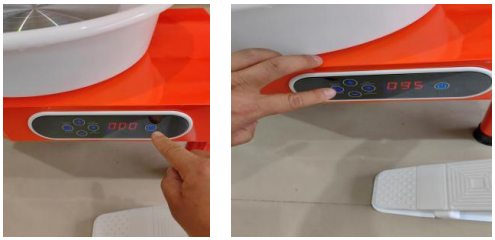

- Turn on the switch and choose the direction of forward (clockwise)/reverse(counterclockwise) rotation according to your needs.

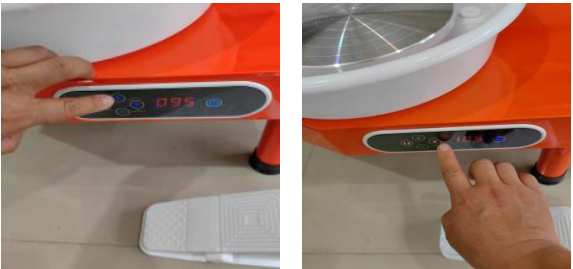

- Adjust the speed and start clay molding with tools（You can also choose to pedal the speed control).
- Clay-mould repairs with tools.
- Creative painting and coloring can be carried out according to their own needs. After the work is completed, stop the machine in reverse order. Remove the molding with a scraper/clay cutting line. Place in a cool place for some time before firing.

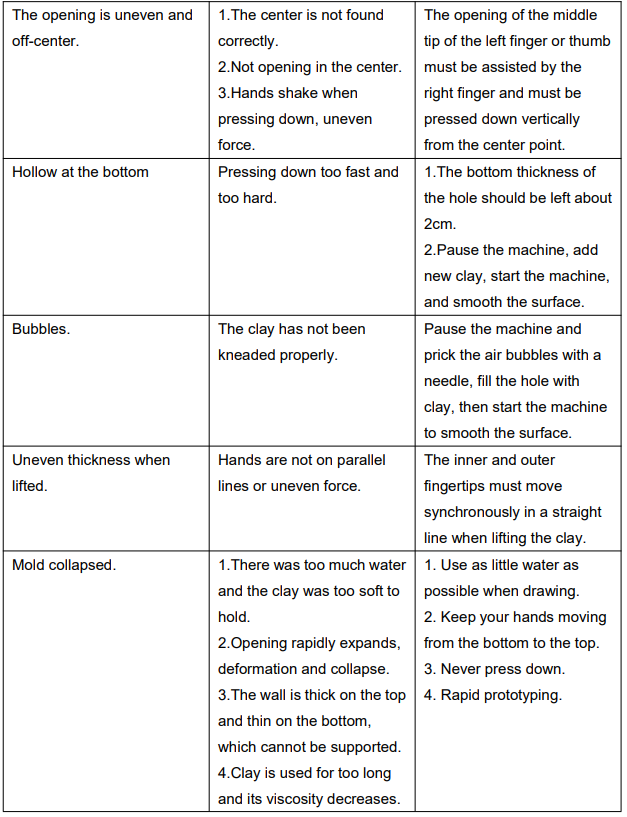

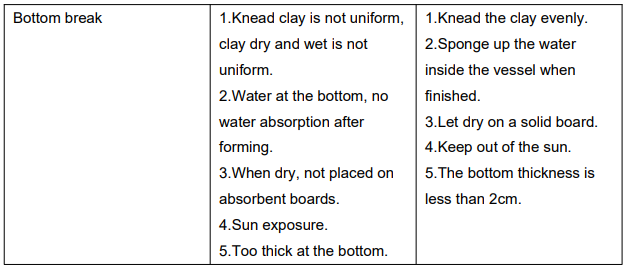

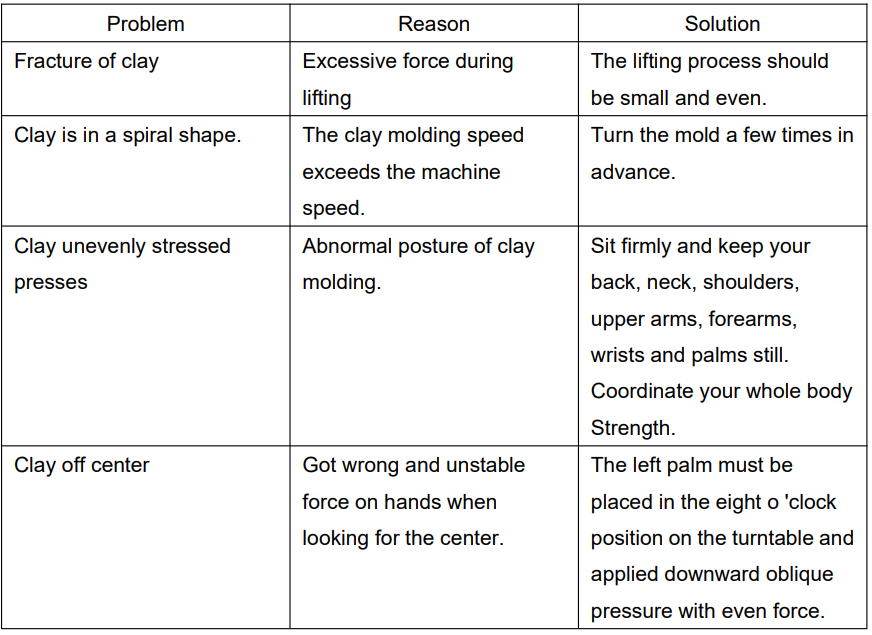

Troubleshooting
