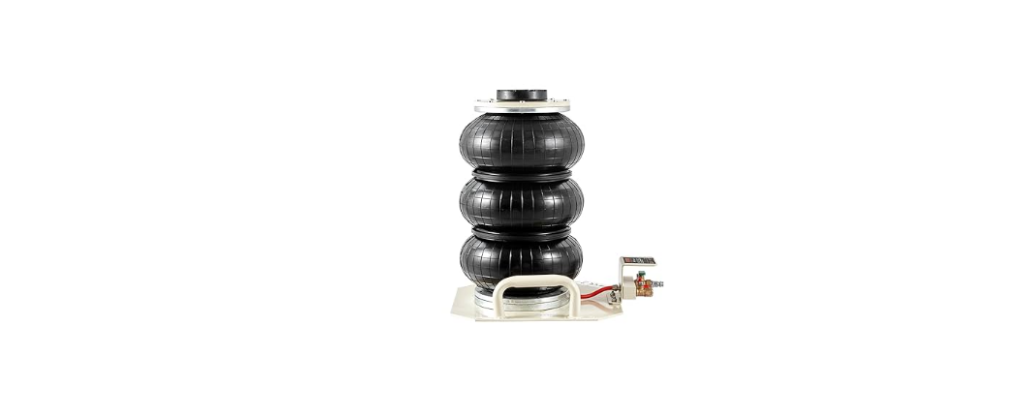

Vevor ZG-C(3T) ZG-A(5T) Air Jack
Safety Instructions
WARNING: Please read these instructions carefully before using your jack. Proper use and care of the jack will be helpful to assure you of continuous safe, trouble-free problems.
- The air jack is specially designed for work requiring heavy lifting.
- It cannot be used as a support element for permanent positioning.
- If you need to support the vehicle for a long time, please use a bracket to support it.
- Do not exceed the maximum lifting load. It is forbidden to lift people or animals. For lifting only.
- The air jack is only used in the process of rising and falling.
- Please make sure that the ground can support the weight you are lifting.
- The jack must be placed on relatively level, solid ground.
- The jack shall be placed under the lifted axle box to support the load on the middle part of the jack.
- Never adjust the safety valve.
- Please place a triangle block under the car dependency wheel.
- The normal operating pressure is in the range of 0.8-1.0MPa.
- Compressed air should be clean and contain no water.
- When used, the jack should take a position outside of the center for 10-20 cm.
- And please use the supplied accessories.
- Do not exceed the rated capacity, or loss of load may occur.
Lifting
- Don’t exceed the rated capacity, or loss of load may occur.
- Always firmly apply the parking brake.
- Only use for level surfaces; on uneven, unstable surfaces, it could result in instability and possible failure to support the load.
- Always center the jack under the axle of a flat reinforced or frame surface.

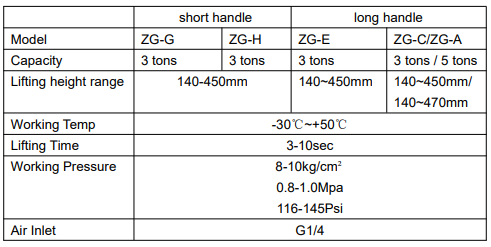

Technical Data

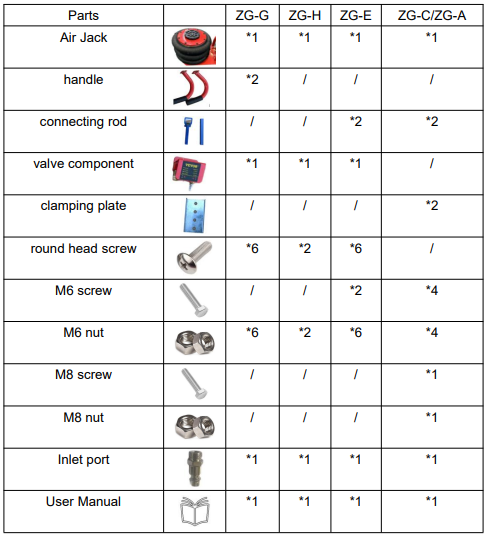

Packing List
Product
- Fix the valve component.
- Fix the 2 handles.
- Connect the inflation hose securely.
ZG-H (3T)
- Fix the valve component.
- Connect the inflation hose securely.
ZG-E(3T)
- Fix the valve component.
- Connect the handle and fix it
- Fix the bottom of the handle.
- Connect the inflation hoses securely
ZG-C (3T) ZG-A(5T)
- Connect the handle and fix it.
- Connect the inflation hoses securely.
Using the Device
When inflated, the jack will rise and vice versa.
- Assemble the product, and connect the inflation hose to the corresponding socket.
- Insert the line with Vevor air jack instructions compressed air in the right gas nozzle, and close the left switch.
- To fall the jack, please open the left switch.
Customer Service
- Website: https://www.vevor.com/
- Manufacturer: Cixi Jirui Electric Appliance Co., Ltd
- Add: 118# Nanxin Road, Zonghan Street, Cixi City, Zhejiang Province
- E-mail: CustomerService@vevor.com
FAQs
Q: How does an air jack work?
The air jack raises the vehicle’s frame by inflating a sturdy rubber bladder using compressed air.
Q: What type of air compressor is compatible?
The majority of common automobile air compressors will function as long as they reach the 6–10 bar (87–145 PSI) pressure requirement. Make sure there is a constant airflow from the compressor for easy lifting.
Q: Can I use the air jack without a compressor?
Low-pressure inflators or manual pumps won’t provide enough pressure for lifting.
Q: Can I use the air jack on an uneven surface in emergencies?
Only in the most dire circumstances and with great care. Never climb under the car in such circumstances; instead, use metal plates or wood beneath the base to stabilise the jack.
Q: Does the air jack require lubrication?
Indeed. To keep air valves and seals from sticking or leaking, dab them with silicone lubricant once in a while.
