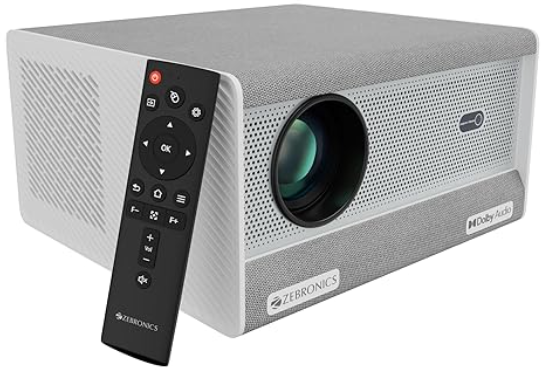

ZEBRONICS PixaPlay 68 Smart LED Projector
Safety Instructions
- To provide a stable power supply, kindly use the cable provided with the product and connect to a (AC 100-240\1, 50/60 Hz) power source.
- Avoid the self-disassembly of the product, as it fails the Warranty.
- Avoid looking directly at the projector lens while it is active.
- Make sure that the projector’s air vents are not blocked while in use. The device must be kept in a well-ventilated surrounding for proper functioning.
- It is recommended to power OFF the projector after continuous usage for 6Â hours.
- Place the projector away from water or other liquids. Avoid water accumulation and ensure good ventilation.
Features
- Home Theater Projectors for Movies, IVV & Gaming, etc ..
- Built-in Speaker
- Wide Compatibility
- Auto Focus Technology
- Auto Keystone Adaptation
- Auto Obstacle detection & Auto Screen Fit
- Remote Control (BT+ IR)
- Miracast
- IOS Screen Mirroring
- Dual band Connectivity(2.4GHz&SGHz)
- FHD 1080p (Native)
- APP Support
- Dolby Audio
Specification
- Screen size: 114 – 508cm
- Native Resolution :l920 x l080 FHD
- Max. Supported Resolution l080p (Max.)
- Android version:2
- RAM:2GB
- Core Processor: Quad Core Processor
- Storage (ROM) 64 GB
- Wi-Fi Connectivity Du Dual-band connectivity(2.4GHz & 5GHz)
- Bluetooth Version: v5. l
- .Display technology LED
- Lifespan:30,000h
- Brightness: 0000 lumens
- Contrast ratio 100:1
- Projection Distance: l.5m – 6 m
- Port Interface : AUX OUT, USB x 2, HDMI x 2, RJ45 x l
- Video file format : AVI, Mp4, MKV, FLV, MOV, 3G2, MPG, VOB, SWF, TS
- Input Voltage : AC l00-240V, 50/60Hz
- Product Dimension : 27x 25 x 15.5 cm (Wx Dx W x D xckage Dimension: 32.5 x 30.7 x 24 cm (WW x D xH)
- Net. weight:3.6Kg
- County of origin PR C
Package Contents
- Projector: 1 U
- Remote Control: 1 U
- Power Cord 1 U
- Cotton Swab Pack ::1 U
- HDMI Cable : 1 U
- QR Code Guide : 1 U

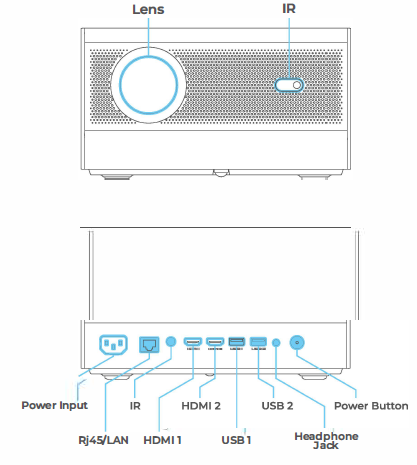

Product Description

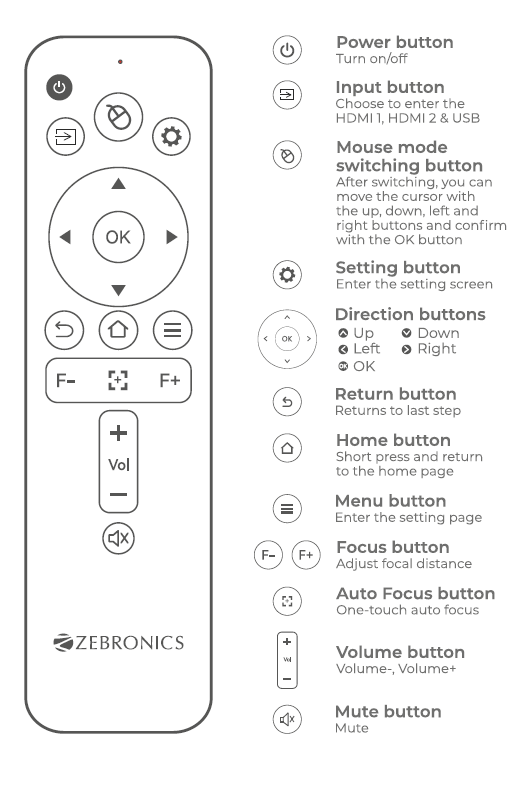

Remote Control
Setting up the Projector
- Connect the power cord to the socket of the projector and turn it ON
- Before turning ON, make sure to place it on a flat surface for a proper projection, then press the power button/turn it on using the remote.

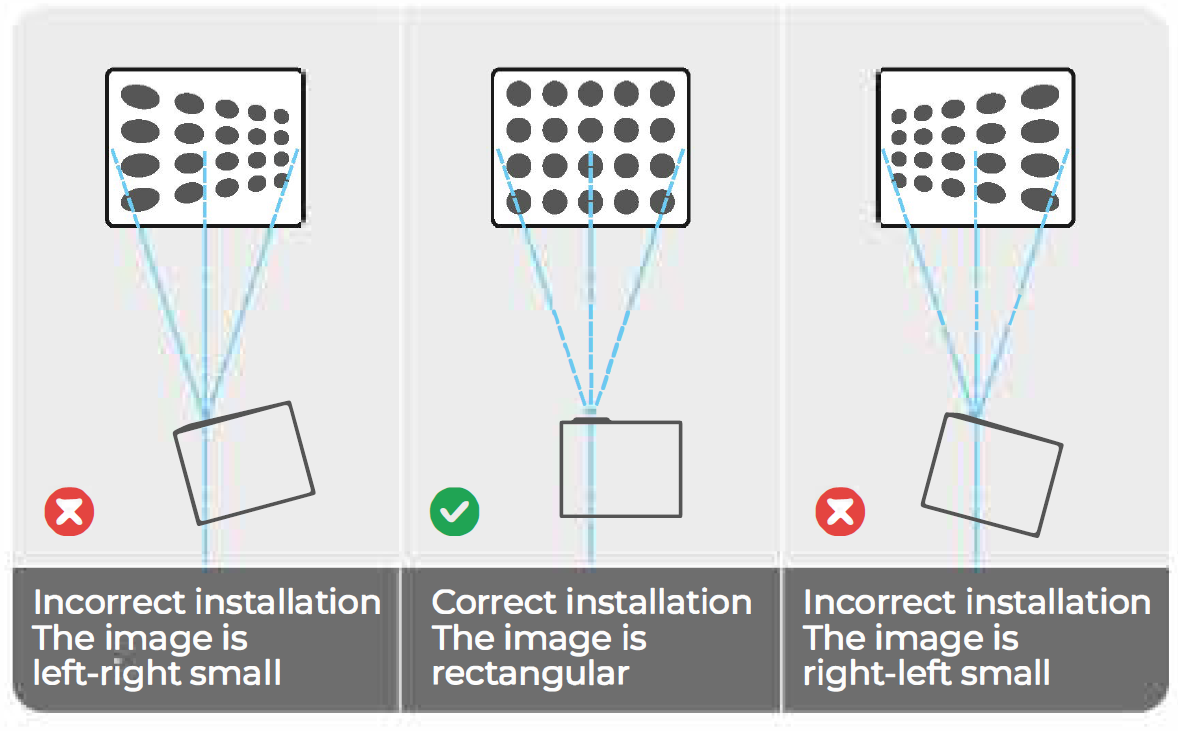

- Align the projectors as shown in the image below to ensure proper projection.

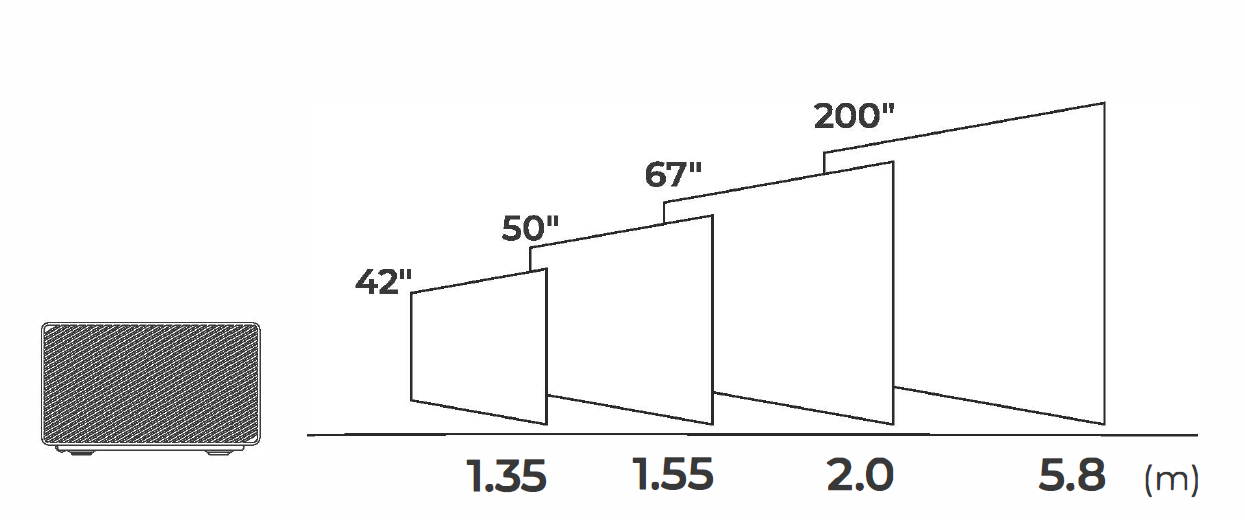

Projection Distance & Size

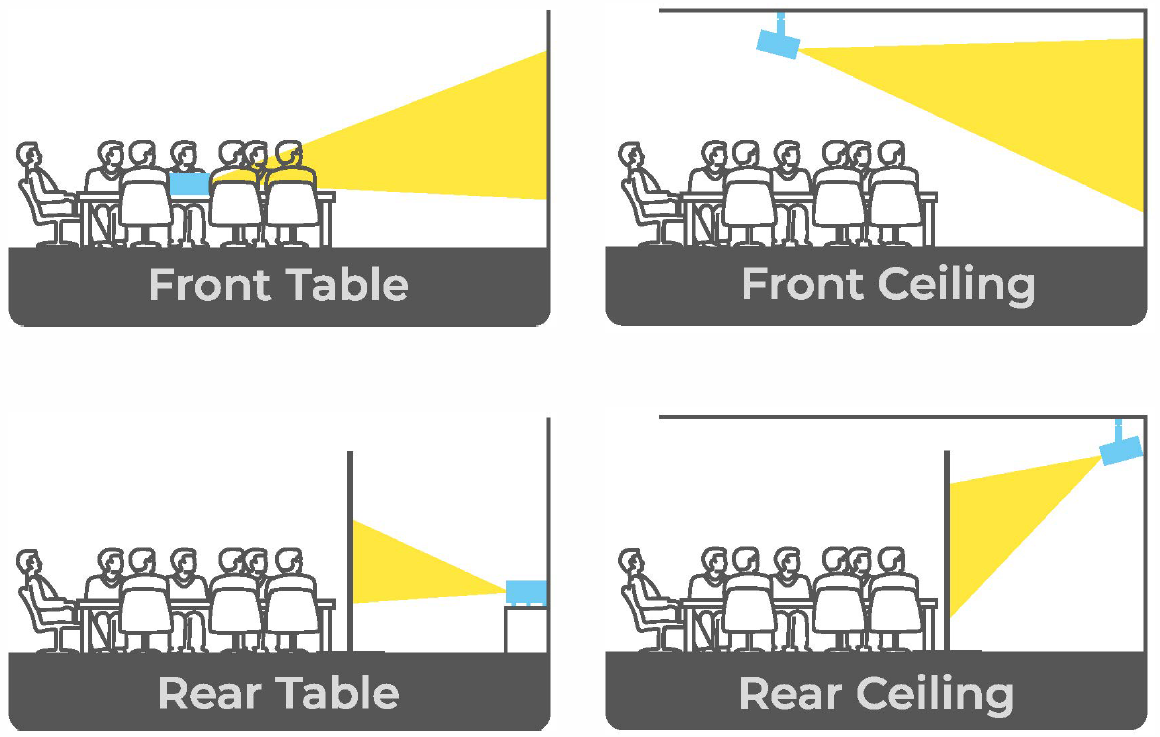

Projection Modes

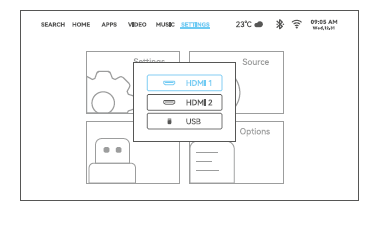

Input Source

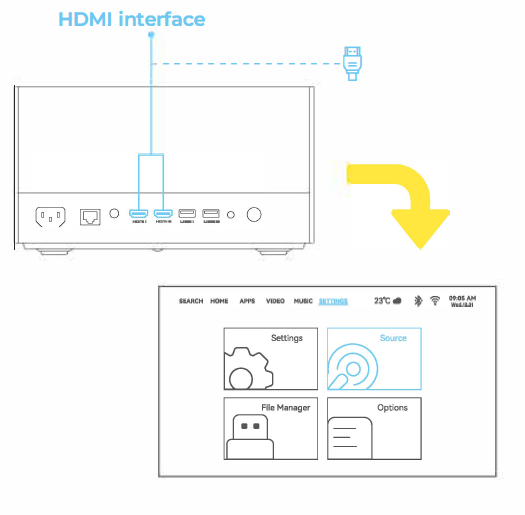

1. HDMI Interface
2. USB Interface

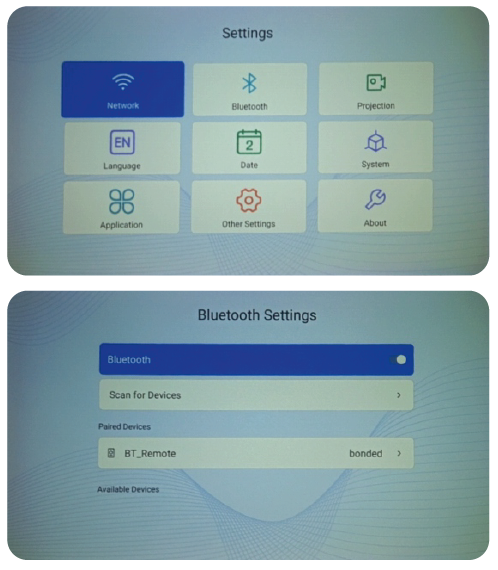

Bluetooth Settings
- Go to settingsclick Bluetooth
- Turn the Bluetooth Connection on and search for nearby Bluetooth devices
- Choose the correct Bluetooth device to connect

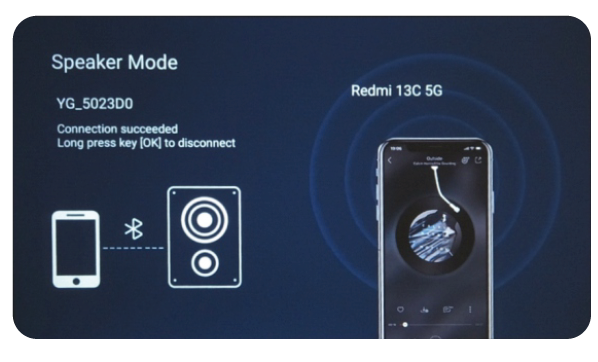

In the apps, Speaker Mode is available by entering speaker mode, selecting Bluetooth speaker on your source device, and then the projector will act as a Bluetooth speaker.
Projection Settings

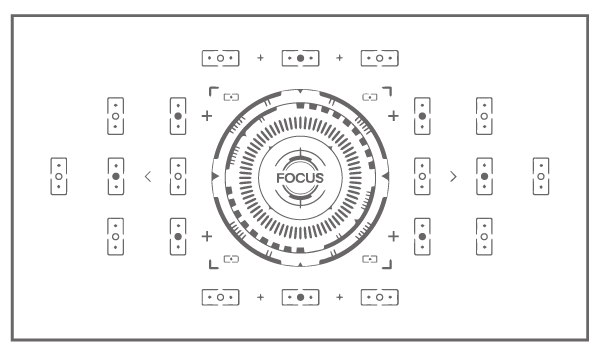

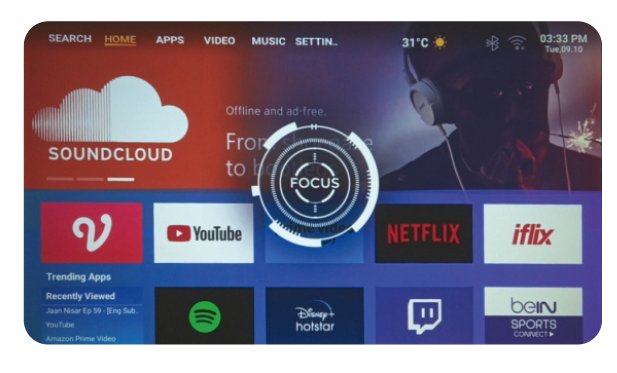

- Auto Focus default, the auto focus mode of the projector is enabled, allowing it to quickly detect and adjust to the optimal clarity of the screen when it is turned on.
- Electronic FocusPress the F+ button and the F- button on the remote to adjust the picture clarity
- Auto Keystone
Auto keystone correction feature automatically adjusts the image to ensure it appears rectangular, even if the projector is angled or not positioned directly in front of the screen. This is particularly helpful when the projector is set up on a table or mounted an angle.le

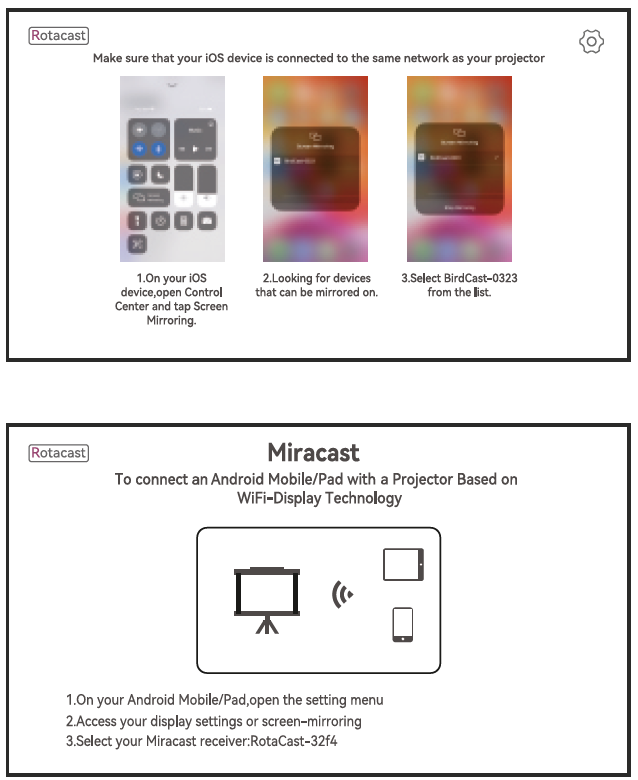

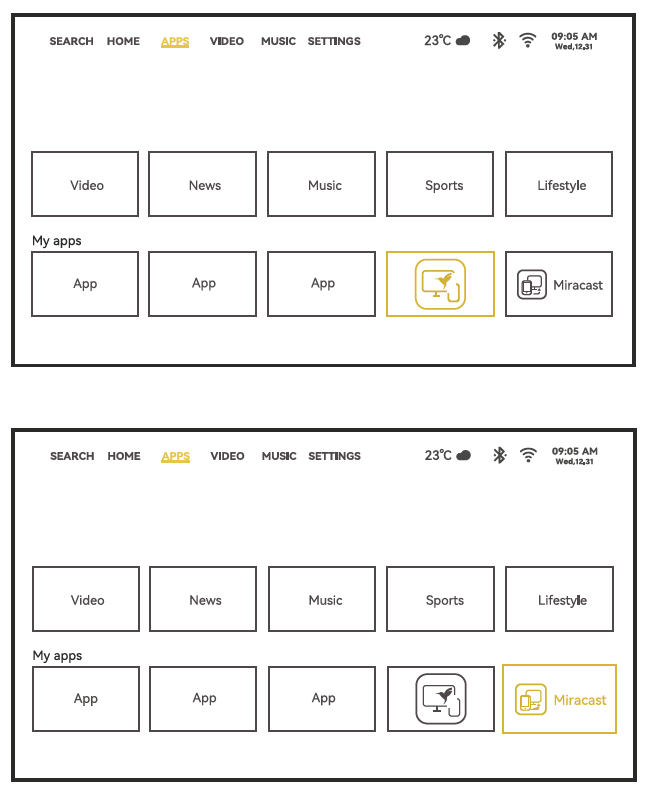

- Mira cast connection
- First Step
Choose the corresponding methods
- Second Step
Operate according to the text prompts

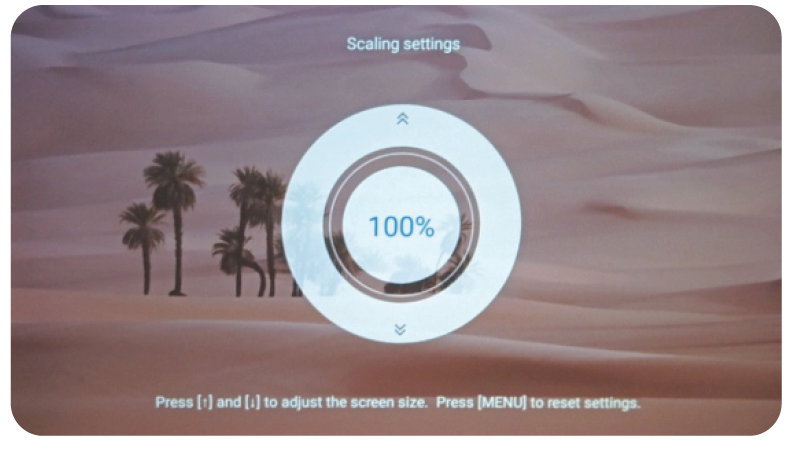

- Â Digital Zoom
- Go to Settings – Projection Settings
- Choose Digital Zoom
- Press Down button Vto Zoom out (100&-70%) and UpbuttonAtoZoom in (70%-100%)

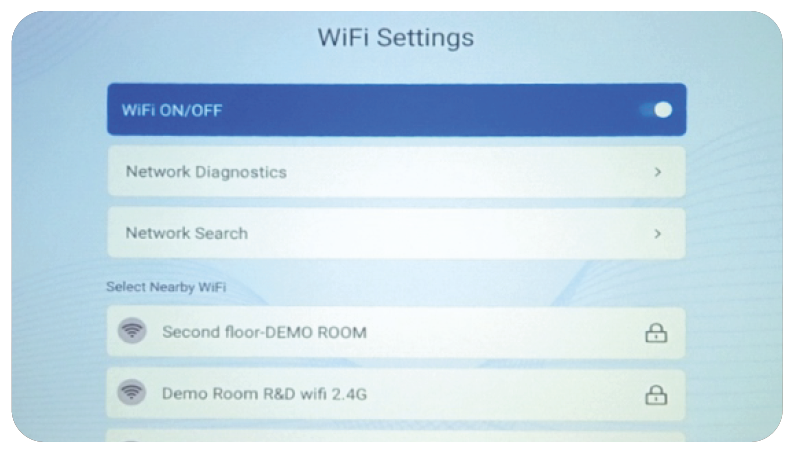

Wi-Fi Connections
- Wi-Fi Connection:
- Go to Homepage> Settings – WI Fl Setting
- Turn the WIFI ON and search the WIFI list by “Add WI Fl”
- Select your WIFI, then enter the password to connect

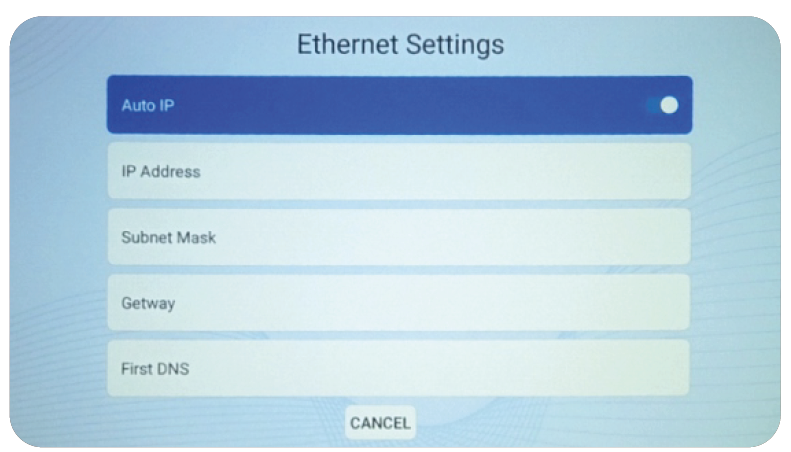

- Wired Connection:
- Go to Homepage-> Setup> Network> Wired Setting> Ethernet Setting >Auto IP (On)
- Insert the wired cable into the LAN interface of the projector to use the wired network
- Hotspot Connection:
- Go to Homepage > Settings > Network > Hotspot
Dear Customer,
Thank you for purchasing the ZEBPixaplay 68 Smart LED ZEBRONICS PixaPlay 68 Smart LED Projector Projector. Please read the user manual carefully before usage& save it for future reference.
Customer Support
- Website: www.zebronics.com
- Tel: 044 40000004
FAQs
Q: What is the native resolution of the ZEBRONICS PixaPlay 68 projector?
Ans: With a native resolution of 1280x720p (HD) and the ability to downscale input signals up to 1080p, the PixaPlay 68 ensures clear and colourful images.
Q: How bright is the projector? Can it be used during the day?
Ans: With an LED brightness of up to 3400 lumens, the projector works best in dim or dark environments. It is feasible to use during the day, however, for best viewing, curtains or less ambient light may be needed.
Q: Does the projector have built-in speakers?
Ans: Yes, there are two built-in speakers. However, it is advised to attach an additional speaker via Bluetooth or AUX for better audio, particularly for presentations or movies.
Q: How do I update the firmware or apps on the projector?
Ans: Navigate to Settings > System Update (if using Wi-Fi). You can also manually install APK files over USB or update programs via the App Store.
Q: Does it support 4K video playback?
Ans: The PixaPlay 68 will downscale to 720p resolution even if it can handle 4K input. A more expensive projector model is needed for real 4K output.
Q: How long does the LED lamp last? Can it be replaced?
Ans: With typical use, the LED bulb can last up to 30,000 hours. Although it is not user-replaceable, it is made to last for many years before needing to be replaced.
Q: Where can I find support or warranty information?
Ans: Consult the warranty card that came with your package or go to the official ZEBRONICS support page. Usually, the projector has a one-year guarantee that covers manufacturing flaws.
