Cosori CO162-CWM Coffee Warmer Mug User Manual

Cosori CO162-CWM Coffee Warmer Mug

Safety Instructions

Always follow basic safety precautions when using your coffee warmer and mug. Read all instructions before using.

1. Be cautious when drinking. If left on the warmer for too long, the mug may be too hot to drink from immediately (varies based on warmer temperature).
2. Be extremely cautious when moving cups containing hot liquids to avoid being burned.
3. Do not place a stainless steel mug in the microwave.
4. Be cautious when the heating plate is hot.
5. To prevent electric shock, do not immerse the warmer or AC/DC adapter in water or any other liquid.
6. Do not allow children to play with the warmer. Closely supervise children who are near the warmer.
7. Unplug the warmer when not in use.
8. Allow the warmer to completely cool down before cleaning or storing.
9. Do not use the warmer or adapter if they are damaged. Contact Customer Support (page 10).
10. Do not cook food on the warmer. The warmer cannot reach safe cooking temperatures.

Package Contents

Please read these instructions carefully before using the “Cosori CO162-CWM Coffee Warmer Mug User Manual.”

• 1 x Coffee Warmer
• 1 x Coffee Mug
• 1 x AC/DC Adapter
• 1 x User Manual

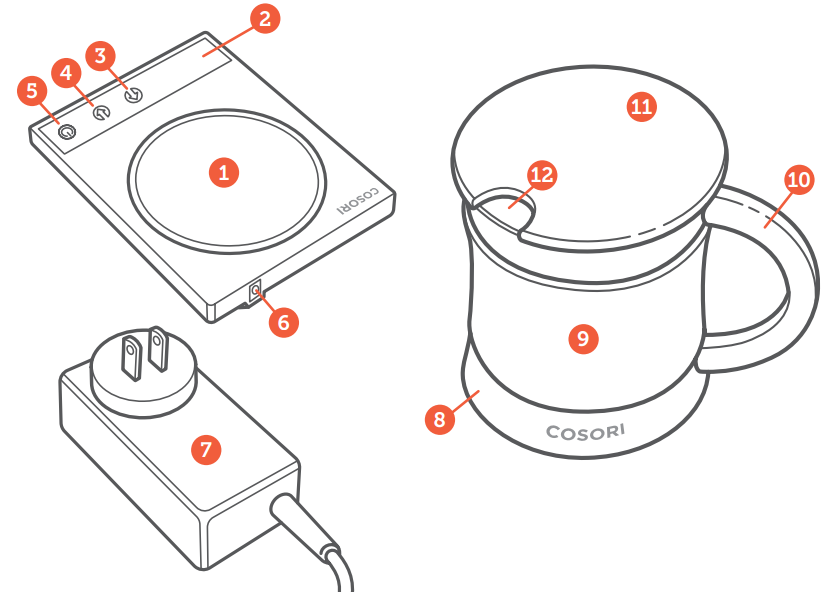

Description

1. Heating Surface
2. Temperature Display
3. Increase Temperature
4. Decrease Temperature
5. Power Button
6. DC In-Port
7.  AC/DC Adapter
8. Stainless Steel
9. Body Insulated Sleeve
10. Handle
11. Lid
12. Spoon Opening

Operation

1. Place your coffee warmer on a flat, level surface.
2. Connect the AC/DC adapter to the DC in-port on the warmer. Plug in the adapter. Press to turn on the warmer.
3. The display will flash the default temperature (185°F/85°C), and will begin to heat up.
4. (Optional) You can choose a temperature using the and buttons, from 77°F-230°F (25°C-110°C). Once you have set the temperature, the display will flash 3 times, and the warmer will begin to heat up.
5. (Optional) To change temperature units, press and hold at the same time for 3 seconds. The units will change from “°F” to “°C”.
6. Place the coffee mug on the heating surface.
7. Press to turn off your warmer when you are finished.

How it Works

Because the display temperature shows the temperature of the heating plate (not the temperature of the liquid in your cup), set the display temperature higher than the temperature you want for your drink.

• Example 1: If you set the warmer’s temperature to 230°F, and pour room temperature water (about 89°F) into the stainless steel mug, after about 2 hours, the temperature of the water will reach up to 156°F (actual time will depend on the area temperature and amount of liquid).
• Example 2: If you set the warmer’s temperature to 230°F and pour hot coffee into the stainless steel mug, the warmer will keep the coffee’s temperature at 156°F or higher.

Specifications

AC/DC Adapter:

• Input AC 100-240V / 50-60Hz
• Output 12V, 3A

Warmer:

• Input DC 12V, 3A
• Rate Power 24W
• Displayed Temperature Range 77°F-230°F (25°C-110°C)
• Beverage Temperature Range 77°F-158°F (25°C-70°C)
• Dimensions (L x W x H) 4.2 x 5.3 x 0.7 in. (107 x 135 x 18 mm)

Mug:

• Capacity 500 mL
• Material Stainless Steel & Silicone

Care & Maintenance

• Unplug the warmer and allow the heating surface to completely cool before cleaning.

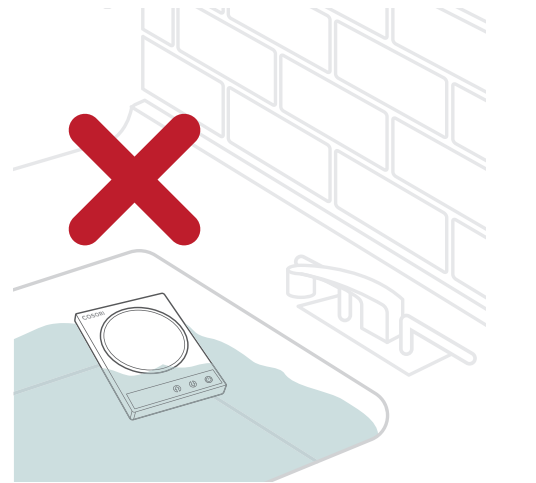

• Do not immerse the warmer in water or liquids. [Figure 2.1]
• Use a damp cloth to wipe down the surface of the warmer. Dry immediately with a clean, dry cloth.

Warranty Information

• Product Name: Original Coffee Warmer & Stainless Steel Coffee Mug Set
• Model Number CO162-CWM
• Default Warranty Period: 1 year
• Date of Purchase —
• Order Number —

Terms & Policy

• Cosori warrants all products to be of the highest quality in material, craftsmanship, and service, effective from the date of purchase to the end of the warranty period.
• Cosori will replace any product found to be defective due to manufacturer flaws, Cosori CO162-CWM based on eligibility.
• Refunds are available within the first 30 days of purchase. Refunds are only available to the original purchaser of the product.
• This warranty extends only to personal use and does not extend to any product that has been used for commercial, rental, or any other use Cosori CO162-CWM for which the product is not intended.
• There are no warranties other than the warranties expressly set forth with each product.
• This warranty is non-transferable. Cosori is not responsible in any way for any damages, losses, or inconveniences caused by equipment failure by user negligence, abuse, or use noncompliant with the user manual or any additional safety, use, or warnings included in the product packaging and manual.

Additional 1-Year Warranty

• You can extend your 1-year warranty by an additional year. Log onto  www.cosori.com/warranty and enter your order number (e.g., from Amazon or Houzz) within the first 14 days of your purchase to register your new product for the extended warranty.
• If you are unable to provide the order number for your product, please type a short note in the order number field along with the date you received your product.

Customer Support

• Address: Arovast Corporation 1202 N. Miller St., Suite A Anaheim, CA 92806
• Email: support@cosori.com
• Toll-Free: (888) 402-1684
• Timings: Monday – Friday 9:00 am – 5:00 pm PT
