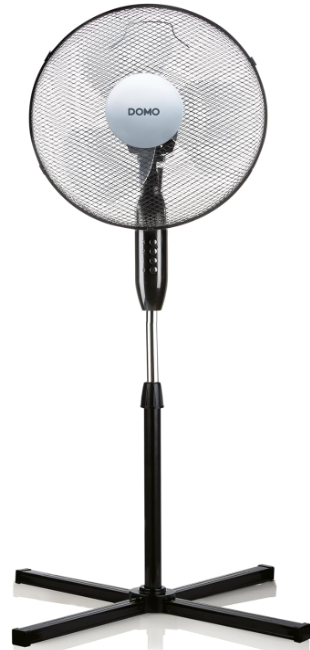

DOMO DO8140 Free Standing Ventilator Fan
Safety Instructions
When using electrical appliances, basic safety precautions should always be taken, including the
following:
- Read all instructions carefully. Keep this manual for future reference.
- Make sure children cannot play with the packaging materials.
- This appliance is intended to be used in household and similar applications, such as:
- Staff kitchen areas in shops, offices, and other working environments;
- Farm houses; By clients in hotels, motels, and other residential-type environments;
- Bed and breakfast-type environments.
- Children should be supervised to ensure that they do not play with the appliance.
- Keep the appliance and its cord out of the reach of children under 16 years of age.
- The appliance can become hot during use.
- Keep the power cord away from hot parts and don’t cover the appliance.
- Do not touch any hot surfaces; use the handles.
- Do not put the appliance in water or any other liquid.
- Do not use the appliance near any inflammable materials or hot ovens.
- Make sure that the air can circulate freely around the appliance.

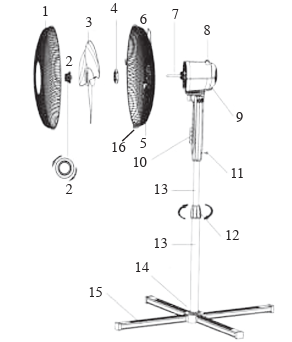

Parts
- Front grill
- Spinner
- Fan blades
- Plastic screw
- Rear grill
- Screw for fastening the rear grill
- Motor drive
- Oscillation button
- Motor
- Control Panel
- Small screw
- Clamp
- Telescopic tube
- Base mount
- Base
- Attaching clip
Fastening the Base and the Motor
Loosen the butterfly screw and pinion at the bottom of the telescopic tube. Position the telescopic tube in the base mount and fasten the tube with the pinion and the butterfly screw. (Fig. 1)
Position the four parts of the base in the base mount. Make sure that the parts are inserted properly. (Fig. 2)
Loosen the clamp and extend the top part of the tube completely, and block the tube at this height by tightening the clamp again (Fig. 3 – 4)
Make sure that the clamp is tightened before mounting the motor. Loosen the small screw at the back of the control panel. Place the motor on the telescopic tube. Tighten the small screw again, making sure that the screw is aligned with the recess in the telescopic tube. The small screw must be fully tightenedbeforeo using the fan. (Fig. 5)
Fastening the Grill and the Fan Blades

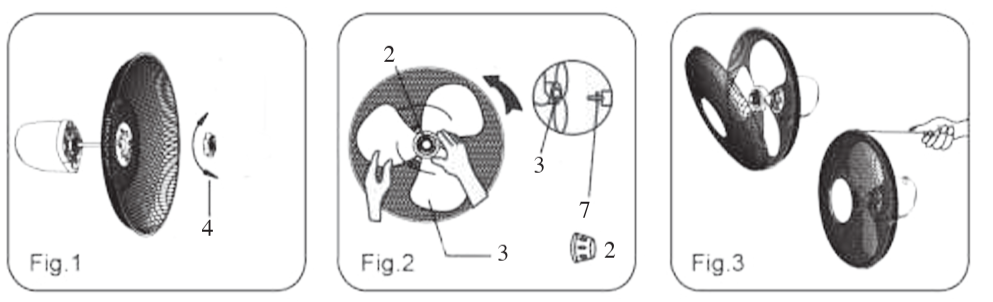

For assembling the DOMO DO8140 Free Standing Ventilator Fan, remove the spinner from the motor drive (or remove it from the packaging). Loosen the plastic screw from the motor drive. Position the grill behind the motor drive and use the plastic screw to fasten the grill. (Fig. 1) Place the fan blades on the motor drive. Make sure the pin on the motor drive fits perfectly behind the fan blades (Fig. 2). Use the spinner to fasten the fan blades onto the motor drive. Position the front grill on the rear grill and fasten them together with the help of the attaching clip. Finally, use the screw at the top of the rear grill to fasten both halves of the grill together firmly. (Fig. 3)
Speed
Speed regulation with the help of the 4 buttons on the control panel.
- 0: off
- 1: low speed
- 2: medium speed
The height of the fan can be adjusted by loosening the clamp and lengthening or shortening the telescopic tube. Then tighten the clamp firmly before turning the fan on.
Maintainance
This fan requires very little maintenance. Never try to repair the fan DOMO DO8140 Free Standing Ventilator Fan yourself. If it is defective, have it checked and/or repaired by a qualified person. Before assembling the fan or cleaning it, remove the plug from the outlet. Keep the rear grill free of dust and other substances in order to allow free circulation of the air around the motor. Do not disassemble the fan to remove dust from the motor. You may clean the exterior of the machine with a soft, moist cloth and a mild detergent. Carefully dry the machine afterwards. Never use corrosive or abrasive products to clean the machine. Make sure that no water gets into the motor of the machine.
Environmental Instructions
For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
Warranty
Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request that you contact our customer service. Our staff will gladly assist you. This appliance has a two-year warranty period. During this period, the manufacturer is responsible for any failures that are the direct result of construction failure. During the warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear and tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases.
- In case of incorrect connection, e.g., electrical voltage that is too high.
- In case of incorrect, rough, or abnormal use.
- In case of insufficient or incorrect maintenance.
- In case of repairs or alterations to the device by the consumer or non-authorised third parties.
Customer Support
- Timings: Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00. Friday: 8.30 – 12.00 and 13.00 – 16.30
- Address: LINEA 2000 – Dompel 9 – 2200 Herentals, Belgium
- Website: http://webshop.domo-elektro.be
- Tel: +32 14 21 71 91
