DOMO DO9213AV White Ultrasonic Humidifier User Manual

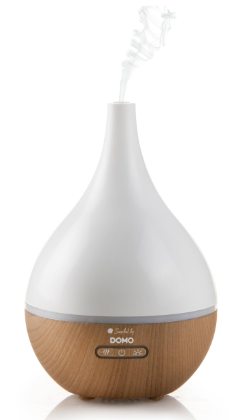

DOMO DO9213AV White Ultrasonic Humidifier

• Safety Instructions

  When using electrical appliances, basic safety precautions should always be taken, including the
  following:

  1. Read all instructions carefully. Keep this manual for future reference.
  2. Make sure children cannot play with the packaging materials.
  3. Keep the appliance and its cord out of reach of children younger than 16 years.
  4. Do not let the cord hang on a hot surface or the edge of a table or countertop.
  5. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug.
  6. Do not leave a working appliance unattended. Do not use the appliance outdoors.
  7. Only use the appliance for its intended use.
  8. Always use the appliance on a steady, dry, and level surface.
  9. Only use the appliance for domestic use.
  10. All repairs should be carried out by the manufacturer or its after-sales service.
  11. Never immerse the appliance, the cord, or the plug in water or any other liquid.
  12. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or failure to follow the instructions described in this manual.

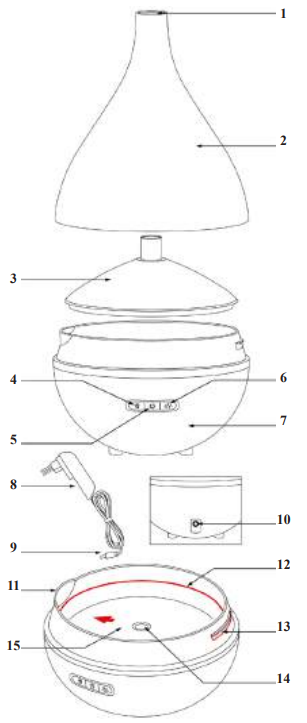

Parts

1. Mist outlet
2. Cover
3. Removable inner cover
4. Mist volume
5. ON/OFF button
6. Light
7. Base
8. AC/DC adaptor
9. Connector
10. DC-jack/adaptor input
11. Water outlet
12. Indication for the maximum water level
13. Air outlet
14. Ceramic disc
15. Water tank

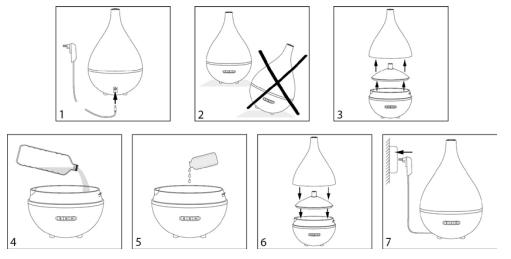

Before First Use

1. Insert the adaptor’s connector into the DC jack input on the back side of the diffuser.
2. Place the diffuser on a flat and stable surface and away from the edge.
3. Remove the diffuser’s cover and removable inner cover.
4. Pour mineral water into the water tank up to the maximum level indicated (200 ml).
5. Then add a few drops of essential oils (3-10 drops) or home fragrance to the water tank.
6. Replace the cover on the diffuser.
7. Plug the adaptor into the outlet.

Use

This diffuser has 3 function buttons on the front side:

ON-/OFF BUTTON (middle)

1. Press once to start the diffusion in continuous mode at the highest diffusion volume (30ml/h).
2. Press a second time to start the diffusion for 60 minutes and then turn it off.
3. Press a third time for an intermittent diffusion – 30 sec ON / 30 sec OFF – for 120 minutes and then OFF.
4. Press a fourth time to switch the diffuser OFF.

LIGHT (right)

1. Press once to start the color-changing light (7 colors).
2. Press a second time to set the ambiance lighting to the color of your choice.
3. Press a third time to turn the light OFF.

Volume Control

1. Press once for medium volume – 22 ml/h.
2. Press a second time for low volume – 15 ml/h.
3. Press a third time for high volume – 30 ml/h.

Maintainance

You are advised to change frequently the water in the tank and clean the diffuser once or twice a week, particularly if you want to change the fragrance to be diffused

1. Turn the appliance off and unplug it.

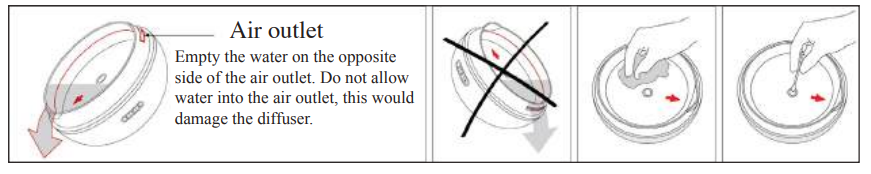

2. Remove the covers and pour the water into the tank. Empty the water in the opposite way to the air outlet; do not empty the water in the air outlet, this would damage the diffuser.
3. Clean the inside of the diffuser with a soft, damp cloth and a little water.
4. If needed, use a little white vinegar or a strongly diluted solution. Do not use corrosive detergents.
5. Carefully rub the ceramic disc with a cotton bud, being careful not to scratch it.

Environmental Instructions

For more detailed information about the recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Warranty

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request that you contact our customer service. Our staff will gladly assist you. This appliance has a two-year warranty period. During this period, the manufacturer is responsible for any failures that are the direct result of construction failure.

Warranty period, you can return the device together with your receipt to the shop where you purchased it. The guarantee on accessories and components that are liable to wear and tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases.

• In case of incorrect connection, e.g., electrical voltage that is too high.
• In case of incorrect, rough, or abnormal use.
• In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.

Customer Support

• Timings: Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00. Friday: 8.30 – 12.00 and 13.00 – 16.30
• Address: LINEA 2000 – Dompel 9 – 2200 Herentals, Belgium
• Website: http://webshop.domo-elektro.be
• Tel: +32 14 21 71 91
