Hamilton Beach 49968 Single-Serve Coffee Maker User Manual

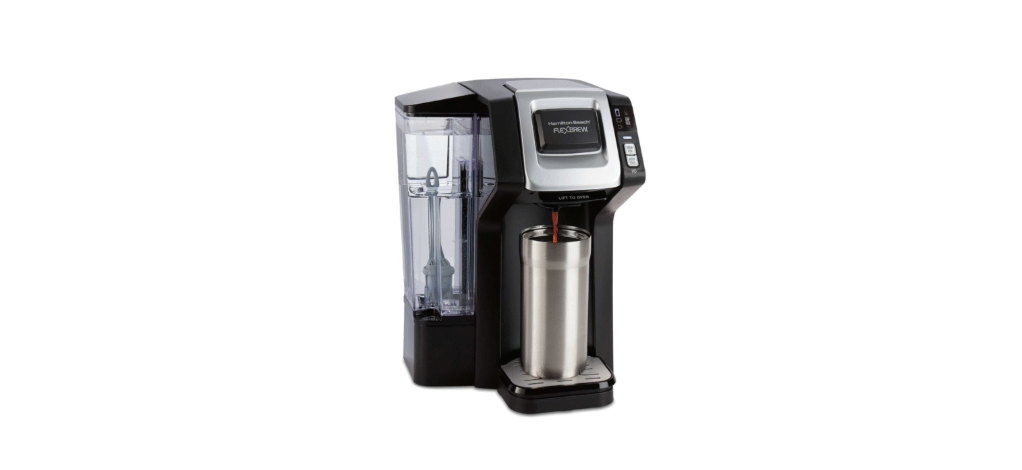

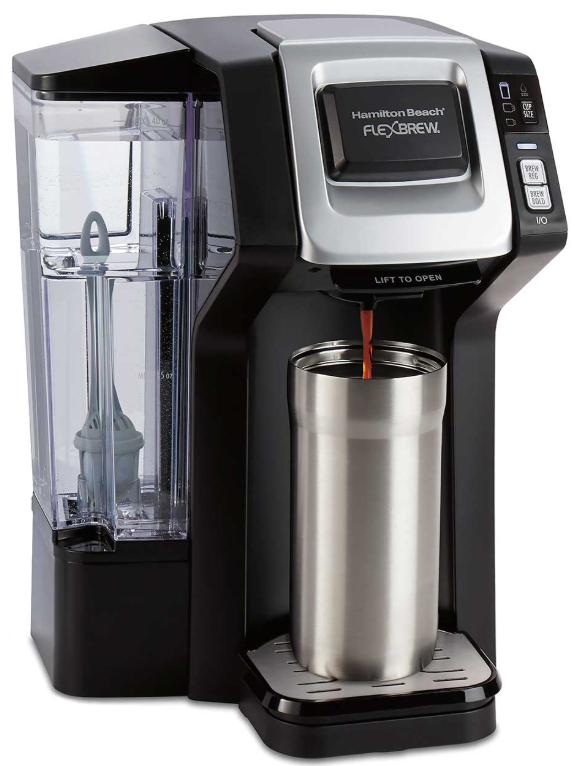

Hamilton Beach 49968 Single-Serve Coffee Maker

Safety Instructions

1. To protect against electric shock, do not place the cord, plug, or coffee maker in water or other liquid.
2. Do not place on or near a hot gas or electric burner, or in a heated oven.
3. To avoid hot water spraying from the piercing needle, do not lift the lid during the brew process.
4. Do not use the appliance for anything other than its intended use.
5. To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffee maker. There are no user-serviceable parts inside. Repair should be done by authorised service personnel only.
6. Removable single-serve pod holder contains a sharp needle. Use caution when handling.
7. The piercing needle is sharp. Use caution when cleaning.
8. This appliance is provided with a polarised plug (one wide blade) to reduce the risk of electric shock.
9. The plug fits only one way into a polarised outlet.
10. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter.
11. If the plug does not fit fully into the outlet, reverse the plug.
12. If it still does not fit, have an electrician replace the outlet.
13. To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit with this appliance.

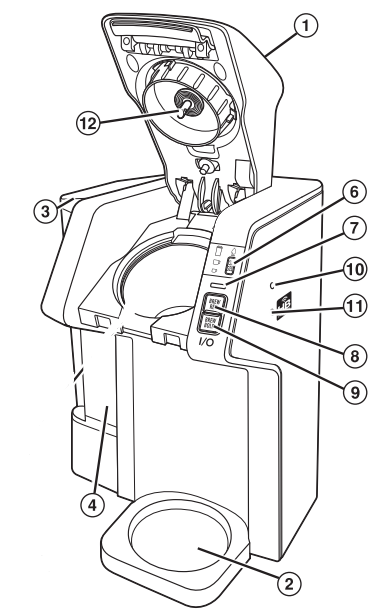

Parts and Features

1. Lid
2. Travel Cup Rest
3. Water Reservoir with Lid
4. Water Filter Pocket (inside Water Reservoir)
5. Lid Latch
6. CUP SIZE Button
7. Brew Indicator Light
8. BREW REG Button
9. BREW BOLD Button
10. Connect Light
11. Connect Button
12. Grey Needle Holder with Black Seal
13. Water Filter Handle
14. Water Filter
15. Water Filter Holder
16. Orange Single-Serve Pod Holder
17. Brown Brew Basket for Ground Coffee
18. Black Funnel
19. Drip Tray
20. Cup Rest Cover
21. Cup Rest/Storage Container

Using Water Filters

For better-tasting coffee, use a water filter. Filter replacement is recommended, the lesser of 90 brews or 90 days. Water filters can be automatically reordered through Amazon DRS.

1. Before first use, soak the water filter in cold tap water for 15 minutes. Rinse for 15 seconds.
2. Insert the water filter in the filter holder. Snap the water filter handle onto the holder.
3. Insert the water filter holder into the water filter hole located at the bottom of the reservoir. Push down gently to ensure a snug fit.

How to Brew

Before First Use

Wash all removable parts in hot, soapy water. Rinse and dry. Brew one cycle with water and discard the water.

• Fill the water reservoir with cold water with MIN 15 oz. (444 ml) and a maximum of 40 oz. (1.2 L).
• Always insert the funnel before the single-serve pod holder.
• Fully insert the cup or travel mug into the drip tray.
• Do not open the lid during the brew process.
• Place a large mug on the drip tray/cup rest. Press the BREW REG or BREW BOLD button.
• Failure to drain the unit can cause the next cup brewed to overflow.
• Follow “How to Clear from the rfromthe Uunit Unit” in the “Care and Cleaning” section.
• Remove the single-serve pod holder before adding coffee grounds to the brew basket.
• To avoid overflow, keep ground coffee below the MAX fill line.

Cutting

The removable single-serve pod holder has a sharp needle. The piercing needle on the underside of the lid is also sharp. Use caution when handling.

1. Plug into the outlet.
2. Lift the lid latch until the lid clicks into place.
3. Insert the funnel in the opening.
4. Insert a single-serve pod holder or a removable basket with grounds into the funnel.
5. Close the lid and snap it into place to latch the lid closed.
6. Press the CUP SIZE button to change cup size.
7. Press the REW REG or BREW BOLD button to start brewing.
8. The brew indicator light will light up when brewing. The coffee maker will shut off automatically.

Care and Cleaning

• Do not immerse the cord, plug, or coffee maker in any liquid.
• The removable single-serve pod holder has a sharp needle.
• The piercing needle on the underside of the lid is also sharp.
• Unplug and allow to cool.
• Hand-wash all removable parts in hot, soapy water.
• Rinse and dry or wash in the TOP RACK of the dishwasher. DO NOT use the “SANI” setting.
• Wipe outside of coffee maker with a soft, damp cloth.

Descaling/Deep Cleaning

1. Pour 14 oz. (414 ml) of plain white vinegar into the water reservoir.
2. Place a 14-oz. (414-ml) or larger cup or travel mug underneath to catch vinegar.
3. Plug in. Select travel mug size ( ). Press the BREW REG or BREW BOLD button once.
4. After 30 minutes, press the BREW REG or BREW BOLD button and allow it to finish the brew cycle.
5. When the brew cycle is finished, empty the cup and rinse.
6. Run 2 to 3 cycles of cold tap water. The unit is cleaned and ready to brew.

Unclogging Needle

1. Unplug and allow to cool.
2. Remove the grey removable needle holder in the lid by turning the arrow from the locked icon ( ) to the unlocked icon.
3. To replace the grey removable needle holder, insert the tab between the locked icon ( ) and unlocked icon ( ); turn clockwise to lock.

Clear Water from the Unit

1. Place a 14-oz. (414-ml) mug or larger on the travel cup rest.
2. Press either BREW REG or BREW BOLD button and hold for 3 seconds to empty all water from the coffee maker. The white brew indicator light will flash during purging. Light will turn off when purging is complete.

Connecting

Your FlexBrew Single-Serve Coffee Maker is Wi-Fi-capable.To get connected:

1. Download the HB Connect app from the App Store or Google Play Store.
2. Create an account and set up your FlexBrew coffee maker.
3. The HB Connect app will walk you through this process.

How to Erase Wi-Fi Credentials

You can erase the Wi-Fi information from your Hamilton Beach 49968 Single-Serve Coffee Maker by pressing and holding the connect button until the connect light turns solid red. This is important for connecting to a new Wi-Fi network.

Automatic ordering of K-Cup Pods

Once connected, your coffee maker can keep track of your coffee usage and enable automatic reordering of coffee. All replenishment of coffee is reordered and processed through Amazon DRS.

When a brew cycle is run with the capsule holder in place, the coffee maker will count this as a used K-Cup. When your K-Cup inventory is equal to your average weekly consumption plus 10%, a reorder signal will be transmitted to Amazon DRS. You will receive a confirmation email from Amazon with the opportunity to cancel the order 24 hours before shipment.

Limited warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S.

Customer Support

• Website: https://hamiltonbeach.com/
• Tel: 1-800-851-8900
