HARBOUR HBRBC93B 93 Litre Beverage Chiller User Manual

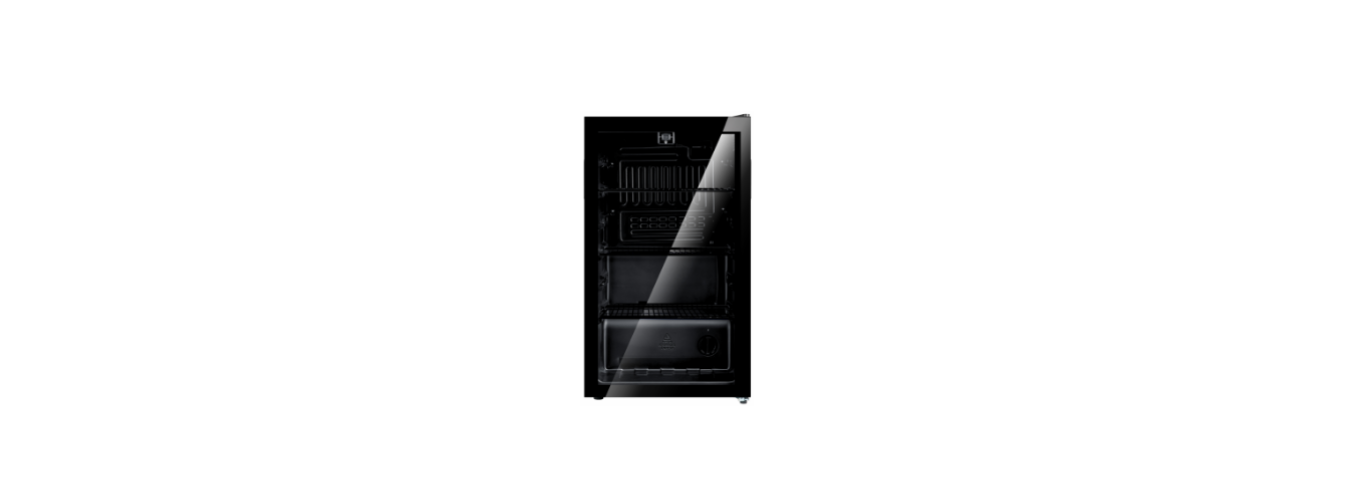

HARBOUR HBRBC93B 93 Litre Beverage Chiller

General Safety Instructions

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

• Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock, and injury when correctly adhered to.
• Make sure you understand all instructions and warnings.
• Keep the manual in a safe place for future reference, along with the completed warranty card and purchase receipt. If you sell or transfer ownership of this product, pass on these instructions to the new owner.
• Always follow basic safety precautions and accident prevention measures when using an electrical appliance, including the following.
• DANGER: It is hazardous for anyone other than an authorised service person to service this appliance. In Queensland, the authorised service person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants to carry out servicing or repairs that involve the removal of covers.
• The room for installing the appliance must be at least 1m³ per 8g of refrigerant. The amount and type of refrigerant in the appliance can be found in the Technical Specifications section of this user manual and on the rating plate, found on the appliance.

USAGE CONDITIONS AND RESTRICTIONS

• Domestic use only: This appliance is intended for indoor household use only. It is not intended for commercial, industrial, or outdoor use. It is not intended for use in a recreational vehicle.
• Purpose: Do not use this appliance for anything other than its intended purpose. Other uses are not recommended and may cause fire, electric shock, or personal injury.
• Attachments: The use of attachments is not recommended by the appliance manufacturer and distributor, as they may be hazardous.
• Improper use: Damage due to improper use, or repairs made by unqualified personnel, will void your warranty. We assume no liability for any eventual damages caused by misuse of the product or noncompliance with these instructions.
• Damage: Do not use the appliance if the power cord, plug, or the appliance itself is damaged. If the cord is damaged, contact the after-sales support line and have the cord replaced by qualified personnel to avoid a hazard.

ELECTRICAL SAFETY

• Voltage: Before connecting and turning on the appliance, ensure the electrical voltage and circuit frequency correspond to those indicated on the appliance rating label.
• Earthing: This appliance should be properly earthed for your safety. The power cord of this appliance is equipped with a three-prong plug for use in standard wall outlets to minimise the possibility of electrical shock. Do not modify the cord and/or plug provided with the appliance. Improper use of the earthed plug can result in the risk of electric shock.
• Connection: This appliance requires a standard 220-240 V AC 50Hz electrical outlet. Do not overload the electrical circuit.
• Electrical work: Any electrical work required for the installation of this appliance should be carried out
  by a qualified electrician.

INSTALLATION

• Heavy: This appliance is heavy; take care when moving it. To avoid back or other injury, consider a two-person lift or mechanical aid when installing it. Failure to do so can result in back or other injury.
• Damage: When unpacking, check the appliance carefully for damage. If it is damaged, do not install the appliance. Contact our after-sales support centre on 1300 11 43 57 for advice on examination or return of the damaged appliance.
• Protect from moisture: Install the appliance in an indoor area protected from wind, rain, water spray, or drips.
• Protect from heat: Do not install the appliance next to an oven, grill, or other source of high heat, or where it will be exposed to direct sunlight for prolonged periods.
• Children: Do not give the package and other components to children to play with. The bending board and plastic film may lead to suffocation! Do not allow children to enter or climb the chiller to prevent children from being sealed in the chiller or being injured by the falling chiller.

CLEANING AND MAINTENANCE

• Disconnect: Unplug the appliance before cleaning or servicing. Failure to do so can result in electric shock, injury, or death. Do not connect or disconnect the plug when your hands are wet.
• Flames: Do not let open flames or ignition sources enter the appliance.
• Flammable/explosive substances: Never clean this appliance with flammable fluids. Do not store or use volatile, flammable, or explosive propellants or liquids in or close to this or any other appliance. The fumes can create a fire hazard or explosion.
• Washing: Do not spray or wash the chiller; do not put the chiller in moist places easy to be splashed with water, so as not to affect the electrical insulation properties of the chiller.
• Solvents: Do not use solvent-based cleaning agents or abrasives on the interior, as these may damage or discolour the surfaces of the appliances.
• Service: Do not attempt to repair, modify, or replace any part of the appliance unless specifically
  recommended in this manual. Refer all other servicing to a qualified technician, or contact the after-sales service support line for advice on examination or repair of the appliance.

WARNINGS RELATED TO PLACING ITEMS

• Objects: Do not place heavy objects on the top of the chiller, considering that objects may fall when
  Opening or closing the door, or accidental injuries, might be caused.
• Items in the chiller: Do not put flammable, explosive, volatile, or highly corrosive items in the chiller to
  prevent damage to the product or fire accidents.
• Flammable items: Do not place flammable items near the chiller to avoid fires.
• Usage: This product is a household chiller, and this equipment can only be used for the storage of
  beverages. According to the standard requirements, the household chiller shall not be used for other
  purposes, such as the storage of food, blood, drugs, or biological products.

ENERGY WARNINGS

• Beverage Chiller might not operate consistently when siled for an extended period below the cold end of the range of temperatures for which the chiller appliance is designed.
• The need to not exceed the storage time(s) recommended by the beverage manufacturers for any kind of beverage.
• The precautions necessary to prevent an undue rise in the temperature of the beverage while defrosting the Beverage Chiller.

RESPONSIBLE DISPOSAL

DISPOSAL: Do not dispose of this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

• This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
• To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmentally safe recycling.
• For more detailed information about treatment, recovery, and recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.

Product Overview

Beverage Chiller LAYOUT

1. Reversible door hinge
2.  LED light switch
3. Door handle
4. Steel wire shelves (3)
5. Thermostat knob
6. Adjustable feet
7. Triple-glazed UV-treated glass door
8. Alternate shelf supports

Not shown but also included:

• ° 1 × Instruction manual
• ° 1 × Quick start guide
• ° 1 × Warranty certificate

Getting Started

UNPACKING

• Packaging materials: This appliance has been packaged to protect it against transportation damage. Remove all packaging materials from around and inside the appliance, including the bottom cushions, foam pads, tapes inside the chiller, and tear off the protective film on the door and the chiller body. Keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. In the event the carton is to be disposed of, please recycle all packaging materials where possible.
• Check: to see if all items are present.
• Inspect: the equipment and accessories for transport damage. In case of complaints, the supplier is to be informed immediately.
• Clean: To remove any dust from transit and storage, clean the interior and exterior surfaces of the
  appliance with lukewarm water and a soft cloth. Dry thoroughly. Important: do not use harsh or
  abrasive detergents or powders, as these will damage the finish.

FIRST USE

Before turning on your Beverage Chiller for the first time:

• The chiller must be rested for at least half an hour before connecting power.
• Clean up the inner chamber with lukewarm water and a soft cloth.
• Do not connect the chiller to an electronic energy saving plug and converter that can convert DC into AC (E.g., solar energy system, ship grid).
• Water drops or frost will be generated on the back side of the Beverage Chiller when the compressor is running. This is a normal function of the chiller; wiping out frost or water drops is not required, as they will evaporate automatically. The defrosted water will be collected into the drain tank and then drained into the water disposal pan above the compressor and vaporized.

Operation Instructions

TEMPERATURE CONTROL

1. You can set and adjust the temperature in the cabinet to anywhere within the cooling range (5ºC – 18ºC) using the Thermostat Knob.
   • “Normal”: warmest setting
   • “Cold”: colder setting
   • “Colder”: coldest setting
2. The “Off” setting turns the Beverage Chiller off. The selected setting should point to the top of the dial/

BEVERAGES ARRANGEMENT

• To maintain good air circulation in the chiller, do not let any bottles or cans touch the back wall of the chiller cabinet.
• The capacity for storage in the Beverage Chiller may be different due to bottles and cans of different shapes and sizes. Oversized bottles may have an impact on the number of storage items in the cabinet.

TEMPERATURE ZONES INSIDE THE Beverage Chiller

• Due to different temperature zones generated by air circulation inside the chiller, the upper area’s temperature will be warmer than the lower area.

ENERGY SAVING TIPS

• The appliance should be placed in the coolest area of the room, away from heat-producing appliances or heating ducts. A suitable insulation board shall be applied if necessary. Please avoid placement in direct sunlight.
• Try to shorten the opening time of the chiller’s door.
• Place beverages into the chiller after it has cooled down.

ADJUSTING THE SHELVES

• To adjust the shelf positioning, open the door and slide the shelf out towards yourself.
• Once completely removed, insert the shelf into the desired support, making sure both sides are correctly aligned, and slide until it is completely in.

Installation Instructions

• Floor surface: This appliance must be properly positioned on a dry, sturdy, level surface that is strong
  enough to support it when it is fully loaded. Rotate left or right to adjust the levelling wheel if unstable.
  If it is to be placed on carpet, support it with a wooden board underneath. This appliance is designed
  to be freestanding only and should not be recessed or built in.
• Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool
  the compressor and condenser. Allow at least 10cm clear space at the back and sides of the unit and 30cm clear space above the unit. Failure to do so will increase the compressor’s power and further increase power consumption. It is also necessary to maintain a distance for doors open at least 90°.

DO NOT install/use the appliance in the following locations/situations:

• In moist areas or areas of high humidity.
• In a recreational vehicle, or for use with an inverter.
• In direct sunlight, near heat sources, next to an open flame, cooking or heating appliance, or near any other source of high heat.
• Direct sunlight may affect the acrylic coating, and heat sources may increase the unit’s power consumption. For best energy efficiency, install the appliance in the coolest area of the room.
• In an area with extreme cold ambient temperatures.
• In an area with excessive moisture and high humidity. Make sure it is protected from elements such as wind, rain, water spray, or drips.
• In an area where petrol or other explosive and/or flammable liquids or fumes are used or stored. The fumes can create a fire hazard or explosion.

Reversing the Door Swing

The direction of the door opening can be changed from right-hand side to left-hand side. Please follow the instructions below to change the opening direction of the door:

• Disconnect the Beverage Chiller from the power. Close the glass door of the Beverage Chiller. Remove the screws (2) and put them aside for a later step. Carefully remove the mounting cover (3) of the door hinge, positioning bolts (4) and upper hinge (5).
• Open the door of the Beverage Chiller cabinet so the seal doesn’t hold it in place, and carefully detach the glass door by sliding it upwards. Place it aside on a soft surface.
• Dismantle the door axle sleeve (6) at the lower part of the glass door, the door stopper block screws (8)
  and door stopper (7), and fix them to the opposite side of the Beverage Chiller.
• Using two people, lay the unit down on its back. Dismantle the adjustable foot (11), positioning the bolts.
  (4), and lower hinge (10), then swap opposing side parts (eg, the parts on the right side are swapped
  with the left side). Use the reverse method of this step to install the adjustable foot, lower hinge, and positioning bolts. Using two people, place the unit upright again and wait at least half an hour before reconnecting it to the power.
• Place the glass door on the lower hinge and fix the upper hinge (5). Align the door with the cabinet, then check the tightness of the gasket. Complete by installing the screws (2) and mounting the cover (3).

Maintenance and Cleaning

WHEN NOT USING YOUR Beverage Chiller FOR A SHORT PERIOD (14 DAYS), turn the unit off by turning the Temperature Control knob to the ‘Off’ position. WHEN NOT USING YOUR Beverage Chiller FOR A LONG period (IE., IN STORAGE)

• Unplug the chiller.
• Clean the chiller.
• Keep the chiller door open.

CLEANING

WARNING: Before cleaning the appliance, make sure it is switched off and disconnected from the power
supply. Failure to do so can result in electric shock or injury.

We recommend cleaning dust behind the chiller and on the ground regularly to improve the cooling effect
and save energy. The interior of the chiller should be cleaned regularly to avoid odor. The cleaning procedure is below:

• Unplug the power plug.
• Clean the door seal with only clear water and give a thorough wipe.
• Remove the wire shelves by sliding them out towards yourself.
• Use slightly warm water and a little dish soap to clean the chiller and shelves.
• Reconnect and power the chiller when cleaning is completed.

WARNING: Do not use hard brushes, steel wool, wire brushes, abrasives such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acidic, or alkaline items to clean the chiller considering as this may damage the chiller surface and interior.

INTERNAL LED LIGHT

If the LED light fails, this must be swapped by a qualified person only. Please contact our After Sales Support Team on 1300 11 4357.

FAQs and Troubleshooting

Specifications

Repair and Refurbished Goods or Parts Notice

Unfortunately, from time to time, faulty products are manufactured that need to be returned to the Supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.

We recommend you save this data elsewhere prior to sending the product for repair. You should also be aware that rather than repairing goods, we may replace them with refurbished goods of the same type or use refurbished parts in the repair process. Please be assured, though, refurbished parts or replacements are only used where they meet ALDI’s stringent quality specifications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your complaint.

• Please telephone us on 1300 11 43 57 or write to us at: 165 Barkly Avenue, Burnley, VIC 312,1, Australia.
• Email: support@residentiagroup.com.au
• Helpline hours of operation: Mon–Fri 9:00 AM – 5:00 PM
