HOOVER HWD21 20L Stainless Steel Drum Vacuum User Manual

HOOVER HWD21 20L Stainless Steel Drum Vacuum

Safety Instructions

1. Always ensure that the voltage on the rating label corresponds to the mains voltage in your home.
2. Incorrect operation and improper use can damage the appliance and cause injury to the user.
3. The appliance is intended for household use only.
4. Commercial use invalidates the warranty, and the supplier cannot be held responsible for injury or damage caused when using the appliance for any purpose other than that intended.
5. Children should be supervised to ensure that they do not play with the appliance.
6. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it must be replaced by the manufacturer or a qualified person in order to avoid an electrical hazard.
7. Do not use the appliance if it has been dropped or damaged in any way. In case of damage, take the unit in for examination and/or repair by an authorised service agent.
8. To reduce the risk of electric shock, do not immerse or expose the motor assembly, plug, or power cord to water or any other liquid.
9. The motor of the unit needs to be switched off for 1 minute after 15 minutes of consecutive use.
10. This is to allow the motor to cool down and prevent motor failure
11. . Do not operate this unit for more than 4 hours (with cool-down periods included) on any given day.

Features

• Powerful 1200W Motor
• Large 20L tank
• Wet & dry vacuum capabilities
• Sturdy and compact stainless steel design
• 5m power cord
• Onboard accessory storage to conveniently store the accessories on the machine for easy accessibility
• Added blower function feature – Blow out dust from hard-to-reach places
• Attachments include A multi-surface nozzle & handy crevice tool
• Castor wheels for ease of movement

Accessories include

• 2 x plastic tubes
• 1 x floor brush
• 1 x 2 in 1 crevice nozzle
• 1 x flexi hose

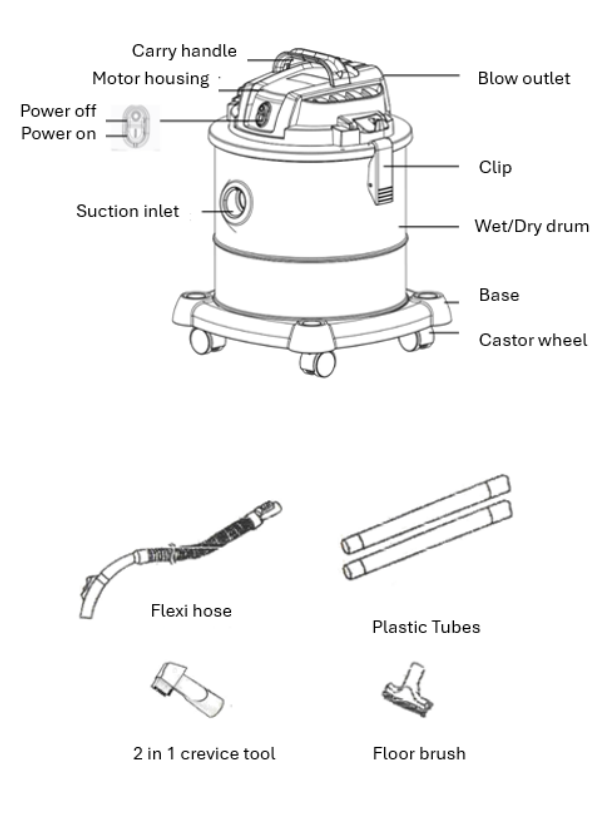

Part Diagram

Operation

1. Unwind the power supply cord from the cord storage and plug it into the power supply socket outlet.
2. Switch the vacuum cleaner ON by pressing the ON switch.
3. A suction regulator is located on the hose handle. To activate, simply slide the regulator open to reduce the level of suction required. The suction regulator should be kept in the closed position.
4. The suction power will reduce and stop as the drum fills up. It is recommended to empty the drum regularly.
5. To switch the vacuum OFF, press the OFF switch again, and then remove it from the mains power supply.

Blower Function

1. Unwind the power supply cord from the cord storage.
2. Attach the flexi hose to the blow outlet and attach the desired nozzle to the flexi hose.
3. Switch the vacuum cleaner ON by pressing the ON switch.
4. To switch the vacuum cleaner OFF, depress the OFF switch again and then remove it from the mains power supply.

Maintenance, Cleaning & Repair

1. Disconnect the plug from the mains power supply before cleaning.
2. Take care when emptying the drum, as when full it could weigh up to 24kg.
3. Release the two clips located on the ddrum to remove the motor housing.
4. Empty the drum. Clean with a warm, moist cloth and buff dry.
5. Do not use harsh abrasives or other cleaning aids to clean the vacuum cleaner.
6. Clean the filter bag periodically by gently beating it over a rubbish bin.
7. If cleaning is not done, the suction power of the vacuum will decrease.
8. Rinse and clean the sponge located around the motor housing and ensure it is completely dry before placing it back around the motor housing.
9. After cleaning the vacuum cleaner, place the motor housing on the drum and secure the two latches back into place.
10. For correct assembly of the motor housing to the drum, ensure that the vacuum inlet and the blower outlet line up vertically.
11. Never spray water over the upper section of the vacuum cleaner

Storage

1. Unplug the unit from the power socket and clean HOOVER HWD21 20L Stainless Steel Drum Vacuum all the parts as instructed above. Ensure that all parts are dry before storing.
2. Store the appliance in its box or a clean, dry place.
3. Never store the appliance while it is still wet or dirty.
4. Never wrap the power cord around the appliance.

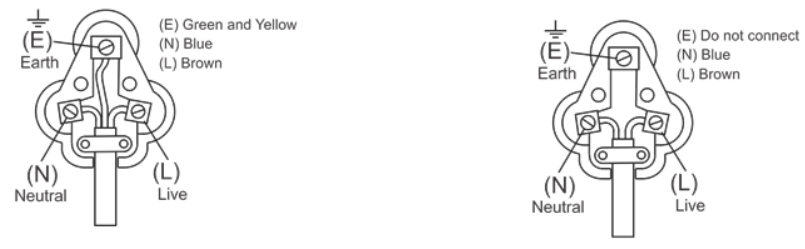

Changing the Plug

Should the need arise to change the fitted plug, follow the instructions below. This unit is designed to operate on the stated current only. Connecting to other power sources may damage the appliance.

• Green/Yellow = Earth
• Blue = Neutral
• Brown = Live

Servicing Safeguards

• The high voltage capacitor remains charged after disconnection; short the negative terminal of the H.HVV capacitor to the oven chassis (use a screwdriver) to discharge before touching.
  • Magnetron
  • High-voltage transformer
  • High-voltage capacitor
  • High-voltage diode
  • High-voltage fuse
• The following conditions may cause undue HOOVER HO38FL7NWBXUK Microwave Oven microwave exposure during servicing.

It is important that the HOOVER HO38FL7NWBXUK Microwave Oven WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. In many countries, domestic collections may be available for large WEEEs.

Warranty

Home of Living Brands (Pty) Limited (“Home of Living Brands”) warrants to the original purchaser of this product (“the customer”) that this product will be free of defects in quality and workmanship which under normal personal, family or household use and purpose may manifest within a (one) year from the date of purchase (“warranty period”).

Where the customer has purchased a product and it breaks, is defective, or does not work properly for the intended purpose, the customer must notify the supplier from whom the customer bought the product (“the supplier”) thereof within the warranty period. If proof of purchase is not available, then repair and/or service charges may be payable by the customer to the supplier.

The supplier will refund, repair, or exchange the product in terms of this warranty, subject to legislative requirements. This warranty will extend only to the product provided at the date of the purchase and not to any expendables attached or installed by the customer.

If the customer requests that the supplier repair the product and the product breaks or fails to work properly within 3 (three) months of the repair and not as a result of misuse, tampering, or modification by or on behalf of the customer, then the supplier may replace the product or pay a refund to the customer.

Customer Support

• • Tel: 03444 995599
  • NATIONAL CONTACT TEL NO. (087) 245 0029
  • JOHANNESBURG TEL NO. (011) 490-9600
  • Website: https://hoover.com/
  • www.homeoflivingbrands.com
  • www.hooversa.co.za

FAQs

Q: What safety features does the HWD21 have for wet vacuuming?

Ans: In order to protect the engine from water damage, the Hoover has a float valve that automatically cuts off suction to avoid overfilling the drum with liquid.

Q: Can I vacuum fine dust or hazardous materials?

Ans: When handling hazardous materials, always wear the proper protective gear and abide by the rules.

Q: Does the vacuum include a blower function?

Ans: Indeed, a blower port on a lot of HWD21 models lets you turn the vacuum into a blower to remove dust, debris, or leaves.

Q: Can I use the vacuum outdoors?

Ans: Yes, but only outside in dry, sheltered spaces. Always use a properly grounded outlet with RCD protection, and keep the vacuum away from puddles and rain.

Q: How long is the power cord?

Ans: Typically, the power cord is 5 meters (16 feet) long, which gives you ample reach to clean vast areas without constantly unplugging.

Q: Is this vacuum suitable for commercial use?

Ans: The HWD21 is not an industrial hoover, but it is appropriate for heavy household and light commercial use. Take into account specialised industrial models for demanding commercial settings.
