Icron RG2211 USB 2.0 Cat 5e Extender System
Introduction
The instructions in this guide assume a general knowledge of computer installation procedures, familiarity with cabling requirements, and some understanding of USB devices.
Product Contents

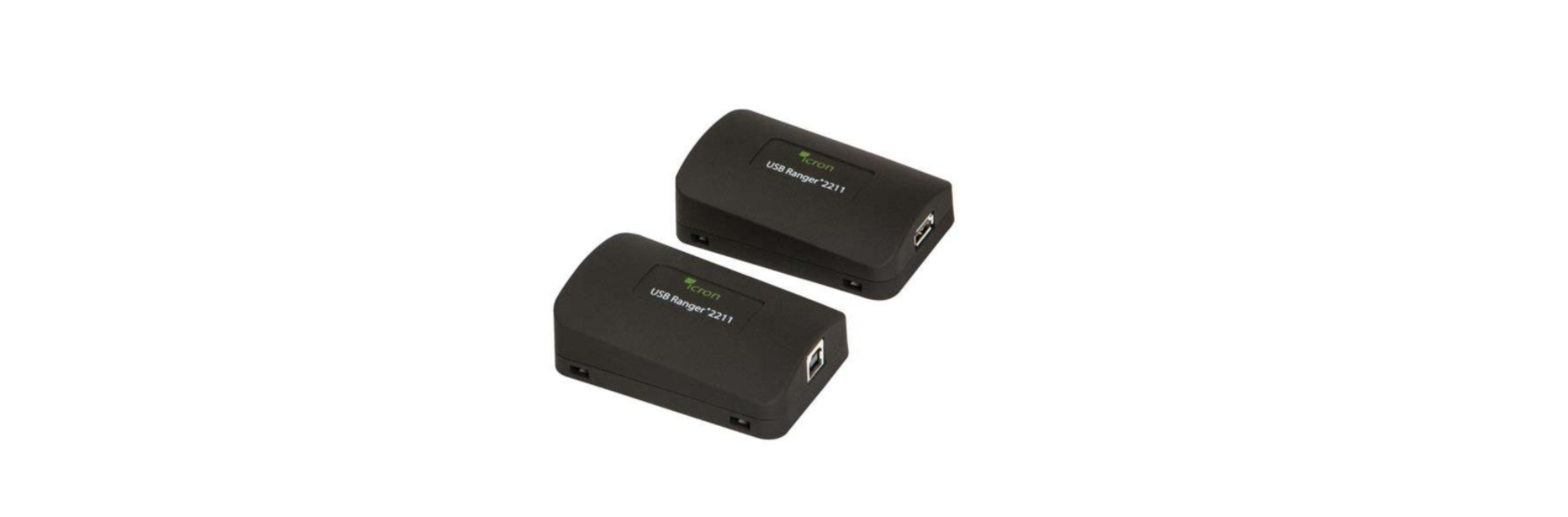

Your RG2211 is packaged with:
- Local Extender
- Remote Extender
- AC Power Adapter
- Country Specific Power Cord
- USB 2.0 Cable
- Quick Start Guide and Warranty Information
Requirements
To complete the installation, you will also require the following items that are not included with the product:
- USB 1.1 or 2.0 compatible computer (host computer) with a USB-compliant operating system
- USB 1.1 or 2.0 compatible device(s)
- Cat 5e solid core Unshielded Twisted Pair (UTP) cable with two RJ45 connectors (if using surface cabling), or Cat 5e cabling with two information outlets and two Cat 5e patch cords with RJ45 connectors (if using premise cabling)
About the USB 2.0 RG2211
The USB 2.0 RG2211 enables users to extend beyond the standard 5m cable limit for USB peripheral devices. With the RG2211, USB device(s) can be located up to 100 meters (330 feet) from the computer. The RG2211 is composed of two individual units: the local extender and the remote extender.
- The local and remote extenders may be hot to the touch during operation.
- The RG2211 includes the ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, Mac OS X®, and Linux®
Local Extender Description
The local extender connects to the computer using a standard USB cable (included). Power for the local extender is provided by the host computer. Power for the remote extender is provided by the 24V AC adapter connected to either the local or the remote extender. The local extender delivers power over the Cat 5e extension link to the remote extender when the included power supply is connected to the local extender.
| ITEM | TYPE | DESCRIPTION |
| 1 | Link LED (Green) | Indicates both the local and remote extenders have power, and the Cat 5e cable is connected properly. |
| 2 | Power Port | The Power Port gives the option to connect power to either the local extender or the remote extender. Connect the supplied 24V, 1A power adapter to either the local extender or remote extender. |
| 3 | Link Port (RJ45) | Accepts RJ45 connector for Cat 5e cabling (or better). |
| 4 | USB Type B connector | Used to connect the local extender unit to the host computer. |
Remote Extender Description
The remote extender provides a USB Type A port for connecting standard USB devices. The remote extender allows you to connect one USB device directly. Additional devices may be connected by attaching USB hubs to the remote extender. The remote extender is powered either directly by the included power supply or via the Cat 5e link extension cable from the local extender. The USB port delivers 500mA of current to the attached USB device.
| ITEM | TYPE | DESCRIPTION |
| 1 | Link LED (Green) | Indicates both the local and remote extenders have power, nd the Cat 5e cable is connected properly. |
| 2 | Power Port | The Power Port gives the option to connect power to either the local extender or the remote extender. Connect the supplied 24V, 1A power adapter to either the local extender or remote extender. |
| 3 | Link Port (RJ45) | Accepts RJ45 connector for Cat 5e cabling (or better). |
| 4 | Device Port (USB Type A) | Accepts a USB device. |
Installation
Connect the power adapter to either the local or remote extender.
Mounting the Local Extender or Remote Extender
If mounting is required, the local and remote extenders have two mounting slots on each side for use with cable tie/zap straps (not included).
Preparing for Installation
Before you can install the RG2211, you need to prepare your site
- Determine where the computer is to be located and set up the computer.
- Determine where you want to locate the USB device(s).
- If you are using surface cabling, the RG2211 supports a maximum distance of 100m.
Local Extender
- Place the local extender near the computer.
- Install the supplied USB cable between the local extender and the USB port on the host computer.
Remote Extender
- Place the remote extender near the USB device(s) in the desired remote location.
Flexible Power
- Connect the included AC power adapter to the local or remote extender, based on installation requirements.
Connecting the Local Extender to the Remote Extender
Surface Cabling
- Plug one end of the Cat 5e (or better) cabling (not included) into the Link port (RJ45) on the local.
- Plug the other end of the Cat 5e cabling into the Link port (RJ45) on the remote extender.
Premise Cabling
- Plug one end of a Cat 5e patch cord (not included) into the Link port (RJ45) on the local extender.
- Plug the other end of the patch cord into the Cat 5e information outlet near the host computer.
- Plug one end of the second Cat 5e patch cord (not included) into the Link port (RJ45) on the remote extender.
- Plug the other end of the second patch cord into the Cat 5e information outlet near the USB device(s).
Power to the Local and Remote Extenders
- Plug the 5V, 3A power adapter into a suitable AC outlet near the local extender.
- Connect the power adapter to the local extender.
- Plug the 5V, 3A power adapter into a suitable AC outlet near the remote extender.
- Connect the power adapter to the remote extender.
Use only the power adapters supplied with the product. Use of substitute adapters may cause permanent damage to the system and will void the warranty.
Checking the Installation
- On the local and remote extender units, check that the Power, Link, USB, and Video LEDs are on.
- Check to see if the USB LED is on and the Video LED is blinking or on; if they are not, this indicates there is no USB data or video data.
- Check the DVI and USB connections to the host computer, and the DVI connection to the monitor.
Connecting a USB Device
- Install any software required to operate the USB device(s).
- Refer to the documentation for the USB device(s), as required.
- Connect the USB device to the device port on the remote extender.
Specifications
| Range | 330 feet (100 meters) over solid core Cat 5e STP (or better) cable. Solid core Cat 6 STP recommended for best performance. |
| Video Resolution & Depth | 1900 x 1200, 24-bit colour depth |
| Latency | Less than 1ms |
| USB Device Support & Throughputs | High-Speed devices (USB 2.0) – up to 30Mbps Full-Speed devices (USB 2.0 & 1.1) – up to 12Mbps Low-Speed devices (USB 2.0 & 1.1) – up to 1.5Mbps |
| USB Hub Support | Any single chain can include up to 4 USB hubs |
| USB Host Support | EHCI (USB 2.0) and OHCI/UHCI (USB 1.1) |
| AC Adapters | Input: 100-240 V AC, 50 – 60 Hz | Output: 5V DC, 3A (15 W) |
| Power Available to USB Device at REX | 500 mA each port |
| Maximum USB Devices Supported | 13 USB devices |
| Enclosure Material | Black anodised aluminium |
| Enclosure Dimensions | 112 mm x 175 mm x 30 mm (4.4” x 6.9” x 1.18”) |
| LOCAL EXTENDER | |
| Video Connector | 1 x DVI-D In (24-pin connector) |
| USB Connector | 1 x USB Type B Receptacle |
| Link Connector | 1 x RJ45 |
| REMOTE EXTENDER | |
| Video Connector | 1 x DVI-D Out (24-pin connector) |
| Link Connector | 1 x RJ45 |
| USB Connector | 3 x USB Type A Receptacles |
| ENVIRONMENTAL | |
| Operating Temperature Range | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Operating Humidity | 20% to 80% relative humidity, non-condensing |
| Storage Humidity | 10% to 90% relative humidity, non-condensing |
| COMPLIANCE | |
| Emissions | FCC Part 15 Class A, CE Class A, ICES-003 Class A |
| Immunity | CE EN 55024 |
| Environmental | RoHS2 (CE) |
USB Cables
USB cables have two distinct connectors. The Type A connector is used to connect the cable from a USB device to the Type A port on a computer or hub. The Type B connector is used to attach the USB cable to a USB device.
RJ45
The Registered Jack (RJ) physical interface is what the Icron VU5100 DVI + USB 2.0 Extender System connects the network cabling (Cat 5) to the Local Extender Unit and Remote Extender Unit. You may Icron VU5100 DVI + USB 2.0 Extender System use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination, as the extender uses all four pairs of the cable.
RJ45 Pin Positioning
Troubleshooting
| PROBLEM | CAUSE | SOLUTION |
| All LEDs on the local extender are off. | The local extender is not receiving power from the power adapter. | Ensure that the power adapter is properly connected to the local extender.
|
| All LEDs on the remote extender are off. | The remote extender is not receiving power from the power adapter. | Ensure that the power adapter is properly connected to the remote extender. |
| Link LEDs on the local extender and the remote extender are off. | There is no connection between the local and remote extenders. | Connect a short Cat 5e patch cord between the local and remote extenders to determine if the original Cat 5e cable is defective.
Ensure the Cat 5e cable is as straight as possible (i.e. not coiled). |
Warranty Information
Limited Hardware Warranty
Icron, an Analog Devices brand, warrants that any hardware Icron Raven 3301-ECO Extender System products accompanying this documentation shall be free from significant defects in material and workmanship for a period of two years from the date of purchase. Icron’s hardware warranty extends to Licensee, its customers, and end users. The Warranty does not include repair of failures caused by misuse, neglect, accident, modification, operation outside a normal operating environment, failure caused by service of the device by non-authorised servicers, or a product for which Icron is not responsible. Opening the enclosures will Icron Raven 3301-ECO Extender Systemvoid the warranty.
Limitation of Liability
The hardware warranty outlined in this agreement replaces all other warranties. Icron expressly disclaims all other merchantability and fitness for a particular purpose and noninfringement of third-party rights with respect to the hardware. In no case shall Icron, its suppliers, or licensors’ liability exceed the actual money paid for the products at issue.
Since some jurisdictions do not allow the limitation of implied warranties of liability for incidental, consequential, special, or indirect damages, the above limitation may not always apply. The above limitations will not apply in case of personal injury, where and to the extent that applicable law requires such liability.
Contacting Technical Support
- Description of the problem
- Part number and serial numbers for both LEX and REX units
- Host computer(s) make and model
- Type of Operating System installed (e.g., Windows 10, macOS 11.1, etc.)
- Make and model of any USB device(s) attached to this extension system
- Description of the installation, such as host computer model, transmission media used, and information about the USB device(s)
Product Return Shipping Instructions
Package your product appropriately for safe shipment and mark the RMA number on the outside of the package. We recommend that you ensure your shipment or your shipping method provides package tracking.
Address to Return Product
RMA Coordinator Icron | An Analog Devices Brand 4664 Lougheed Hwy., Suite 221 Burnaby, BC, V5C 5T5, Canada
Technical Glossary
Category 5e (CAT 5e) Network Cabling
This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). STP cables include shielding of the copper wires and provide better protection against EMI
Customer Service
- Address: Icron | An Analog Devices Brand 4664 Lougheed Hwy., Suite 221 Burnaby, BC, V5C 5T5, Canada
- Ph: +1 604 638 3920
- Website: icron.com
