    Home » Icron RV2850 USB 1.1 Extender System Quick Start Guide
    Icron

    Icron RV2850 USB 1.1 Extender System Quick Start Guide

    By Gabriel SmithSeptember 15, 2025Updated:December 10, 2025No Comments11 Mins Read
    Facebook Twitter Pinterest LinkedIn Tumblr WhatsApp Telegram Email

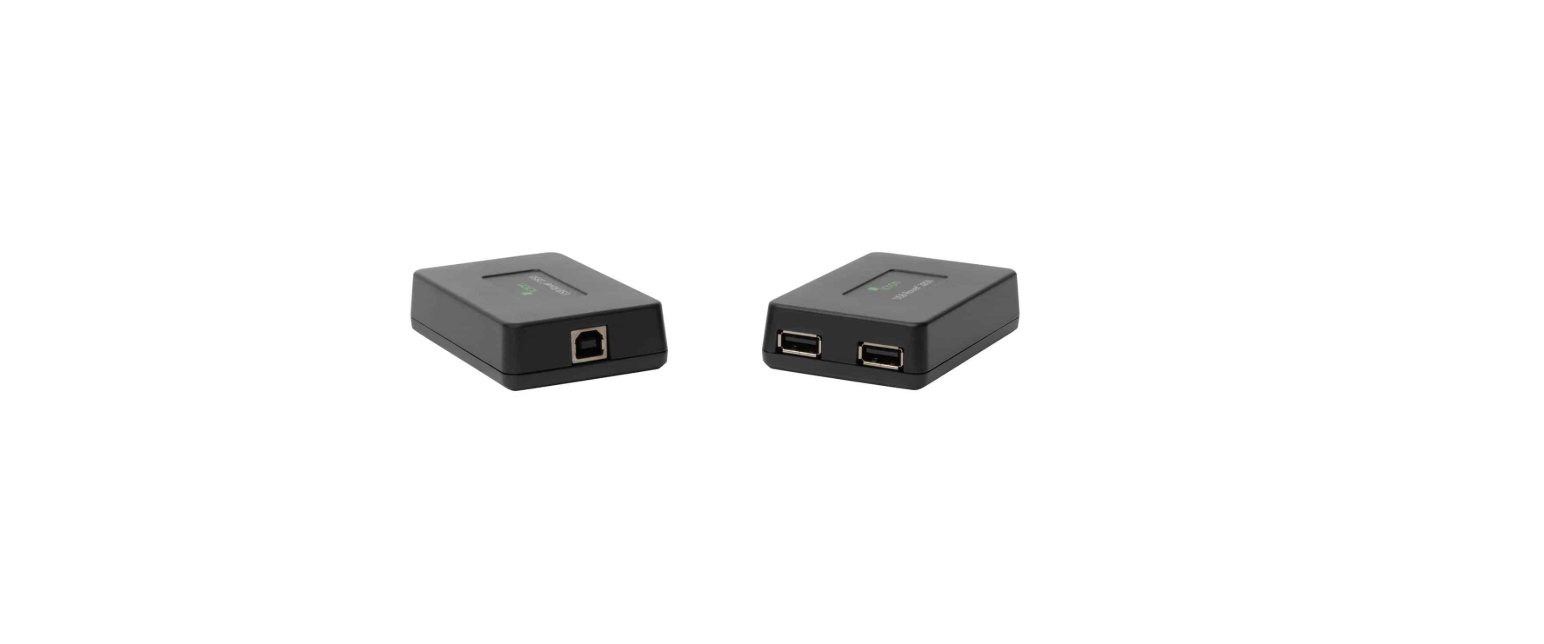

    Icron-RV2850-USB -1.1-Extender-System-featured
    Share
    Facebook Twitter LinkedIn Pinterest Email

    icron_logo

    Icron RV2850 USB 1.1 Extender System

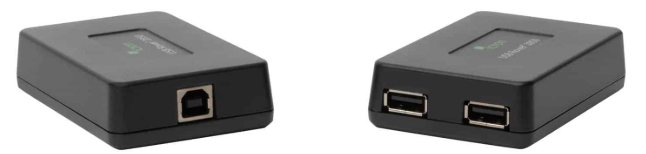

    Icron-RV2850-USB -1.1-Extender-System-product

    Product Contents

    • USB 1.1 RV2850 Local Extender
    • USB 1.1 RV2850 Remote Extender
    • USB Cable
    • Quick Start Guide

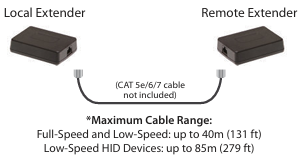

    1. Place units where desired and connect the CAT 5e/6/7 (solid core) extension link cable to the Link ports (RJ45) on the local extender and remote extender units.
    2. Connect the local extender to your computer using the included USB cable.
    3. Attach USB device(s) to the remote extender.

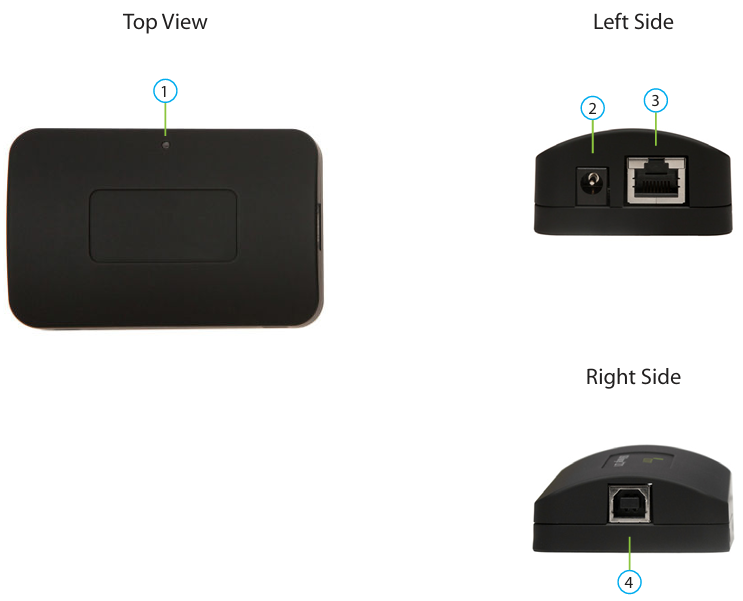

    Local Extender Description

    The local extender connects to the computer using a standard USB cable (included). Power for the local extender is provided by the host computer. Power for the remote extender is provided by the 24V AC adapter connected to either the local or the remote extender. The local extender delivers power over the Cat 5e extension link to the remote extender when the included power supply is connected to the local extender.

    ITEMTYPEDESCRIPTION
    1Link LED (Green)Indicates both the local and remote extenders have power, and the Cat 5e cable is connected properly.
    2Power PortThe Power Port gives the option to connect power to either the local extender or the remote extender. Connect the supplied 24V, 1A power adapter to either the local extender or remote extender.
    3Link Port (RJ45)Accepts RJ45 connector for Cat 5e cabling (or better).
    4USB Type B connectorUsed to connect the local extender unit to the host computer.

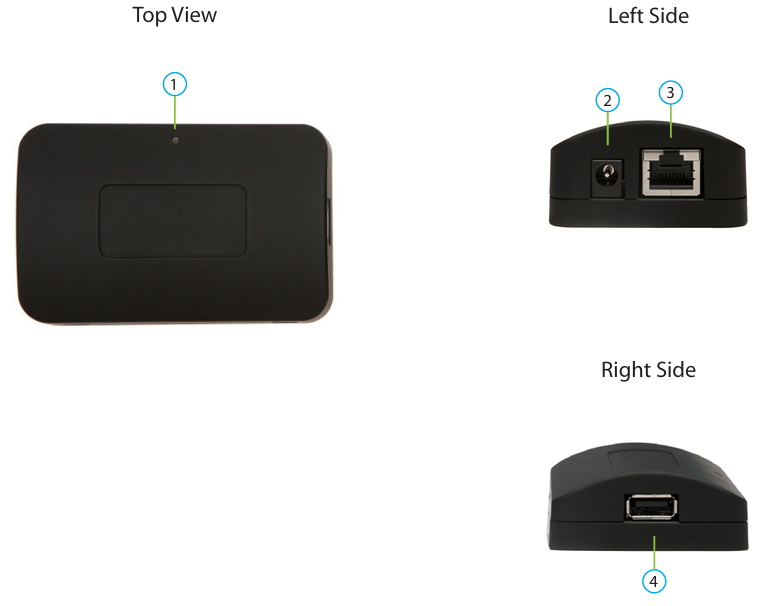

    Remote Extender Description

    The remote extender provides a USB Type A port for connecting standard USB devices. The remote extender allows you to connect one USB device directly. Additional devices may be connected by attaching USB hubs to the remote extender. The remote extender is powered either directly by the included power supply or via the Cat 5e link extension cable from the local extender. The USB port delivers 500mA of current to the attached USB device.

    ITEMTYPEDESCRIPTION
    1Link LED (Green)Indicates both the local and remote extenders have power, nd the Cat 5e cable is connected properly.
    2Power PortThe Power Port gives the option to connect power to either the local extender or the remote extender. Connect the supplied 24V, 1A power adapter to either the local extender or remote extender.
    3Link Port (RJ45)Accepts RJ45 connector for Cat 5e cabling (or better).
    4Device Port (USB Type A)Accepts a USB device.

    Installation

    Connect the power adapter to either the local or remote extender.

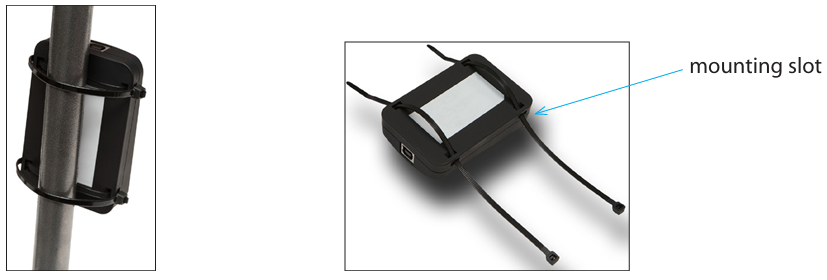

    Mounting the Local Extender or Remote Extender

    If mounting is required, the local and remote extenders have two mounting slots on each side for use with cable tie/zap straps (not included).

    Preparing for Installation

    Before you can install the RG2211, you need to prepare your site

    1. Determine where the computer is to be located and set up the computer.
    2. Determine where you want to locate the USB device(s).
    3. If you are using surface cabling, the RG2211 supports a maximum distance of 100m.

    Local Extender

    1. Place the local extender near the computer.
    2. Install the supplied USB cable between the local extender and the USB port on the host computer.

    Remote Extender

    1. Place the remote extender near the USB device(s) in the desired remote location.

    Flexible Power

    1. Connect the included AC power adapter to the local or remote extender, based on installation requirements.

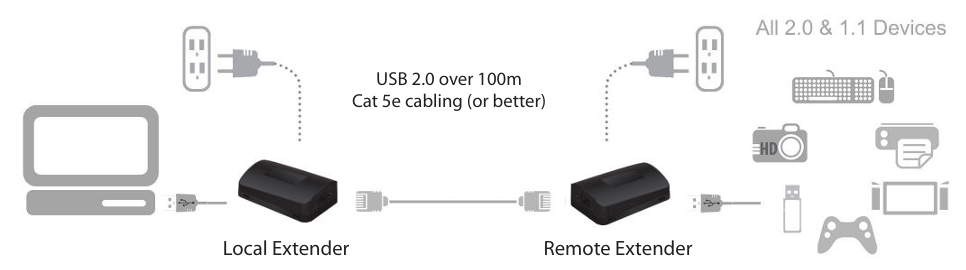

    Connecting the Local Extender to the Remote Extender

    Surface Cabling

    1. Plug one end of the Cat 5e (or better) cabling (not included) into the Link port (RJ45) on the local.
    2. Plug the other end of the Cat 5e cabling into the Link port (RJ45) on the remote extender.

    Premise Cabling

    1. Plug one end of a Cat 5e patch cord (not included) into the Link port (RJ45) on the local extender.
    2. Plug the other end of the patch cord into the Cat 5e information outlet near the host computer.
    3. Plug one end of the second Cat 5e patch cord (not included) into the Link port (RJ45) on the remote extender.
    4. Plug the other end of the second patch cord into the Cat 5e information outlet near the USB device(s).

    Power to the Local and Remote Extenders

    1. Plug the 5V, 3A power adapter into a suitable AC outlet near the local extender.
    2. Connect the power adapter to the local extender.
    3. Plug the 5V, 3A power adapter into a suitable AC outlet near the remote extender.
    4. Connect the power adapter to the remote extender.

    Use only the power adapters supplied with the product. Use of substitute adapters may cause permanent damage to the system and will void the warranty.

    Checking the Installation
    1. On the local and remote extender units, check that the Power, Link, USB, and Video LEDs are on.
    2. Check to see if the USB LED is on and the Video LED is blinking or on; if they are not, this indicates there is no USB data or video data.
    3. Check the DVI and USB connections to the host computer, and the DVI connection to the monitor.
    Connecting a USB Device
    1. Install any software required to operate the USB device(s).
    2. Refer to the documentation for the USB device(s), as required.
    3. Connect the USB device to the device port on the remote extender.

    Specifications

    Range330 feet (100 meters) over solid core Cat 5e STP (or better) cable. Solid core Cat 6 STP recommended for best performance.
    Video Resolution & Depth1900 x 1200, 24-bit colour depth
    LatencyLess than 1ms
    USB Device Support & ThroughputsHigh-Speed devices (USB 2.0) – up to 30Mbps
    Full-Speed devices (USB 2.0 & 1.1) – up to 12Mbps
    Low-Speed devices (USB 2.0 & 1.1) – up to 1.5Mbps
    USB Hub SupportAny single chain can include up to 4 USB hubs
    USB Host SupportEHCI (USB 2.0) and OHCI/UHCI (USB 1.1)
    AC AdaptersInput: 100-240 V AC, 50 – 60 Hz  |  Output: 5V DC, 3A (15 W)
    Power Available to USB Device at REX500 mA each port
    Maximum USB Devices Supported13 USB devices
    Enclosure MaterialBlack anodised aluminium
    Enclosure Dimensions112 mm x 175 mm x 30 mm (4.4” x 6.9” x 1.18”)
    LOCAL EXTENDER
    Video Connector1 x DVI-D In (24-pin connector)
    USB Connector1 x USB Type B Receptacle
    Link Connector1 x RJ45
    REMOTE EXTENDER
    Video Connector1 x DVI-D Out (24-pin connector)
    Link Connector1 x RJ45
    USB Connector3 x USB Type A Receptacles
    ENVIRONMENTAL
    Operating Temperature Range0°C to 40°C (32°F to 104°F)
    Storage Temperature Range-20°C to 70°C (-4°F to 158°F)
    Operating Humidity20% to 80% relative humidity, non-condensing
    Storage Humidity10% to 90% relative humidity, non-condensing
    COMPLIANCE
    EmissionsFCC Part 15 Class A, CE Class A, ICES-003 Class A
    ImmunityCE EN 55024
    EnvironmentalRoHS2 (CE)
    USB Cables

    USB cables have two distinct connectors. The Type A connector is used to connect the cable from a USB device to the Type A port on a computer or hub. The Type B connector is used to attach the USB cable to a USB device.

    RJ45

    The Registered Jack (RJ) physical interface is what the Icron VU5100 DVI + USB 2.0 Extender System connects the network cabling (Cat 5) to the Local Extender Unit and Remote Extender Unit. You may Icron VU5100 DVI + USB 2.0 Extender System use either the T568A scheme (Table 1) or the T568B scheme (Table 2) for cable termination, as the extender uses all four pairs of the cable.

    RJ45 Pin Positioning

    Troubleshooting

    PROBLEMCAUSESOLUTION
    All LEDs on the local extender are off.The local extender is not receiving power from the power adapter.Ensure that the power adapter is properly connected to the local extender.



    All LEDs on the remote extender are off.The remote extender is not receiving power from the power adapter.Ensure that the power adapter is properly connected to the remote extender.
    Link LEDs on the local extender and the remote extender are off.There is no connection between the local and remote extenders.Connect a short Cat 5e patch cord between the local and remote extenders to determine if the original Cat 5e cable is defective.

    Ensure the Cat 5e cable is as straight as possible (i.e. not coiled).

    Warranty Information

    Limited Hardware Warranty

    Icron, an Analog Devices brand, warrants that any hardware Icron Raven 3301-ECO Extender System products accompanying this documentation shall be free from significant defects in material and workmanship for a period of two years from the date of purchase. Icron’s hardware warranty extends to Licensee, its customers, and end users. The Warranty does not include repair of failures caused by misuse, neglect, accident, modification, operation outside a normal operating environment, failure caused by service of the device by non-authorised servicers, or a product for which Icron is not responsible. Opening the enclosures will  Icron Raven 3301-ECO Extender Systemvoid the warranty.

    Limitation of Liability

    The hardware warranty outlined in this agreement replaces all other warranties. Icron expressly disclaims all other merchantability and fitness for a particular purpose and noninfringement of third-party rights with respect to the hardware. In no case shall Icron, its suppliers, or licensors’ liability exceed the actual money paid for the products at issue.

    Since some jurisdictions do not allow the limitation of implied warranties of liability for incidental, consequential, special, or indirect damages, the above limitation may not always apply. The above limitations will not apply in case of personal injury, where and to the extent that applicable law requires such liability.

    Contacting Technical Support

    • Description of the problem
    • Part number and serial numbers for both LEX and REX units
    • Host computer(s) make and model
    • Type of Operating System installed (e.g., Windows 10, macOS 11.1, etc.)
    • Make and model of any USB device(s) attached to this extension system
    • Description of the installation, such as host computer model, transmission media used, and information about the USB device(s)

    Product Return Shipping Instructions

    Package your product appropriately for safe shipment and mark the RMA number on the outside of the package. We recommend that you ensure your shipment or your shipping method provides package tracking.

    Address to Return Product

    RMA Coordinator Icron | An Analog Devices Brand 4664 Lougheed Hwy., Suite 221 Burnaby, BC, V5C 5T5, Canada

    Technical Glossary

    Category 5e (CAT 5e) Network Cabling

    This cabling is available in either solid or stranded twisted pair copper wire variants and as UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair). STP cables include shielding of the copper wires and provide better protection against EMI

    Customer Service

    • Address: Icron | An Analog Devices Brand 4664 Lougheed Hwy., Suite 221 Burnaby, BC, V5C 5T5, Canada
    • Ph: +1 604 638 3920
    • Website: icron.com

    FAQs

    Q: What is the purpose of the Icron RV2850 USB 1.1 Extender?

    With the RV2850, you can use a Cat5e/6 Ethernet cable to expand USB 1.1 devices up to 50 meters beyond the typical 5-meter USB cable restriction. Keyboards, mice, printers, scanners, cameras, and other USB 1.1 devices are all perfect for it.

    Q: Can I use USB 2.0 or 3.0 devices with this extender?

    Only USB 1.1 is supported by the RV2850. High-speed capabilities like HD video streaming and quick data transfer won’t work with USB 2.0 or 3.0 devices, even though they might operate at 1.1 speeds.

    Q: What type of Ethernet cable should I use?

    For dependable performance, use a straight-through Cat5e or Cat6 cable.

    Q: Do I need any software or drivers to use the extender?

    The RV2850 is a plug-and-play device. The majority of operating systems will automatically identify USB devices that are connected. Make sure your host computer has the USB device drivers installed.

    Q: Can I power the extender through USB alone?

    Use the accompanying external power adapters for dependable operation, particularly for higher-powered peripherals, even though some low-power devices might function with USB alone.

    Q: Can multiple USB devices be connected to one RV2850?

    It is possible to connect several devices to the Remote Unit by connecting a USB hub to it. All devices share the entire bandwidth; nevertheless, high-speed gadgets might perform worse.

    Q: Is the system compatible with Macs and PCs?

    Indeed. For common USB 1.1 devices, the RV2850 is OS-independent. It is compatible with Linux, macOS, and Windows computers that have USB 1.1 peripheral capability.
