K-Mart BTC015 Multimedia Bluetooth Car Kit
Before Use
Bluetooth wireless communication technology
- Bluetooth is a standard of close-range wireless technology that was developed by Ericsson, IBM, Intel, Nokia, and Toshiba.
- With Bluetooth technology, we can achieve the highest transmission rate among mobile phones, computers, printers, PDA, and other devices.
- The max transmission range of class II is 10 meters, while the max transmission range of class I can reach up to 100 meters.
About BTC015
- BTC015 is a Bluetooth hands-free car kit. It supports the following Bluetooth profiles: HFP, HSP, A2DP, and AVRCP.
- Connect BTC015 to the AUX in of the car audio system, and now you can make a call or play music. The hands-free car kit has the following features:
- Answer a call, end a call, and reject a call
- Redial last number
- Voice dial (This function needs to be supported by your cell phone)
- Call transfer between BTC015 and your cell phone
- Microphone mute
- Music pause/play

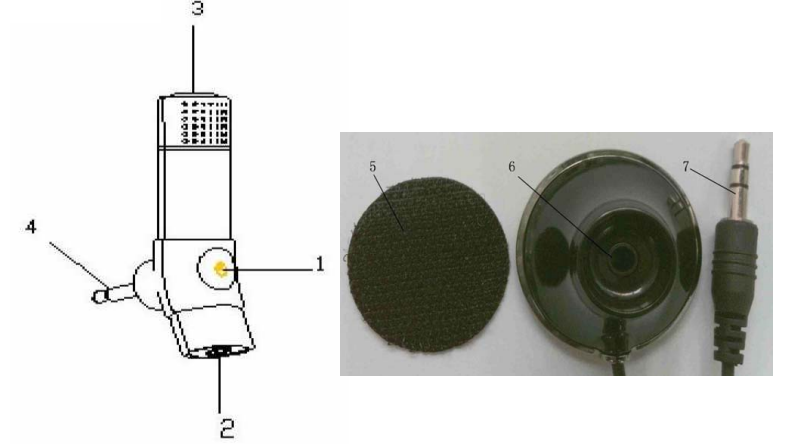

Part Description
| 1 | Multi-function Button (MFB): Power on/power off/pair/end a call/cancel calling/answer a call/microphone mute/call transfer/redial last number/music play/music pause |
| 2 | 3.5mm Line-in jack/charging socket |
| 3 | Built-in microphone |
| 4 | 3.5mm audio out plug |
| 5 | Velcro |
| 6 | 3.5mm Line-in jack |
| 7 | 3.5mm audio out plug |
Charging the battery of BTC015
- BTC015 comes with a built-in rechargeable battery. Prior to using it, it is recommended to charge the battery fully for the first time.
- Connect the charger to a standard power outlet and the charger plug to the charging socket of BTC015.
- The red LED is on while charging. It takes about 1.5 hours to charge the battery fully. When charging is completed, the red LED is off.
- When BTC015 is on and the battery becomes low, the red LED flashes once every 30 seconds, and BTC015 emits three “DU” tones every 30 seconds. Please recharge the battery fully as described above.
Getting started
Turning on/off BTC015
| Function | Operation | LED indicator |
| Power on | Press and hold the MFB button for about 3～5 seconds until you hear the indication tone | Blue LED flashes 5 times |
| Power off | Press and hold the MFB button for about 3～5 seconds until you hear the indication tone | Red LED flashes 5 times |
| Entering pairing mode | Make sure BTC015 is off, and then press and hold the MFB button for 4～5 seconds until the red and blue LEDs flash alternately. | Red and blue LEDs flash alternately.y |
Pairing BTC015 with a Bluetooth cell phone
Specific K-Mart BTC015 Multimedia Bluetooth Car Kit pairing steps may vary with different models of cell phones. Please refer to your cell phone’s user manual for further information. The general pairing steps are as follows:
- Keep BTC015 and the Bluetooth cell phone within 1 meter when pairing.
- Enter BTC015’s pairing mode (please refer to “Turning on/off BTC015).
- Activate your cell phone’s Bluetooth function and set your cell phone to search for Bluetooth devices within range, and select “BTC015” from the list of devices shown.
- According to the indication, enter password or PIN No.: “0000”;
- If prompted by your cell phone to connect, select “Yes” (This will vary among cell phone models).
- After a successful connection, the blue LED will flash twice every 5 seconds. Remarks:
- If pairing fails, please turn off BTC015 first and then try K-Mart BTC015 Multimedia Bluetooth Car Kit re-pairing according to steps 1-6 mentioned above.
- If you want to pair it with other devices, please turn off the Bluetooth function of the current Bluetooth device paired with BTC015 first, and then pair BTC015 with a new device according to steps 1～6 mentioned above.
Installation
In-car usage

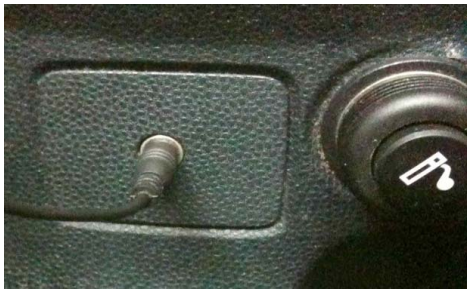

Please insert he 3.5 mm audio out plug into the AUX in jack of the car audio system, and then fix the 3.5mm audio dock well. Make sure there are no barriers between the user and BTC015 to get the best conversation quality. The installation steps are as follows:
- Insert the 3.5mm audio out plug into the AUX in jack.
- Please find the best location in the car K-Mart BTC015 Multimedia Bluetooth Car Kit to K-Mart BTC015 Multimedia Bluetooth Car Kit, place the velcro, and clean the position.

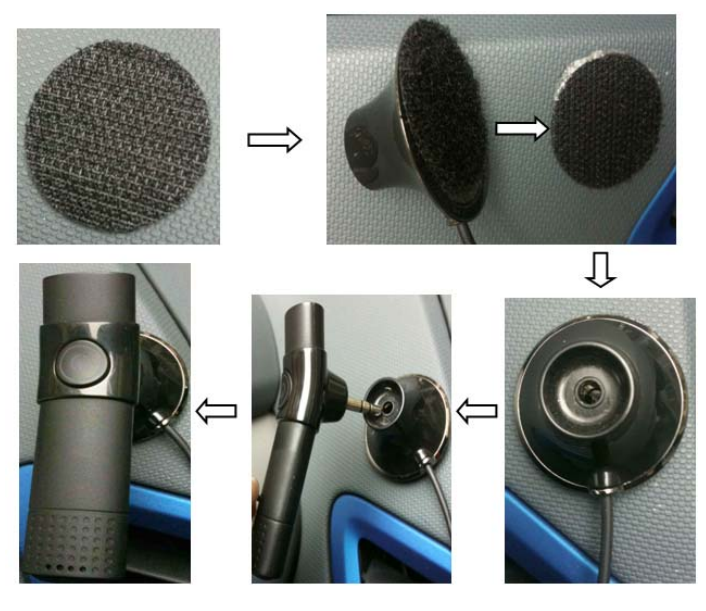

- Remove the protective strip and carefully fix the velcro to the position selected. Please refer to the following pictures:
Office or home usage
- When you use BTC015 at home or in your office, you can connect BTC015 to any home audio system with a 3.5mm AUX-in jack.
Playback Music
BTC015 can not only connect to Bluetooth devices to play music, but also connect to other music players through the 3.5mm Line-in jack of BTC015 to play music.
- Connecting to a Bluetooth device
- Adjust the audio input of the car audio system to AUX.
- Connect BTC015 to a Bluetooth cell phone and play music on the phone; at this time, you can listen to music from the car audio system.
- Pause/play: Short-press press MFB button once; the music will pause. Press the MFB button once again, and the music will play.
- Connecting to other music players through the 3.5mm Line-in jack
- Adjust the audio input of the car audio system to AUX.
- Connect the music player to the K-Mart BTC015 Multimedia Bluetooth Car Kit BTC015 by using a 3.5mm to 3.5mm audio cable and play music on the music player. At this time, you can listen to music from the car audio system.
Making a call with BTC015
| Basic Operation | ||
| Function | Status of BTC015 | Operation |
| Cancel calling | Calling | Short-press press MFB button once |
| Answer a call | Incoming ring | Short-press press MFB button once |
| Function | Status of BTC015 | Operation |
| Reject a call | Incoming ring | Press and hold the MFB button for about 2 seconds |
| End a call | During a call | Short-press-press MFB button once |
| Microphone mute | During a call | Double-click the MFB button |
| Cancel mute | During a call (Microphone mute) | Double-click the MFB button |
| Call transfer (BTC015 to cell phone) | During a call | Press and hold the MFB button for about 2 seconds, and release it until you hear the indication tone |
| Call transfer
(cell phone to BTC015) |
During a call | Press and hold the MFB button for about 2 seconds, and release it until you hear the indication tone |
| Redial last number | Connected to a device | Double-click the MFB button |
| Voice dial | Connected to a device | Press and hold the MFB button for about 2 seconds |
| Three-way call | ||
| Function | Status of BTC015 | Operation |
| Incoming ring | During a call and there is another incoming call | “DU-DU” tones |
| End the current call and answer a new incoming call | During a call and there is another incoming call | Short-press press MFB button twice |
| Keep the current call and answer a new incoming call | During a call and there is another incoming call | Short-press press MFB button once |
| Call transfer between two calls | During a call（keep another call） | Short-press press MFB button once |
| End the current call and switch to the call to be kept | During a call（keep another call） | Short-press press MFB button twice |
Re-connecting with a Bluetooth device
Automatic connecting
- Every time BTC015 is turned on, it will connect to the last connected device automatically.
Manual connecting
- When BTC015 gets disconnected from the K-Mart BTC015 Multimedia Bluetooth Car Kit the Bluetooth device, short-press press MFB button once, and it will connect to the last connected device again.
Automatic turning off
- BTC015 will turn off automatically in order to save power if no devices can be connected within 5 minutes.
LED Indicator
When BTC015 is charging
| LED indicator | Status of BTC015 |
| Red LED is on | Charging in progress |
| Red LED is off | Charging finished |
When BTC015 is connected to a Bluetooth device
| LED indicator | Status of BTC015 |
| Red and blue LEDs flash alternately | Pairing mode |
| Blue LED flashes once every 2 seconds | Standby mode(not connected to a device) |
| Blue LED flashes twice every 5 seconds | Connected to a device |
| Blue LED flashes three times every 5 seconds | Connected to an A2DP device |
| Blue LED flashes quickly | Calling/incoming call |
| Blue LED flashes once every 4 seconds | During a call |
| Blue LED flashes once every 5 seconds | Microphone mute |
| Red LED flashes once every 30 seconds | Low power |
Indication tone
| Indication tone | Status of BTC015 |
| Emits two “DU” tones every 8 seconds | During a call
(microphone mute) |
| Emits three “DU” tones every 30 seconds | Low power |
Care and maintenance
Read the following recommendations before using BTC015. Following these, you will be able to enjoy our product for many years.
- Keep the product away from direct sunlight or hot places. Temperature shortens the life of electronic devices, destroys the battery, and distorts certain plastic parts.
- Don’t expose the product to cold areas, as it may damage the internal circuit board.
- Don’t let the product fall onto the floor or other hard surfaces.
- Don’t use intensive chemical products, K-Mart BTC015 Multimedia Bluetooth Car Kit, or detergents to clean the product.
- Don’t scratch the surface with sharp things.
Specifications
| Bluetooth specification | Bluetooth V2.1+EDR |
| Bluetooth profiles | HSP, HFP, A2D,P and AVRCP |
| Bluetooth frequency range | 2.402GHz～2.480GHz |
| Operating distance | 10 meters Class II |
| Working time | Up to 6 hours |
| Standby time | 84 hours |
| Charging input | DC 5V 120mA |
| Charging time | About 1.5 hours |
| Dimensions | Main Unit: 66(L)×19.47(W) ×19.7(H)mm Audio Dock: 20.5(Diameter)×34(Height)mm |
| Weight | Main Unit: 11.7g
Audio Dock: 17.4g |
FCC Statements
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used following the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including
Interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Customer Support
- 86-0760-88320910
- E Bldg., Fuwan Ind.Zone, Fuwan Nan Rd. , Zhongshan, China, Jining, Shandong, China
- https://kmate8.goldsupplier.com/
