K-Mate BTR016 Bluetooth Stereo Receiver Instruction Manual

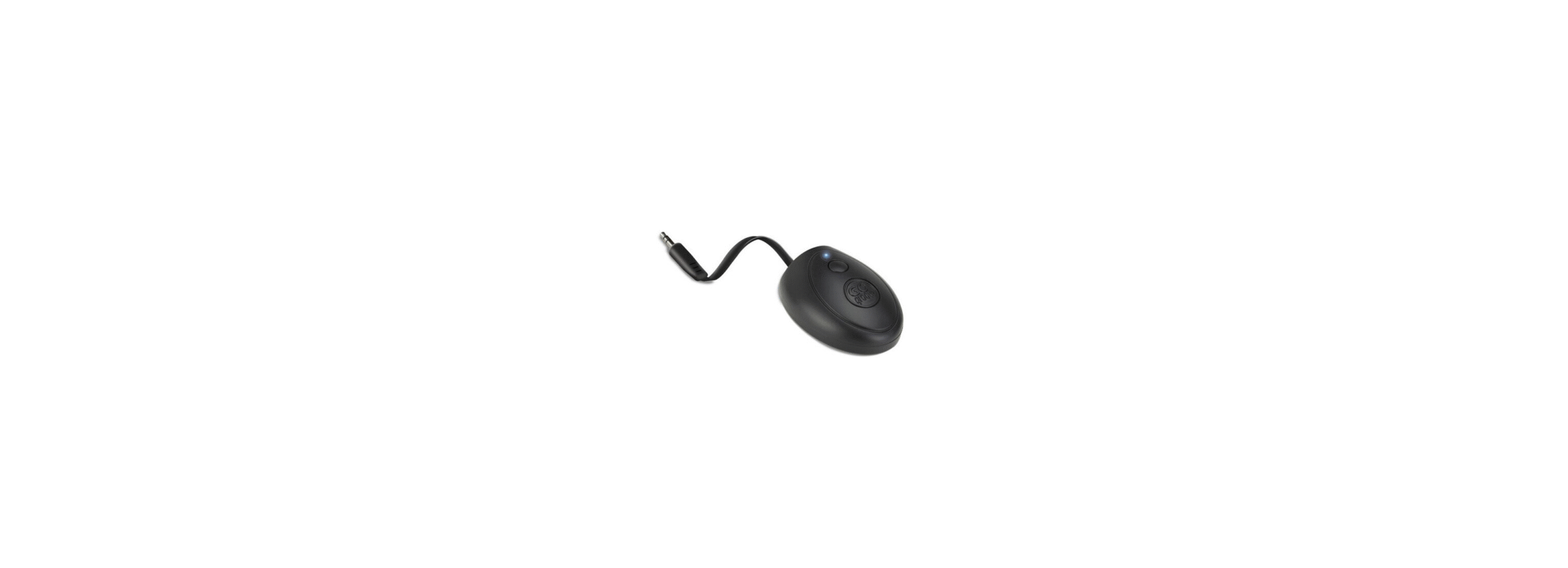

K-Mate BTR016 Bluetooth Stereo Receiver

Before use

About BTR016

• BTR016 is a stereo Bluetooth receiver. You can use a common audio device with a 3.5mm audio-in jack for playing any stereo Bluetooth-enabled device’s music after plugging in BTR016.
• The product comes with a built-in rechargeable battery; it can be used for about 15 hours after being fully charged.

System requirements

• Audio device with a 3.5mm audio input jack, such as speakers, radios, etc.
• Bluetooth transmitter supporting A2DP profile, such as Bluetooth mobile phones, Bluetooth MP3, etc.

Part Description

Getting started

Charging

First time charging

• Please charge the battery fully before first using the receiver.

Low battery

When you see the red LED flash once every 20 seconds and hear three Tones during use, the battery is low power and needs to be charged.

1. Plug the USB cable into the USB jack of the PC or charger
2. Plug the other end of the USB cable into the charging jack of the receiver
3. 3. It will take about 3 hours to finish charging
4. If the receiver can’t be turned off, you can charge it to turn it off.

Turning on/off the receiver

How to Enter Pairing Mode

Pairing with Bluetooth devices

Pairing with a Bluetooth mobile phone

Ensure your mobile phone supports the A2DP profile. The pairing procedures will vary depending on different models of mobile phones. Please  K-Mate BTR016 Bluetooth Stereo Receiver refer to your mobile phone user’s manual for further information. The general pairing procedures are as follows:

1. Place the receiver and Bluetooth mobile phone where they are easily viewable by no more than 1 meter.
2. Make the receiver enter pairing mode (please refer to “How to enter pairing mode);
3. Activate your mobile phone’s Bluetooth function and set your mobile phone to search for Bluetooth devices within range, and select “BTR016” from the list of devices shown.
4. According to the indication, enter password or PIN No: “0000”;
5. If prompted by your mobile phone to connect, select “Yes” (This will vary among mobile phone models).
6. After a successful connection, the blue LED of the receiver flashes twice quickly every 4 seconds.

Pairing with a Bluetooth transmitter

You can connect the receiver with a K-Mate BTR016 Bluetooth Stereo Receiver Bluetooth transmitter to enjoy music wirelessly. Hereby take BTT023 (Bluetooth transmitter, not included in accessories) for example.

The pairing procedures are as follows.

1. Keep your receiver and transmitter within 1 meter when pairing.
2. Make the receiver enter pairing mode (Please refer to “How to enter pairing mode).
3. Turn on the Bluetooth transmitter and make it enter pairing mode. It will search for Bluetooth devices automatically and send a pairing request.
4. When the receiver requests to enter a PIN No., the transmitter will respond “0000” automatically;
5. After successful pairing and connecting, the blue LED of the receiver flashes twice every 4 seconds.

Playing Music

After BTR016 connects with a Bluetooth device, and plugs the 3.5mm audio cable of BTR016 into a Bluetooth audio device, such as a Bluetooth speaker. Now you can listen to music wirelessly.

LED Indicator

Care and Maintenance

Read the following recommendations before using the receiver. Following these, you will be able to enjoy the product for many years.

• Do not expose the receiver to liquid, moisture, or humidity to avoid the product’s internal circuit being affected.
• Don’t use abrasive cleaning solvents to clean the receiver.
• Do not expose the receiver to extremely high or low temperatures, as this will shorten the life of electronic devices, destroy the battery ,or distort certain plastic parts.
• Don’t dispose of the receiver in a fi, re as it will result in an explosion.
• Don’t bring the receiver into contact with sharp objects, as this will cause scratches and damage.
• Don’t let the receiver fall onto the floor. The internal circuit might get damaged.
• Don’t attempt to disassemble the receiver, as it may get damaged if you are not a professional.
• If you do not plan to use the receiver for a long time, please store it in a dry place that is free from extreme temperatures and dust.

What to do when BTR016 can’t be turned on?

• Please charge the BTR016.
• What to do when BTR016 can’t pair and connect to a Bluetooth device? Make sure the Bluetooth device is placed within 1 meter. Ensure BTR016 has entered pairing mode.

What to do when BTR016 can’t be turned off?

• Please charge the BTR016 for about 2 seconds.

Specifications

• Bluetooth version Bluetooth V2.1+EDR
• Bluetooth profiles A2DP and AVRCP
• Bluetooth frequency range 2.402GHz-2.480GHz
• Operating distance 10 meters
• Charging input voltage DC 5V
• Working time: A bout 15 hours
• Charging time: About 3hours
• Dimensions 42×34.5x16mm
• Weight 16.3g

FCC Statements

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used following the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
   Interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Customer Support

• Telephone: 86-0760-88320910
• Address: E Bldg., Fuwan Ind.Zone, Fuwan Nan Rd. , Zhongshan, China, Jining, Shandong, China
• Website: https://kmate8.goldsupplier.com/

FAQs

Q: What is the K-Mate BTR016 Bluetooth Stereo Receiver used for?
Ans: The BTR016 is a Bluetooth receiver that enables wireless audio transmission from Bluetooth-enabled devices, such as laptops, tablets, and smartphones, to non-Bluetooth audio systems, such as house speakers, car stereos, or amplifiers.

Q: Does the BTR016 support hands-free calling?
Ans: Indeed. When linked to your phone, the BTR016’s integrated microphone enables hands-free call taking. The multi-function button can be used to end or answer calls.

Q: Can I use the BTR016 in my car?
Ans: Of course. It’s ideal for equipping vehicles with a 3.5mm AUX
input with Bluetooth connectivity. Voice assistants, hands-free calls, and music streaming are all possible while operating a motor vehicle.

Q: Can I use the BTR016 while it’s charging?
Ans: It is possible to use the receiver while it is charging, which is particularly helpful for vehicles or home audio systems that require constant power.

Q: Does it support auto-reconnect?
Ans: Indeed. If Bluetooth is enabled on your phone or device, the BTR016 will immediately reconnect to the last associated device when it is turned on.

Q: Can I connect two phones at once?
Ans: No, one device at a time is normally supported by the BTR016. Before attaching another device, you must disconnect the first one.

Q: What is the Bluetooth range?
Ans: In open space, the usual range is up to 10 meters (33 ft). This range can be decreased by walls, metal objects, or interference from other devices.
