Rowenta DG5030 Pro Iron Steam Iron Station
Safety Instructions
Safety Instructions- Please read these instructions carefully before first use.
- This product has been designed for domestic use only.
- For your safety, this appliance conforms to the applicable standards and regulations (Low Voltage,
- Electromagnetic Compatibility, Environmental Directives, as applicable.
- Your steam station is an electrical appliance.
- It should be used under normal conditions. It is intended for domestic use only.
- Always plug your steam station into:- an electrical installation with a voltage of 120V.
- If you are using a mains extension lead, ensure that it is correctly rated (15A) and is fully extended.
- Completely unwind the power cord from its storage space before connecting to the supply.
- Do not unplug the appliance by pulling on the cord. Always unplug your appliance:- before rinsing out the boiler or before filling the water tank,- before cleaning your steam station,- after each use.
- The appliance must be used and placed on a flat, stable, heat-resistant surface.
- When you place the iron on the iron rest, make sure that the surface on which you place it is stable.
- Children should be supervised to ensure that they do not play with the appliance.
- Never attempt to unscrew the boiler cap while the appliance is in use.
- The strong steam pressure could result in burns.
- Only unscrew the cap when the steam station is cold or there is no more pressure in the boiler.
- Before raising the boiler, wait until the steam station is cold (unplugged for more than 2 hours).
- While rinsing out the boiler, never fill it directly under the tap.
- If you lose or damage the boiler cap, have it replaced by an approved Service Centre.
- Never immerse your steam station in water or any other liquid. Never hold it under the water tap.

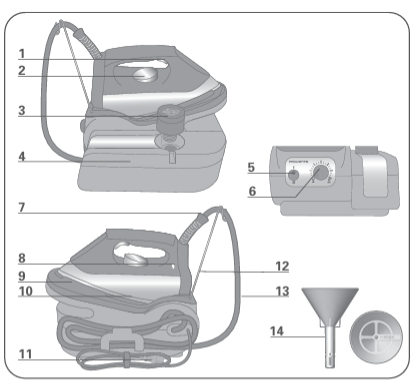

Description
- Steam trigger
- Temperature control dial
- Boiler cap
- boiler unit/water tank
- On/Off switch
- Steam output control dial (depending on model)
- Connection cord
- Temperature indicator light
- Iron rest
- Stainless steel soleplate
- Power cord
- Steam hose guide (depending on model)
- Steam hose
- Water funnel
Before First Use
Please read all of the instructions for use and the Important Safeguards carefully. Remove all packaging from the steam station. It is normal for a small amount of smoke and a light odor to be produced the first time it is used. This will quickly disappear.
Tap Water
Rowenta irons are designed to be used with REGULAR TAP WATER (up to 12 grains of hardness). If your water is harder than this, Rowenta recommends mixing half tap water with half distilled water, which reduces the hardness, or just use inexpensive bottled spring water. Never use 100% distilled water, as this can cause the iron to spit and leak.
Softened Water
There are many types of household water softeners, and the water from many of them is perfectly acceptable for use in the steam station. However, some types of softeners, particularly those that use chemicals such as salt, can cause the appliance to leak or spit during use. If you experience this type of problem, we recommend that you try using inexpensive bottled spring water or untreated tap water.
Once you have changed the water, it will take several uses to correct the problem. Rowenta recommends trying the steam function for the first time on an old towel or cloth that can be discarded to avoid damaging your clothes..
Iron and other impurities
If your water supply contains large amounts of iron or organic matter, these minerals can collect inside the appliance and eventually appear as brown stains. If you experience these problems, Rowenta recommends using inexpensive bottled spring water. Never use 100% pure distilled water.
Use
Turning on and off
Plug the steam station into a 120-volt electric outlet
Press the on/off switch (B), the iron light and steam indicator light will turn on. When the steam indicator light turns off (approximately 11 minutes), the steam is ready. During ironing, the temperature indicator light for the iron and the steam indicator light will turn on and off.
This is normal as the temperature is being regulated. The unit is still on when these lights go out. To turn the unit off, press the switches. In the opposite direction so that the side without the light is depressed. Unplug and leave to cool completely before emptying or putting away. Set the temperature control dial on the iron to the minimum setting before unplugging.

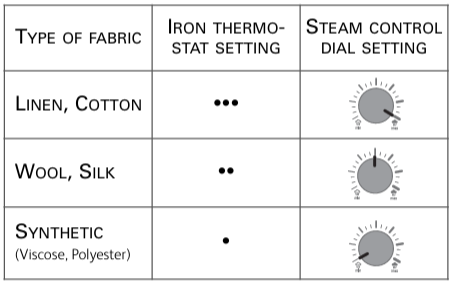

Steam Ironing
Never iron or steam clothes while they are
being worn.
The appliance allows steam output to be adjusted (depending on the model).
- Setting on the iron: the steam control dial should be set to min.
- Setting on the iron: the steam control should be set at the mid level.
- Setting the iron, the steam control dial can be set to the maximum.
Dry Ironing
This appliance can be used for dry ironing if the steam trigger is not pressed and the steam control dial is set minimummin.
Set the iron’s on/off switch to the on position.
Vertical Steam
- To remove wrinkles in cotton or linen, the soleplate can come into contact with the fabric for optimal results.
- For synthetic fabrics, a distance of 4 inches is recommended to avoid damage to the garment.
- For delicate fabrics, we recommend carrying out a test on an unobtrusive part of the garment (inner seam).
- Fill the iron according to the “Filling the boiler” section of the instructions.
- Press the on/off switch, the iron light, and the steam indicator light will turn on.
- When the steam indicator light turns off (approximately 11 minutes), the steam is ready.
- Hang the garment on a coat hanger and hold the fabric from the bottom of the garment slightly taut with one hand.
Filling the boiler while in use
Before opening the boiler, ensure that there is no steam inside. To do this, press the steam button and keep it pressed until there is no more steam. Turn the unit off (see section “Turning On and Off”) and unplug it from the outlet. Slowly unscrew the boiler cap.
To prevent overflow during filling, use the water funnel provided in the packaging. Fill slowly with water until the red ball reaches the « max » level. Do not fill the water tank past the base of the boiler cap thread. Be sure that water does not spill over. If this occurs, remove the excess water.
Replace the boiler cap and screw it on tightly, but be careful not to over-tighten. Over-tightening can damage the green O-ring. Plug back into to electrical outlet.
After Ironing
Turn the unit off. (Consult section “Turning On and Off”). Unplug the appliance. Place the iron on the iron rest and allow it to cool completely, which will take approximately 1 hour. Once cold, empty the water from the appliance before storing. We recommend emptying the boiler when not in use.
Maintainace & Cleaning
Before cleaning, ensure that the appliance is unplugged and completely cooled down. The iron
can be cleaned with a damp cloth and wiped dry. Never use household cleaners, descalers, or solvents.
Cleaning the soleplate
In normal use, a draggy coating may build up on the soleplate (starch, detergent buildup, burnt synthetic fibers). This can be easily removed by using the Rowenta DG5030 Pro Iron Steam Iron Station Rowenta Soleplate Cleaning Kit or a quality hot iron soleplate cleaner available at most stores.
To prevent scratching the soleplate, do not iron over sharp objects (zippers, etc.). Do not place the iron on rough surfaces, e.g., metal iron support, which may scratch the soleplate. Always put the iron with the soleplate down on the ironing surface; never place it on its heel.
Rinsing out the boiler
Do not use descaling agents. To ensure optimum steam performance, the boiler must be rinsed out after every 10 uses. If your tap water is hard, increase the frequency. Check that the steam station is unplugged and cold.
Fill the boiler 3/4 full with tap water. Shake the boiler for a few moments and then empty it over a sink (D). Repeat the process. Wipe the steam station base regularly with a damp cloth and wipe dry. Never hold the steam station under the tap.
Boiler Ca: To ensure a proper seal, please check the green rubber ring in the safety cap for wear and tear regularly. If wear is noted, replace the ring. Replacement rings are available through our main service centers.

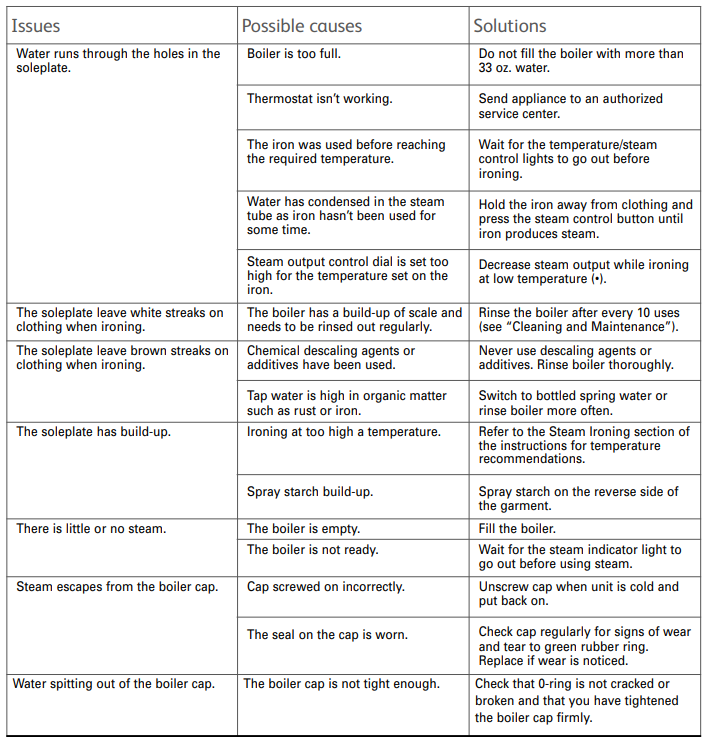

Troubleshooting
Customer Service
- Website: https://www.rowenta.ca/
- Mailing address: 36 Newmill Gate, Unit 2, Toronto, ON, Canada M1V 0E2
- Phone number: 1-800-418-3325
- Hours of service: Monday to Friday, 8:30 to 5 pm EST
FAQs
Q: What is the Rowenta DG5030 Pro Steam Iron Station?
A professional-grade steam iron station, the DG5030 continuously produces high-pressure steam to effectively remove wrinkles and iron all kinds of fabrics with accuracy.
Q: Can I use tap water in the DG5030?
Yes, although in locations with hard water, it is advised to use distilled water to avoid limescale buildup and extend the unit’s lifespan.
Q: How long does it take to heat up?
Depending on the water level and the steam settings chosen, the station usually heats up in three to five minutes. When it’s ready to use, the ready light will turn on.
Q: Can I use the iron for vertical steaming?
Indeed. The DG5030 is perfect for hanging curtains, upholstery, or clothes because it can steam vertically.
Q: Can the DG5030 handle delicate fabrics like silk?
Indeed. Choose a steam setting and a low temperature. To prevent burning or leaving water stains, move the iron slowly.
Q: How do I refill the water tank during use?
Unplug the station and switch off the iron. Before refilling, let it cool a little. Before using the tank again, make sure it is securely closed.
Q: Does the DG5030 have an automatic shut-off feature?
Indeed. To improve safety and save energy, the iron will automatically turn off after a few minutes of inactivity.
Q: Is it safe to use around children?
Yes, under supervision. To prevent burns, handle the steam and iron soleplate with caution because they are quite hot.
