Rowento DV86XX 2 in 1 STEAM N PRESS Instructions Guide

Rowento DV86XX 2 in 1 STEAM N PRESS

Safety Instructions

1. This product has been designed for domestic and indoor use only.
2. To protect against the risk of electric shock, do not immerse the appliance in water or other liquids.
3. Do not direct steam at people, animals, or ironed clothes while they are being worn.
4. Do not operate the appliance with a damaged cord or if the appliance has been dropped or damaged.
5. Do not leave the appliance unattended while plugged in or while it is still hot.
6. Close supervision is necessary for any appliance being used by or near children.
7. Burns could occur from touching hot metal parts, hot water, or steam.
8. Use care when you empty a steam appliance. There may be hot water in the reservoir.
9. Care should be taken when using the appliance due to the emission of steam.
10. A cord rated for less amperage can result in a risk of fire or shock due to overheating.
11. Care shall be taken to arrange the cord so that it cannot be pulled or tripped over.
12. The plug must be removed from the socket outlet before the water tank is filled with water.
13. Do not allow the cord to touch hot surfaces. Let the Appliance cool completely before putting it away.
14. Loop the cord loosely around the appliance when storing.
15. The iron must be used and rested on a stable surface.
16. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

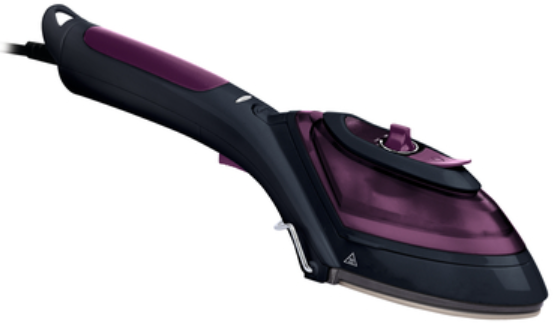

Description

1. Water tank cover
2. Temperature control
3. Removable water tank
4. Water tank release button
5. Temperature-ready light
6. Cord protector
7. Beaker
8. Steam burst trigger
9. Iron rest support
10. Lint pad
11. Fabric brush accessory
12. Storage

Before First Use

Please read the instructions for use and important safeguards carefully.

• Remove any packaging from the appliance.
• Do not plug in or turn on until assembly is complete.
• It is normal for a small amount of smoke to be produced the first time the appliance is used.
• This will quickly disappear.
• This product is tested with water; some residual water may still be in the water tank.

Filling with Water

• Your steam brush has been designed to operate using untreated tap water.
• If your water is very hard (check with your local water authority),
• it is possible to mix tap water with store-bought distilled or demineralised water in the following proportions
  • 50% untreated tap water,
  • 50% distilled or demineralised water.

• Remove the water tank by pressing the button and lifting the water tank (Fig.1).
• Remove the water inlet cover.
• Fill the water tank to the top with water until the Max mark in Figure 2 and close it securely.
• Make sure that the cover is properly pushed in place – Fig. 3.
• Completely unwind the power cord. Plug in your steam brush.

Using the Device

During use or while the unit is heating or cooling, do not rest the appliance on its sole plate. Place the product on its iron rest support (- fig. 4 )  on heat heat-resistant, flat surface, as the sole plate will be hot. As the appliance heats, the housing becomes warm. This is normal.

• Once the appliance is plugged in, the light is on. Set the thermostat control dial to the desired setting – Fig. 4a.
• After the light turns off, you can begin to use the appliance as it has reached the appropriate temperature.
• To begin steaming, press the steam button with the appliance facing away from you, holding it in a vertical position – fig.7. Press with successive pressure.
• The sole plate of the 2-in-1 Steam’n Press will smooth out tough wrinkles from clothes and press in sharp creases and pleats.

Starting Up

When the 2-1 Steam ‘n Press is plugged in, the sole plate heats. Do not touch or remove the sole plate cover accessory without letting the sole plate cool down.•

Plug in the appliance, place it on the iron rest support, and wait approximately one minute
for it to reach full temperature before using. The temperature light will turn off.

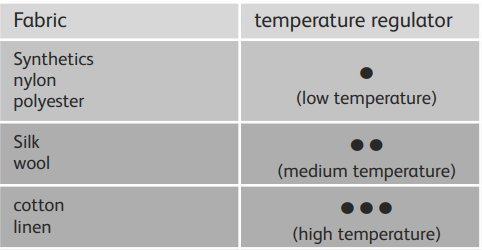

Selecting the Temperature

Set the thermostat control dial according to the type of fabric you are ironing. Check the fabric label for the appropriate setting. (Fig.5)

Start at low temperature • and graduate to high Rowento DV86XX 2 in 1 STEAM N PRESS temperature •••. For delicate fabrics, we recommend carrying out a test on a non-visible part of the garment (inner seam). Steam can only be produced when the thermostat is aligned to ••• setting or more. As the appliance is very hot, never attempt to remove creases from a garment while it is being worn.

Steaming Clothes

Before removing or attaching the accessory, unplug your appliance and let it cool down for one hour. The 2 1 Steam’n Press is equipped with a fabric brush accessory.

• To insert the accessory and slide forward until it locks into place. (Fig.6)•
• You can use the appliance with or without the accessory. (Figs 5 to 8)
• Hang the creased garment on a clothes hanger.
• Pull the garment tight with one hand far from the steaming area and place the appliance on the creased area, beginning at the top of the garment.
• For steam, apply pressure on the steam trigger. – Fig. 8.
• The combination of steam and a fabric brush will gently remove the creases.
• After treatment, let the garment cool down on the hanger before wearing.

After Use

• Unplug the appliance. Empty the water remaining in the tank and leave the unit on its side to cool. After the appliance has cooled down (minimum one hour), it may be stored in the bag provided or hung by the rear hook.

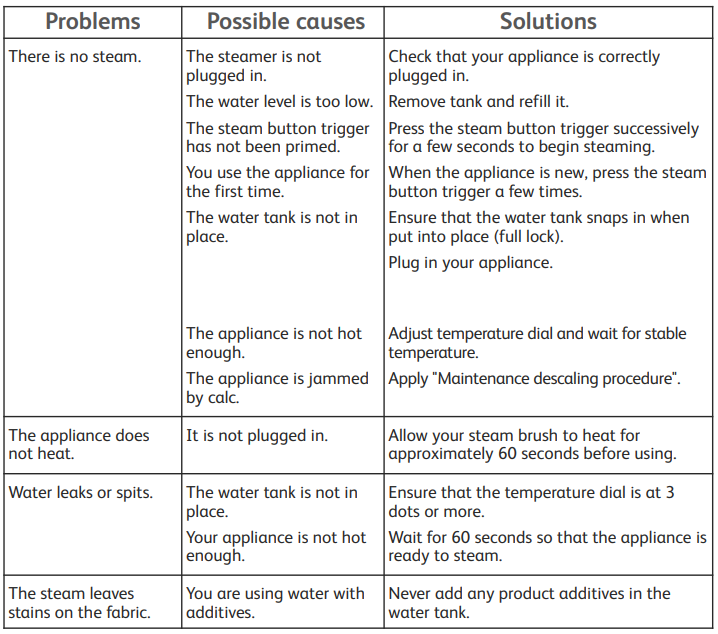

Troubleshooting

Maitainance & Cleaning

Performances are decreasing.

• Unplug the appliance.
• Separate the tank from the housing: Unlock it and pull it up to remove.
• Descale the appliance with cold preparation of Rowento DV86XX 2 in 1 STEAM N PRESS white vinegar and water.
• Remove the tank cap, then fill the tank with 50% vinegar and 50% water to the maximum level.
• Set the tank cap, then set the Rowento DV86XX 2 1 STEAM N PRESS tank on the appliance, and lock it.
• Plug the appliance in, and set the thermostat knob to the maximum temperature.
• Wait for the light switches to turn off, then pump until the tank is empty.
• Rinse the appliance with cold water.
• Rinse with cold water and repeat.

Cleaning

• Clean the main unit with a damp cloth.
• Do not use any cleaning products such as soap or detergents.

Customer Service

• Website: https://www.rowenta.ca/
• Mailing address: 36 Newmill Gate, Unit 2, Toronto, ON, Canada M1V 0E2
• Phone number: 1-800-418-3325
• Hours of service: Monday to Friday, 8:30 to 5 pm EST
