Russell Hobbs RHC410 Hand Held Steamer Instruction Guide

Russell Hobbs RHC410 Hand-Held Steamer

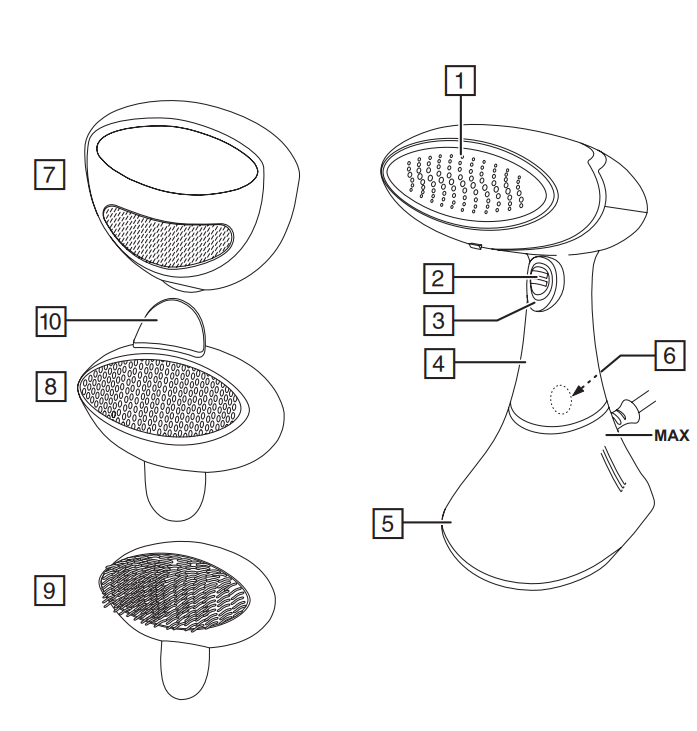

Parts

1. Ceramic heating plate
2. Steam trigger lock
3. Steam trigger
4. Handle
5. Water tank
6. Power button
7. Lint attachment
8. Delicate fabric attachment
9. Upholstery attachment
10. Scent infuser attachment

Features

• Model Number RHC410
• Watts 1800W
• Pressing Plate Ceramic coating with infused fabric conditioner
• Cord Length 3m
• Auto Shut Off After 15 minutes
• LED Indicator Flashing when heating, Solid On when Ready
• Removable Water Tank Capacity 200mL Max
• Heat up Time – 30 secs for steam – 60 secs to 100C for pressing plate
• Steam Rate 30g/min
• Attachments – Lint Brush
  • Upholstery Bonnet
  • Delicate Bonnet
  • Scent

Preparation

Check for textile care symbols ( ) on items to be steamed. The steamer comes with three optional-use attachment frames and a scent infuser recommended for use with a variety of fabrics and upholstery.

1. Select the proper frame using the chart in the ATTACHMENTS section.
2. Remove labels, stickers, and packaging from the appliance.
3. Read all instructions and warnings.

Important Information

• For best performance, we recommend using distilled, purified, or filtered water in your steamer. Tap water contains minerals that can build up inside your steamer over time and reduce its efficiency or even cause damage.
• Never use perfumes, oils, or other additives for water in the tank.
• Always check the garment’s care Russell Hobbs RHC410 label before steaming, and always test fabrics for colourfastness in an inconspicuous area. Steamers are not recommended for use on leather, suede, vinyl, plastic, or other materials that are sensitive to steam.
• After preheating, prime the water pump by holding the steam trigger until steam forms. It is normal to feel or hear the water pump inside the device. It may become louder when the water level in the tank is low. Check and refill the tank when required.
  up to full temperature. Just allow the steamer a minute to reheat.
• Wearing clothes immediately after ironing or steaming can create wrinkles. Always allow the clothing to cool for about 5 minutes before wearing.

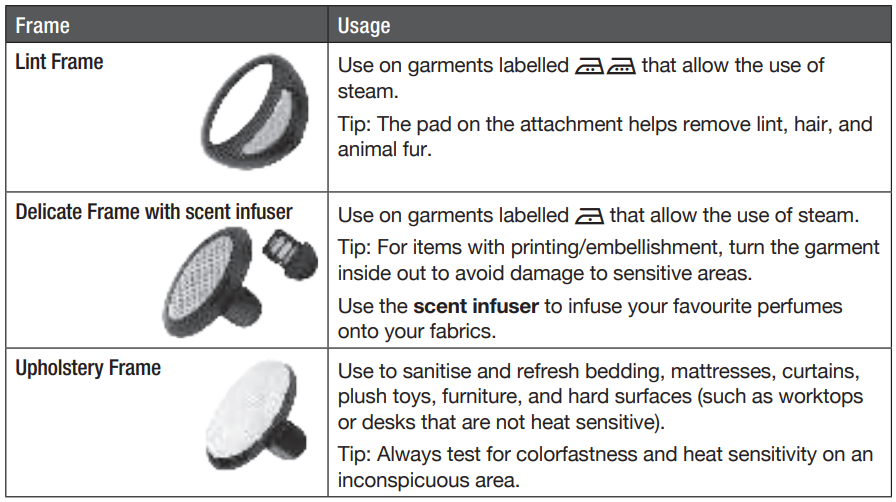

Attachments

Your steamer has three attachments:

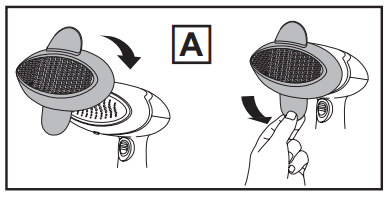

Fitting And Removing Attachments

1. Make sure that the steamer and attachment are cool.
2. Hook the top of the attachment over the top edge of the steamer. Click the bottom edge into place. Make sure it is fully fitted and not loose, or it may detach during use.
3. Remove the attachment using the tab. When removing the attachment, watch out for condensation that may have built up during use.

FILLING

You may use the steamer with tap water; however, if you live in hard water area, you should use distilled water (not chemically descaled or softened water).

If you buy distilled water, check that it is marked as suitable for use in irons/steamer.

• Place the steamer on its base on a stable surface.
• Hold the handle to stabilise and pull out the removable water tank with the other hand.
• Gently open the rubber cover at the top of the tank.
• Fill until the water reaches the “MAX” level mark on the side of the tank. Do not overfill. Close the rubber cover securely.
• Fill slowly, to let the air in the tank escape; otherwise, you will cause an airlock, and the water may overflow.
• Dry off any excess water from the tank. Then refit it into the base until it clicks.
• To refill at any time during use, turn the steamer off by pressing the power button until the blue indicator light is off, unplug from the outlet, and follow the above procedure.

Using

1. If the label says “do not iron” or shows this icon, fit the delicate attachment and make sure to test on an inconspicuous area before steaming the entire garment.
2. If the label says “do not steam” or shows this icon, do not steam the garment.
3. Hang the garment in an area that will not be affected or damaged by the heat and steam, such as on a shower curtain rail or in an open doorway.
4. Fit any attachment you wish to use.
5. Plug the steamer in, then press the power button. The blue power button light will slowly flash, indicating that the steamer is heating.
6. After about 45 seconds, the power light will stay on, indicating the steamer is preheated.
7. To generate a constant flow of steam without holding the trigger, press the steam trigger and then slide the steam trigger lock downwards. You can then release pressure on the steam trigger. To turn the steam off, press the trigger, slide the steam trigger lock upwards, then release the trigger.
8. With your free hand, keep the fabric taut. Steam the garment with slow, downward strokes, keeping the head of the steamer in contact with the fabric.
9. When you have finished, press and hold the power button until the blue light goes out (about 3 seconds) and unplug.
10. Stand the steamer on its base and allow it to completely cool off before storing. To avoid mineral buildup, empty the tank after each use.

Ceramic Heated Plate

Using the scent infuser

The scent infuser attachment can be used to infuse your fabrics with your favourite scent.

• The use of scents, oils, or other fragrances is at your own risk, and we accept no liability. Always read any instructions, warnings, or advice from Russell Hobbs RHC410 regarding the use of the fragrance before using it with your steamer. Always use the scent infuser in a well-ventilated room.
• Always remove and refit the scent infuser attachment when the steamer is cold and not producing steam.
• Always have the scent infuser fitted when using the delicate fabric attachment. Remove the fabric pad if you don’t want to infuse a scent into the fabric being steamed.
• Remove the scent infuser.
• Place a few drops of the fragrance onto the fabric pad (Fig. E). Only use the scent infuser. Do not place fragrance directly onto the delicate fabric attachment, and never add fragrances to the water in the water tank.
• Replace the scent infuser in the delicate fabric attachment.

Auto Shut-Off

Rapid blinking of the power button light indicates that the steamer is going into auto shut-off mode. To resume steaming, press the steam trigger or power button and wait for the steamer to fully reheat.

Steam Cleaning Around the Home

Using steam to clean household items that can tolerate hot, damp steam without damage is non-toxic and inexpensive. This natural cleaning method is Russell Hobbs RHC410 beneficial to those sensitive to chemical cleaners or trying to reduce chemicals in the home. Steam upholstery, draperies, linens, and home textiles to clean and refresh.

Care and Maintenance

1. Make sure the steamer is off, unplugged, and completely cool.
2. Wipe the pressing plate and outer surface with a soft, damp cloth. Water and small amounts of gentle household soaps, such as dishwashing liquid, can be used on the exterior. Never use heavy-duty cleaners or abrasive scouring pads that may scratch or discolour the steamer.
3. After the steamer has been thoroughly dried, turn it back on and lightly steam over an old cloth. This will help remove any residue left in the steam holes.
4. To avoid mineral buildup, empty the tank after each use.

Cleaning Attachments

For all accessories, allow them to fully dry before using again or storing. Accessories are not suitable for cleaning in a washing machine.

• Lint attachment: Wipe with a damp cloth to clean.
• Delicate fabric attachment: Wash with cold water and small amounts of gentle cleanser if needed. The fabric in the frame cannot be removed.
• Upholstery attachment: The fabric on this frame can be removed and hand-washed with cold water and a gentle cleanser.
• Scent diffuser: Remove the scent diffuser and open it up.
  Remove the fabric pad and wash under running water with a little detergent.

STORING THE STEAMER

1. Check that the steamer is unplugged and completely cool.
2. Gather the cord into even ovals and then gently cinch with the strip of hook and loop.
3. Always store the steamer upright on its base to prevent water leakage. Tip: Emptying the tank after each use is recommended because standing water can leave a residue over time.

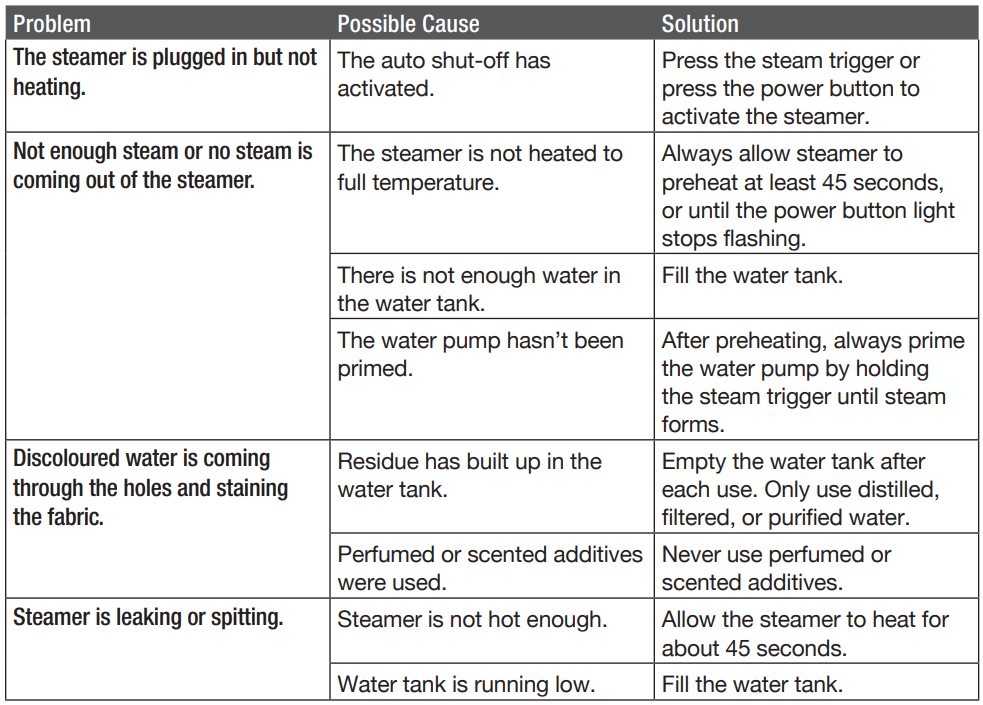

TROUBLESHOOTING

DISPOSAL/RECYCLING

Legislation in some localities mandates that e-waste (anything with a plug, battery, or cord) be disposed of through controlled recycling facilities and must Russell Hobbs RHC410 not be disposed of in general household waste. For more information about the recycling of electrical and battery-operated appliances, please contact your local council or your local household waste disposal service.

Spectrum Brands New Zealand Ltd

PO Box 9817, Newmarket,A uckland 11,49 New Zealand Customer Service in New Zealand

• TollFree: 0800 736 776
• Email: service@spectrumbrands.co.nz
• Website: www.spectrumbrands.co.nz

Warranty Conditions

1. The Goods must be used according to the manufacturer’s instructions. This Warranty does not apply should the defect in or failure of the Goods be attributable to misuse, abuse, accident, or non-observance of the manufacturer’s Russell Hobbs RHC410 instructions on the part of the user. As far as the law permits, the manufacturer does not accept liability for any direct or consequential loss, damage, or other expense caused by or arising out of any failure to use the Goods by the manufacturer’s instructions.
2. To claim under the warranty granted under clause 3, you must:
   • Retain this warranty with your receipt/proof of purchase, and
   • Return the Goods to us at the relevant address or to the Supplier by prepaid freight within the Warranty Period, accompanied by (i) the legible and unmodified original proof of purchase, which indicates the name and address of the Supplier, the date and place of purchase, the product name or other product serial number and (ii) this warranty.
3. This warranty does not cover the cost of claiming under the warranty or transport of the Goods to and from the Supplier or us.
4. This warranty is only valid and enforceable in Australia against Spectrum Brands Australia Pty Ltd and in New Zealand against Spectrum Brands New Zealand Ltd. Contact us or the Supplier for further details.

Register your product online..
If you live in Australia, please visit: www.spectrumbrands.com.au/warrant.y. If you live in New Zealand, please visit: www.spectrumbrands.co.nz/warranty. Registration of your warranty is not compulsory, it gives us a record of your purchase AND entitles you to receive these benefits: Product information, Hints and tips, Recipes and news, Information on special price offers and promotions. Any questions? Please contact Customer Service for advice.

FAQs

Q: How do I fill the water tank?

Fill the water tank to the maximum fill line with cold, clean water after removing or opening the cap. Avoid overfilling to prevent leaks.

Q: How long does it take for the steamer to heat up?

A ready light or consistent steam output indicates that the RHC410 has heated up, which usually takes 30 to 45 seconds.

Q: Can I use tap water in the steamer?

Yes, but to lessen mineral buildup and increase the steamer’s longevity, it is advised to use distilled or filtered water.

Q: What fabrics can I steam?

Most textiles, such as cotton, polyester, silk, wool, linen, and mixes, can be used with it. Steer clear of heating leather, suede, or “dry clean only” fabrics without first reading the care instructions.

Q: How do I remove wrinkles effectively?

Move the steamer carefully in vertical strokes while holding it a few inches away from the fabric. Before using a brush or your hand to smooth, let the steam relax the fibres for a few seconds.

Q: How do I descale the steamer?

Fill the tank halfway with a solution made of equal parts water and white vinegar, then run the steamer until half of the solution is gone. After that, rinse the steamer with fresh water. Repeat as necessary or every several months.

Q: Is the fabric brush attachment necessary?

Although it is optional, the brush aids in lifting fibres for better steaming on thicker textiles or in eliminating dust and lint while steaming.

Q: Can I use the steamer on upholstery or curtains?

Yes, you can use the steamer to clean drapes, upholstery, and other fabrics in your home.
