Shark GS500 series Garment Care System Instructions

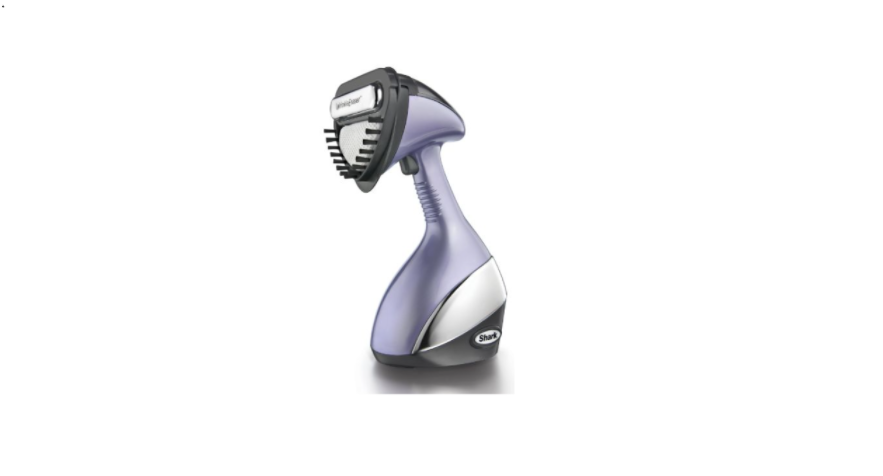

Shark GS500 series Garment Care System

Safety Instructions

1. DO NOT allow it to be used as a toy.
2. DO NOT put any objects into openings or operate with any opening blocked.
3. DO NOT use on leather, suede, vinyl, plastic, or other delicate, steam-sensitive materials.
4. This appliance and its accessories become hot during use.
5. The fabric steamer can be used in a vertical or horizontal motion.
6. When cleaning the fabric steamer, unplug the power cord and clean with a dry or damp cloth.
7. DO NOT pour water or use alcohol, benzene, or paint thinner on the unit.
8. NEVER attempt to steam clothing while on a body.
9. To protect against the risk of fire, electric shock, or injury:
10. Let the system cool completely before putting it away.
11. The vertical press pad eliminates the hassle of setting up an ironing board.
12. Set up on any door, and it is virtually invisible when the door is closed.
13. You can set up the pad on the back of your closet door or in your laundry room and leave it set up for quick touch-ups whenever you need them.
14. There are web hooks on either side of the press pad that provide you with a larger surface area for pressing. The Velcro™ clips assist in the positioning of garments on the press pad.

Overview & Usage

Model Numbers

• GS500 11
• GS500A 11
• GS500CO 11
• GS500W 11

TECHNICAL SPECIFICATIONS

• Voltage: 120V, 60Hz.
• Power: 1580 W
• Water Capacity: 200 mL (6.5 fl. oz.)

Getting Started

The Press & Refresh™ Garment Care System brings your fabrics back to life without a trip to the dry cleaners! Shark® Steam Technology provides continuous, powerful vertical steam that deeply penetrates fabrics and renews fibers.  Shark GS500 series Garment Care System. The Wrinkle Eraser™ heat bar simulates the soleplate of an iron and presses the fabric for a crisp finish.

Press the Wrinkle Eraser™ directly onto the garment for a crisp finish. Hold the steam trigger for continuous steam. Not only great on garments, the Press & Refresh™ can also be used anywhere around the home: upholstery, bedding, curtains, and more! The vertical press pad makes garment care easy! Simply set up the pad onto any door, hang your garment, and Press & Refresh™!

Description

• Fabric Steamer with a small steam bonnet attached
• Bristle Brush Frame
• Upholstery/Delicate Fabric Frame
• Lint Brush Frame
• Upholstery Steam Bonnet
• Delicate Steam Bonnet
• Vertical Press Pad
• Support Rods (x2)
• Garment Hook
• Heat Protection Panels (x8)
• Velcro™ Clips (x3)
• Filling Flask

Assembly & Use

1. Safely remove the contents of the Press & Refresh™ Garment Care System and lay them out on a flat surface to see that you have all the components to complete the assembly.
2. Only use water. To extend the life of your Press & Refresh™ Garment Care System, we recommend using distilled water if you live in an area with hard tap water.
3. Do not add cleaning solutions, scented perfumes, oils, or any other chemicals to the water used in this appliance, as this may damage the unit or make it unsafe for use.
4. Use of any substances other than the manufacturer’s recommended accessories will automatically void your warranty.

Assembling the Vertical Press Pad

1. Insert the garment hook into the top of the vertical press pad.
2. Insert one of the support rods into the opening on the side of the Vertical Press Pad, making sure that it is inserted firmly into the hook. Do the same with the other support rod from the other side.
3. The Vertical Press Pad comes assembled with heat protection panels in the pockets on the back.
4. These panels protect your door from heat damage and should be in place at all times during use.
5. Slip the webbing bands at the top of the vertical press pad over either side of any door with the terry cloth side facing away from the door.
6. With the door open, loop the band around the corner of the door and repeat on the opposite side.
7. Gently tug on the pad to make sure it is secure, and shut the door completely to ensure the Vertical Press Pad is stable for pressing.
8. Be careful not to close the door on your fingers. Adjust the straps on the webbing to the appropriate height for comfort.

Using Your Press & Refresh

Always check the fabric labels for recommendations from the manufacturer. Test the fabric in an inconspicuous part of the garment, such as an inner seam. Practice makes perfect! It takes time to get used to and master the garment steaming techniques.

Filling and refilling the water reservoir

• Never fill the fabric steamer while it is plugged into an electrical outlet. Disconnect the power cord before refilling.
• Open the water cap and hold the fabric steamer horizontally. Fill using the filling flask provided. Be careful not to overfill. Replace the cap by pushing it in, making sure that it closes firmly. (Fig. 1)

Attaching the accessories

• Choose your desired frame. The point of the frame should be pointed down. Attach the top flat area of the frame to the unit and then gently push the pointed end of the frame securely. (Fig. 2)

When using the upholstery/ delicate fabric frame

• Attach the desired bonnet to the frame, then attach the frame to the unit. Pull the 2 tabs on either side of the bonnet over the top of the frame and secure the bottom of the bonnet to the frame using the bottom tab (Fig. 3). Then, attach the frame to the garment steamer as described above (Fig. 4).

Press & Refresh™ and Vertical Press Pad

1. Hang the vertical press pad on a door.
2. Hang the garment that is to be steamed onto the garment hook on the vertical press pad.
3. Once the selected accessory is placed on the fabric steamer, turn the On/Off switch to the “On” position. A blue LED light will illuminate.
4. It will take approximately 1minute for the unit to heat up and be ready for steaming and pressing.
5. Holding the fabric steamer in the vertical position with the steam nozzle pointing away from you, press and hold the steam trigger for continuous steam and begin steaming your garments in a vertical or horizontal motion.
6. Begin at the top of the garment and move in a downward direction, pressing the Wrinkle Eraser™ directly onto the fabric.
7. The vertical press pad has two web hooks on either side.
8. You can use these hooks to position the garment for better results and a larger pressing area when steaming sleeves. Use caution when holding the sleeves of garments while steaming.
9. When steaming lightweight garments, pants, and skirts, you can use the Velcro™ clips to hold the garment on the vertical pressing pad.
10. When finished using the FabricSteamer, turn the appliance “Off” and let it cool before emptying the water tank and removing the bonnets and frames.
11. The Press & Refresh can be used to deodorize, sanitize, and refresh upholstered items: sofa, baby bedding, mattress, car seat, drapes, and more.
12. Attach the upholstery/delicate frame and upholstery pad to the unit.
13. In a horizontal position, move the steamer continuously over the upholstered item.
14. The small steam bonnet should always be in place over the steam nozzle when the steamer is in use.

When to Use the Accessories

1. Bristle Brush Frame – is the standard frame to use when steaming garments. It offers better steam penetration for heavy fabrics without leaving water marks. Always use the bristle brush frame with the small bonnet over the steam nozzle.
2. Fabric Recommendations: Cotton, wool, canvas, denim.
3. Lint Brush Frame – use to remove hair, lint, and pet fur while steaming your garments.  Always use the lint frame with the small steam bonnet over the steam nozzle.
4. Fabric Recommendations: Silk, polyester, cotton, wool, rayon.
5. Upholstery/Delicate Fabric Frame & Delicate Steam Bonnet – to refresh and deodorize delicate items safely.
6. Fabric Recommendations: Silk, satin, and embellished garments.
7. Upholstery/Delicate Fabric Frame & Upholstery Steam Bonnet – refresh and deodorize upholstered items like sofas and chairs, as well as curtains, bedding, and mattresses
8. Small Steam Bonnet – provides evenly distributed steam and prevents condensation on the garments/ fabrics.
9. Velcro™ Clips – Easy detachable clips may be used on the vertical pressing pad for positioning garments for steaming. They can also be used to hold lightweight garments directly onto the pad.
10. Vertical Press Pad – A Convenient way to steam and press garments. Eliminates the hassle of an ironing board.

Care Cleaning & Storing

• Turn the fabric steamer “Off”.
• Unplug the appliance from the electrical outlet.
• Empty the water from the water tank.
• Wipe the exterior of the fabric steamer with a damp cloth and wipe dry.
• Bundle up the power cord and Shark GS500 series Garment Care System secure it with the Velcro™ strap that is attached to the power cord. Always store your appliance in a cool, dry area.

Care & use of steam nozzle bonnets

• The steam bonnet is attached to a frame on the nozzle. Gently pull the frame off the nozzle. Hand-wash the bonnet in cold water with a mild detergent after each use and let it air dry completely before using again. Do not dry in the clothes dryer.

Troubleshooting Guide

Replacement Parts

PART/ PART NO

• Small Steam Bonnet XT500BW
• Upholstery/Delicate Fabric Frame 1060SO
• Upholstery Steam Bonnet XUP500
• Delicate Steam Bonnet XDF500
• Lint Brush Frame 1062SO
• Bristle Brush Frame 1059SO
• Velcro™ Clips 1057SO

Euro-Pro One (1) Limited Warranty

EURO-PRO Operating LLC warrants this product to be free from defects in material and workmanship for one (1) year from the date of the original purchase, when utilized for normal household use, subject to the following conditions, exclusions, and exceptions.

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, return the complete appliance and accessories, freight prepaid, to:

• U.S.: EURO-PRO Operating LLC
• Canada: EURO-PRO Operating LLC 4400 Bois Franc, St. Laurent, Québec H4S 1A7

In no event is EURO-PRO Operating LLC liable for incidental or consequential damages of any nature whatsoever. Some states do not permit the exclusion or limitation of incidental or consequential damages, Shark GS500 series Garment Care System, so the above may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.

Product Registration

To register your new Shark® product within ten (10) days of purchase. You will be asked to provide the store name, date of purchase, and model number, along with your name and address.

The registration will enable us to contact you in the unlikely event of a product safety notification. By registering, you acknowledge having read and understood the instructions for use and warnings outlined in the accompanying instructions.

Customer Support

• Tel: 1-800-798-7398
• Website: www.sharkclean.com

FAQs

Q: What is the Shark GS500 Series Garment Care System?

The Shark GS500 Series is a potent fabric care device and garment steamer that can refresh textiles, eliminate wrinkles, and sanitise draperies, furniture, and apparel. It combines convenient mobility for usage at home and on the road with professional-grade steam performance.

Q: Can I use tap water in the water tank?

To avoid mineral buildup inside the steamer, it is advisable to use distilled or demineralised water if you reside in a region with hard water.

Q: How long does it take for the GS500 to heat up?

The GS500 produces continuous steam for rapid and effective wrinkle reduction after heating up in around 30 to 45 seconds.

Q: How long can it produce steam on a full tank?

Depending on your steam setting and level of use, a full tank can offer up to 20 to 25 minutes of continuous steam.

Q: Can I use the GS500 horizontally, like an iron?

Indeed! With the Shark GS500’s vertical and horizontal steaming capabilities, you may steam flat on a bed or ironing board or de-wrinkle hanging clothes.

Q: Can I add fabric softener, essential oils, or perfumes to the water tank?

No, the internal components may be harmed, and the guarantee may be voided if chemicals, oils, or scented additives are used. Use only pure water.

Q: Does the GS500 sanitize or kill germs?

Indeed. The high-temperature steam is perfect for bedding, curtains, and upholstered furniture since it helps sanitise materials by lowering bacteria, dust mites, and odor-causing germs.
