Anko AD-1002 Cordless Rotary Shaver
Safety Instructions
Please follow all the precautions listed below for safety and to reduce the risk of injury or electric shock.
- Only use the appliance as described in this manual.
- Do not immerse the appliance in water or any other liquid; the product is splash-proof only.
- Do not allow the appliance to be exposed to rain or moisture during use or storage.
- Always check the appliance for damage before use.
- If any damage is observed, do not use the appliance.
- The appliance is intended for indoor use only.
- Always switch the appliance off after use.
- This appliance has no user-serviceable parts. Do not attempt to access the appliance covers.
- This appliance is for personal use only, not designed for commercial use.
- Before using the appliance, ensure that the rotary head is securely fitted.
- Do not use the appliance on children.
- Children are supervised to ensure that they do not play with the appliance.
- Only charge the appliance with the USB cable that was supplied with the appliance.
- When charging the appliance, make sure it is switched OFF.
- Check that your supply voltage is the same as that stated on the charger.
- When charging the appliance, the power switch must be off.
- This product contains sharp blades; please take utmost care during handling and use.
- Do not replace the batteries with non-rechargeable batteries.
- Also, do not use cleaning products that are designed for toilets, bathrooms, or kitchen appliances.

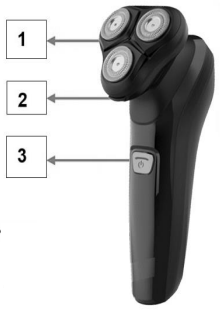

Parts
- Rotary head assembly
- Head release button
- On/Off and Turbo switch
- Pop-up trimmer
- Trimmer release button
- LED display
- Cleaning brush
- USB charging cable
Protection cover

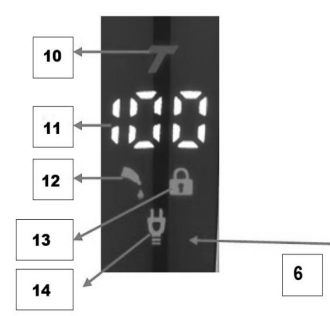

LED Display
- Turbo speed indicator
- Battery level
- Clean head indicator
- Travel lock indicator
- Charging indicator
CHARGING
DO NOT allow the appliance to charge for more than 2 hours. Normal charge takes approximately 1.5 hours. If any abnormality occurs during charging (such as a burning smell or excessive heat, or even a strange sound), immediately turn off the charger and disconnect the USB cable.
- Take the USB Cable and fully unravel it before using it to charge the Appliance.
- Plug the small end of the USB cable directly into the bottom of the appliance.
- Plug the large end of the USB cable into your 5Vdc. 1A USB charger (not supplied).
- When fully charged, the display will show “100”.
- Unplug the USB charging cable from the appliance.
Operation
Rotary Shaver
- Remove the protective cap.
- Press the On/Off button, and he shaver operates in standard speed.
- Press the On/Off button the second time to activate the Turbo speed, which the Anko AD-1002 Cordless Rotary Shaver will provide a more aggressive shave.
- Move the shaver quickly over your skin and against the growing direction of the beard. Make both straight and circular movements.
- Press the On/Off button again to turn OFF the shaver.
- Put the protective cap on the shaver every time after Anko AD-1002 Cordless Rotary Shaver to prevent damage.
Using the trimmer
- Press the trimmer release button to release the pop-up trimmer.
- Press the On/Off switch to turn on the shaver.
- Slowly guide the trimmer up to the hair you intend to cut.
- Always use short strokes to cut your hair.
- Switch the shaver OFF by pressing the On/Off switch.
- Push the trimmer downwards until it locks back in place.
Travel lock
- To lock: Press and hold the On/Off switch for 3 seconds, then release.
- The “Travel Lock” indicator will flash 4 times to tell the user that the lock is activated.
- To unlock: Press and hold the On/Off switch for 3 seconds.
- The display will count down from2-1 and will unlock and turn the shaver on.
- At the same time, release the On/Off button.
Cleaning & Maintainance
To ensure optimal shaving efficiency, the shaver must be cleaned regularly.
- Make sure to switch OFF the shaver and disconnect it from USB power before cleaning.
- Push the head release button and open the rotary head assembly.
- Turn the inner rack lock anticlockwise and detach the rack. Remove the inner cutter and mesh.
- Clean the frame, inner cutter, and mesh with the cleaning brush provided.
- After cleaning with a brush, rinse them under tap water.
- Carefully shake off excess water and allow all the parts to dry thoroughly.
- Reassemble the rotary head in reverse order.

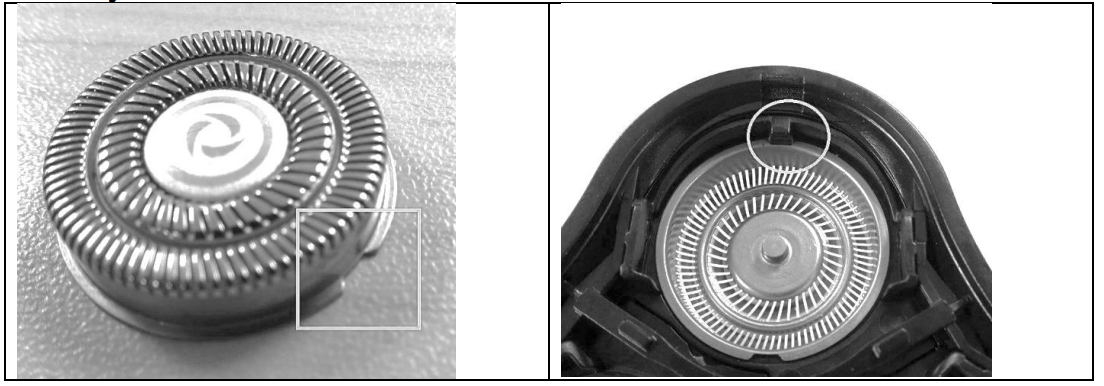

Never attempt to dry the shaving unit with a towel or tissue, as this may damage the parts. When assembling the rotary head, please ensure the projections of the mesh can fit exactly into the rack.
Oiling blades
- Rinsing attachments under water requires lubricating the cutting blades monthly.
- Using only light-grade oils (e.g. sewing machine oil), simply spread 1-2 drops lightly over cutters with a fingertip. Wipe away any excess.
- Do not use hair oil, grease, or any oil mixed with kerosene or solvent.
Storage
- Switch the shaver OFF and clean all components. Make sure that all parts are dry before you pack them up.
- Store the shaver in a clean, dry area.
- Make sure that the shaver and the accessories are out of the reach of children and animals.
Technical Specifications
- Working time: Approx. 1 hour
- Charging time: Approx. 1.5 hours
- Input voltage: 5Vd.c. 1.0A
- Battery type: Li-ion, 600mAh, 3.7V x1 cell
- Water resistance: IPX5
Disposal
Do not dispose of this product with normal household waste collection. If unsure, contact the local council waste management service for proper disposal facilities available for your area. a
