Anko CL-2001-22.2V-A Cordless Floor Cleaner User Manual

Anko CL-2001-22.2V-A Cordless Floor Cleaner

Safety Instructions

Please read this instruction manual carefully before first use. It is advisable to keep this instruction manual for future reference.

1. DO NOT direct the water jet towards persons or equipment containing electrical components.
2. DO NOT dry vacuum if the vacuum cleaner hose and floor head are wet.
3. Allow it to completely dry before using it as a dry vacuum cleaner.
4. DO NOT pick up toxic material (i.e., chlorine bleach, ammonia, drain cleaner, etc.)
5. DO NOT vacuum Toner (for laser printers, copy machines, etc.) as there is a risk of fire and explosion.
6. DO NOT vacuum plaster, cement, etc, as the unit will become blocked.
7. DO NOT store or use the appliance near high-temperature areas.
8. DO NOT use the appliance without all the filters fitted.
9. DO empty and clean the Dirty Water Container after each use for optimal operation.
10. DO keep hair, loose clothing, fingers, feet, and body parts away from openings or moving parts.
11. DO Keep all openings free of dust, lint, hair, and anything that may reduce airflow.
12. DO NOT use or operate the appliance with a damaged cord or plug.
13. DO NOT close the door on the cord or pull the cord around sharp edges or corners.
14. DO NOT use with any openings blocked, and do not restrict airflow.
15. DO NOT use the appliance if it is blocked. Turn off and clear all blockages before continuing.
16. DO NOT attempt to modify this product in any way.
17. DO turn it off before you connect or disconnect the appliance to or from the mains supply.
18. DO use only as described in this manual. Use only the manufacturer’s recommended attachments.

Floor Surfaces

This product is only designed for cleaning hard, smooth surfaces and not carpeted or rough surfaces. Always follow the manufacturer’s cleaning instructions. If unsure, DO NOT USE! DO NOT add any other agents into the water tank, such as rust removers, odour counteracting agents, alcohol, solvents, strong acidic or strong alkali formulas, or any type of cleaning solution not specifically for use in this type of cleaning appliance, as this may cause serious injury to the user and may damage the appliance and floor surface.

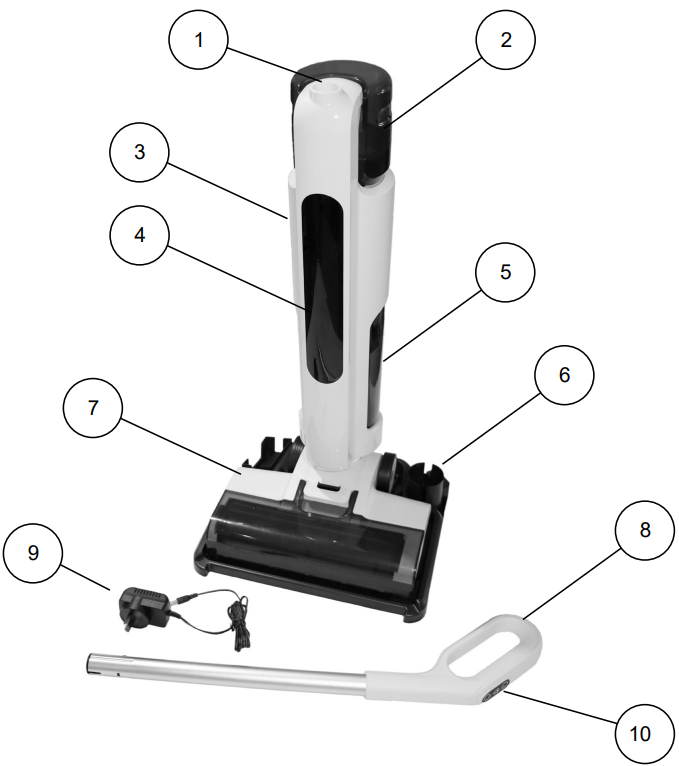

Parts

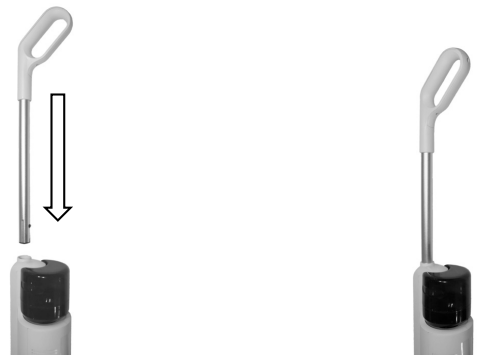

Attaching the Handle

Assembly of the Handle is required when you receive your appliance. It is shipped this way to reduce the packing size and reduce packing material waste. No Tools are required to assemble the handle to the main unit.

• Set the Appliance in an upright position.
• Align the handle over the hole in the top of the main unit, then push down firmly until the handle locks in place.

Charging the Battery

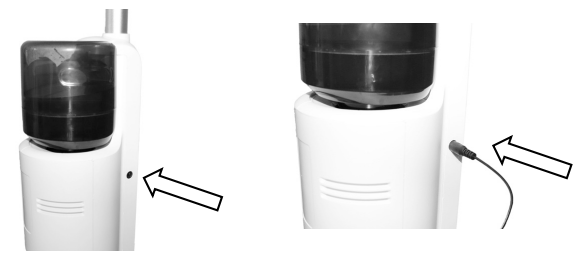

• To charge the battery, insert the small round plug of the battery charger into the charging socket located on the side of the main unit, as shown.
• Plug the body of the battery charger into the power point and switch it on.

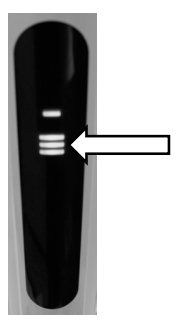

• The indicator lights in the front window will indicate when the battery is charging.
• Three blue light segments will “roll” from bottom to top, indicating charging.
• As the battery charges to approximately 33%, the first segment light will turn permanently on, then as the battery continues to charge to approximately 66%, the second light segment will turn permanently on, and then as the battery continues to charge to 100%, the third light segment will turn on permanently.
• At this time, turn off and remove the battery charger from the appliance, nd the power point.

Filling the Water Solution Tank

Using the Appliance without the water solution tank in place, or with the wrong solution, may damage the Appliance. Always make sure that the water solution tank is properly fitted in place before using the Appliance.

1. Switch off the Appliance and remove the battery charger if on charge.

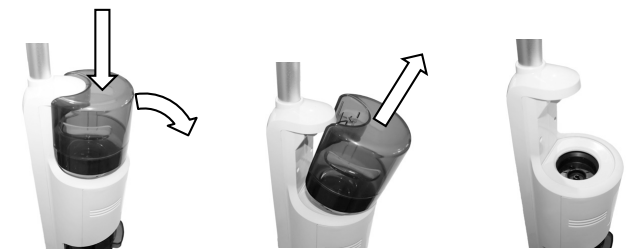

2. Remove the Cleaning Solution / Water Tank by pressing down on the top of the tank, pulling forward, and lifting it out.

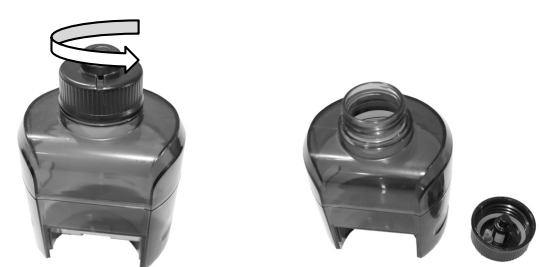

3. Unscrew the cap (anticlockwise) and remove.
4. Following the instructions on the cleaning solution bottle, add the cleaning solution and warm tap water (max. 40°C) to the Cleaning Solution / Water Tank.
5. To work out how much cleaning solution to add to the clean water tank, follow this equation: For example, if the cleaning solution instructions state to mix 1:15, this means 1 part cleaning solution to 15 parts water.
6. The water tank holds a maximum of 650ml; therefore, we need to determine what 1 part of the leaning solution will be. 1 part = (650ml ÷ 15) = 43.3ml.
7. Therefore, add 43ml of cleaning solution to the clean water tank first, and then fill the rest of the way with warm tap water (max. 40°C).
8. Replace the Cleaning Solution / Water Tank Cap and tighten clockwise. Do not over-tighten. Replace the Cleaning Solution / Water Tank into position as shown and push it in firmly until it clicks in place.
9. Repeat steps 1, 2, and 3 above to empty the Cleaning Solution / Water Tank and rinse it clean after use and before storage.

Operation

On / Off Button

Before cleaning, determine where to start and stop, making sure you will not walk over the previously cleaned areas.

• Switch the appliance on by pressing and releasing the on/off switch on the handle.
• When the appliance starts up, you will hear the vacuum motor speed up, and then it will settle back to its operating speed.
• At the same time, the water will start to be dispensed onto the rotary floor brush, and the Green Battery Indicator lights will illuminate, as well as the White indicator light, which indicates the water is being dispensed on the default Low setting.
• To turn off, press and release the On/Off button again, and you will hear the motor momentarily speed up so as to suck up the remaining dregs of water before then turning off.

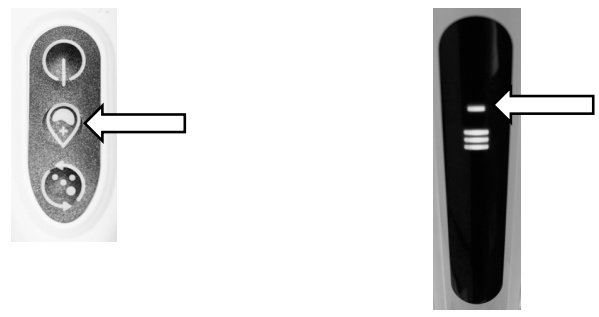

Water Dispensing Indicator

• With the appliance switched on, in the default Low Water Dispensing Level, press and release the Water button, and the water will change to dispense a higher quantity of water onto the rotary floor brush, and at the same time, the White indicator light will change to Red colour.
• To change back to the Low setting, press and release the Water button again.

Battery Level Indicator

• During use, the Green indicator lights in the front window will indicate the remaining
  battery charge level.
• As the battery charge capacity drops to approximately 66%, the first segment light will turn off leaving only two lights, then as the battery continues to drop to approximately 33%, the second light segment will turn off leaving on one light, and then as the battery continues to drop to 0%, the third light segment will flash briefly before the unit and indicator light will turn off.
• The battery will need to be fully recharged before using it again

Using the Device

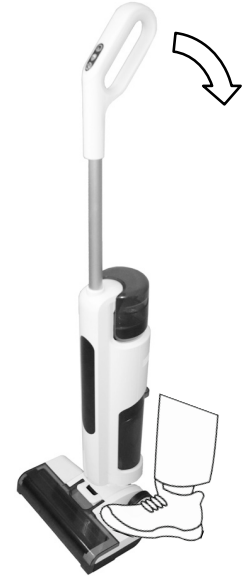

Place your foot on the floor, head to hold it down, and at the same time pull the handle backwards to unlatch it from the parking position and into the cleaning position.

• Press the On/Off button on the handle to turn the appliance on and set the water dispensing level, either Low (default setting) or High.
• Push and pull the appliance back and forward slowly, as if vacuuming a carpet.
• When you have finished cleaning, switch the Appliance off.
• Push the handle forward until it is positioned upright and locked into place.
• If you have finished cleaning, refer to the Maintenance section for instructions on how to clean the appliance.
• Remove the Clean Water / Cleaning Solution tanks, empty out, rinse and dry, then refit to the main unit.

Cleaning and Maintenance

Emptying the Dirty Water Collection Tank

DO NOT place the appliance on Charge whilst performing any maintenance. Always switch off the appliance before emptying the Dirty Water Collection Tank or before any maintenance. When the “Max” Level in the tank has been reached, the water float will rise, and the appliance will automatically turn off, indicating the tank needs to be emptied.

• Switch off the Appliance.

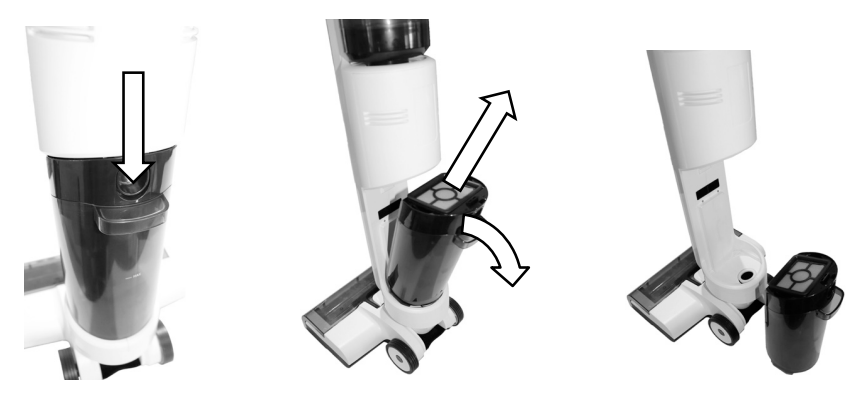

• To remove the Dirty Water Collection Tank, slide the latch located on the back of the tank down to unlatch and then swing the tank backwards and lift it out.
• Take the tank to your sink to empty.

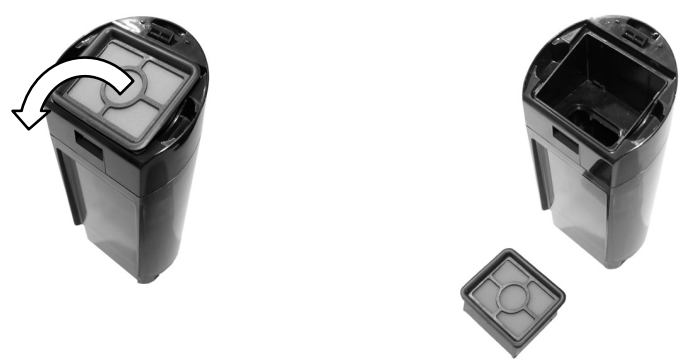

• Remove the filter by grasping the filter frame and pulling straight out. Place the filter aside for washing.

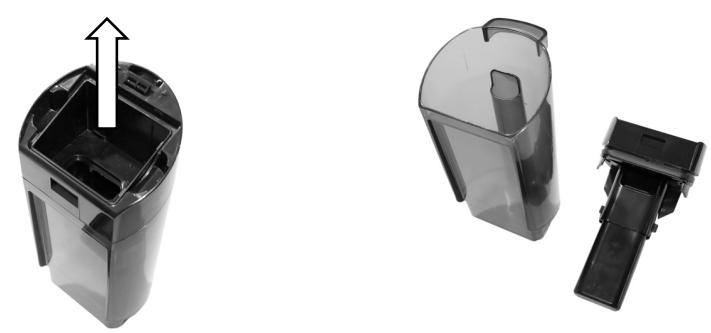

• Open the Dirty Water Collection Tank by grasping the top section and pulling straight up and off.
• Empty the Dirty Water out of the collection tank and rinse it out with fresh, clean water.
• Rinse the top section and its components in clean, fresh, warm water (max. 40°C) e ensuring the water floats are free to move up and down, and then refit to the Dirty Water Collection Tank.

• If you have finished cleaning for the day, refit the Dirty Water Collection Tank Cap back into the Appliance without the filter.

Cleaning the Filter

The Filter must be cleaned regularly for best performance and to prevent damage to your appliance. Cleaning is best done immediately after you have finished cleaning for the day and when the Dirty Water Collection Tank is emptied. Never use the appliance without the filter fitted. Do not clean the filter with any chemicals, as this will destroy it.

• Remove the filter from the Dirty Water Collection Tank as described earlier. er

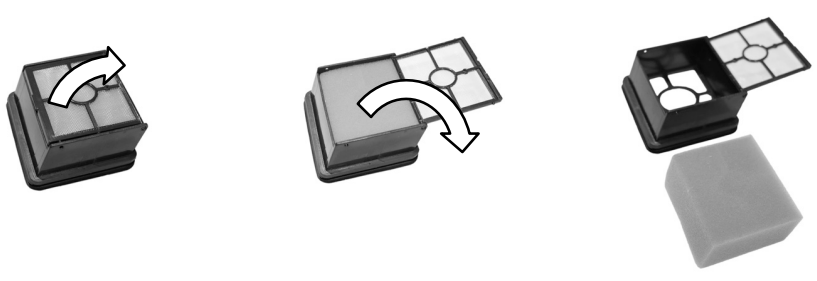

• Open the filter cage and remove the foam filter. ter
• Rinse the filter with warm water (max. 40°C) and allow the filter to thoroughly dry before next use.
• DO NOT scrub or place the filter in a dishwasher.
• DO NOT wring or use a hair dryer to dry the filter.
• Refit the Foam Filter back in its cage and close the cage.

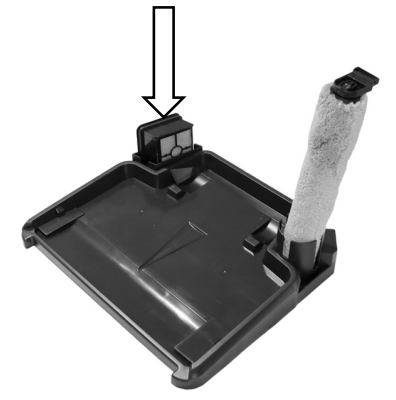

• Place the filter in the Self-Clean Storage Base and let it dry.
• The filter is allowed to air dry outside of the appliance to prevent mould issues. DO NOT forget to refit the filter before next use.

Rotary Brush and Cover

• To do this, ensure the appliance is turned off.

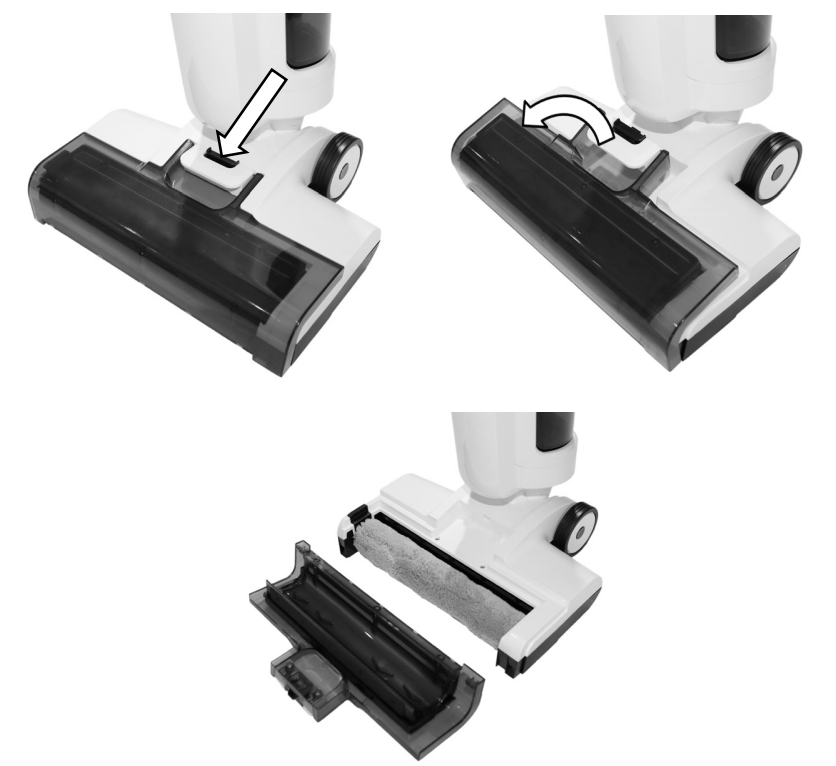

• On top of the floor head, slide the latch at the rear of the Rotary Brush Cover forward and then swing the cover up and forward, then lift off as shown.

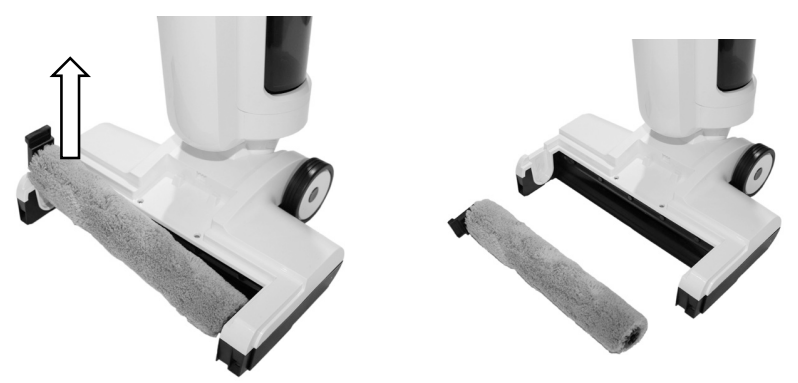

• Grasp the end of the rotary brush, with the location bearing, and pull straight up, then lift the rotary brush out.
• DO NOT wring or use a hair dryer to dry the Rotary Brush.

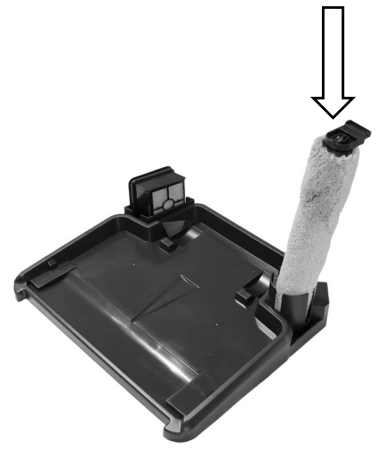

• Place the Rotary Brush in the Self-Clean Storage Base and let it dry

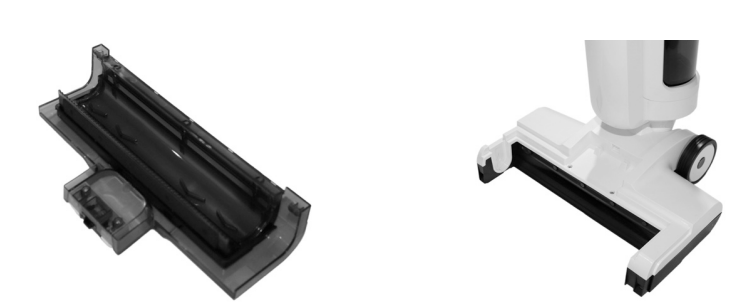

• At the same time as cleaning the Rotary Brush, the rotary brush cover and the rotary brush recess in the floor head should be cleaned.
• Clean the Cover and the recess with mild detergent and like warm water, then rinse off and dry with a cloth.
• Before next use, refit the rotary brush and the cover

Self-Cleaning

This appliance has a self-cleaning function, which will help  Anko CL-2001-22.2V-A Cordless Floor Cleaner clean the rotary brush and the dirty water channels within the unit straight after use.

• To use this function, first empty the Dirty Water Anko CL-2001-22.2V-A Cordless Floor Cleaner Collection Tank as described previously and refill the Clean Water / Solution tank with 40°C clean water as described previously. (Cleaning Solution is not required).
• Ensure the Battery is charged or has enough charge for at least 10 minutes.

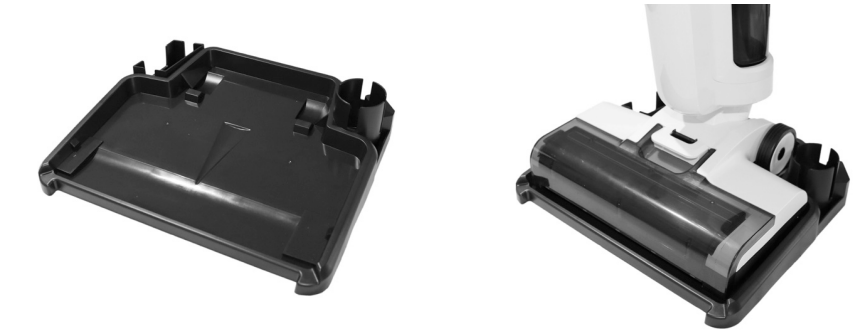

• Place the Self-Clean Storage Base on the floor and place the Floor Cleaner in the base as shown.
• Press and hold the Self Clean button on the handle for Anko CL-2001-22.2V-A Cordless Floor Cleaner for approximately seconds until the unit starts.
• Allow the unit to run through its self-clean cycle. The Anko CL-2001-22.2V-A Cordless Floor Cleaner appliance will turn off when the self-clean cycle has completed, or you can stop this function earlier by pressing the On/Off button.
• Once completed, empty the Dirty Water Collection Tank as described previously, and at the same time, clean the filter as described previously and let it dry.
• Empty any remaining water left in the Clean Water Tank.
• Next, clean the Rotary Brush and the floor head as described under the section “Cleaning the Rotary Brush and Cover”.

Main Unit

• Ensure the appliance is turned off.
• Never use abrasive cleaners, solvents, steel wool, scouring pads, brushes with metal or nylon bristles, sharp or metallic cleaning utensils such as knives, hard scrapers, and the like, or strong chemicals that may or may not be flammable and/or damaging Anko CL-2001-22.2V-A Cordless Floor Cleaner to the Appliance to clean.
• Clean the outside of the appliance with a damp (not wet) cloth with mild detergent and wipe over the surfaces.
• Dry thoroughly with a clean cloth. DO NOT Anko CL-2001-22.2V-A Cordless Floor Cleaner place any components in a dishwasher.

Completion and Storage

• After you have finished using the Appliance, switch it off.
• Mineral deposits and mildew can form when the cleaning solution and/ or water are left in the tanks, affecting the performance of the product. Do not store the product with the cleaning solution left in the water solution tank or dirty water left in the Dirty Water Collection Tank.
• Thoroughly clean the appliance as described previously.
• Store the filter and rotary brush outside of the appliance in the dedicated storage holder in the Self-Clean Storage Base so that they can dry.
• Recharge the battery and remove the charger once the battery is fully charged.
• When not in use, store your appliance and all its accessories and instruction manual in a safe and dry place.

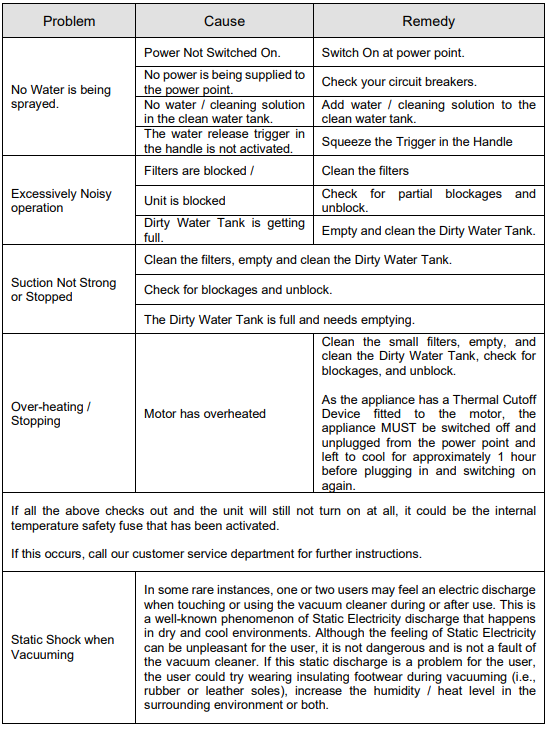

Troubleshooting

Disposal

Do not dispose of this product with normal household waste collection. If unsure, contact the local council waste management service for proper disposal facilities available for your area. a

Warranty

This warranty is in addition to your rights under the Australian Consumer Law. For New Zealand customers, this warranty is in addition to statutory rights observed under New Zealand legislation.

We will provide you with your choice of a refund, repair (where possible) or exchange (availability dependent) for this product if it becomes defective within the warranty period. The business will bear the reasonable expense of claiming the warranty. This warranty will no longer apply where the defect is a result of alteration, accident, misuse, abuse or neglect.

Please retain your receipt as proof of purchase and contact our Customer Service Centre as listed below, for the entity you purchased this product from, for any difficulties with your product.
