Aurzen EAZZE D1 MAX Smart Projector Instruction Manual

Aurzen EAZZE D1 MAX Smart Projector

Saftey Introduction

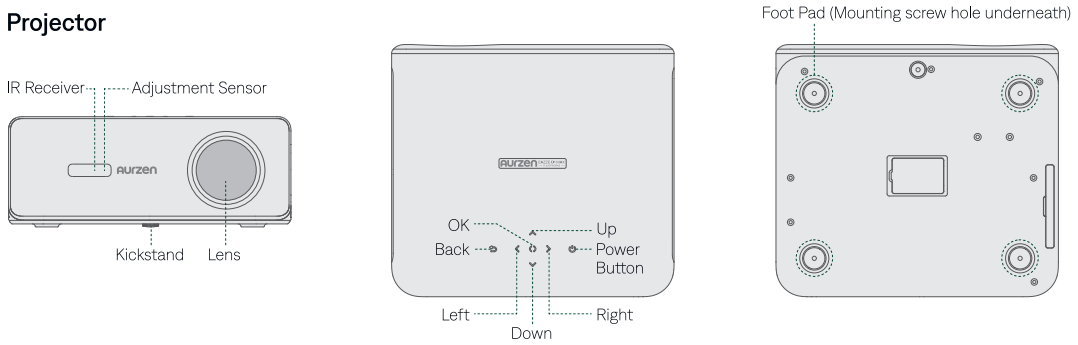

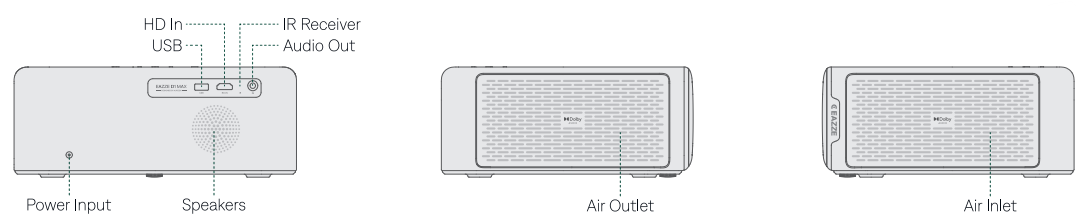

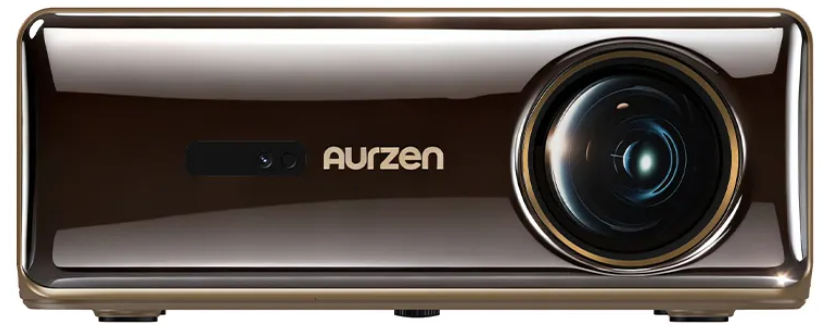

PROJECTOR OVERVIEW

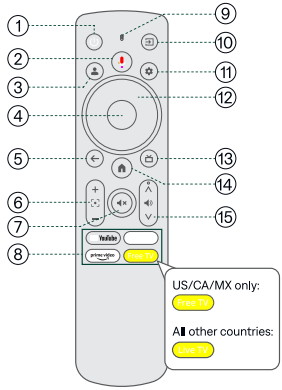

Remote Control

1. Power Press to power on/switch to standby mode/ wake up/press and hold for 3s to power off
2. Google Assistant:t Press and hold, and talk. User Profile:e Press to see the profile page
3. ок Confirm a selection/pause/resume
4. Back Return to previous page
5. Focus Adjustment  Mute
6. Streaming Apps: Direct access to streaming apps. The button’s function varies by region.
7. Indicator Light
8. Press to choose from the input sources
9. Settings Press to access the dashboard
10. Navigation Control cursor on the screen

Quick Start

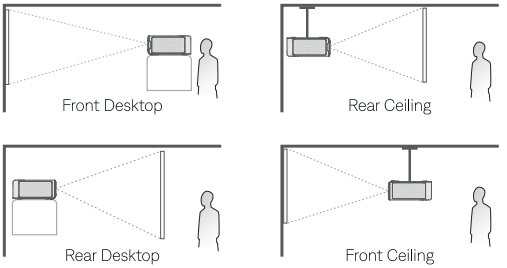

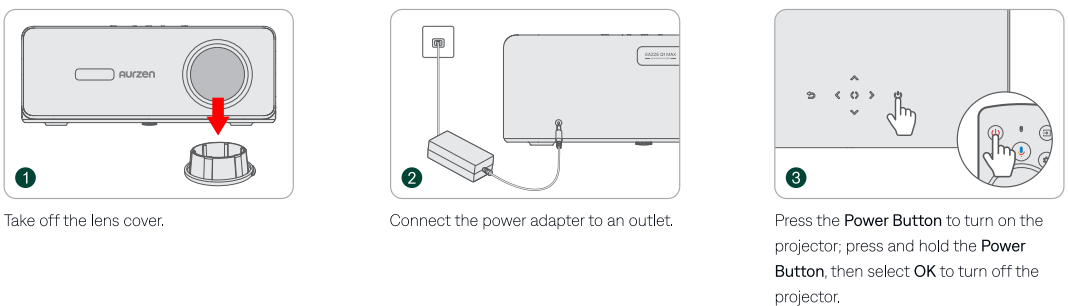

1. Projector Installation
2. Power On/Off

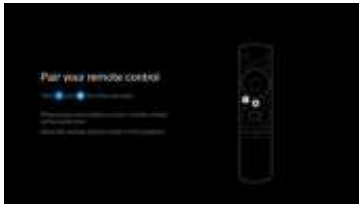

3. Remote Control Pairing: Turn on the projector and wait for the pairing prompt on the screen. Wait for the pairing to complete.

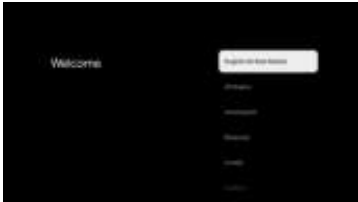

4. Setup Wizard. Follow the setup wizard to choose your preferred language, select your region, and sign in with your Google Account (or use the basic TV mode).
5. Image Adjustment

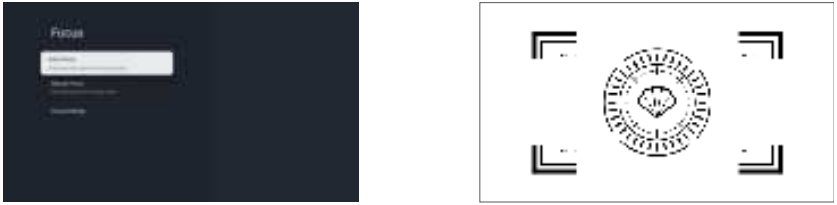

Focus

1. Auto Focus: The projector automatically adjusts focus when moved to maintain a clear image. You can also trigger auto focus by going to Homepage > Dashboard ® > All settings ® > Projector > Focus > Auto Focus.

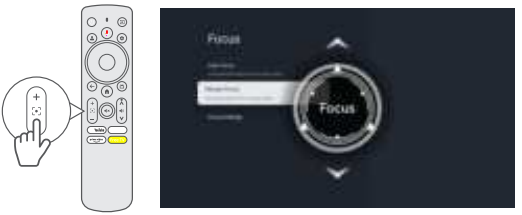

2. Electric/Manual Focus Press the Focus buttons on the remote or go to Homepage > Dashboard ® > All settings ® > Projector > Focus > Manual Focus to sharpen the image focus until the blurry image becomes clear.

Keystone Correction

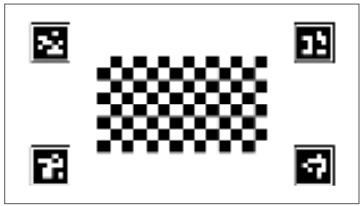

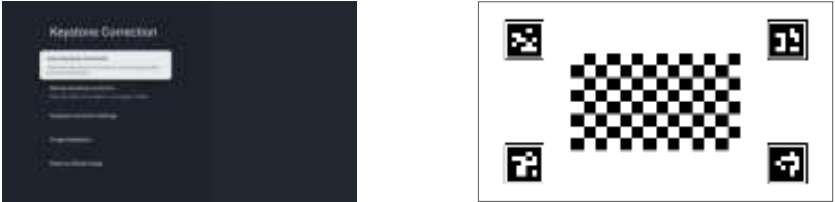

1. Auto Keystone Correction: The projector automatically corrects the keystone distortion when moved to maintain a rectangular image. You can also trigger auto keystone correction by going to Homepage > Dashboard > All settings > Projector > Keystone Correction > Auto Keystone Correction.

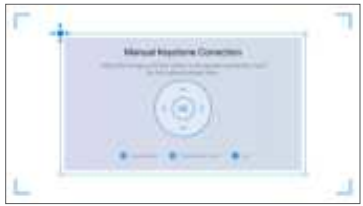

2. Manual Keystone Correction Going to Homepage > Dashboard ® > All settings > Projector > Keystone Correction > Manual Keystone Correction to manually correct the image shape by four points.
3. Intelligent Screen Fit: Go to Homepage > Dashboard ® > All settings > Projector > Advanced Settings > Fit to Screen to enable the projector to adjust the projected image to fit the screen.

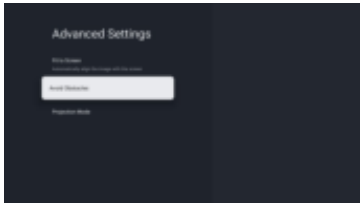

4. Intelligent Obstacle Avoidance Go to Homepage > Dashboard ® > All settings ® > Projector > Advanced Settings > Avoid Obstacles to enable the function. The projector will automatically adjust the projected image to avoid any objects on the projection surface during the correction process.

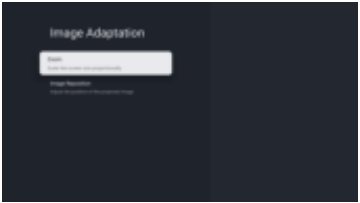

5. Image Size & Position Go to Homepage > Dashboard ® > All settings ® > Projector > Keystone Correction > Image Adaptation to adjust the image size and image position.

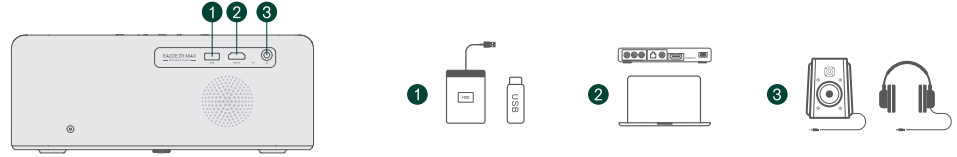

Projector Connection And Input Source

Connect your device to the projector correctly. Then select the right input source.

Wi-Fi Connection

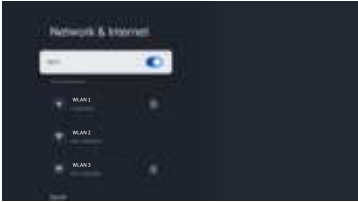

Connect your projector to your router’s WiFi by going to Homepage > Dashboard ® > All settings ® > Network & Internet.

Google Assistant

Your TV is more helpful than ever. Use your voice to find movies, streaming apps, play music, and control the TV. Ask Google Assistant to find a specific title, search by genre, or get personalized recommendations. Get answers on screen, control smart home devices, and more. Press the Google Assistant button on the remote to get started.

Google Cast Tm

Google Cast is a platform that lets you stream your favorite entertainment from your phone, tablet, or laptop right to your projector. Easily control your TV with apps you already know and love from your iPhone®, iPad®, Android™ phone or tablet, Mac®, Windows® laptop, or Chromebook. To use Google Cast, please ensure you are using a Google Cast-enabled app and follow the instructions below.

1. Connect your device and the projector to the same wireless network.
2. Open the streaming app on your device.
3. Play a video and tap the casting icon J on the video screen.
4. Select EAZZE_D1 Max to connect. The projector will display the video from your device.

 Screen Mirroring Using the Google Home App (Only for Android Devices)

You can mirror your entire Android device screen onto the projector screen.

1. Ensure that you have installed the Google Home app on your device.
2. Ensure that both your device and the projector are connected to the same wireless network.
3. Open the Google Home app and go to the Devices tab. Find and select EAZZE_D1 Max (or the name of your projector if you have renamed it).
4. On the device page, tap Cast my screen and confirm when prompted. Your device’s screen will be mirrored on the projector screen.

Screen Mirroring Using the AirScreen App

You can mirror the entire screen from your iOS/Android device onto the projector screen.

1. Ensure that both your device and the projector are connected to the same wireless network.
2. Search and install AirScreen on the Apps tab – AirPlay is available on your projector.
3. Open the AirScreen app and follow the on-screen instructions to complete the process.

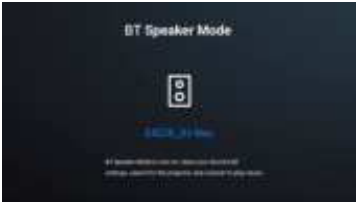

BT SPEAKER MODE

This projector can function as a BT speaker by connecting your mobile device to it through a BT connection.

Step 1: Go to Homepage > Dashboard ® > All settings ® > Projector > BT Speaker Mode to make the projector ready for a BT connection.
Step 2: Access your mobile device’s BT settings and activate BT. Search for EAZZE_D Max in the available devices list to pair your mobile device with the projector.

More Settings

1. Picture Mode Go to Homepage > Dashboard Energy Saving. > All settings > Display & Sound > Display to select from User, Standard, Vivid, Sports, Movie, Game, and 2. Color Temperature
2. Go to Homepage > Dashboard Standard, and Warm.
3. Brightness Mode: Go to Homepage > Dashboard Performance.
4. Reset Go to Homepage > Dashboard > All settings > All settings › All settings > Display & Sound > Display > Expert Settings > Color Temperature to select from User, Cool, > Projector > Energy & Performance > Brightness Mode to select from Standard, ECO, and High > System > About > Reset to restore the projector to factory settings.
5. System & Product Info Go to Homepage > Dashboard ® > All settings ® > System > About to check system & product information. > All settings

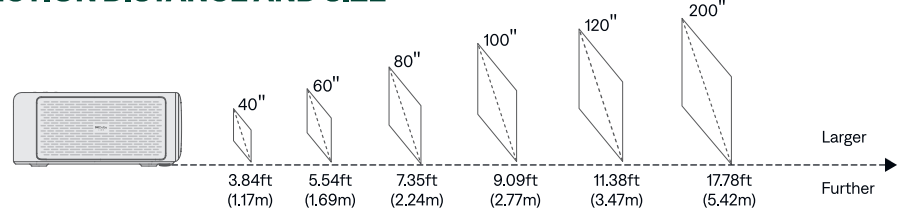

Projection Distance And Size

• For optimal image quality, we recommend a projection size of 120*. Position the projector 11.38ft (3.47m) away from the wall or screen.
• The recommended projection distance varies with different projection contents. Please adjust the distance between the wall/screen and the projector as needed.
• Ambient darkness will improve the clarity of the projected images.

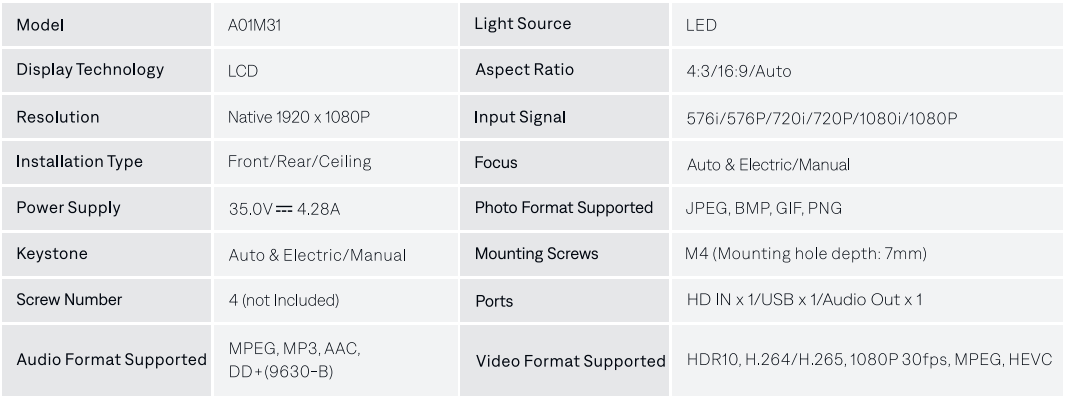

Specifcation

Statement

Google TV is the name of this device’s software experience and a trademark of Google LLC. Google, YouTube, Google Home, Google Cast, and other marks are trademarks of Google LLC.

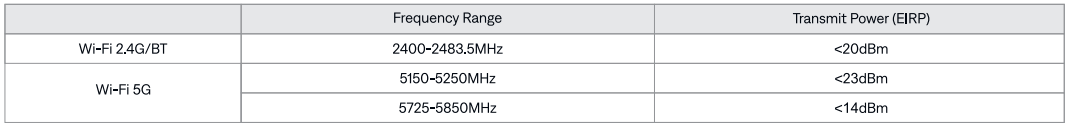

• The radio frequency specification below only applies to the EU and UK regions:

All products bearing this symbol are waste electrical and electronic equipment (WEEE, as in Directive 2012/19/EU), which should not be mixed with unsorted household waste. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health.

FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

Troubleshooting

1. The copyrighted content from Hulu, Netflix, and similar services cannot be mirrored or cast.
   • This projector offers a range of officially licensed streaming apps. You can go to the homepage > Apps, search for the app, download it, and log in to your account to play the content. For casting, refer to the ‘GOOGLE CAST’ section.
2. Fuzzy Image
   • Adjust the focus of the projector.
   • Make sure the projection distance is in the effective focal range of the projector.
   • Remove the dust or dirt from the lens with a soft cloth or soft-bristled brush.
3. Non-rectangular Image
   • Place the projector perpendicular to the screen/wall if the keystone correction function is not used.
   • Use the keystone correction function to adjust the image shape.
4. Automatic keystone correction failure
   • Make sure the adjustment sensor on the front of the projector is not blocked or smudged.
   • The projector supports +30° vertical and +15° horizontal keystone correction. Do not tilt the projector too much.
5. Autofocus failure
   • Make sure the adjustment sensor on the front of the projector is not blocked or smudged.
   • Move the projector back and forth until it is in the recommended projection distance.
6. Remote control unresponsive
   • Make sure the batteries are installed correctly and not drained.
   • Remove any obstructions between your projector and remote control.
   • Ensure the remote control is successfully paired with the projector via BT.

Customer Support

• North America/UK: support@aurzen.com
• Europe: support.eu@aurzen.com
• E 4: support.jp@aurzen.com
• Phone: +1-667-218-4830
