Black & Decker CM1231SC 12 CUP CoffeeMaker User Guide

Black & Decker CM1231SC 12 CUP CoffeeMaker

Safety instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. DO NOT leave unattended with children or pets.
2. KEEP this appliance and cord away from children.
3. Close supervision is necessary when any appliance is used by or near children.
4. ALWAYS place the appliance on a flat, heat-resistant surface.
5. DO NOT place on or near a hot gas or electric burner or in a heated oven.
6. DO NOT operate the appliance in an enclosed space or under hanging cabinets.
7. DO NOT let the cord hang over the edge of the table or counter or touch hot surfaces.
8. DO NOT use this appliance for anything other than its intended use.
9. NEVER use an outlet below the counter. DO NOT use the appliance outdoors.
10. UNPLUG the appliance from the outlet when not in use and before cleaning.
11. Allow the appliance to cool before attaching or removing parts.
12. Do not reach into the liquid if the appliance is plugged in and immersed.
13. Do not immerse or rinse cords or plugs in water or other liquids.
14. The appliance’s outer surfaces may become hot during use.
15. Wear oven mitts when handling hot surfaces and components.
16. When cooking, DO NOT place the appliance against a wall or other appliances.
17. Leave at least 5 inches of free space on the top, back, and sides, and above the appliance.
18. If you are unsure, place a trivet or hot pad under the appliance before using it.
19. This appliance is intended for normal household use only.
20. It is NOT INTENDED for use in commercial or retail environments.

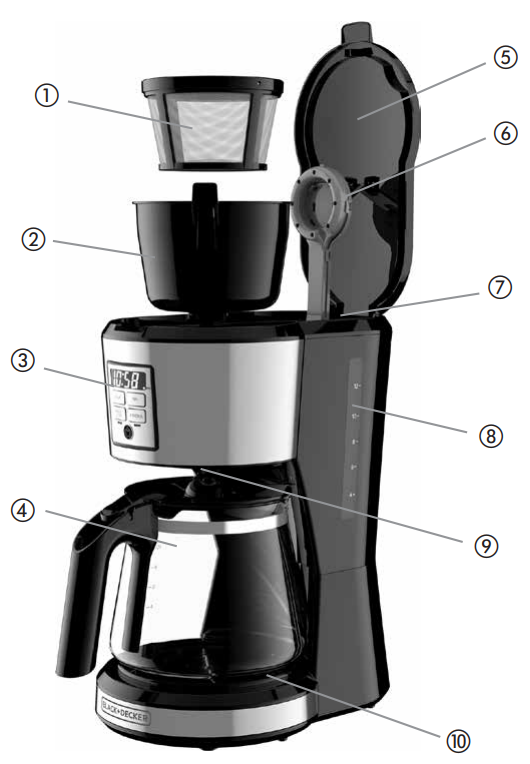

Description

1. Permanent filter (only comes with CM1231SC) (Part # CM1231-01)
2. Brew basket (Part # CM1231-02)
3. Control panel
4. Carafe with lid (Part # CM1231-03)
5. Lid
6. Vortex showerhead
7. Water reservoir
8. Water level markings
9. Sneak-A-Cup™ interrupt feature
10. Nonstick “keep hot” carafe plate
11. Built-in cord storage (not shown)

How to Use

This product is for household use only

1. Remove all packing material, any stickers, and the plastic band around the power plug.
2. Wash removable parts as instructed in CARE AND CLEANING.
3. Clean the inside of your coffeemaker by running two full brewing cycles with water only, no coffee.
4. Pour fresh, cold water into the water reservoir up to the 12-cup MAX mark, then place the carafe onto the carafe plate.
5. Plug the cord into a standard electrical outlet.
6. Push the ON/OFF ( ) button to immediately brew water through the coffeemaker without adding  coffee.
7. Once the cycle is finished, discard the water.
8. Turn off the appliance, unplug it, and allow it to cool down for 15 minutes before repeating.

Setting the Digital Clock

1. Plug the coffeemaker into a standard electrical outlet.
2. The numbers and colon “:” on the digital clock display flash “noon”.
3. Press the OUR and MIN buttons to set time: Press the HOUR button until the correct time appears on the display. The colon “:” will continue to flash even after the time is set. (A)
4. When the time passes noon, the LED light next to PM illuminates to let you know you are in PM time. If the PM light is not illuminated, it is AM time.
5. To change the time, use the HOUR and MIN buttons at any time.

Coffee Brewer

1. Open cover. Fill the water reservoir with the desired amount of water. The 12 lines on the side of the reservoir represent a full carafe of coffee. Do not fill past this 12-cup line.
2. Insert a basket-type paper filter or the permanent filter into the brew basket. Make sure the tab on the brew basket fits into its slot on the right side of the opening (B) so that the lid closes.
3. Add the desired amount of ground coffee. Close the lid, making sure it clicks.
4. Make sure the carafe lid is properly attached to the empty carafe. Close the carafe lid.
5. Place the empty carafe on the carafe plate.
6. If regular brew strength is desired, your coffeemaker is set to brew coffee.
7. Press the ON/OFF ( ) button, and brewing begins. The ( ) button illuminates while brewing.
8. Once the coffee grounds have cooled, carefully open the cover and discard the used grounds. Close cover. The coffeemaker will keep brewed coffee hot for 2 hours and then automatically turn off.

Function

If the BREW LATER function has not been previously set.

1. Press the BREW LATER button. The light below BREW LATER illuminates and flashes once per second.
2. The clock shows the last BREW LATER time programmed (if no time has been programmed, or the unit has been unplugged, BREW LATER time defaults to noon).
3. Use the HOUR and MIN buttons to set the BREW LATER time (while BREW LATER in the display is blinking). After 3 seconds with no button pressed, BREW LATER time is set.
4. The unit will begin brewing at the BREW LATER time

If the BREW LATER function is already set.

1. Press the BREW LATER button to check the BREW LATER time.
2. The clock will flash once per second and display the BREW LATER time for 3 seconds.
3. At this point, you may reset the BREW LATER setting if desired.
4. After 3 seconds, the clock reverts to the current time.
5. Press the ON/OFF ( ) button to cancel the BREW LATER function.
6. The unit begins brewing immediately.
7. If you don’t want to brew right then, press ON/OFF ( ) again, and the ON/OFF ( ) light will turn off.

Care & Cleaning

This product contains no user-serviceable parts. Refer service to qualified service personnel.

• Be sure the unit is unplugged and has cooled. Wipe surfaces with a damp cloth.
• Wash the removable parts in the top rack of the dishwasher or wash them by hand in hot water with dish detergent.
• Wipe the appliance’s exterior surface, control panel, and carafe plate with a,o ft,d amp cloth.
• Do not use abrasive cleansers or scouring pads. Never immerse the coffeemaker in water.
• To clean the inside black and decker cm1231sc of the cover, open the cover and leave it in the open position.

Auto-Clean System

De-scaling With Auto Clean

Over time, calcium deposits or “scale” may build up in your brewer. Scale is non-toxic, but if left unattended will hinder brewer performance. Regularly descaling your brewer helps to maintain quality coffee as well as the lifespan of the heating element and other internal parts that come in contact with water throughout the brew process. To make the de-scaling process as effortless as possible, an Auto Clean™ system has been programmed into your coffeemaker.

When should I use Auto Clean?

You should clean your black Decker CM1231SC coffeemaker after every 60 brews (approximately 2 months). If you would like to clean your coffeemaker prior to 60 brew cycles because of hard water, you may do so.

How do I use Auto Clean?

1. Combine 6 cups of white vinegar and 4 cups of cold water in a carafe.
2. Pour into the water reservoir.
3. Press and hold the On/Off button for 3 seconds
4. On/Off Button LED illuminates (no blinking)
5. “CL” appears in the display, blinking once per second, and the AutoClean cycle begins.

During the Auto-Clean Cycle Function.

1. The machine will brew approximately 5 cups of cleaning solution
2. Part of the mixture will brew through.
3. When the coffeemaker completes the AUTO CLEAN cycle, it shuts off automatically.

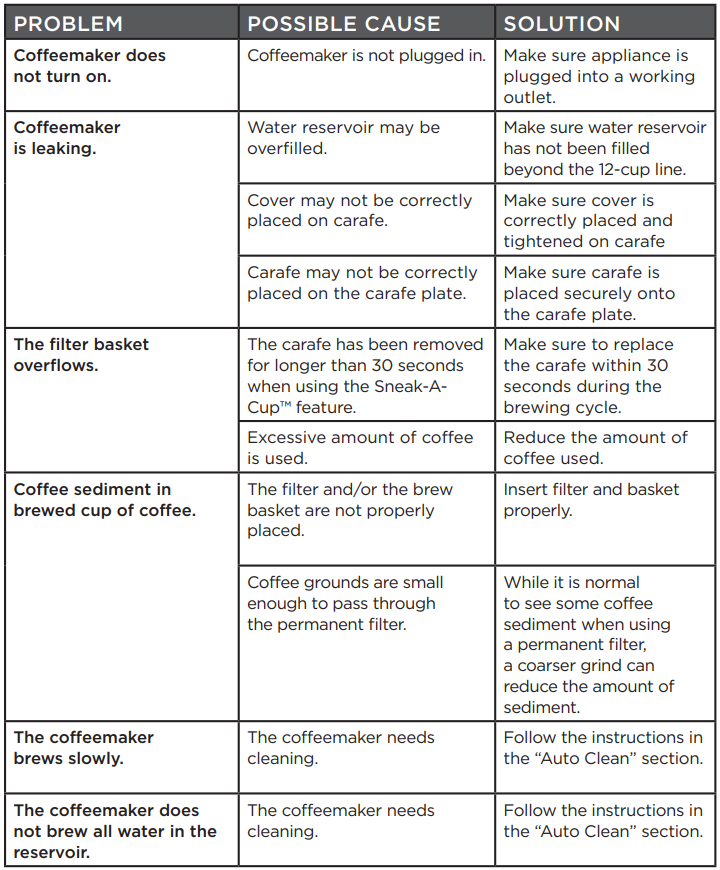

Troubleshooting

One-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

• Any defect in material or Black And Decker RC3303 3-Cup Rice Cooker workmanship provided; however, Applica’s liability will not exceed the purchase price of the product.

For how long?

• One year after the date of original purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of the date of sale.

What does your warranty not cover?

• Damage from commercial use
• Products used or serviced outside the country of purchase
• Shipping and handling costs associated with the replacement of the unit

How does state law relate to this warranty?

• This warranty gives you specific legal rights, and you may also have other rights that vary from state to
  state or province to province.

Customer Service

• Website: https://support.blackanddecker.com/
• Timings: Monday–Friday, 8:00 a.m. – 5:00 p.m.
• Ph: +1-800-544-6986

FAQs

Q: What is the Black & Decker CM1231SC 12-Cup Coffee Maker?

It has a sneak-a-cupTM feature, a programmable timer, and QuickTouchTM digital controls that are all intended to provide hot, fresh coffee precisely and conveniently.

Q: Can I make less than 12 cups of coffee?

Indeed! To measure the precise amount you wish to brew, use the water marks on the carafe.

Q: What is the Sneak-A-Cup™ feature?

Just take out the carafe, and the drip will cease on its own. To prevent overflow, swap out the carafe within 30 seconds.

Q: How long does it take to brew a full pot?

Depending on the size of the coffee grinds and the water temperature, a 12-cup cycle usually takes 10 to 12 minutes.

Q: What type of coffee should I use?

For optimal effects, use drip coffee with a medium grind. Steer clear of coarse or finely ground espresso coffee, as they could interfere with the brewing process or result in overflow.

Q: Does the CM1231SC have an automatic shut-off feature?

Indeed. After two hours, the warming plate automatically turns off for energy conservation and safety.

Q: How do I keep the coffee hot after brewing?

Coffee may stay warm on the nonstick warming plate for up to two hours. For safety, the machine will thereafter turn off on its own.
